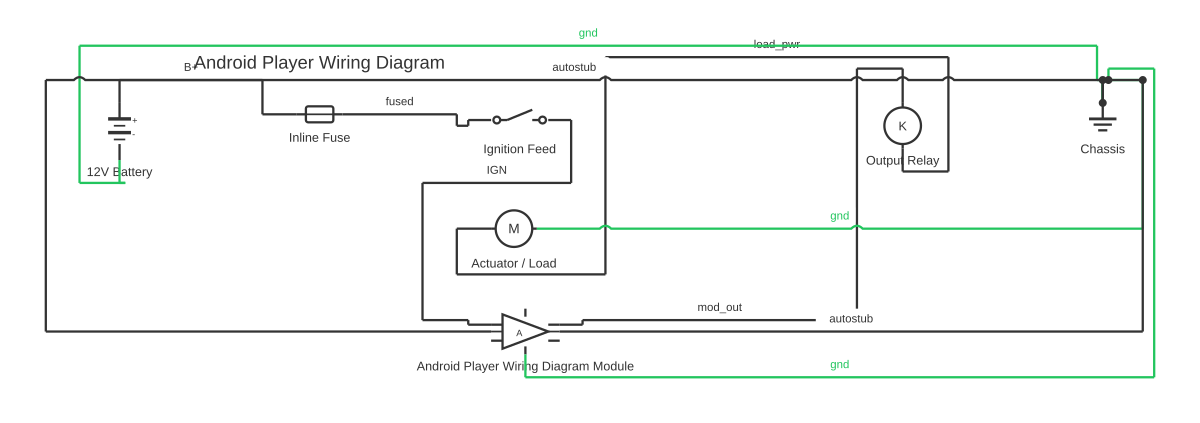

Android Car Player Wiring Diagram

Android Car Player Wiring Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable android player wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

Connect an aftermarket Android car head unit using the standard ISO 10487 wiring harness, understanding the connector block layout, power, speaker, and accessory connections.

An aftermarket Android car media player (head unit) connects to the vehicle's existing wiring via a standardised harness system. The most widely used standard is ISO 10487, which defines two plastic connector blocks — typically called Block A (or ISO A) for power, ignition, illumination, and earth, and Block B (or ISO B) for speaker outputs — that plug into a matching vehicle-side harness adapter. This allows the new head unit to be installed without cutting the vehicle's original wiring, provided the correct vehicle-specific ISO adapter harness is used.

Block A (typically grey or brown in colour) carries: constant battery positive (usually yellow, pin A4), ignition-switched positive (usually red, pin A7), earth/ground (usually black, pin A1), illumination positive (usually orange, pin A5), and in some implementations, a reversing camera trigger or antenna motor output. The constant battery positive maintains the head unit's clock, memory presets, and settings when the ignition is off. The ignition-switched positive wakes the unit up when the key is turned on.

Block B (typically black) carries the speaker outputs: front left positive and negative, front right positive and negative, rear left positive and negative, and rear right positive and negative — giving eight speaker wires in total for a standard 4-channel output. Speaker output wires are not referenced to chassis ground in a conventional amplifier output — they are floating differential outputs. Connecting speaker negative wires to chassis ground damages the head unit.

Android head units often have additional connections beyond the ISO blocks: an external GPS antenna connector (SMA or MCX type), a microphone input (for Bluetooth hands-free), a USB port (for Android Auto, CarPlay, or data), a camera input (RCA or custom connector for reversing camera), a video output or screen connection (for units with a separate display), and a CAN bus interface (for steering wheel control integration).

The specific wire colours and functions on the vehicle-side harness depend entirely on the vehicle manufacturer and model. The head unit side of the ISO connector follows the ISO 10487 standard, but a vehicle-specific adapter harness is always required to match the vehicle's OEM connector to the standard ISO block.

How to wire android player wiring diagram

Disconnect the vehicle battery negative terminal Before any head unit installation work, disconnect the battery negative terminal. This prevents short circuits, protects the vehicle's airbag control module from spurious signals, and avoids tripping the battery management system. Wait at least 60 seconds after disconnection before starting work.
Remove the original head unit and disconnect the OEM harness Use the appropriate radio removal tools (typically flat pry tools or specific DIN removal keys depending on the vehicle). Remove the trim panels as required. Withdraw the head unit from the DIN cage and unplug the OEM wiring harness connectors and antenna lead from the back of the unit.
Install the vehicle-specific ISO adapter harness Plug the vehicle-specific adapter harness into the vehicle's OEM wiring connectors. The adapter harness terminates in ISO A and ISO B blocks on the other end, which will connect to the new Android head unit. Some adapter harnesses also include a Canbus interface module for steering wheel control integration — connect this as per its own instructions.
Connect Block A (power and ancillaries) Plug ISO Block A from the adapter harness into the corresponding Block A connector on the Android head unit (or its own harness pigtail). Verify that the yellow wire (constant battery positive), red wire (ignition switched positive), black wire (earth), and orange wire (illumination) are correctly mapped through the adapter. If in doubt, verify with a multimeter before connecting.
Connect Block B (speaker outputs) Plug ISO Block B into the head unit's speaker output block. Ensure all eight speaker wires (front/rear, left/right, positive/negative) are correctly connected through the adapter. Do not connect any speaker negative wire to chassis earth — these are floating differential outputs.
Connect additional function wires Connect the GPS antenna to the head unit's antenna input (typically SMA connector). Connect the microphone to the Bluetooth microphone input and mount the microphone above the steering column for best voice pickup. Connect the reversing camera (if fitted) to the camera input. Connect the steering wheel control module (if used) to the CAN bus or analogue interface as specified.
Reconnect battery and test all functions Reconnect the battery negative terminal. Power on the head unit and systematically test: all speaker channels (play audio and check front/rear and left/right independently), Bluetooth audio and calls, GPS navigation fix, reversing camera (if fitted), and steering wheel controls (if fitted). Correct any faults before completing the trim reassembly.

Specifications

Connector standard (aftermarket head units)	ISO 10487 Block A (power/ancillary) and Block B (speaker outputs)
Constant battery positive (Block A)	Yellow wire — permanently live from battery
Ignition switched positive (Block A)	Red wire — live in ACC or IGN position only
Earth (Block A)	Black wire — chassis ground
Illumination (Block A)	Orange wire — connected to vehicle instrument lighting circuit
Amplifier remote / antenna motor (Block A)	Blue or blue/white wire — 12V output when head unit active
Speaker outputs (Block B)	8 wires: Front Left +/−, Front Right +/−, Rear Left +/−, Rear Right +/−
Speaker output impedance (typical)	4 Ω nominal (connect 4 Ω speakers; verify head unit specification)

Safety warnings

Always disconnect the vehicle battery negative terminal before starting head unit installation. Modern vehicles have sensitive electronic control modules (ECUs, airbag controllers, body control modules) that can be damaged or triggered by electrical disturbances during installation. Some vehicles require a relearn procedure after battery reconnection.
Do not connect speaker negative wires to chassis earth. Android head unit amplifier outputs are floating differential (bridge-tied load) outputs. Grounding either speaker terminal puts a direct short on the amplifier output, causing immediate and permanent damage to the head unit's internal amplifier circuits.
The constant battery positive (yellow wire) is live at all times. Ensure this wire is insulated and protected before reconnecting the battery. A bare constant positive wire shorting to chassis can drain the battery or start a fire.
Head unit installation that involves connecting to or modifying the vehicle's CAN bus, airbag wiring, or body control module circuits should be carried out by a qualified auto-electrician. Incorrect CAN bus connections can disable safety systems including ABS and airbags.
This wiring guide describes generic ISO 10487 standard connections for illustrative reference only. No specific model pinouts are described. Always verify connections using the specific wiring documentation supplied with the head unit and the vehicle-specific harness adapter.

Tools needed

DIN radio removal tools or pry tools (specific to vehicle)
Multimeter (DC voltage, continuity)
Wire strippers and crimping tool
Electrical tape and heat-shrink tubing
Trim removal tools (plastic pry bars) for dashboard panels
Screwdrivers (Phillips and flat)
Cable ties for harness management

Common mistakes

Connecting the constant battery positive (yellow) to ignition switched positive: This causes the head unit to lose all settings and presets every time the ignition is switched off, because the memory supply is not maintained. The yellow wire must go to a permanently live (constant) supply.
Grounding speaker negative wires to chassis: This is extremely common and immediately damages the head unit. The head unit's amplifier outputs are bridge-tied (BTL) — both the positive and negative speaker terminals are driven outputs, not ground-referenced. Any ground connection on a speaker terminal causes damage.
Skipping the vehicle-specific harness adapter and cutting the OEM wiring: Cutting the vehicle's factory wiring loom reduces resale value, makes reverting to the original head unit impossible without rewiring, and often introduces connection quality issues. Use a plug-in adapter harness.
Poor antenna cable routing causing GPS signal loss: Routing the GPS antenna cable near the head unit power supply or through areas with high electrical noise degrades GPS signal quality. Route antenna cables away from power conductors and ensure the antenna has clear sky view through the windscreen or roof.
Not testing all functions before completing dashboard trim reassembly: Reassembling trim panels before testing means having to disassemble again to correct any fault. Always test every function systematically before the final installation step.

Troubleshooting

Head unit powers on but switches off after a few seconds: Cause: The constant battery positive (yellow) and ignition positive (red) are reversed — unit powers from ignition but has no memory keep-alive, or ignition positive is connected to the constant terminal and constant is unconnected Fix: Verify that the yellow wire has permanent 12V (present with key removed). Verify that the red wire has 12V only with ignition on. Correct the connections accordingly.
No audio from speakers despite volume up: Cause: Speaker wires not connected, speaker negative wires grounded (damaging the amp), wrong channels selected in head unit audio settings, or head unit's audio output muted via external amp enable wire not connected Fix: Check that all ISO Block B speaker wires are connected through the adapter harness. Verify that no speaker negative wire is connected to chassis ground. Check head unit audio output settings. If an external amplifier is used, ensure the blue remote wire (amp enable) is connected to the amplifier's remote input.
GPS does not acquire a fix or takes very long to fix: Cause: GPS antenna cable incorrectly routed near interference sources, antenna positioned under a metallic dashboard element blocking sky view, or antenna connector not fully seated Fix: Check that the GPS antenna has a clear path to the sky — preferably adhesive-mounted to the windscreen or magnetically mounted on the roof. Ensure the antenna cable connectors are fully seated. Test antenna with the vehicle parked outdoors in open sky.

Frequently asked questions

What is the difference between the constant 12V (yellow) and the ignition 12V (red) on an Android head unit?

The constant 12V (yellow) is connected directly to the battery and remains live at all times. It powers the head unit's memory, clock, and settings storage when the ignition is off. The ignition 12V (red) is connected to a switched supply that is only live when the ignition is in the ACC or ON position — this is what switches the head unit on and off with the ignition key.

Do I need a vehicle-specific harness adapter for an Android head unit?

Yes, in most modern vehicles. The vehicle's original head unit connects via a manufacturer-specific multi-pin connector that is not compatible with the ISO 10487 standard blocks used by aftermarket head units. A vehicle-specific adapter harness plugs into the car's existing connector on one end and provides ISO A and B blocks on the other, allowing connection without cutting the vehicle's original wiring.

Why is my Android head unit's sound distorted after installation?

The most common cause is a speaker negative wire connected to chassis ground. Aftermarket head unit speaker outputs are floating differential — connecting the negative side to ground creates a partial short circuit across the amplifier output. Verify that all speaker negative wires connect only to the head unit's corresponding negative terminals, never to chassis earth.

What does the blue antenna or amplifier remote wire do?

The blue wire (or blue with white stripe) is a 12V output that becomes active when the head unit is powered on. Its purpose is to switch on an external amplifier's remote turn-on input, or to trigger a power antenna motor. If neither an external amp nor a power antenna is fitted, this wire can be left unconnected or insulated.

How do I connect the reversing camera to an Android head unit?

Most Android head units have a dedicated camera input — either an RCA video input or a specific camera connector. The camera feed switches automatically when the reverse gear is engaged by connecting the head unit's reverse trigger wire (usually a purple or white wire in the harness, not part of the ISO standard) to the vehicle's reversing lamp positive circuit. When +12V appears on this wire, the head unit switches to camera view.
