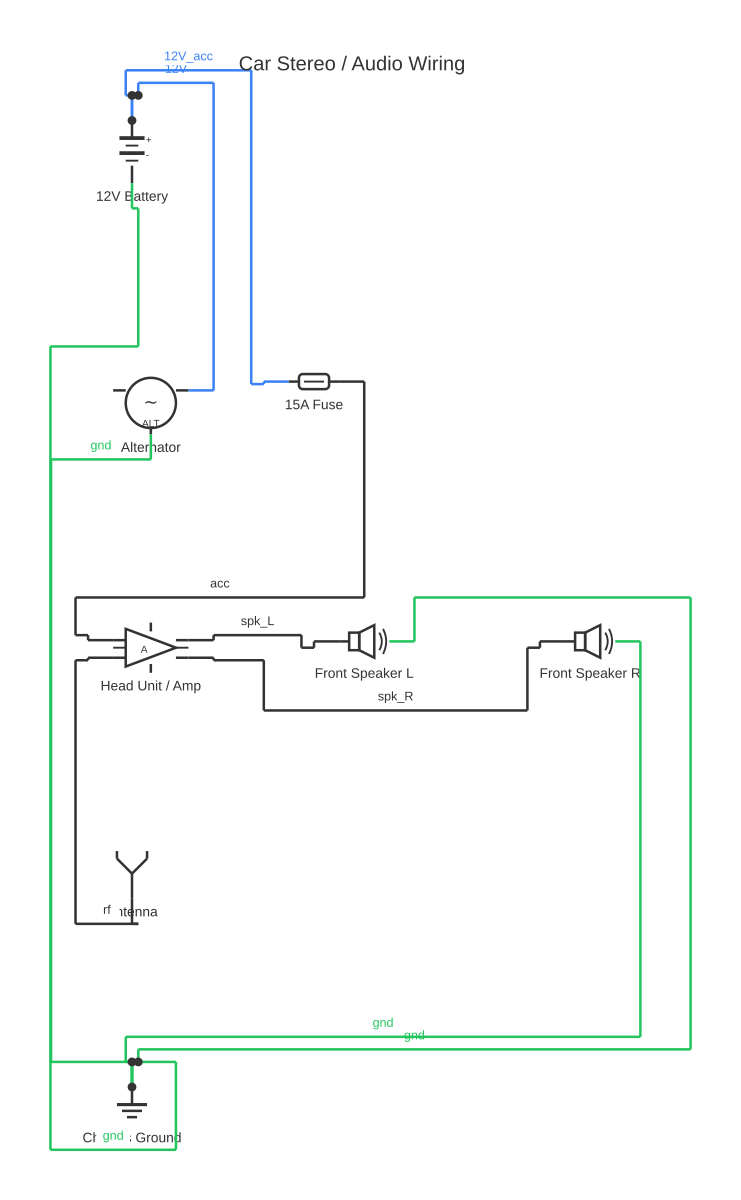

Chinese Android Car Stereo Wiring Diagram — circuit diagram showing component connections+-12V Battery~ALTAlternator15A FuseAHead Unit / AmpFront Speaker LFront Speaker RAntennaChassis GroundCar Stereo / Audio Wiring
chinese android car stereo wiring diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable chinese android car stereo wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

A chinese android car stereo wiring diagram configuration establishes reliable control over complex electrical systems through strategic use of contactors and distributed protection. The circuit topology separates control signals from power paths, allowing low-voltage logic to manage high-power loads safely. Protective devices are rated and coordinated to ensure selective tripping during fault conditions, preventing cascade failures across unaffected branches. Component tolerance analysis ensures predictable operation across manufacturing variations and environmental temperature ranges. The ground distribution uses star topology to minimize return-path impedance and reduce voltage distortion.

How to wire chinese android car stereo wiring diagram

  1. Download the wiring diagram for your specific unit model from the seller or manufacturer website before installation. Chinese head unit wire colours are not standardised across all manufacturers. Using a generic diagram from another brand is how installers make errors that damage both the unit and vehicle wiring.
  2. Connect the vehicle-specific ISO adapter to your factory wiring plug and identify all wires: constant 12V (yellow), switched ACC (red), earth (black), and illumination (orange). The constant 12V keeps memory settings alive. The switched ACC (ignition) turns the unit on. Mixing these two causes the unit to power on even with the ignition off and will flatten your battery overnight.
  3. Route the reverse trigger wire (violet/white) to the positive wire of your vehicle's reverse light. Access the reverse light wiring from the boot or under the parcel shelf. When reverse gear engages, this wire goes live and switches the head unit to camera view automatically.
  4. Connect the canbus adapter module between the factory steering wheel control wires and the head unit SWC input wire. Programme the adapter following its instructions — typically press each steering wheel button in sequence with the adapter in learning mode. Without this step the buttons either do not work or trigger the wrong functions.
  5. Mount the GPS antenna on the dashboard centre with cable routed neatly behind the A-pillar trim — no metallic window tint above the antenna. GPS signals are blocked by metallic-coated window tint. If your vehicle has factory privacy glass or aftermarket metallic tint, position the antenna as close to the windscreen base as possible for best sky view.
  6. Boot the unit and connect to Wi-Fi to update the Android OS and all pre-installed applications before vehicle test. Chinese Android units often ship with outdated firmware. Many random reboot and camera issues are resolved by an OTA firmware update before the unit sees regular use.
  7. Test all functions in sequence — FM radio, Bluetooth, GPS navigation, reverse camera, and steering wheel controls — before fitting the dashboard trim panel. Every function must be verified before the dash is buttoned up. The trim panel is quick to remove when the unit is sitting loose in the dash; much harder once all clips are seated and the bezel is screwed in.

Frequently asked questions

The Chinese Android head unit I bought has wires with no labels. How do I identify them?

Request a wiring diagram PDF from the seller — most have them on AliExpress listings or can email them. If unavailable, probe each wire with a multimeter against a generic Chinese head unit wiring colour standard: red = ACC, yellow = battery, black = earth, blue = remote.

My Chinese Android stereo reboots randomly. What is the most likely cause?

Random reboots almost always indicate a poor ignition supply (ACC) wire connection or insufficient current capacity on the supply. These units draw 5–8A on startup. Check the ISO harness connection is firmly seated and the fuse rating on the ACC line is adequate.

The GPS on my Chinese Android head unit is slow to acquire a signal. How do I improve it?

Position the GPS antenna on the dashboard with a clear view of the sky, not hidden under the dash or behind metallic window tinting. Upgrading to a higher-gain external antenna (28dBi) significantly reduces acquisition time versus the basic supplied unit.

Can I retain my factory steering wheel controls with a Chinese Android head unit?

Yes, but you need a canbus or steering wheel control adapter module specific to your vehicle. These are available for most SA-market vehicles. The module reads your factory control signals and outputs a format the Android unit understands via the SWC input wire.

My Chinese head unit shows a black screen on the reverse camera. What should I check?

Confirm the violet/white reverse trigger wire is connected to the reverse light positive in your vehicle. Also check the camera is powered (many are 12V supply from the reverse light). Test the RCA cable — a faulty RCA is a more common fault than a bad camera.
