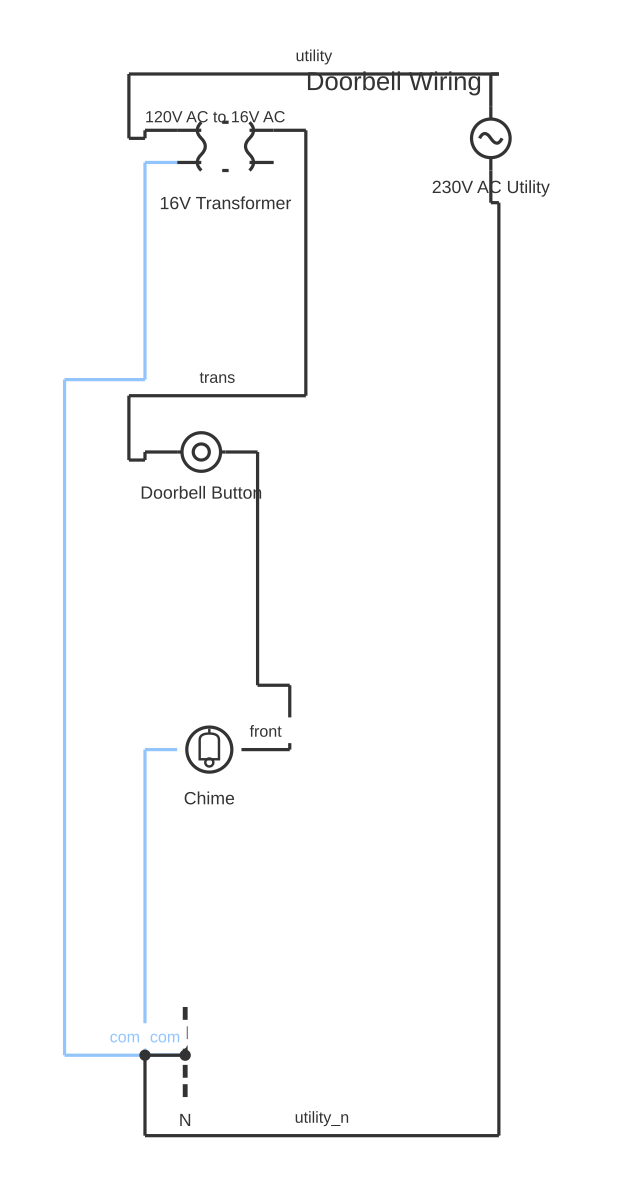

bell wiring diagram
This is a free printable bell wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
Understanding the bell wiring diagram requires expertise in power system analysis, control logic, and protective device coordination. The circuit implements cascading control where master contactors enable subsystem activation in predefined sequence. Soft-start circuits limit inrush current during load energization, protecting windings and reducing utility demand charges. The fusing strategy uses current-limiting fuses to minimize downstream damage during high-fault-current events. Three-phase motor analysis includes star-delta relationships and phase-balance verification.
How to wire bell wiring diagram
- Have a registered electrician connect the doorbell transformer primary to a 230V supply in the distribution board or from a nearby socket circuit. The primary connection is mains voltage — this is notifiable work under SANS 10142 in South Africa. The secondary low-voltage wiring is yours to do.
- Run 2-core bell wire from the transformer secondary terminals to the chime unit location. Route through wall cavities or along skirting boards under cable clips. Avoid running alongside mains wiring — interference from 230V cables can cause the chime to activate falsely.
- Connect one transformer secondary wire to the chime TRANS terminal and the other to the FRONT terminal on the chime unit. The chime unit completes the circuit internally when the button is pressed. The bell wire runs from the FRONT terminal out to the push button and loops back to the transformer secondary.
- Run bell wire from the chime FRONT terminal to the doorbell push button location. Surface-run with cable clips is the neatest finish on brick walls. Keep staples loose — an over-driven staple through the cable is the most common cause of intermittent door bell faults.
- Connect the two bell wire cores to the push button terminals — polarity does not matter on AC bell circuits. The push button is simply a normally open switch. Tighten terminals firmly — a loose terminal under the outdoor button cap corrodes and fails within a year.
- Test the circuit before fitting the push button cover by briefly touching the two button wires together. The chime should sound clearly. If it does not, measure voltage across the transformer secondary terminals — you should see 12V AC. No voltage means the transformer has no mains supply.
- Fit the push button cover and test full operation. Apply silicone sealant around the button body perimeter if exposed to direct rain. Water ingress behind the push button face-plate is the number one cause of premature button failure in South African summer conditions.
Frequently asked questions
Why does my doorbell ring continuously without the button being pressed?
A doorbell that rings continuously has a short circuit somewhere in the low-voltage wiring — often at a poorly terminated junction or where the bell wire chafes against a staple that has been driven too tightly into the wall.
My doorbell stopped working. What is the most likely cause?
Most doorbell failures are caused by a failed push button, not the chime or transformer. The push button lives outdoors exposed to weather and fails first. Test by momentarily shorting the two button terminals — if the chime sounds, replace the button.
Can I replace an existing doorbell with a smart video doorbell without changing the wiring?
Usually yes, provided your transformer output is within the smart bell's input range — most require 16–24V AC at 10–40VA. An old 8V or 12V transformer may need replacement. Always check the smart doorbell's specification before purchasing.
Does a doorbell circuit need to be installed by a qualified electrician in South Africa?
The 230V transformer primary connection must be done by a registered electrician under SANS 10142. The low-voltage secondary circuit (bell wire, button, and chime) can be installed by a competent person, but the CoC covers the complete installation.
How long can the bell wire run be between the transformer and the doorbell chime?
With 0.5mm² bell wire at 12V AC, runs up to 50m are practical before voltage drop affects chime volume. For longer runs or multiple buttons, use 1mm² wire or increase the transformer output voltage within the chime unit's rated range.
