A full wave rectifier converts alternating current (AC) into pulsating direct current (DC) by utilising both the positive and negative half-cycles of the AC input, unlike a half wave rectifier which uses only one half-cycle. Two principal circuit configurations achieve full wave rectification.

The centre-tap full wave rectifier uses two diodes and a centre-tapped transformer secondary winding. The centre tap forms the DC negative output reference (0 V). Diode D1 conducts during the positive half-cycle (when the top of the transformer winding is positive relative to the centre tap), and diode D2 conducts during the negative half-cycle (when the bottom is positive relative to the centre tap). Each diode sees a peak inverse voltage (PIV) equal to twice the peak secondary voltage, a key diode selection parameter. The peak output voltage equals the peak voltage of one secondary half-winding minus the diode forward voltage drop (V_f ≈ 0.7 V for silicon).

The bridge rectifier uses four diodes arranged in a diamond (bridge) configuration and does not require a centre-tapped transformer. During the positive AC half-cycle, diodes D1 and D2 conduct. During the negative half-cycle, diodes D3 and D4 conduct. The output is always positive at the positive rail relative to the negative rail. Bridge rectifiers are more common in practice due to their elimination of the centre-tapped transformer. The PIV each diode must withstand is equal to only the peak secondary voltage (half that required in the centre-tap configuration). The output peak voltage is the transformer secondary peak minus two diode forward voltage drops (2 × 0.7 V = 1.4 V).

For both configurations, the output ripple frequency is twice the input AC frequency. At 50 Hz mains input, the rectified output contains 100 Hz ripple. At 60 Hz, ripple is 120 Hz. This is a key characteristic that distinguishes full wave from half wave rectification (which produces ripple at the mains frequency).

A smoothing capacitor (filter capacitor) placed across the DC output reduces the ripple. The required capacitance is C = I_load / (2 × f × V_ripple), where I_load is the DC load current, f is the mains frequency, and V_ripple is the acceptable peak-to-peak ripple voltage. Larger capacitance produces lower ripple. For a well-regulated supply, a voltage regulator IC follows the filter capacitor.

How to wire circuit diagram of full wave rectifier

Determine the required DC output voltage and current Establish the required regulated DC output voltage (after any voltage regulator) and maximum load current. Account for the voltage regulator's minimum dropout voltage. If using an LM7812 voltage regulator (12 V output, ~2 V dropout), the rectifier output must be at least 14 V under full load conditions.
Calculate the required transformer secondary voltage Work backwards from the required DC output. Required peak secondary voltage = V_DC_out + dropout + ripple_margin + 2×V_f (bridge) or 1×V_f (centre-tap). Convert peak to RMS: V_RMS = V_peak / √2. Select a transformer with a secondary voltage at or above this value.
Select rectifier diodes Choose diodes with an average forward current rating greater than the maximum load current. For a bridge rectifier, PIV rating must exceed the transformer peak secondary voltage with a safety margin (typically 2×). For 50 Hz, 12 V RMS secondary: peak = 16.97 V; select diodes with PIV ≥ 35 V. General-purpose silicon diodes (e.g. 1N4001 series, rated 1 A / 50 V to 1000 V) are suitable for most low-current designs.
Calculate and select the filter capacitor Apply C = I_load / (2 × f × V_ripple). For 500 mA load at 50 Hz with 1 V ripple: C = 0.5 / (100 × 1) = 5000 µF. Use the nearest standard electrolytic capacitor value equal to or above the calculated value. The capacitor voltage rating must exceed the peak rectifier output voltage with a safety margin—typically 1.5–2 × the calculated peak.

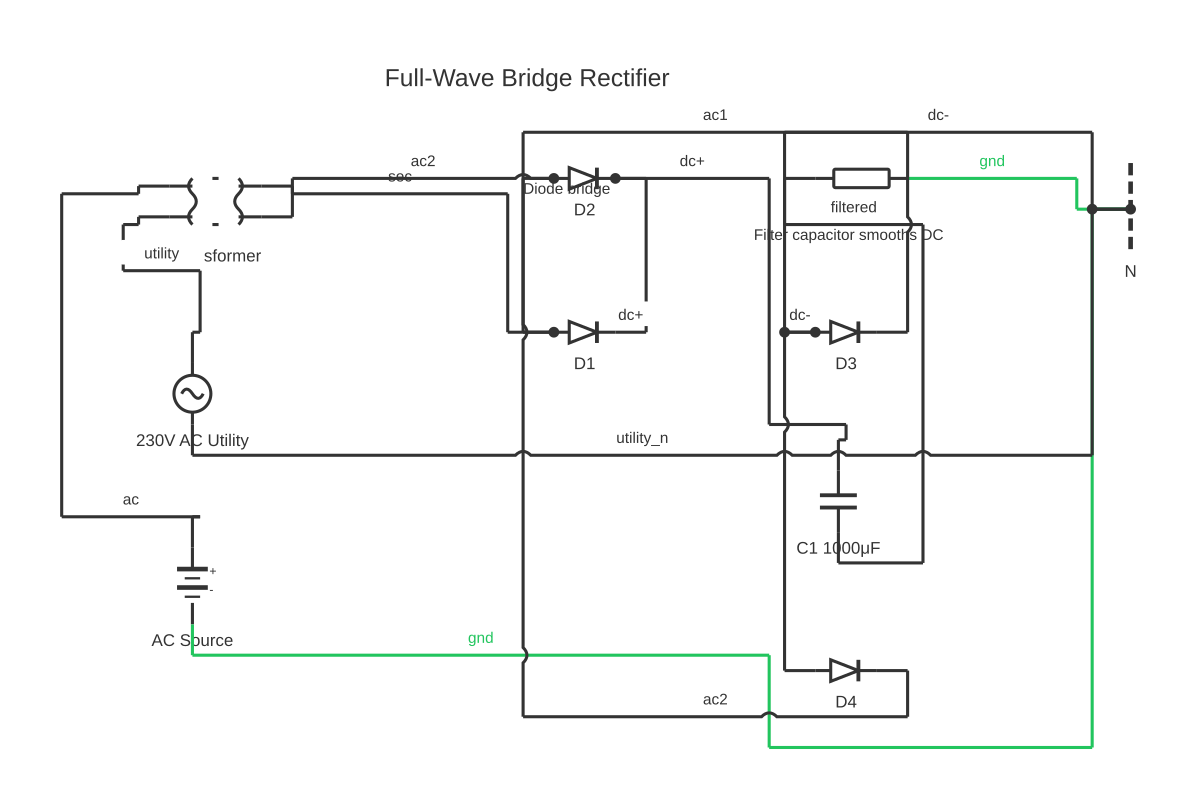

Assemble the bridge circuit For a bridge rectifier: connect the four diodes in a diamond. The two AC input nodes connect to the junction of two diode pairs (the anodes of one pair and cathodes of the other). The positive DC output comes from the junction of the two cathodes. The negative DC output comes from the junction of the two anodes. Connect the filter capacitor across the DC output, observing polarity (positive terminal to positive rail).
Test output voltage and ripple Apply AC input. Measure DC output voltage with a multimeter under no-load and full-load conditions. Use an oscilloscope to measure ripple peak-to-peak voltage. Compare to design targets. If ripple is excessive, increase capacitor value.
Add voltage regulation if required For a stable regulated output, connect a linear or switching voltage regulator after the filter capacitor. Verify that the unregulated DC input to the regulator is above the minimum input requirement at full load and maximum ripple, otherwise the regulator will drop out of regulation.

Specifications

Output ripple frequency (full wave, 50 Hz input)	100 Hz
Output ripple frequency (full wave, 60 Hz input)	120 Hz
Peak DC output voltage (bridge rectifier)	V_peak = V_secondary_RMS × √2 − 2 × V_f (approximately V_secondary_RMS × 1.414 − 1.4 V)
Peak inverse voltage (bridge, each diode)	V_peak_secondary (= V_secondary_RMS × √2)
Peak inverse voltage (centre-tap, each diode)	2 × V_peak_half_winding (= 2 × V_half_secondary_RMS × √2)
Silicon diode forward voltage drop (V_f)	Approximately 0.6–0.7 V at rated current
Filter capacitor formula	C = I_load / (2 × f × V_ripple)
Number of diodes required	4 (bridge configuration); 2 (centre-tap configuration)

Safety warnings

The transformer primary is connected to mains voltage. All mains-side wiring, primary fusing, and enclosure work must be performed by or under the supervision of a licensed electrician in compliance with applicable wiring regulations (NEC/NFPA 70, BS 7671, AS/NZS 3000, IEC 60364).
Electrolytic filter capacitors store charge that can cause painful or dangerous electric shocks even after the mains supply has been disconnected. Always discharge filter capacitors through a suitable discharge resistor before touching circuit components. Do not short-circuit capacitors directly—the instantaneous discharge current can cause burns and damage.
Electrolytic capacitors are polarity-sensitive. Connecting with reversed polarity causes gas generation inside the capacitor, which may result in the capacitor venting or rupturing violently. Always connect the capacitor positive terminal to the positive DC rail.
Select diodes with an adequate PIV rating with a safety factor. Transient voltage spikes on the mains supply can momentarily exceed the nominal secondary voltage. Diodes with insufficient PIV will fail, potentially causing secondary circuit damage.

Tools needed

Digital multimeter (AC and DC voltage, diode test)
Oscilloscope (for ripple measurement)
Regulated AC bench supply or transformer
Soldering iron and solder
Breadboard (for prototyping)
Discharge resistor (for capacitor discharge, e.g. 1 kΩ, 10 W)
Safety goggles (when working with large electrolytic capacitors)

Common mistakes

Connecting an electrolytic filter capacitor with reversed polarity, causing potential capacitor failure or rupture.
Selecting rectifier diodes with a PIV rating lower than the peak secondary voltage, leading to diode failure in reverse breakdown under normal operating conditions.
Using the same peak secondary voltage as the required regulated DC output without accounting for the voltage drops across diodes (1.4 V for bridge), filter ripple voltage, and regulator dropout voltage.
Installing an undersized filter capacitor that produces excessive ripple, causing hum or instability in audio and sensitive electronic circuits powered by the supply.
Omitting primary-side fuse protection, which could allow a transformer primary winding fault to cause overheating or fire without any overcurrent protection operating.

Troubleshooting

DC output voltage is approximately half the expected value: Cause: In a bridge rectifier, two diodes in one branch have failed open-circuit, causing the circuit to function as a half wave rectifier rather than a full wave rectifier. Output ripple frequency will also have dropped to the mains frequency. Fix: Isolate and discharge capacitors. Test each diode with a multimeter on diode-test range—a good silicon diode shows approximately 0.6–0.7 V forward drop and very high resistance in reverse. Replace any diodes that show open circuit in both directions or short circuit.
Excessive hum on output despite a large filter capacitor: Cause: The electrolytic capacitor has degraded—electrolytic capacitors lose capacitance with age and temperature cycling. Alternatively, the load current has increased beyond the original design, causing greater voltage droop during each ripple cycle. Fix: Measure capacitor value with an LCR meter or capacitance meter—significant reduction below the rated value confirms degradation. Replace the capacitor with a unit of equal or greater capacitance and same or higher voltage rating. If load has increased, recalculate required capacitance for the new load current.
Rectifier diodes run very hot: Cause: Load current exceeds the diodes' average current rating, or the diodes' package thermal resistance is too high for the ambient temperature without a heatsink. Fix: Measure load current. If it exceeds 70–80% of the diode's continuous current rating, upgrade to a higher-rated diode or add a heatsink. For stud-mounted or TO-220 package diodes, ensure thermal interface material is applied and diode is properly bolted to the heatsink.

Frequently asked questions

What is the difference between a centre-tap and a bridge full wave rectifier?

A centre-tap rectifier uses two diodes and a centre-tapped transformer, with each diode conducting on alternate half-cycles. Each diode must withstand twice the peak secondary voltage as peak inverse voltage. A bridge rectifier uses four diodes in a diamond arrangement with any transformer, each diode withstanding only the peak secondary voltage. Bridge rectifiers are more widely used as they do not require a specially wound transformer.

Why is the output ripple frequency of a full wave rectifier twice the input frequency?

Because both the positive and negative half-cycles of the AC input are converted to positive DC output pulses, there are two output pulses per complete input cycle. At 50 Hz mains, this produces 100 ripple pulses per second—100 Hz. A half wave rectifier produces only one pulse per cycle (50 Hz ripple), so a full wave rectifier is inherently easier to filter.

What is peak inverse voltage (PIV) and why does it matter?

PIV is the maximum reverse voltage a diode must withstand when it is not conducting in the rectifier circuit. If the reverse voltage exceeds the diode's rated PIV, the diode undergoes reverse breakdown and fails. In a bridge rectifier, PIV equals the peak secondary AC voltage. In a centre-tap rectifier, PIV equals twice the peak half-winding voltage. Diodes must be selected with a PIV rating greater than the circuit's maximum PIV with an appropriate safety margin.

How do I select the filter capacitor for a full wave rectifier?

Use the formula C = I_load / (2 × f × V_ripple). Determine the maximum DC load current (I_load in amperes), the AC supply frequency (f, typically 50 or 60 Hz), and the maximum acceptable peak-to-peak ripple voltage (V_ripple). The result is the minimum capacitance in farads. Practical designs typically use electrolytic capacitors and often select a value larger than the minimum to ensure adequate filtering under varying load.

What output voltage does a bridge rectifier produce from a given transformer secondary?

The peak DC output voltage equals the peak secondary AC voltage minus two diode forward voltage drops: V_DC_peak = (V_secondary_RMS × √2) – 2 × 0.7 V. After filtering with a large capacitor, the output is approximately this peak value. Under load, the actual average output is lower due to ripple voltage and transformer regulation (source impedance).
