A rectifier circuit converts alternating current (AC) into pulsating direct current (DC) using diodes, with the bridge rectifier being the most common configuration because it conducts on both halves of the AC cycle using four diodes.

Rectification is the conversion of alternating current, which reverses polarity each half-cycle, into direct current, which flows in a single direction. The simplest rectifier is the half-wave rectifier: a single diode in series with the load allows only one half of the AC cycle to pass (the half where the anode is positive relative to the cathode), blocking the other half. The DC output of a half-wave rectifier is severely pulsating with a ripple frequency equal to the input frequency (50Hz or 60Hz). Average output voltage is approximately 0.45 times the RMS input voltage after accounting for the diode forward voltage drop (typically 0.6–0.7V for silicon).

The full-wave rectifier improves on this by using a centre-tapped transformer secondary with two diodes, one connected to each half of the secondary. Both half-cycles now contribute to DC output, doubling the ripple frequency (100Hz or 120Hz) and increasing the average DC output to approximately 0.9 times the half-secondary RMS voltage. The centre tap becomes the DC negative rail.

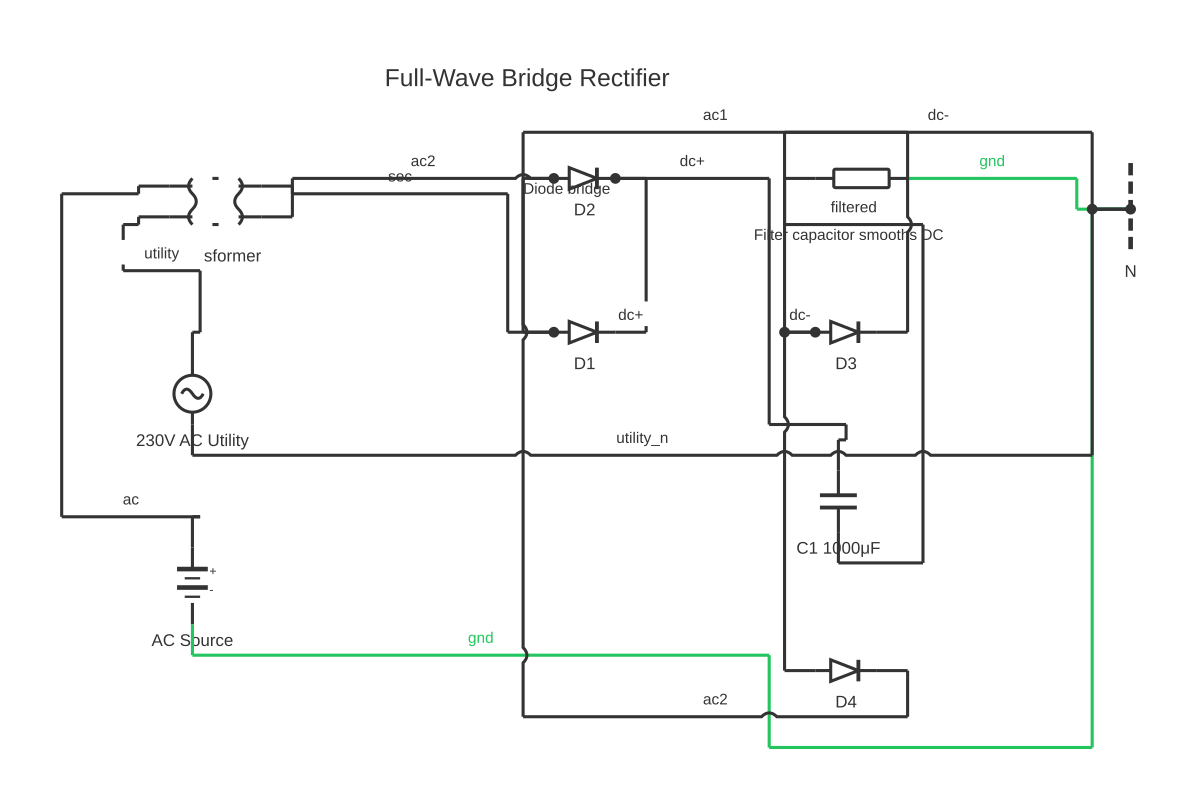

The bridge rectifier is the most widely used configuration. Four diodes are arranged in a bridge: during the positive AC half-cycle, current flows through D1, through the load, and returns through D4. During the negative half-cycle, current flows through D3, through the load (in the same direction), and returns through D2. No centre-tapped transformer is needed, and the full secondary voltage is utilised. The average DC output is approximately 0.9 times the AC RMS input minus two diode drops (both diodes conducting per half-cycle). Bridge rectifiers are available as single integrated packages (bridge rectifier modules) with four terminals: two AC input terminals (~), a DC positive output (+), and a DC negative output (-).

Both full-wave configurations produce pulsating DC. A reservoir capacitor (electrolytic, connected in parallel with the load) is added to smooth the ripple by charging to the peak voltage during conduction peaks and discharging through the load between peaks. The larger the capacitance, the lower the residual ripple voltage, but very large capacitances increase peak charging currents which can stress diodes and transformer. A linear voltage regulator (or switching regulator) downstream of the rectifier and capacitor produces a stable, low-ripple DC output.

A rectifier circuit diagram shows how AC input is converted to pulsating DC using one or more diodes. The two fundamental designs are the half-wave rectifier, which passes only one half-cycle using a single diode, and the full-wave bridge rectifier, which uses four diodes arranged in a bridge to utilise both half-cycles and produce smoother DC output. A smoothing capacitor is often added across the output to reduce ripple. Whether you need to illustrate a simple mains rectifier, a bridge configuration, or a centre-tap design with a transformer, you can build and label the circuit diagram free in the online editor.

How to wire rectifier circuit diagram

Determine the required DC output voltage and current Establish the load's required DC voltage (e.g., 12V) and maximum current (e.g., 1A). This sets the transformer secondary RMS voltage required and the diode and capacitor ratings.
Calculate the required transformer secondary voltage For a bridge rectifier with a capacitor filter, the peak DC voltage ≈ VRMS × 1.414 − 1.4V (two diode drops). To achieve 12V DC output, you need approximately (12 + 1.4) / 1.414 ≈ 9.5V RMS secondary. Select the next standard transformer secondary voltage above this, typically 9V or 12V RMS.
Select the bridge rectifier diodes Choose four diodes (or a single bridge module) with PIV rating above VRMS × 1.414, and average current rating above load current. For 12V at 1A: PIV must exceed 9.5 × 1.414 = 13.4V (select 50V or 100V rated diodes). Current rating: minimum 1A, use 3A or greater for margin.
Arrange diodes in bridge topology Connect four diodes in a bridge: the two AC input nodes connect to the junction of D1 anode/D2 cathode and to the junction of D3 anode/D4 cathode. The DC positive output is taken from the cathodes of D1 and D3. The DC negative output (ground) is taken from the anodes of D2 and D4.
Add the reservoir capacitor Connect an electrolytic capacitor in parallel with the load between DC+ and DC−. Estimate minimum capacitance using C = I_load / (2 × f × V_ripple), where f is ripple frequency (100Hz for 50Hz supply bridge). For 1A load with 1V maximum ripple: C = 1 / (2 × 100 × 1) = 4700µF minimum. Select the next standard capacitor value above this.
Add bleeder resistor and inrush protection if required A bleeder resistor across the capacitor discharges it safely when the circuit is unpowered. For high-capacitance designs, an NTC thermistor or small series resistor limits the capacitor inrush current spike at power-on to within diode and transformer surge ratings.
Add a linear voltage regulator for stable output Connect a three-terminal linear regulator (positive or negative series type) between the rectifier output and the load. The regulator requires a minimum input-to-output voltage headroom (dropout voltage, typically 1.5–3V for standard types, 0.5–1.5V for low-dropout types).

Specifications

Half-wave average DC output voltage	≈ 0.318 × Vpeak ≈ 0.45 × VRMS (minus diode drop)
Full-wave bridge average DC output voltage	≈ 0.637 × Vpeak ≈ 0.9 × VRMS (minus two diode drops)
Ripple frequency — half-wave rectifier	Equal to supply frequency (50Hz or 60Hz)
Ripple frequency — full-wave bridge rectifier	Twice supply frequency (100Hz or 120Hz)
Silicon diode forward voltage drop (typical)	0.6V – 0.7V
Schottky diode forward voltage drop (typical)	0.2V – 0.4V
Minimum capacitor voltage rating recommendation	VRMS × 1.414 × 1.2 (20% above calculated peak)

Safety warnings

Rectifier circuits connected to the mains supply involve lethal voltages. The transformer primary, mains wiring, and primary fuse must be handled by a licensed or competent electrician. Never work on the mains-connected portion of a rectifier with power applied.
Large filter capacitors can store sufficient charge to deliver a dangerous or fatal electric shock even after mains power is disconnected. Always discharge filter capacitors through a resistor and verify with a voltmeter before touching any circuit node.
The voltage rating of the filter capacitor must exceed the peak DC rail voltage (VRMS × 1.414) with an appropriate safety margin (typically 20% above calculated peak). An underrated capacitor will fail, often explosively, shortly after energisation.
Diodes and voltage regulators generate heat proportional to their power dissipation. Ensure adequate heatsinking is provided — an inadequately cooled regulator or diode will fail and potentially cause a fire in the surrounding circuit.
This diagram is for reference and educational purposes only. Mains-connected circuits must comply with IEC 60364, NEC Article 422, BS 7671, or the applicable local standard.

Tools needed

Digital multimeter (for measuring AC input voltage, rectified DC voltage, and ripple voltage)
Oscilloscope (for measuring ripple waveform and verifying rectification behaviour)
Soldering iron and solder for PCB assembly
Discharge resistor (for safely discharging filter capacitors before measurement)
Bench power supply (for initial prototyping without mains connection, to verify low-voltage circuit behaviour)

Common mistakes

Installing an electrolytic capacitor with reversed polarity — electrolytic capacitors are polarised, and reverse connection causes rapid gas venting and violent rupture. The positive lead (longer, marked +) connects to the DC positive rail.
Selecting diodes with insufficient PIV rating — during the non-conducting half-cycle, each diode must block the full peak reverse voltage across the secondary. A 1N4001 (50V PIV) is inadequate for a 35V peak rail; a 1N4007 (1000V PIV) or 1N5400-series is appropriate.
Omitting the mains fuse on the transformer primary — a shorted secondary or overloaded transformer requires a fuse to prevent fire. Never rely solely on a downstream load fuse for primary protection.
Assuming the unloaded DC output voltage is the operating voltage — the DC output under light load is close to the peak AC voltage (VRMS × 1.414), which is significantly higher than the no-load/light-load voltage calculated for full load. Capacitor and regulator ratings must account for the maximum no-load voltage.
Connecting a half-wave rectifier's output directly to a sensitive circuit without understanding the severe 50/60Hz ripple — half-wave rectifiers are adequate only for very limited applications such as battery charging through resistors.

Troubleshooting

DC output voltage is half the expected value: Cause: One or two diodes in the bridge are open-circuit (failed) or installed backwards — one pair is not conducting during one half-cycle Fix: With power off and capacitor discharged, test each diode in circuit with multimeter diode test mode. A good silicon diode shows ~0.6–0.7V forward and OL reverse. An open-circuit or shorted diode will read differently. Replace any faulty diodes and verify correct polarity orientation.
Excessive output ripple despite adequate capacitor: Cause: Filter capacitor has deteriorated (ESR — equivalent series resistance — has increased with age), or capacitor is undersized for actual load current, or a diode has failed reducing to half-wave rectification Fix: Measure capacitor ESR with an ESR meter. Measure actual load current with a clamp meter and compare to design load. Check oscilloscope waveform — 50/60Hz ripple indicates half-wave operation; replace faulty diode.
Fuse blows immediately on power-on: Cause: Shorted diode in the bridge, shorted filter capacitor, shorted load, or inrush current exceeds fuse rating at power-on Fix: Disconnect the load. Remove the filter capacitor. Test each bridge diode for short-circuit. If all test good, the fuse may be undersized for the capacitor inrush current — add an NTC inrush thermistor in series or use a time-delay fuse.
Voltage regulator output is correct but device runs hot: Cause: Excessive power dissipation in the regulator: P = (Vin − Vout) × Iload. High input-to-output differential multiplied by load current generates significant heat Fix: Attach an adequately sized heatsink to the regulator. Reduce input voltage by selecting a lower transformer secondary voltage. For high-current applications, consider switching to a switching regulator for higher efficiency.

Frequently asked questions

What is the difference between a half-wave and a full-wave bridge rectifier?

A half-wave rectifier uses one diode and conducts on only one half of the AC cycle, producing a heavily pulsating DC output at the input frequency (50 or 60Hz). A full-wave bridge rectifier uses four diodes and conducts on both half-cycles, doubling the ripple frequency to 100 or 120Hz and significantly reducing ripple amplitude for the same filter capacitor value.

Why does a bridge rectifier use four diodes rather than two?

The bridge topology routes both the positive and negative half-cycles through the load in the same direction using two pairs of diodes — D1/D4 conduct during the positive half-cycle and D2/D3 during the negative half-cycle. This eliminates the need for a centre-tapped transformer and extracts DC from the full secondary voltage rather than just half of it.

What is the ripple voltage and why does it matter?

Ripple voltage is the residual AC variation superimposed on the rectified DC output. High ripple causes hum in audio circuits, instability in microcontroller supply rails, and reduced efficiency in regulated supplies. A reservoir (filter) capacitor in parallel with the load reduces ripple; increasing capacitance or using a linear regulator reduces it further.

How do I select a diode for a bridge rectifier?

Key parameters are: peak inverse voltage (PIV) rating must exceed the peak AC voltage (RMS × √2 ≈ RMS × 1.414); average rectified current rating must exceed the continuous load current; surge current rating must handle the charging current spike when the filter capacitor is first energised. A practical rule is to select diodes rated at twice the peak voltage and twice the expected current as a safety margin.

What is a Schottky diode and when should I use it in a rectifier?

A Schottky diode has a lower forward voltage drop (typically 0.2–0.4V) compared to a standard silicon diode (0.6–0.7V), reducing power dissipation and improving efficiency, especially at higher frequencies. Schottky diodes are preferred in switching power supply rectifiers and battery charging circuits where the two diode drops per cycle in a bridge circuit represent a significant efficiency loss.

What does a circuit diagram of a half-wave rectifier look like?

A half-wave rectifier circuit consists of an AC source, a single diode connected in series with the load resistor, and (optionally) a filter capacitor in parallel with the load. During the positive half-cycle, the diode is forward-biased and current flows through the load; during the negative half-cycle the diode blocks, so output is zero. The result is a pulsating DC waveform at the same frequency as the supply, with an average output voltage of roughly 0.318 × Vpeak (ignoring the diode forward-voltage drop of ~0.7 V for silicon).
