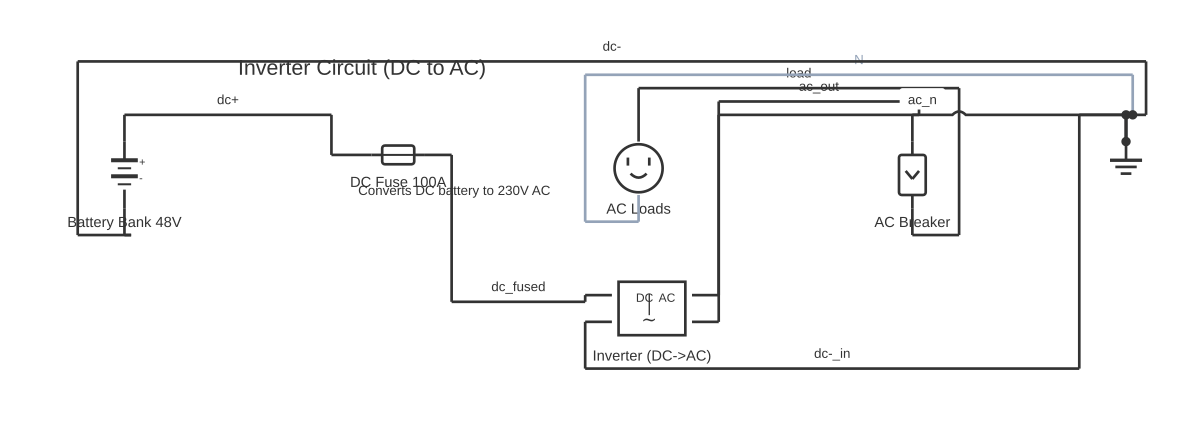

Circuit Diagram of Inverter

Circuit Diagram of Inverter — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable circuit diagram of inverter: download the diagram as SVG or open it and print to paper or PDF.

A technical reference for inverter circuit diagrams, covering DC-to-AC conversion topologies including square wave, modified sine, and pure sine wave inverters.

An inverter is an electronic circuit that converts direct current (DC) input — from a battery, solar panel array, or DC power supply — into alternating current (AC) output suitable for powering AC appliances and grid-connected loads. The output frequency and voltage are determined by the inverter's control circuit rather than by a generator.

At the core of virtually every inverter is an H-bridge switching circuit, also known as a full-bridge topology. Four switching devices — in modern inverters, these are typically insulated gate bipolar transistors (IGBTs) or MOSFETs — are arranged in a bridge configuration. By switching opposite pairs alternately, the H-bridge reverses the polarity of the DC supply across the output terminals at the desired AC frequency. Switching Q1 and Q4 together applies +Vdc across the load; switching Q2 and Q3 applies –Vdc. Alternating at 50 Hz or 60 Hz produces AC.

The waveform quality depends on how the switching is controlled. A simple square wave inverter switches each pair on for a full half-cycle, producing a square wave output. This is efficient but incompatible with sensitive electronics and causes overheating in transformers and motors due to harmonic content. A modified sine wave inverter introduces a neutral (zero voltage) period between the positive and negative half-cycles, approximating a stepped waveform. A pure sine wave inverter uses pulse width modulation (PWM) with a high switching frequency (typically 20–100 kHz) followed by an LC output filter to produce a smoothly varying sinusoidal output with very low total harmonic distortion (THD), typically below 3%.

An output transformer steps the switched DC voltage up to the required AC output voltage (e.g., from 12V or 48V battery to 230V or 120V AC). High-frequency transformerless designs (more common in modern solar inverters) use a boost stage to raise DC to a high intermediate voltage before the H-bridge and LC filter produce the AC output.

Inverters also require: a DC input filter (capacitors to smooth the battery supply and absorb switching ripple), gate driver circuits to provide the voltage levels required to drive IGBT/MOSFET gates, a control IC or microcontroller generating the PWM signals, overcurrent and overvoltage protection, and thermal management.

How to wire circuit diagram of inverter

Understand the inverter topology from the circuit diagram Identify the key stages in the inverter circuit: DC input filter capacitors, the H-bridge switching stage (four MOSFETs or IGBTs), the gate driver circuit, the PWM control IC or microcontroller, the output transformer or boost stage, and the LC output filter. Understanding the signal flow from DC input to AC output is essential before working on or commissioning the inverter.
Size the DC input wiring and battery connection The DC input current is the inverter's AC output power divided by the DC input voltage, then divided by efficiency. For a 1000W inverter running at 80% efficiency from 12V: input current ≈ 1000 / (12 × 0.80) ≈ 104 A. This demands very short, large-cross-section DC cables between the battery and inverter — voltage drop in DC cables directly reduces output power and efficiency. Use appropriately sized lugs and torque all DC terminals.
Connect and verify the DC supply Connect the battery positive (+) to the inverter DC positive terminal via an appropriately rated DC fuse or circuit breaker — this is the most important safety protection in the DC circuit. Connect the battery negative (–) to the inverter DC negative terminal. Verify polarity before connection — reverse polarity will immediately destroy the inverter's input capacitors and semiconductors in most designs.
Verify DC input voltage before switching on Measure DC input voltage at the inverter terminals (not at the battery) with no AC load connected. This confirms the wiring is complete and polarity is correct. A fully charged 12V lead-acid battery reads approximately 12.6–12.8V open circuit; lithium (LiFePO4) approximately 13.2–13.4V. If voltage is below the inverter's minimum input voltage, the battery requires charging before commissioning.
Connect and test with a resistive load first Before connecting sensitive equipment, test the inverter's AC output with a simple resistive load (incandescent lamps or a kettle element). Measure AC output voltage with a multimeter — it should match the inverter's rated output voltage within ±5%. Measure frequency with a frequency counter or digital multimeter with Hz function — should be 50 Hz ±0.5 Hz or 60 Hz ±0.5 Hz.
Check output waveform quality for sensitive loads For applications involving motors, audio equipment, medical devices, or sensitive electronics, verify the output waveform with an oscilloscope or a power quality analyser. A pure sine wave inverter should produce a clean sinusoidal output with THD below 3%. A modified sine wave will show the characteristic stepped waveform. Decide if the waveform quality is acceptable for the intended load before permanent installation.

Specifications

Standard AC output frequency	50 Hz (IEC countries), 60 Hz (North America)
Standard AC output voltage	230V AC RMS (IEC), 120V AC RMS (North America)
Pure sine wave THD (typical)	< 3% at rated load
Typical inverter efficiency	85–95% (increases with quality and load level)
Typical H-bridge switching frequency (pure sine)	20–100 kHz
DC input voltage range (12V nominal system)	10.5V (low-voltage cutoff) to 15V (high-voltage cutoff)
Battery input protection	Low voltage disconnect, high voltage cutoff, reverse polarity (optional), overcurrent fuse

Safety warnings

Inverters operating from battery banks can supply extremely high DC short-circuit currents — a short circuit on the DC input can vaporise wiring and cause fire or explosion. Always fit a properly rated DC fuse or circuit breaker as close as possible to the battery positive terminal.
The AC output of an inverter is a lethal voltage (230V or 120V AC). Treat inverter AC output terminals and connected wiring with the same respect as utility mains supply. Ensure all AC wiring is properly insulated, fused, and earthed.
Inverter installations must comply with applicable electrical standards — NEC/NFPA 70 (USA), BS 7671 (UK), AS/NZS 3000 (Australia/NZ), IEC 60364, and where applicable, IEC 62040 (UPS) or IEC 62109 (solar inverters). Grid-tied inverter installations require additional anti-islanding protection and utility approval.
Never work on inverter internal circuitry while the DC input is connected. Large filter capacitors retain a lethal charge after the DC input is disconnected. Verify capacitor discharge with a voltmeter before touching internal components.
Verify DC polarity before connecting the inverter to any power source. Reverse polarity connection destroys the inverter instantly and may cause fire. Label DC cables clearly with permanent polarity markers.

Tools needed

Digital multimeter (AC/DC voltage, frequency function)
Oscilloscope (for waveform quality assessment in pure sine wave applications)
Clamp meter (DC and AC current measurement)
Non-contact AC voltage tester
Insulated screwdrivers and hex keys
Cable lugs and crimping tool (for DC input cable terminations)
Torque wrench or torque screwdriver (for DC bus bar and terminal connections)

Common mistakes

Connecting the DC input with reversed polarity — destroys input protection diodes, MOSFETs, and filter capacitors instantly in most designs.
Using undersized DC input cables from the battery — high resistance causes voltage drop under load, reducing inverter output power and efficiency, and causing the inverter to false-trip on low voltage.
Omitting the DC input fuse — a short circuit in the inverter with no fuse protection can cause battery explosion or severe electrical fire from the uncontrolled fault current.
Running sensitive electronics on a modified sine wave inverter — motors overheat, power supplies may not regulate correctly, and some devices refuse to operate or are damaged.
Operating the inverter in an unventilated enclosure — inverter power semiconductors and heat sinks require adequate airflow. Elevated temperature causes derating, thermal shutdown, and shortened semiconductor life.

Troubleshooting

Inverter powers on but AC output voltage is significantly low: Cause: DC input voltage is low due to battery discharge, high DC cable resistance, or an overloaded output drawing excessive current Fix: Measure DC voltage at the inverter input terminals under load. A voltage significantly below rated input (e.g., below 11V for a 12V system) indicates a discharged battery or excessive DC cable voltage drop. Recharge the battery, check DC cable connections, and verify the load does not exceed inverter rated capacity.
Inverter shuts down immediately when a motor load is connected: Cause: Motor inrush current exceeds the inverter's surge current capacity, or battery terminal voltage collapses under the surge Fix: Check the inverter's surge current rating against the motor's starting current. Measure battery voltage under the surge moment — if it collapses below the inverter's low-voltage cutoff, the battery has high internal resistance (aged battery) or is undersized for the load. Consider a soft-start device on the motor or a higher-capacity inverter.
Inverter output frequency is incorrect: Cause: Control circuit fault, oscillator frequency drift, or a firmware/configuration issue in microcontroller-based designs Fix: Measure output frequency with a digital multimeter on AC Hz mode. For a microcontroller-based design, verify the oscillator crystal and reference voltage. Frequency errors in fixed-frequency designs (not VFD-based) indicate a control circuit fault requiring specialist repair.

Frequently asked questions

What is the difference between a modified sine wave and a pure sine wave inverter?

A modified sine wave inverter produces a stepped waveform that approximates a sine wave with significant harmonic distortion. It is adequate for resistive loads (incandescent lights, heating elements) but can cause problems with motors (overheating, reduced torque), sensitive electronics, audio equipment, and some medical devices. A pure sine wave inverter produces a smooth sinusoidal output matching the utility supply, compatible with all AC equipment.

What is an H-bridge in an inverter circuit?

An H-bridge (full-bridge) is a configuration of four switching devices (MOSFETs or IGBTs) arranged so that the DC supply can be applied across the load in either polarity by switching diagonal pairs alternately. The resulting alternating current constitutes the inverter's AC output. The H shape of the circuit diagram gives the topology its name.

Why do pure sine wave inverters use PWM at high frequency?

PWM (Pulse Width Modulation) at high frequency (20–100 kHz) allows the output to approximate a sine wave using many rapid narrow pulses of varying width. An LC low-pass filter after the bridge removes the high-frequency switching carrier, leaving only the fundamental 50 Hz or 60 Hz sine wave. Higher switching frequency allows smaller filter components and reduces output harmonic distortion.

What size inverter do I need for my application?

Select an inverter whose continuous VA or watt rating exceeds the total continuous load. Add a surge capacity factor for motor loads — motors draw 3–7× running current at start. As a general rule, select an inverter rated to at least 120–150% of your total continuous load wattage to allow for surge and efficiency losses. Pure sine wave inverters are always recommended for mixed loads including electronics.

Why does my inverter shut down when I connect a large load?

Shutdown on large load connection usually indicates an overcurrent condition from motor inrush current, a battery source voltage that collapses under load (undersized battery or high internal resistance), or an inverter with insufficient surge capacity for the load type. Check battery terminal voltage under load — a voltage collapse below the inverter's low-voltage cutoff will trigger shutdown.
