Circuit Diagram of a Transformer: Induction, Turns Ratio, and How It Works

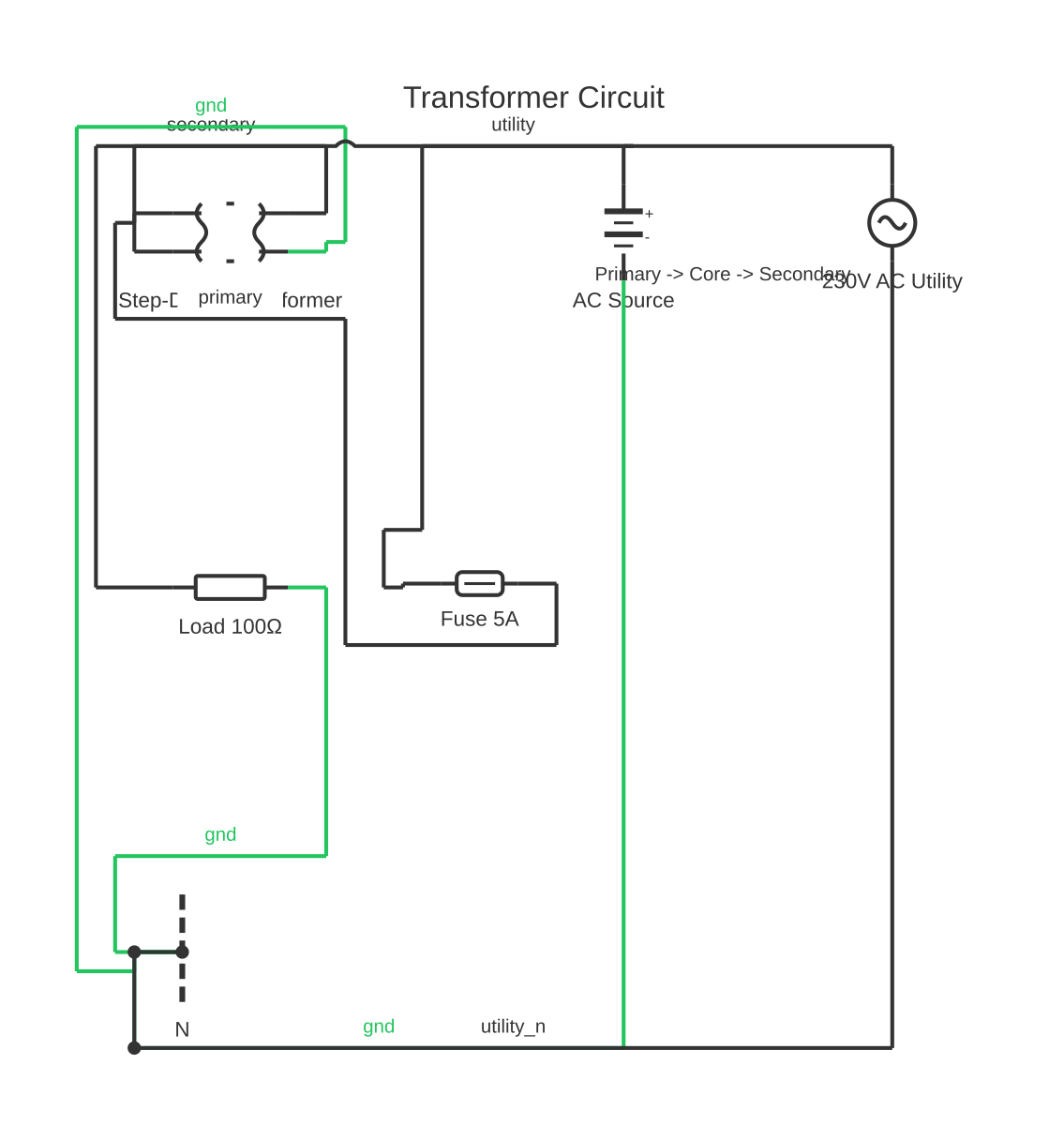

This is a free printable circuit diagram of transformer: download the diagram as SVG or open it and print to paper or PDF.
A circuit diagram of a transformer shows the primary and secondary windings on a shared core, representing electromagnetic induction that transfers electrical energy between circuits at different voltages.
A transformer is a passive electrical device that transfers alternating current (AC) energy from one circuit (the primary) to another (the secondary) through electromagnetic induction — without any direct electrical connection between the two circuits. It operates on the principle discovered by Michael Faraday in 1831: a changing magnetic flux induces a voltage in any conductor surrounding that flux.
In a practical transformer, alternating current flowing in the primary winding creates a time-varying magnetic flux in a shared iron or ferrite core. This changing flux passes through the secondary winding, inducing an alternating EMF in it. The induced secondary voltage is proportional to the ratio of secondary turns to primary turns — this is the turns ratio.
The turns ratio relationship is expressed as: Vs/Vp = Ns/Np, where Vs is secondary voltage, Vp is primary voltage, Ns is the number of secondary turns, and Np is the number of primary turns. A step-up transformer has more secondary turns than primary turns (Ns > Np), producing a higher secondary voltage. A step-down transformer has fewer secondary turns (Ns < Np), producing a lower secondary voltage.
For an ideal (lossless) transformer, the power is conserved: Vp × Ip = Vs × Is. This means when voltage is stepped up, current is proportionally stepped down, and vice versa.
In a circuit diagram, the transformer symbol is two inductor coils facing each other with two or three parallel vertical lines between them representing the core: two lines for an iron core, a dotted line for an air core, or three lines for a transformer with a ferromagnetic core. Polarity dots indicate the phase relationship between primary and secondary.
Transformer types include: power transformers (mains supply distribution), isolation transformers (no turns ratio change, but electrical isolation), autotransformers (shared primary/secondary winding with a tap), current transformers (for measurement, step-up current with step-down voltage), and pulse/switching transformers (in switch-mode power supplies).
All mains-connected transformer installations must comply with applicable national standards.
How to wire circuit diagram of transformer
- Identify the transformer type and specifications Locate the transformer's nameplate or specification label. Note the primary voltage (Vp) and frequency, secondary voltage (Vs), power rating (in VA or kVA), and any special ratings such as isolation class. These values are essential before connection or replacement.
- Calculate the turns ratio Divide the secondary voltage by the primary voltage to find the turns ratio (Vs/Vp = Ns/Np). For example, a 230 V primary / 12 V secondary transformer has a turns ratio of 12/230 ≈ 1:19.2 (step-down). This confirms the transformer will lower voltage from primary to secondary as intended.
- Verify the secondary current rating Using the power conservation equation (Vp × Ip = Vs × Is, for an ideal transformer), calculate the expected secondary current at full load. Verify this does not exceed the transformer's rated secondary current. Example: a 100 VA, 12 V secondary transformer has a maximum secondary current of 100/12 ≈ 8.3 A.
- Connect the primary winding to the AC supply Connect the primary terminals to the correct AC supply voltage (matching Vp on the nameplate). Protect the primary with a fuse rated for the transformer's full-load primary current plus approximately 25 % margin. Ensure the supply voltage and frequency match the transformer's rating exactly — applying 60 Hz supply to a 50 Hz transformer increases core losses and can cause overheating.
- Connect the secondary load Connect the load to the secondary terminals. Ensure the load's power requirement does not exceed the transformer's rated VA capacity. Protect the secondary circuit with a fuse sized for the secondary current rating.
- Verify correct operation After energising, measure the secondary output voltage with a multimeter (AC voltage mode). Compare against the nameplate Vs. A reading significantly lower than rated may indicate an overloaded secondary, winding fault, or incorrect primary voltage. Monitor the transformer temperature during initial load testing — a transformer operating within its VA rating should not become uncomfortably hot to touch.
Specifications
| Turns ratio formula | Vs / Vp = Ns / Np (secondary voltage / primary voltage = secondary turns / primary turns) |
|---|---|
| Power conservation (ideal transformer) | Vp × Ip = Vs × Is (input apparent power equals output apparent power) |
| Core type (power frequency) | Laminated silicon steel (reduces eddy current losses at 50/60 Hz) |
| Core type (high frequency, switch-mode) | Ferrite (low core losses at kHz to MHz frequencies) |
| Typical efficiency (power transformers) | 95–99 % for large distribution transformers; 85–95 % for small PCB-mount types |
| Operating frequency (power transformers) | 50 Hz (most of world) or 60 Hz (North America, parts of Japan) |
| Insulation resistance (healthy winding, reference) | Greater than 1 MΩ winding-to-core at 500 V DC test voltage (verify manufacturer specification) |
| No-load secondary voltage vs full-load secondary voltage | Secondary voltage typically 5–10 % higher at no load than at full rated load (due to internal resistance and leakage reactance) |
Safety warnings
- The primary winding of a mains transformer is connected to mains voltage (120 V, 230 V, or higher). Contact with primary winding terminals or wiring is potentially fatal. Always isolate and verify the primary supply is dead before accessing any winding terminals.
- Transformers have no inherent overcurrent protection in their windings. A transformer operated above its rated VA for extended periods will overheat and the winding insulation will degrade, potentially causing a winding fault or fire. Always fuse both primary and secondary circuits correctly.
- Never apply DC to a transformer primary winding. DC is limited only by the low DC resistance of the winding, causing extremely high current and rapid overheating. A transformer can be destroyed in seconds by DC application.
- Transformer installations must comply with the applicable national electrical standard: NEC/NFPA 70 (USA), BS 7671 (UK), AS/NZS 3000 (Australia/NZ), or IEC 60364. Mains-connected transformer wiring must be performed by a licensed electrician in most jurisdictions.
- High-voltage distribution transformers (medium voltage, 1 kV and above) must only be installed, maintained, and accessed by high-voltage authorised personnel following appropriate safe working procedures. This reference covers low-voltage applications only.
Tools needed
- Digital multimeter (AC voltage, resistance/continuity modes)
- Clamp meter (for measuring primary and secondary current)
- Insulated screwdrivers
- Non-contact voltage tester
- Fuse holder and correctly rated fuses
- LCR meter (optional; for measuring primary inductance and verifying winding integrity)
- Insulation resistance tester / megohmmeter (for verifying winding insulation integrity in installed transformers)
Common mistakes
- Connecting the secondary winding to the mains supply and the primary to the load — a step-down transformer wired backwards becomes a step-up transformer, applying a dangerously higher voltage to the load (e.g., a 230 V:12 V transformer wired in reverse applies 230²/12 ≈ 4 400 V to the 'primary' circuit if driven at 230 V).
- Omitting fuses on the primary and/or secondary circuits, removing overcurrent protection from the transformer windings.
- Operating a 50 Hz transformer on a 60 Hz supply (or vice versa) — different frequencies affect core saturation characteristics and losses. A 50 Hz transformer run on 60 Hz operates acceptably with reduced core flux; a 60 Hz transformer on 50 Hz may saturate, draw excessive magnetising current, and overheat.
- Connecting a load that exceeds the transformer's VA rating continuously, causing thermal degradation of winding insulation over time.
- Connecting secondary windings in series or parallel without verifying polarity (phase) using dot notation — connecting out-of-phase secondary windings in series cancels voltage; incorrect parallel connection circulates destructive circulating currents.
Troubleshooting
- Secondary output voltage is absent
- Cause: Open-circuit primary winding (blown fuse, broken lead), open-circuit secondary winding, or no AC supply to primary Fix: Measure primary supply voltage at the transformer terminals. If present, measure primary winding continuity with power off (resistance of tens to hundreds of ohms for a typical power transformer). Measure secondary winding continuity. An OL reading on a winding indicates an open-circuit fault — the transformer requires replacement.
- Secondary voltage is correct with no load but drops significantly under load
- Cause: Transformer is overloaded (load VA exceeds transformer rating), or the secondary winding has high resistance due to a partial short between turns Fix: Calculate the load VA and compare against the transformer's rated capacity. Reduce the load or install a larger transformer. If voltage drop is extreme even at rated load, a shorted-turn fault in the secondary winding is possible — verify by measuring transformer temperature under load and comparing primary current against the expected no-load magnetising current.
- Transformer runs hot and hums loudly
- Cause: Core operating near saturation (incorrect supply voltage or frequency), excessive load, or loose core laminations causing vibration Fix: Verify supply voltage matches the primary rating. Confirm load does not exceed rated VA. Excessive hum from loose laminations may be reduced by retightening core clamp bolts, but a severely loose core typically indicates a transformer requiring replacement.
Frequently asked questions
How does a transformer work?
Alternating current in the primary winding creates a changing magnetic flux in the shared core. By Faraday's Law, this changing flux induces an alternating voltage in the secondary winding. The ratio of secondary to primary voltage equals the ratio of secondary to primary turns (the turns ratio). No direct electrical connection exists between the two windings — energy transfers magnetically.
What is the turns ratio of a transformer?
The turns ratio is the ratio of the number of turns in the secondary winding (Ns) to the number of turns in the primary winding (Np), expressed as Ns:Np. It determines the voltage transformation: a turns ratio of 10:1 means the secondary voltage is ten times the primary voltage (step-up). A ratio of 1:10 means the secondary is one-tenth of the primary voltage (step-down).
Why does a transformer only work with AC, not DC?
Transformer operation depends on a changing magnetic flux in the core. Direct current produces a constant (non-changing) magnetic field, which does not induce a voltage in the secondary winding. Alternating current reverses direction continuously, producing the changing flux that drives induction. Applying DC to a transformer primary rapidly overheats the winding (limited only by DC resistance) and will destroy it.
What is an isolation transformer?
An isolation transformer has a 1:1 turns ratio — the primary and secondary voltages are equal. Its purpose is not to change voltage but to provide galvanic isolation: the secondary circuit has no direct electrical connection to the primary, earth, or mains supply. This is used for safety (in medical equipment, for example) and to eliminate earth-loop interference.
What causes transformer losses?
Real transformers have two main loss categories. Copper losses (I²R losses) occur in the winding resistance — current flowing through the windings dissipates energy as heat proportional to the square of the current. Core losses (iron losses) occur in the magnetic core and comprise hysteresis loss (energy absorbed each magnetic reversal cycle) and eddy current loss (circulating currents induced in the core material). Laminated or ferrite cores minimise eddy current losses.
