What Wires Go to the Starter Solenoid?

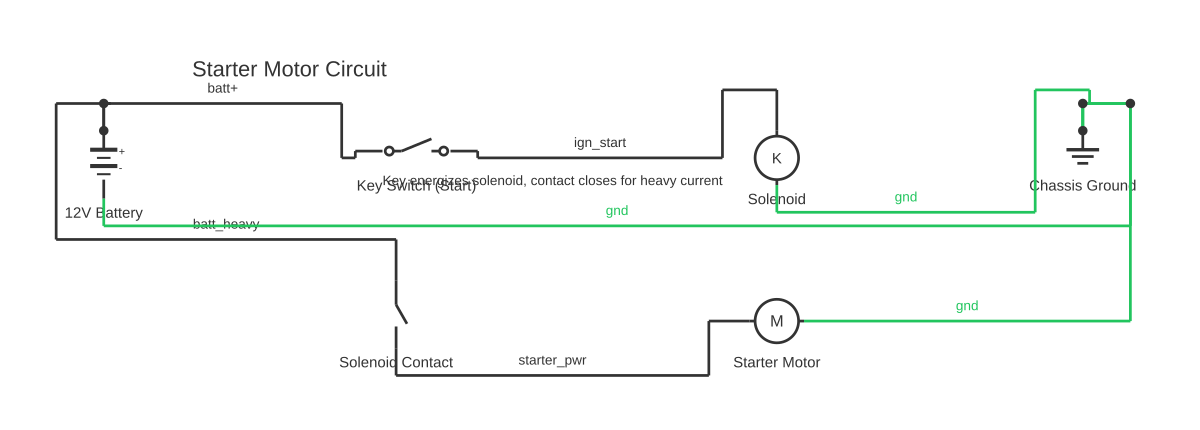

This is a free printable diagram what wires go to the starter solenoid: download the diagram as SVG or open it and print to paper or PDF.
A starter solenoid has three or four terminals: a large battery positive post, a large motor post feeding the starter motor, and one or two small control terminals — typically marked S (ignition switch) and sometimes R (relay/run) — that carry the activation signal from the ignition switch.
The starter solenoid is an electromagnetic switch mounted on or near the starter motor. Its job is to carry the very high current needed to crank the engine (150–400 A or more) while allowing the ignition switch — which only handles low current — to control the circuit. The solenoid also moves the pinion gear into mesh with the ring gear on many designs.
Terminal identification:
Battery terminal (BAT or B+): The large stud connected directly to the battery positive terminal by a heavy-gauge cable (typically 25–50 mm²/2–4 AWG or larger). This stud is always live when the battery is connected — handle with extreme care.
Motor terminal (M or STA): The second large stud, connected by a short heavy cable to the starter motor winding. Current flows through this path only when the solenoid is energised.
S terminal (Switch or SOL): A small spade or threaded stud. This carries battery voltage from the ignition switch start position (or a relay) to the solenoid pull-in coil, closing the main contacts and engaging the starter. The wire is typically 1.5–4 mm² (14–12 AWG).
R terminal (Relay or IGN — not present on all solenoids): On some older designs (notably many Ford and GM vehicles), this terminal provides a voltage feed to the ignition coil or relay during cranking to bypass the ignition resistor, ensuring a full-voltage spark while starting. It is not a control input — do not confuse it with S.
On vehicles where the solenoid is mounted on the inner fender (not on the starter), there is sometimes an additional I terminal feeding the ignition system. Modern vehicles increasingly integrate the solenoid fully into the starter unit and route activation through the ECU or a starter relay, adding a relay to the signal path.
Always consult the vehicle-specific wiring diagram before working on any starter circuit, as terminal labelling and circuit architecture vary significantly between manufacturers.
How to wire diagram what wires go to the starter solenoid
- Disconnect the negative battery terminal Before touching any wiring near the starter or solenoid, disconnect the battery negative (earth/ground) terminal and tape the clamp to prevent accidental contact. The BAT stud on the solenoid remains live until the battery negative is removed.
- Locate and identify all solenoid terminals Find the solenoid — it may be mounted on the starter motor body or on the inner fender/firewall. Identify the two large studs (BAT and M/Motor) and the small spade or threaded terminal(s) (S and optionally R/I). Photograph the existing wiring before removing anything.
- Remove and label the existing wires Label each wire with masking tape before removing. Note wire gauge — large cables on the battery and motor studs, small-gauge wire on the S terminal. Corrosion on large studs is a common cause of starting problems; inspect closely.
- Connect the heavy battery cable to the BAT stud Route the positive battery cable from the battery positive terminal to the BAT stud. Use the correct lug size and torque the nut to the manufacturer specification — a loose connection here causes voltage drop and intermittent cranking failure.
- Connect the heavy motor cable to the M stud Connect the short heavy cable between the M stud and the starter motor input terminal. Keep this cable as short and direct as possible to minimise voltage drop under cranking load.
- Connect the S terminal control wire Connect the small-gauge wire from the ignition switch start circuit (or starter relay output) to the S terminal. This wire must only carry battery voltage when the key is in the Start position — verify this with the vehicle wiring diagram.
- Reconnect the battery and test Reconnect the battery negative terminal. With the vehicle in Park or Neutral, turn the key to Start. The solenoid should click firmly and the starter should crank. A soft click with no crank indicates a loose heavy cable connection or insufficient battery charge.
Specifications
| System voltage | 12 V (passenger vehicles), 24 V (heavy trucks and some diesel equipment) |
|---|---|
| Solenoid pull-in coil resistance (typical 12 V) | 0.4–1.0 Ω — measure across S terminal and solenoid body/earth |
| BAT stud cable size (typical) | 25–50 mm² (2 AWG to 4/0 AWG) depending on engine size |
| S terminal wire size (typical) | 1.5–4 mm² (14–12 AWG) |
| Cranking current (typical petrol engine) | 150–300 A; diesel engines can exceed 400 A |
| Starter motor duty cycle | Intermittent — typically 10–15 s on, 30–60 s rest between attempts |
| Minimum cranking voltage (at starter) | 9.6 V at 12 V system, 19.2 V at 24 V system (under load) |
Safety warnings
- The BAT stud on the starter solenoid is directly connected to the battery positive terminal and is live at all times — even with the ignition off. Always disconnect the battery negative terminal before working on any solenoid or starter wiring. A short from the BAT stud to earth will arc severely and can cause burns, fire, or battery explosion.
- Do not crank the engine for extended periods — starter motors are designed for intermittent duty (typically 10–15 seconds on, then a rest period). Prolonged cranking overheats the starter motor and can damage the solenoid contacts.
- Automotive electrical work on starting systems should be performed by a qualified automotive technician. Incorrectly wired solenoids can cause unintended starter engagement, ring gear damage, or fire.
- Hydrogen gas vents from a charging or discharging battery. Do not smoke, create sparks, or use open flame near the battery when working on the starter circuit.
- On vehicles with keyless start and ECU-controlled starter circuits, there may be residual voltage in starter control circuits even with the key removed. Consult the vehicle service manual and follow manufacturer safety procedures.
Tools needed
- Socket set and ratchet (metric and imperial)
- Digital multimeter
- Battery terminal puller or open-end spanners
- Wire strippers and crimping tool
- Insulated terminal lugs (correct gauge for cable size)
- Masking tape and marker pen for labelling wires
- Torque wrench (for terminal stud nuts)
Common mistakes
- Confusing the S terminal with the R terminal — the S terminal triggers the solenoid; connecting an ignition feed to R on a vehicle that expects it unused can cause backfeed or ignition issues.
- Leaving the battery positive connected while working — the BAT stud is always live; a spanner touching it and any earth point will arc violently.
- Using undersized wire for the S terminal — while the current is low, the wire must be rated for the environment (heat, vibration). Use automotive-grade wire.
- Not torquing the large terminal studs — loose large cable connections cause high resistance, voltage drop, and intermittent cranking failure that is difficult to diagnose.
- Replacing the solenoid without testing the heavy cable connections — corroded or loose BAT and M connections are very often the actual fault; a new solenoid will not fix poor cable terminations.
- Failing to check the battery and earth/ground straps before replacing the solenoid — a weak battery or corroded chassis earth strap mimics solenoid failure.
Troubleshooting
- No click, no crank when key turned to Start
- Cause: No voltage at S terminal — open circuit in ignition switch, starter relay, or neutral safety/clutch switch; or open solenoid pull-in coil Fix: With DVOM, check for battery voltage at S terminal when key is in Start. If no voltage, trace the control circuit back through the relay, neutral safety switch, and ignition switch. If voltage is present at S but no click, solenoid coil has failed — replace solenoid.
- Single loud click, then nothing
- Cause: Battery too discharged to sustain cranking current, high resistance in large cable connections, or solenoid main contacts closing but not passing enough current Fix: Test battery voltage under load. Inspect and clean BAT and M stud connections — remove, wire-brush, and re-torque. If battery and connections are good, check voltage at M stud during cranking attempt. If voltage is present but motor does not turn, starter motor is faulty.
- Starter cranks continuously without key in Start
- Cause: Solenoid main contacts welded closed, or S terminal has a permanent live feed (wiring fault) Fix: Immediately disconnect the battery negative to stop cranking. A welded solenoid requires solenoid replacement. Check S terminal wiring for accidental connection to a permanent positive feed.
- Grinding noise during cranking
- Cause: Pinion gear not fully engaging with ring gear, or worn ring gear teeth Fix: Check solenoid plunger travel and condition. Inspect ring gear teeth for wear through the starter aperture if accessible. A solenoid that fires the contacts before the pinion is fully engaged (shift fork wear) produces this symptom.
Frequently asked questions
What happens if I connect the S terminal wire to the battery terminal by mistake?
The solenoid will energise immediately and continuously — the starter motor will crank the engine without any ignition switch input. This can damage the starter motor through overheating, damage ring gear teeth, and drain the battery. Always identify terminals correctly before making connections.
Why does my starter solenoid click but the engine does not crank?
A single click usually means the solenoid is engaging but insufficient current is reaching the starter motor. Common causes are a weak battery, high-resistance connections on the large battery or motor terminals (check for corrosion), a faulty starter motor, or a bad solenoid with failed main contacts. Test battery voltage under load.
What is the R terminal on a Ford-style solenoid used for?
The R (relay) terminal provides a power feed to the ignition coil or a relay during cranking. It bypasses the ballast resistor in older points-ignition systems, supplying full voltage to the coil for easier starting. If your vehicle does not have a ballast resistor or the circuit does not require it, the R terminal may be left unconnected.
Can I test a starter solenoid without removing it from the vehicle?
Yes. With the battery connected and ignition off, use a multimeter to confirm battery voltage at the BAT stud. Have a helper turn the key to start while you probe the S terminal — you should see battery voltage there. If voltage is present at S but the solenoid does not click, the solenoid coil or contacts have failed. Always ensure the transmission is in Park or Neutral.
Do all modern vehicles use a remote-mounted starter solenoid?
No. Many modern vehicles use an integrated starter where the solenoid is built into the starter motor assembly. Some use a starter relay in the fuse/relay box controlled by the ECU, which then directly signals the integrated solenoid. Always identify your vehicle architecture from the service manual before assuming terminal locations.
