Doorbell Chime Wiring Diagram: How the Transformer, Push Button, and Chime Connect

Doorbell Chime Wiring Diagram: How the Transformer, Push Button, and Chime Connect — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable doorbell chime wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

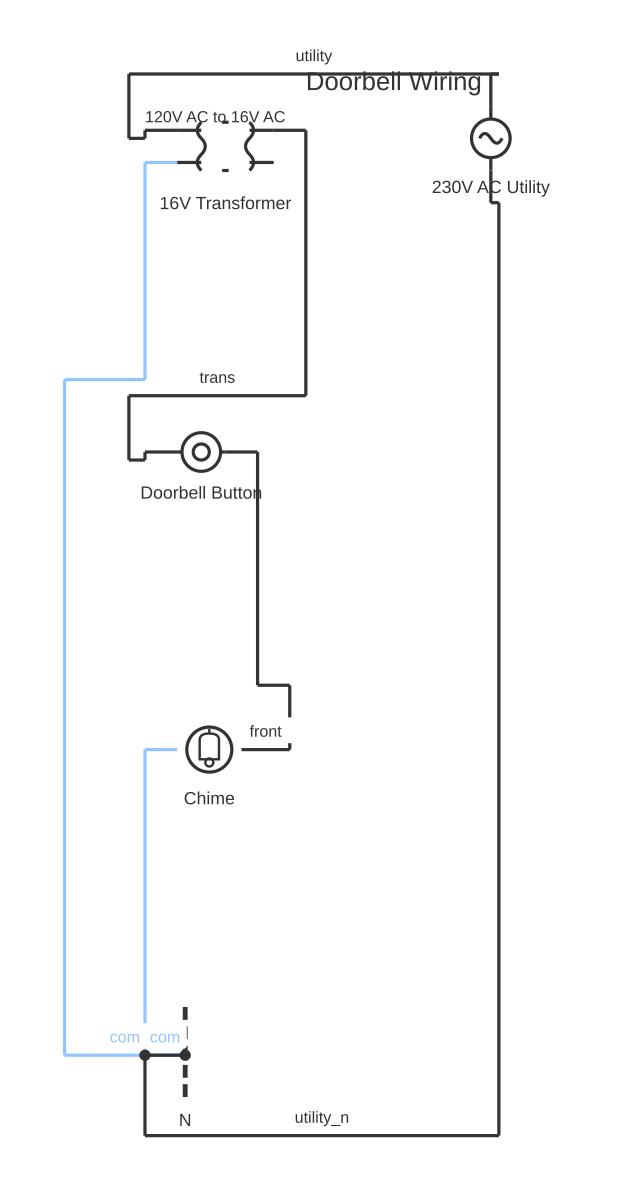

A doorbell chime wiring diagram shows how the low-voltage transformer, push button, and chime unit connect in series to produce a tone when the button is pressed.

A traditional wired doorbell system consists of three main components: a step-down transformer, a push button, and a chime unit. The transformer converts mains voltage (typically 120 V AC in North America or 230 V AC in the UK and Europe) into a safe low voltage — typically 8 V, 10 V, 12 V, or 16 V AC — for the doorbell circuit. This low-voltage AC powers the chime mechanism.

The basic wiring loop works as follows. The transformer's low-voltage secondary output connects to the chime unit's common transformer terminal (often labelled TRANS or T). From the chime unit, a wire runs out to the doorbell push button at the front door. The push button connects back, completing the circuit to the transformer secondary. When the button is pressed, the circuit closes, current flows, and the chime solenoid or electronic module activates.

For a two-button system (front and rear door), the chime unit typically has three terminals: FRONT, REAR (or BACK), and TRANS. The transformer connects to TRANS. One button connects between FRONT and one side of the transformer; the other button connects between REAR and the same transformer point. Two-button chimes produce a different tone for each button — typically a two-tone ding-dong for the front and a single tone for the rear.

The transformer is usually mounted inside the house, often on an electrical junction box or clipped to the side of the consumer unit (UK) or distribution panel. It is a class 2 power supply under NEC Article 725 (North America) or SELV (Safety Extra Low Voltage) compliant in UK/European installations, which means the secondary wiring is treated as low-voltage and does not require the same conduit and box fill rules as mains wiring. However, the transformer primary side is full mains voltage and must be treated accordingly.

Smart video doorbell systems typically require a minimum VA rating from the transformer — check the device manufacturer's specification. Older transformers rated at 5–10 VA may be insufficient for modern smart doorbells that power cameras and Wi-Fi modules.

How to wire doorbell chime wiring diagram

Isolate the mains supply to the transformer before any work Identify and switch off the circuit breaker supplying the doorbell transformer. Verify it is de-energised with a non-contact voltage tester at the transformer primary terminals. The transformer primary carries full mains voltage and must be treated as such. Do not assume the secondary side is safe without isolating the primary.
Locate and inspect the transformer Find the existing transformer — often located inside the door frame, on a junction box in the hallway or utility area, or on the electrical panel enclosure. Measure its secondary voltage (with power restored briefly using a multimeter) to confirm it meets the chime or smart doorbell specification. Replace the transformer if the voltage or VA rating is insufficient.
Run the low-voltage wiring from the transformer to the chime Run 18–22 AWG two-conductor wire from the transformer secondary terminals to the chime unit location. For a two-button system, run three-conductor wire (or two separate two-conductor cables). The wiring does not require conduit in most jurisdictions where it qualifies as Class 2 (NEC) or SELV, but must not be concealed in a way that damages the insulation.
Connect the chime unit terminals Connect one wire from the transformer secondary to the TRANS (transformer) terminal on the chime. Connect a second wire from a second transformer secondary terminal to one terminal of the push button at the door. Connect a third wire from the other terminal of the push button back to the FRONT terminal on the chime. For a two-button system, replicate this for the REAR button connecting to the REAR terminal.
Connect the push button at the door At the push button housing, connect the two doorbell wires to the button terminals — polarity does not matter for AC circuits with a mechanical button. Mount the button housing in the door frame. Ensure no wire strands are exposed outside the terminal blocks, and that the wiring is protected where it exits the wall.
Restore power and test the system Restore the circuit breaker. Press the front button and verify the chime produces the correct tone. For a two-button system, test the rear button and confirm it produces a different tone. Measure AC voltage at the chime TRANS terminal to confirm the transformer output is within the specified range.

Specifications

Transformer primary voltage	120 V AC (North America) or 230/240 V AC (UK, Europe, Australia)
Transformer secondary voltage (standard analogue chime)	8 V, 10 V, 12 V, or 16 V AC — must match chime unit specification
Transformer secondary voltage (smart video doorbell, typical)	16–24 V AC; minimum 20–30 VA — verify with device manufacturer
Doorbell cable conductor size	18 AWG or 20 AWG (two or three conductors)
Push button contact rating	Rated for low-voltage AC (24 V AC / 1 A minimum typical)
Push button environmental rating	IP44 or greater for outdoor installation
Applicable standards	NEC / NFPA 70 Article 725 (Class 2 low-voltage, USA); BS 7671 SELV requirements (UK); IEC 60364-4-41 (international)

Safety warnings

The doorbell transformer primary is connected to full mains voltage (120 V AC or 230/240 V AC). Never open the transformer enclosure, disconnect its primary leads, or replace the transformer without first isolating the mains supply at the circuit breaker and verifying it is de-energised with a non-contact voltage tester.
The transformer primary connections must be made inside a properly rated electrical junction box in a fixed wiring installation. Exposed mains terminations are a shock and fire hazard and are not compliant with NEC / NFPA 70, BS 7671, or equivalent wiring regulations.
A stuck doorbell button or shorted button wiring will keep the chime solenoid energised continuously. This heats the solenoid coil and the transformer, potentially causing them to fail or, in extreme cases, overheat. If the chime buzzes continuously, immediately disconnect the button wiring at the chime to de-energise the circuit and investigate the fault.
Smart video doorbells that are hardwired to the mains supply (not battery powered) must only be installed in compliance with the applicable wiring regulations for your jurisdiction. In the UK, a hardwired smart doorbell installation may constitute a notifiable electrical installation work under Part P of the Building Regulations.
When drilling through walls or door frames to route doorbell cable, check for the presence of existing electrical wiring, pipes, and structural elements using a detector before drilling.

Tools needed

Digital multimeter (AC voltage function for transformer output verification)
Non-contact voltage tester
Insulated screwdrivers (flathead for terminal screws)
Wire strippers (18–22 AWG)
Drill and drill bits (for cable routing through walls and frames)
Fish tape or cable rod (for concealed cable runs)
Circuit breaker lock-out / tag-out device

Common mistakes

Connecting the doorbell button wires to the transformer secondary terminals and the chime TRANS terminal, but leaving the circuit open at the FRONT or REAR chime terminal. This results in no power completing the loop when the button is pressed.
Installing a transformer with insufficient VA rating for a smart video doorbell. A 5 VA transformer rated for an old analogue chime will be overloaded by a smart doorbell camera, causing the transformer to overheat and the doorbell to behave erratically or reboot repeatedly.
Reversing the primary and secondary terminals on the transformer during installation — feeding mains voltage into what is meant to be the low-voltage secondary output. This will destroy the chime unit and may create a fire or shock hazard. Always verify primary and secondary terminal markings before connecting.
Leaving both doorbell wires shorted together at the button housing (by jamming wire strands into both button terminals without making a proper connection), which keeps the chime continuously energised.
Running doorbell cable through the same conduit or trunking as mains wiring. Low-voltage doorbell cable is not rated for the insulation stress of proximity to mains wiring and may cause interference or safety issues. Maintain separation per the applicable wiring regulations.

Troubleshooting

Chime does not activate when button is pressed: Cause: Open circuit in the low-voltage loop; failed button, broken wire, failed transformer, or loose terminal connection Fix: Measure AC voltage at the chime TRANS terminal — it should match the transformer rating. If voltage is absent, check the transformer and its supply. If voltage is present, short the FRONT and TRANS terminals at the chime temporarily (simulating a pressed button) — if the chime activates, the fault is in the button or wiring. Inspect the button contacts and all terminal connections.
Chime buzzes continuously without the button being pressed: Cause: Push button contacts stuck in closed position, or a short circuit in the doorbell wiring Fix: Disconnect one wire from the FRONT (or REAR) terminal at the chime. If the buzzing stops, the fault is in the button circuit — inspect and replace the push button. If buzzing continues with the wire disconnected, the chime mechanism itself is faulty.
Smart doorbell reboots repeatedly or Wi-Fi drops frequently: Cause: Transformer VA rating insufficient for the smart doorbell power demand Fix: Measure transformer output voltage under load (with the smart doorbell connected and running). If voltage drops significantly below the rated value, the transformer is overloaded. Replace with a transformer meeting the smart doorbell manufacturer's minimum voltage and VA specifications (typically 16 V AC at 20–30 VA).
Chime produces a very faint or weak tone: Cause: Low transformer output voltage, high resistance in the wiring (corroded connections or undersized wire for long runs), or failing chime solenoid Fix: Measure the AC voltage directly at the chime TRANS terminal with the button pressed. If the voltage is significantly below the rated transformer output, there is excessive voltage drop in the wiring. Inspect all terminal connections for corrosion and check the wire gauge and run length. Replace corroded connections and the transformer if its output is low.

Frequently asked questions

What voltage does a doorbell transformer output?

Doorbell transformers typically output 8 V, 10 V, 12 V, or 16 V AC. The correct voltage depends on the chime unit specification. Smart video doorbells often require 16–24 V AC and a higher VA rating than older analogue chimes. Always match the transformer voltage and VA rating to the chime or smart doorbell manufacturer's requirements.

My doorbell stopped working — what should I check first?

Check in this order: the transformer output voltage (measure with a multimeter at the secondary terminals), the push button contacts (short the two button terminals together to test whether the chime activates without the button), and the chime mechanism itself (check for stuck solenoid plunger or failed electronic module). A loose connection at any point in the low-voltage wiring loop will also prevent operation.

Can I use my existing doorbell wiring for a smart video doorbell?

Possibly, with a transformer upgrade. Smart video doorbells typically require 16–24 V AC at 20–30 VA minimum. Check whether your existing transformer meets these specifications. If not, the transformer must be replaced. The existing 18–22 AWG doorbell wire between the button location and the chime is typically suitable for the low-current smart doorbell circuit.

Do I need an electrician to replace a doorbell transformer?

The doorbell transformer primary connects directly to mains voltage. Replacing or installing a transformer involves working on mains wiring, which in most jurisdictions requires a licensed electrician or must at minimum be inspected by one. The low-voltage secondary side of the doorbell system can generally be handled safely by a competent DIYer following the relevant safety precautions.

Why does my chime buzz or hum continuously?

Continuous buzzing usually means the doorbell button is stuck in the closed position, or a wire has shorted at the button housing. This keeps the chime solenoid energised, which buzzes rather than chiming because the plunger has no spring return to release. Inspect and replace the push button. Prolonged buzzing can overheat the chime solenoid and transformer.
