A complete reference for doorbell circuit diagrams covering transformer wiring, push-button connections, chime unit wiring, and troubleshooting for wired and low-voltage doorbell systems.

A wired doorbell circuit consists of three main elements: a step-down transformer, a momentary push-button switch, and a chime or sounder unit. The diagram shows how these connect together in a low-voltage circuit that is safe for users to handle, while the primary (mains) side of the transformer remains within a protected enclosure.

The transformer reduces mains voltage (230 V AC in IEC regions; 120 V AC in North America) to a low secondary voltage, typically 8 V, 12 V, or 16 V AC for residential chime units. The primary winding connects to a mains circuit, fused appropriately for the transformer's primary current. The secondary winding provides the low-voltage output to the doorbell circuit. Most residential doorbell transformers are rated 10–20 VA.

The push-button is a momentary normally-open switch connected in series with one conductor of the secondary circuit. When pressed, it completes the circuit and applies the secondary voltage to the chime unit. The chime unit contains a mechanical or electronic sounder. In traditional mechanical chime units, the AC voltage drives a solenoid plunger that strikes tuned metal bars—one strike for the front door, two strikes for the rear door, typically achieved by wiring two buttons through separate chime terminals (Front and Rear, with a shared common terminal).

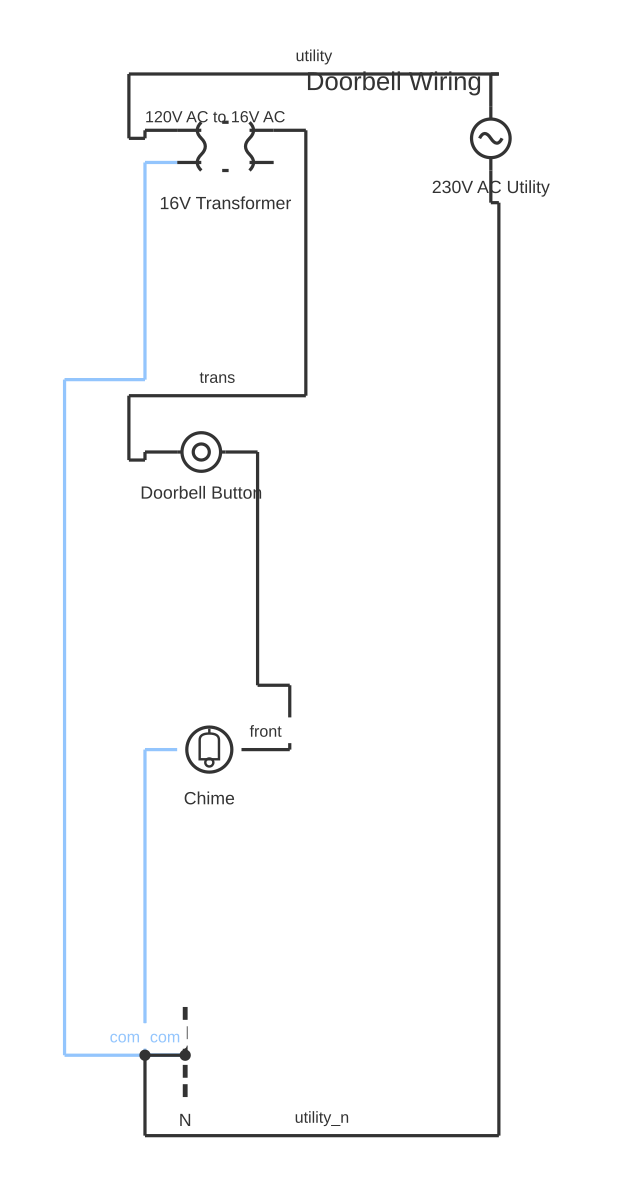

For two-button (front and rear) doorbell systems, the diagram shows the transformer common output connected to the common (C) terminal of the chime. The front button connects from the transformer second output through the front push-button to the Front (F) terminal of the chime. The rear button follows the same path to the Rear (R) terminal.

Modern wireless doorbells and smart video doorbells replace the traditional wired circuit with RF communication and internal batteries or wired power, but many smart video doorbells still use an existing doorbell transformer for power. The circuit diagram principles remain similar for wired-power smart doorbells, with the transformer providing low-voltage DC (after rectification in the doorbell unit) to power the electronics.

How to wire doorbell diagram

Identify the supply circuit and isolate mains Locate the circuit supplying the doorbell transformer. Turn off the circuit breaker for that circuit and verify dead at the transformer primary terminals with an approved voltage indicator. For new installations, select and isolate an appropriate mains circuit.
Install the transformer Mount the transformer in a protected location—inside the switchboard enclosure, in a junction box, or on a suitable surface near the mains supply. Connect the primary terminals to the mains circuit using cable rated and protected for the installation. Ensure the primary wiring and terminals are inaccessible to users.
Run low-voltage cable from transformer to chime and button Use two-conductor low-voltage cable (typically 0.5 mm² or 22–18 AWG, minimum rated for the transformer secondary voltage) from the transformer secondary output to the chime unit, and from the chime to the push-button(s). For two-button systems, three conductors are needed at the chime (Common, Front, Rear).
Wire the chime unit Connect the transformer secondary common conductor to the chime's C (Common) terminal. Connect the conductor from the front push-button to the F (Front) terminal. If a rear button is fitted, connect its conductor to the R (Rear) terminal.
Wire the push-button(s) Connect the two conductors at the push-button to the button terminals—polarity is not relevant for AC circuits. In a two-button system, the second conductor from each button runs back to the chime's F or R terminal respectively. The common conductor from the transformer connects to one side of both buttons.
Restore mains supply and test Restore the mains circuit. Press each push-button and verify the correct chime tone sounds. Front button should produce one chime stroke (in most chime units); rear button two strokes. If the chime sounds incorrectly, verify F and R terminal wiring at the chime unit.

Specifications

Typical doorbell transformer secondary voltage	8 V, 12 V, or 16 V AC (50/60 Hz)
Typical doorbell transformer VA rating (mechanical chime)	10–20 VA
Typical transformer VA rating (smart video doorbell)	20–40 VA (varies by device—check manufacturer specification)
Push-button cable conductor size (typical short run)	0.5 mm² (22 AWG) to 1.0 mm² (18 AWG)
Minimum IP rating, exterior push-button	IP44 (covered location); IP55 (exposed outdoor)
Push-button switch type	Momentary normally open (SPST-NO)

Safety warnings

The primary winding and primary terminal connections of the doorbell transformer are at full mains voltage. Always isolate the mains circuit and verify dead before touching any transformer primary wiring. Do not attempt mains-side transformer wiring without the circuit breaker locked off.
Transformer primary wiring must be performed by, or inspected by, a licensed electrician in accordance with applicable wiring regulations (NEC/NFPA 70, BS 7671, AS/NZS 3000, IEC 60364). While the secondary circuit is low voltage, the primary installation is a fixed mains circuit.
Weatherproof push-buttons for exterior installation must have an appropriate IP rating (minimum IP44 for covered outdoor locations; IP55 or higher for exposed outdoor use) to prevent moisture ingress that could cause shock or corrosion.
Never exceed the VA rating of the transformer by connecting loads (chime units or video doorbells) that draw more power than the transformer is rated to supply. An overloaded transformer will overheat, potentially causing insulation failure and fire.

Tools needed

Approved voltage indicator (two-pole tester)
Digital multimeter (AC voltage function)
Insulated screwdrivers
Wire strippers
Cable staples or clips (for cable routing)
Drill and drill bits (for wall penetration and button mounting)

Common mistakes

Installing a chime unit rated for a different secondary voltage than the transformer output—connecting a 16 V chime to an 8 V transformer produces weak or no operation; connecting an 8 V chime to 16 V may damage the chime unit.
Using undersized or unrated cable for the secondary circuit. While the secondary voltage is low, undersized cable in a long run causes voltage drop that can prevent the chime from operating correctly.
Failing to protect the transformer primary wiring with an appropriately rated circuit breaker, leaving the mains cable and transformer primary vulnerable to overcurrent.
Installing the push-button without weather protection in an exterior location, allowing moisture to corrode the contacts and cause intermittent or continuous contact closure.
Mixing up Front (F) and Rear (R) terminals at the chime unit, causing the rear button to produce the front chime tone and vice versa.

Troubleshooting

Doorbell does not chime when button is pressed: Cause: No voltage at the chime unit when button is pressed, caused by: broken button contacts, broken cable continuity between transformer and chime or button, failed transformer, or incorrect terminal connections at the chime. Fix: Measure AC voltage across transformer secondary terminals with no load—should equal rated output. Then measure voltage at the chime terminals while pressing the button. If voltage is present but chime does not sound, the chime unit is faulty. If no voltage, trace the open circuit through the cable and button.
Doorbell sounds continuously without button being pressed: Cause: The push-button contacts are stuck closed due to mechanical jamming, contact welding from a fault, or a short circuit in the cable between button and chime. Fix: Disconnect the cable at the push-button. If the chime stops, the button contacts are stuck—replace the push-button. If the chime continues with the button cable disconnected, there is a short circuit in the wiring between the chime and button terminals.
Chime sound is weak or distorted: Cause: Secondary voltage is lower than the chime's rated operating voltage, caused by an incorrect transformer tap, voltage drop in undersized cable on a long run, or an overloaded transformer supplying additional loads. Fix: Measure secondary voltage at the chime terminals during operation. Compare to the chime's rated voltage. If significantly lower, check transformer tap settings, cable cross-section relative to run length, and total VA load on the transformer.

Frequently asked questions

What voltage does a typical wired doorbell use?

Most wired residential doorbells in IEC-standard countries operate at 8 V, 12 V, or 16 V AC from a step-down transformer. North American systems commonly use 16 V AC at 60 Hz. The exact voltage required depends on the chime unit—always check the chime manufacturer's specifications and match the transformer secondary voltage accordingly.

How do I wire a two-button doorbell (front and rear doors)?

Connect the transformer common output to the chime's common (C) terminal. Connect the front push-button in series between the second transformer output and the chime's Front (F) terminal. Connect the rear push-button between the same second transformer output and the chime's Rear (R) terminal. Each button, when pressed, applies voltage to its respective chime terminal.

Why does my doorbell make a continuous tone instead of a chime?

A continuous tone usually means the push-button is stuck in the closed (pressed) position, either due to physical jamming, corrosion causing the contacts to weld together, or a short circuit across the button wiring. Inspect the push-button, clean or replace it if the contacts are fused or damaged.

Can I connect a smart video doorbell to my existing doorbell transformer?

Many smart video doorbells are compatible with existing transformers, but you must verify the transformer's output voltage and VA (volt-ampere) rating match the doorbell's requirements. Smart video doorbells typically require a higher VA rating than a simple chime—a 10 VA transformer that powered a mechanical chime may be inadequate and may require replacement with a 20–40 VA unit.

Is it safe to touch doorbell wiring?

The secondary (low-voltage) wiring of a doorbell circuit—from the transformer output to the push-button and chime—is low voltage (typically 8–16 V AC) and generally safe to handle. However, the primary (mains) side of the transformer is at full mains voltage and is extremely dangerous. Always isolate the mains supply before working on or near the transformer primary terminals.
