Dual Battery System Wiring Diagram

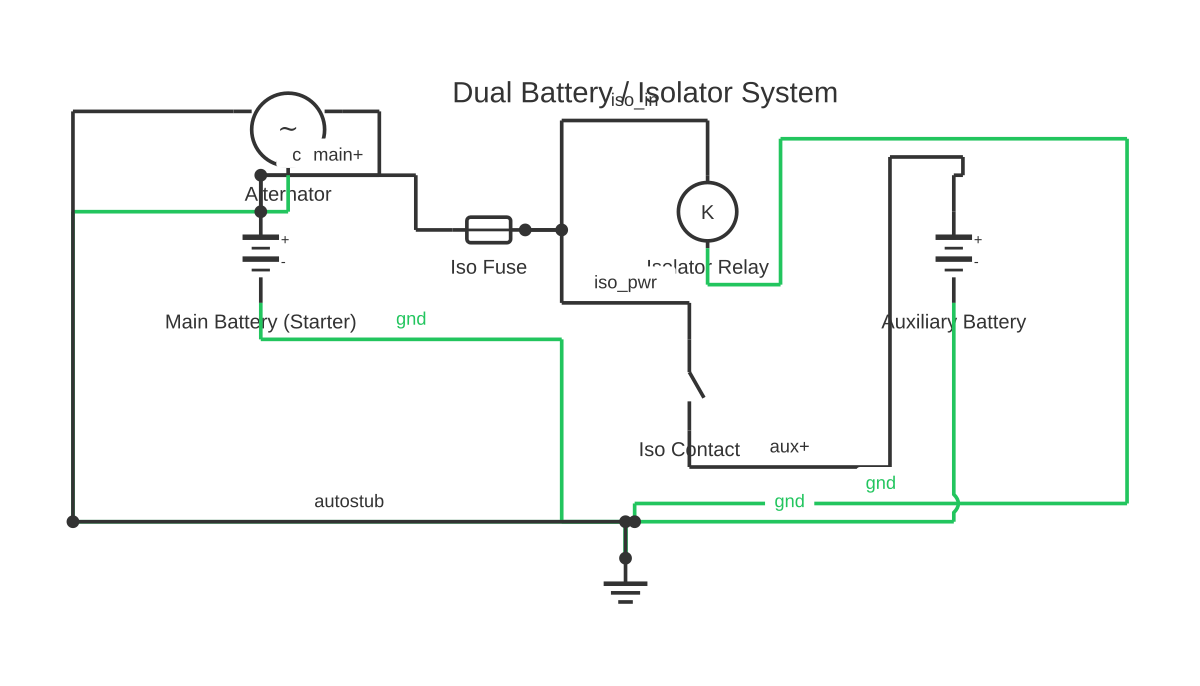

Dual Battery System Wiring Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable dual battery system wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

A dual battery system uses a primary starter battery and a secondary auxiliary battery, isolated by a relay, VSR, or DC-DC charger, so accessories can run without risking a flat start battery.

A dual battery system is fitted in 4WD vehicles, camper conversions, boats, and any application where accessory loads — fridges, lighting, winches, inverters — must run independently of the battery needed to start the engine.

The three principal isolation methods each suit different use cases:

SOLENOID ISOLATOR (battery isolator relay): A high-current relay connects the two batteries in parallel when the alternator voltage rises above roughly 13.2–13.4 V (engine running) and disconnects them when voltage drops at engine off. This is the simplest and lowest-cost approach. Its limitation is that both batteries charge at the same alternator voltage, which can undercharge an AGM or lithium auxiliary battery designed for a higher absorption voltage.

VOLTAGE-SENSITIVE RELAY (VSR): A VSR operates on the same principle as the solenoid isolator but typically includes adjustable voltage thresholds and a delay timer to prevent chattering during voltage fluctuations. It is a plug-and-play upgrade over a basic relay. The same charging-profile limitation applies.

DC-DC CHARGER (also called a battery-to-battery charger or B2B charger): This is the correct solution for mixed battery chemistry — for example, a flooded lead-acid starter battery paired with a lithium (LiFePO4) auxiliary battery. The DC-DC charger takes the alternator's output voltage and steps it up or regulates it to the exact charge profile required by the auxiliary battery. It also provides true isolation so a flat auxiliary cannot pull down the starter battery. Many modern vehicles with smart alternators that vary voltage for fuel efficiency require a DC-DC charger rather than a simple relay.

Solar input is commonly integrated into dual battery systems by connecting a solar charge controller output directly to the auxiliary battery, allowing daytime recharging independent of engine run time.

All heavy-gauge cables between batteries and from the alternator must be fused within 300 mm of each positive terminal to protect against dead shorts.

How to wire dual battery system wiring diagram

Determine isolation method and auxiliary battery chemistry Select VSR, solenoid relay, or DC-DC charger based on your vehicle's alternator type and auxiliary battery chemistry. Smart alternators (common post-2015 in European vehicles) require a DC-DC charger — connect a multimeter to the starter battery and rev the engine; if voltage varies widely, it is a smart alternator.
Plan the cable route and calculate cable sizing Measure the cable run from the starter battery to the isolation device and on to the auxiliary battery. Use a voltage-drop calculator with your maximum expected load current. Size cables to keep drop under 0.5 V; oversize rather than undersize.
Install fuses at each battery positive terminal Fit an ANL or MIDI fuse holder within 300 mm of each battery's positive terminal. The fuse rating must be below the cable's ampacity — for example, 100 A fuse on 50 mm² cable. Never route an unfused positive cable any significant distance.
Mount and connect the isolation device Secure the VSR, relay, or DC-DC charger to a flat, ventilated surface. Connect the input terminals to the starter battery side and output terminals to the auxiliary battery side, following the manufacturer's polarity markings. Torque all terminals to specification.
Connect the auxiliary battery and loads Connect the auxiliary battery positive to the isolation device output and negative to a dedicated earth bar or directly to chassis at a clean, corrosion-free bolt. Connect accessory loads to the auxiliary battery through a distribution fuse block.
Test charging voltage at the auxiliary battery Start the engine and measure voltage at the auxiliary battery terminals. A DC-DC charger should show its programmed output voltage (e.g., 14.4 V for AGM); a VSR should show alternator voltage minus cable losses. Confirm the isolation relay opens within a few minutes of the engine stopping.

Specifications

System voltage	12 V DC nominal (24 V systems also common in commercial vehicles)
VSR connect threshold (typical)	13.2–13.4 V (engine running / alternator charging)
VSR disconnect threshold (typical)	12.7–12.8 V (engine off, load settling)
DC-DC charger output voltage (AGM profile, typical)	14.4–14.7 V absorption, 13.6 V float
DC-DC charger output voltage (LiFePO4 profile, typical)	14.2–14.6 V constant absorption, no float
Maximum cable voltage drop (recommended)	0.5 V at full load current
Fuse placement from battery positive	Within 300 mm of each battery terminal
Typical DC-DC charger output current	20 A, 30 A, or 40 A (select to suit auxiliary battery capacity)

Safety warnings

Always fuse every positive cable within 300 mm of its source battery terminal. An unfused cable that shorts to chassis can cause a severe fire — batteries can deliver thousands of amperes into a dead short.
Never connect two batteries of significantly different states of charge directly in parallel without an isolation device. The resulting equalisation current can damage batteries, melt cables, or cause thermal runaway in lithium cells.
Flooded lead-acid batteries emit hydrogen gas during charging. Never install them in a sealed, unventilated compartment. Provide a dedicated vent to the exterior.
Disconnect both batteries before working on the system. Label cables clearly to avoid reversing polarity on reconnection — reverse polarity will destroy electronic isolation devices and damage battery management systems.
DC-DC chargers and VSRs have maximum input and output voltage ratings. Do not connect a 12 V device to a 24 V system without verifying compatibility. Verify system voltage before purchase and installation.

Tools needed

Digital multimeter (DC voltage and DC current)
Cable crimping tool and lugs rated to cable size
Heat-shrink tubing and heat gun
Torque wrench (for terminal bolts — typically 4–8 Nm for battery terminals)
Cable cutters rated for heavy-gauge cable
Cable run measuring tape
Drill and suitable drill bits for bracket mounting
Cable ties and split-loom conduit for routing

Common mistakes

Running undersized cable and blaming the isolator for poor charging performance — voltage drop in thin cable starves the auxiliary battery of charge voltage.
Installing a simple relay isolator with a lithium auxiliary battery — the relay does not provide the correct charge profile and can damage lithium cells by overcharging or undercharging.
Forgetting to fuse the cable at the auxiliary battery's positive terminal — the run between the isolator and auxiliary battery is also a fire risk if it shorts.
Earthing the auxiliary battery through a long, thin chassis strap — earth resistance causes voltage drop and inaccurate battery monitoring readings. Use a dedicated return cable matched to the positive cable size.
Assuming the VSR will connect batteries for jump-start — confirm your specific device's behaviour, as some DC-DC chargers provide true isolation and cannot pass cranking current.

Troubleshooting

Auxiliary battery not charging when engine runs: Cause: VSR not closing due to low alternator voltage, or DC-DC charger not receiving adequate input voltage. Fix: Measure alternator output voltage at the starter battery. Should be 13.8–14.6 V. If low, service the alternator. Check input fuse and all connections on the isolator device. Confirm the isolator's voltage threshold is set correctly.
Starter battery goes flat overnight despite dual battery system: Cause: A load is connected to the starter battery rather than the auxiliary, or the isolation device is failing to disconnect when the engine stops. Fix: With the engine off, check whether the VSR contacts are open (both batteries at different voltages) using a multimeter. Trace any loads draining the starter battery and move them to the auxiliary circuit. Replace a VSR that is not disconnecting.
Auxiliary battery not reaching full charge (stays at 80–90%): Cause: Alternator voltage is below the auxiliary battery's absorption voltage target, or cable voltage drop is reducing effective charge voltage. Fix: Upgrade to a DC-DC charger programmed for the auxiliary battery's charge profile. Inspect cable connections for resistance and corrosion. If using a VSR, the charge profile limitation is inherent — a DC-DC charger is the correct solution.
Fuse at auxiliary battery blows repeatedly: Cause: A short circuit exists in the load wiring connected to the auxiliary battery, or the fuse is undersized for a legitimate high-current load such as a winch. Fix: Disconnect all loads from the auxiliary battery fuse block and refit the fuse. Reconnect loads one at a time to isolate the short. Re-evaluate fuse rating if a legitimate high-current load (winch, inverter) exceeds the fuse rating.

Frequently asked questions

Do I need a DC-DC charger or will a VSR work?

If both batteries are the same chemistry (e.g., both flooded lead-acid), a VSR is adequate. If your auxiliary battery is lithium (LiFePO4) or AGM requiring a specific charge profile, or if your vehicle has a smart/variable-voltage alternator, use a DC-DC charger. It charges correctly regardless of alternator output variation.

Where should I mount the auxiliary battery?

Ideally in a ventilated, accessible location as close to the loads as practical to minimise cable length and voltage drop. Flooded batteries must be vented to atmosphere. AGM and sealed gel batteries can be mounted in any orientation. Lithium batteries have their own BMS temperature and orientation requirements — check the manufacturer's datasheet.

What cable size should I use between the two batteries?

Calculate the maximum continuous current, then size the cable for a voltage drop of no more than 0.5 V at full load. As a practical guide, for runs under 1.5 m carrying up to 100 A, use 50 mm² (1/0 AWG). For longer runs or higher current, go larger. Always fuse each positive cable within 300 mm of its source battery terminal.

Can the auxiliary battery back-feed to start the vehicle if the starter battery is flat?

Yes, a VSR or solenoid isolator can be manually over-ridden or will connect both batteries if both sides are at low voltage. A DC-DC charger provides true one-way isolation — it will not pass cranking current. If emergency jump-start capability from the auxiliary battery is required, wire in a manual override switch or use a VSR in conjunction with the DC-DC charger.

Why does my auxiliary battery not reach full charge?

With a relay or VSR system, the alternator voltage (typically 13.8–14.4 V) may be insufficient to fully absorb-charge an AGM or lithium auxiliary, especially through long or thin cable runs with resistive losses. A DC-DC charger with the correct charge profile and output voltage will resolve this. Also confirm the cable size and connection quality.
