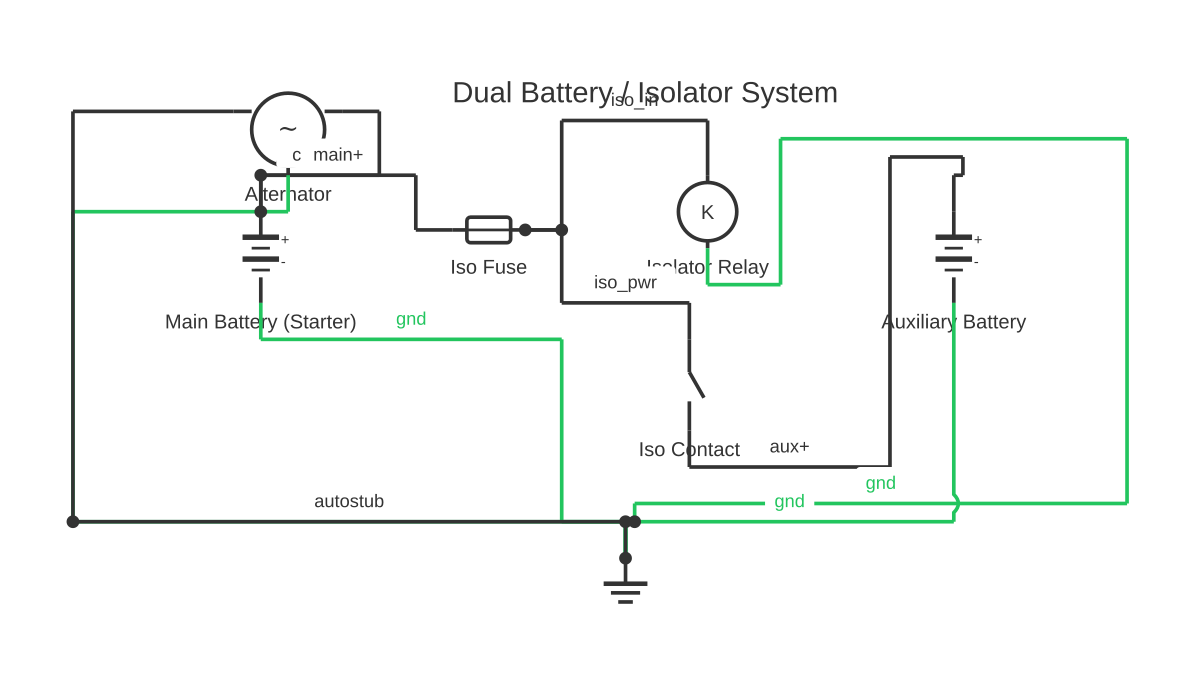

Learn how to wire a dual battery system with a voltage-sensitive relay (VSR) or DC-DC charger isolator — protecting your start battery while charging a secondary accessory battery from the alternator.

A dual battery isolator allows a vehicle to power accessories from a dedicated secondary battery without risking the ability to start the engine. The primary (start) battery remains isolated from the secondary (auxiliary) battery under normal conditions, so that if the auxiliary battery is deeply discharged by accessories, the start battery retains full charge for engine cranking.

Two main isolator technologies are used:

1. Voltage-Sensitive Relay (VSR): A VSR is an automatic relay that closes (connects the two batteries in parallel) when it detects that the primary battery has reached a threshold voltage indicating the alternator is charging (typically 13.3–13.7 V), and opens (isolates the batteries) when the voltage drops below a lower threshold (typically 12.8 V). VSRs are low-cost and simple but have a limitation: modern vehicles with Euro 5/6 or equivalent emissions engines use intelligent alternator control (variable voltage regulation) in which the alternator voltage fluctuates between approximately 12.5 V and 14.8 V during normal driving to recover energy during deceleration. A VSR can misinterpret low-voltage phases as 'charging complete' and disconnect the batteries prematurely, or connect them at an incorrect time.

2. DC-DC Battery Charger Isolator (also called a battery-to-battery charger or B2B charger): This device uses switched-mode power conversion to take current from the start battery/alternator circuit and deliver a properly staged multi-step charge (bulk, absorption, float) to the auxiliary battery, regardless of the input voltage fluctuation. DC-DC chargers are preferred for vehicles with intelligent alternators, AGM or lithium auxiliary batteries, and for installations where maximum auxiliary battery state of charge is required.

Wiring principles (both types): The positive cable from the primary battery (after a suitably rated fuse) connects to the isolator input. The isolator output connects (after a fuse) to the auxiliary battery positive terminal. Both batteries share a common chassis ground. Cable sizes must handle the maximum charge current continuously — typically 50 A, 100 A, or larger depending on the isolator model.

All automotive wiring must be protected by correctly rated fuses positioned within 450 mm of each battery positive terminal. Disconnect both batteries before making connections.

How to wire dual battery isolator wiring diagram

Disconnect both batteries before starting Remove the negative terminal from the start battery and the negative terminal from the auxiliary battery before making any connections. Secure the clamps away from both battery terminals to prevent accidental reconnection during installation.
Select the isolator type and mounting location Choose between a VSR (for vehicles with conventional fixed-voltage alternators and lead-acid or AGM auxiliary batteries) or a DC-DC charger (for intelligent alternator vehicles, AGM, gel, or lithium auxiliary batteries). Mount the isolator on a solid surface away from heat sources, in a ventilated location. Ensure it is within reach of both battery positive cables without excessive cable length.
Run the positive cable from the start battery to the isolator Route a suitably rated positive cable from the start battery positive terminal to the isolator's primary input terminal. Fit a fuse holder with the correct-rated fuse in this cable within 450 mm of the start battery positive terminal. Route the cable away from heat, sharp edges, and moving parts, using grommets at all bulkhead penetrations.
Fit the fuse in the primary positive cable Select a fuse rated for the maximum current capacity of the primary positive cable (not just the isolator's rated output). For example, if using 16 mm² cable rated at 100 A, fit a 100 A ANL fuse. Position the fuse holder within 450 mm of the start battery positive terminal.
Run the positive cable from the isolator to the auxiliary battery Connect a positive cable from the isolator's secondary output terminal to the auxiliary battery positive terminal. Fit a second fuse holder in this cable within 450 mm of the auxiliary battery positive terminal. Use the same or larger cable gauge as the primary cable.
Connect the common ground Both batteries must share a common ground. If both batteries are mounted in the engine bay, their negatives connect to the chassis through the standard factory ground strap. If the auxiliary battery is mounted remotely (cargo area, under vehicle), run a dedicated ground cable of the same gauge as the positive cable from the auxiliary battery negative terminal to the chassis or to the vehicle's main ground bus — do not run the ground return through the vehicle body alone.
Connect any remote sensing or ignition trigger wire Some VSRs and most DC-DC chargers have an ignition sense input. This allows the device to activate only when the vehicle is running (ignition on) rather than responding solely to voltage. Connect the ignition sense wire to an ignition-switched 12 V supply (a circuit that is on only with the ignition key). This prevents the auxiliary battery from being connected when the vehicle is parked with a high resting battery voltage.

Specifications

VSR connection voltage threshold (typical)	Connects at 13.3–13.7 V; disconnects at 12.7–12.8 V (varies by manufacturer)
DC-DC charger input voltage range (typical)	10–15 V DC input from start battery/alternator circuit
Typical DC-DC charger output (auxiliary battery charge)	Multi-step: bulk (14.4–14.6 V for AGM), absorption, float; lithium profile as per battery specification
Minimum fuse position (positive cables)	Within 450 mm of each battery positive terminal
Minimum cable cross-section (50 A isolator, run under 3 m)	10 mm² (8 AWG)
Minimum cable cross-section (100 A isolator or run over 3 m)	16–25 mm² (6–4 AWG)

Safety warnings

Disconnect both batteries (negative terminals first) before making any connections. Both batteries are potential sources of fault current throughout the installation; treat all cable ends as live until both battery negatives are confirmed disconnected.
Fit correctly rated fuses within 450 mm of each battery positive terminal in every positive cable. A wiring fault without fusing can deliver thousands of amperes from the battery, causing cable fires, burns, and potential battery explosion.
A short circuit on the primary or secondary cable can cause rapid, uncontrolled energy release from a vehicle battery. Never route positive cables against sharp metal edges without protection, and always use grommets at bulkhead penetrations.
On vehicles with intelligent alternator management (Euro 5/6, most vehicles from approximately 2010 onwards), do not use a standard VSR without confirming alternator type. Incorrect VSR operation in these vehicles can cause the isolator to connect/disconnect rapidly, potentially damaging the alternator or creating voltage spikes.
Lithium iron phosphate (LiFePO4) auxiliary batteries require lithium-compatible DC-DC charger programming. Using a lead-acid charge profile on a lithium battery risks overcharging, thermal runaway, and fire. Confirm the DC-DC charger explicitly supports the installed auxiliary battery chemistry.

Tools needed

Digital multimeter (DC voltage measurement to 20 V, current measurement or clamp meter)
Hydraulic cable crimping tool for ring terminals and lugs
Wire strippers for heavy-gauge cable (10–25 mm²)
Spanners and socket set for battery terminals and mounting hardware
Drill and bits for mounting isolator and cable routing
Heat gun for heat-shrink insulation
Cable ties and loom for cable dressing and protection

Common mistakes

Running a single ground cable from the auxiliary battery all the way back to the start battery negative terminal instead of bonding to the nearest chassis ground point, adding unnecessary resistance and length to the ground return path.
Fitting fuses rated for the isolator's output current rather than the cable's current capacity — the fuse must protect the cable, not just match the device rating.
Using a VSR on a vehicle with an intelligent alternator and experiencing intermittent auxiliary battery charging without understanding why — the alternator's intentional voltage variation causes the VSR to open and close repeatedly.
Omitting the ignition sense wire on a DC-DC charger, causing the charger to activate on the auxiliary battery's own resting voltage and drain the start battery when the vehicle is parked.
Routing positive cables through enclosed metal conduit or trunking without individual cable fusing — a positive cable fault inside the conduit can energise the conduit and cause a fire before any upstream fuse responds.

Troubleshooting

Auxiliary battery not charging after driving: Cause: VSR not closing due to intelligent alternator low-voltage phases; fuse blown in primary or secondary cable; isolator ignition sense not connected; or high resistance in cable connections Fix: Measure voltage at the isolator's primary input terminal while driving — should reach 13.3 V or higher during charging. Measure voltage at the isolator's secondary output. If input is present but output is absent, the isolator is not connecting (check VSR threshold or DC-DC charger ignition sense). Check all fuses and measure resistance of cable connections.
Start battery is flat after overnight parking with accessories running from auxiliary: Cause: Both batteries connected in parallel without the isolator opening (VSR threshold too high or stuck closed, or DC-DC charger not disconnecting on ignition off); or accessories connected to start battery instead of auxiliary battery Fix: Verify which battery accessories are actually connected to. Test VSR operation: with both batteries connected, reduce auxiliary battery voltage below the VSR lower threshold by applying a load — VSR should open (disconnect). Test with ignition off. Verify DC-DC charger has correct ignition sense wiring and shuts down with ignition off.
Fuse on secondary cable keeps blowing: Cause: Short circuit in the auxiliary battery wiring or accessories; fuse rating too low for the total accessory load; or loose terminal causing arc flash and fuse damage Fix: Disconnect all accessories from the auxiliary battery and replace the fuse. If the new fuse holds, reconnect accessories one at a time to identify the faulty circuit. Calculate total accessory current and ensure fuse rating matches cable capacity and total load. Inspect all terminals for corrosion, looseness, and evidence of arcing.

Frequently asked questions

What is the difference between a VSR and a DC-DC battery charger isolator?

A VSR (voltage-sensitive relay) is a relay that connects the two batteries in parallel when it detects alternator charging voltage, allowing direct charge sharing. A DC-DC charger actively converts and regulates charging current from the source battery, providing a multi-step charge profile to the auxiliary battery. DC-DC chargers are preferred for vehicles with intelligent alternators and for AGM or lithium auxiliary batteries.

Why do I need a fuse on both the positive cables to the isolator?

Each fuse protects its associated cable against short-circuit current from its connected battery. The start battery fuse (within 450 mm of the start battery positive) protects the cable running from the start battery to the isolator. The auxiliary battery fuse (within 450 mm of the auxiliary battery positive) protects the cable between the isolator and the auxiliary battery. A fault on either cable is independently protected.

Can I use a VSR with a modern vehicle that has an intelligent alternator?

Not reliably. Intelligent alternators on Euro 5/6 and newer vehicles intentionally vary output voltage during driving — sometimes dropping to 12.5–12.8 V during low-load phases. A VSR interprets these drops as charging complete and disconnects the batteries, interrupting auxiliary battery charging. A DC-DC battery-to-battery charger is the correct solution for these vehicles.

What cable size should I use for a 50 A dual battery isolator?

A 50 A continuous current requires a minimum cable cross-section of 10 mm² (8 AWG) for short runs under 3 metres. For runs of 3–5 metres, use 16 mm² (6 AWG) to keep voltage drop within acceptable limits. Always size the fuse to match the cable rating, not the isolator rating — the fuse protects the cable, not the device.

Can I charge a lithium (LiFePO4) auxiliary battery through a VSR from a standard alternator?

Not safely without a DC-DC charger. Lithium batteries (LiFePO4) have a flat discharge curve that keeps terminal voltage high for most of their charge cycle, which can confuse a VSR's connection logic. More critically, lithium batteries require precise charge voltage and current management. An uncontrolled direct connection through a VSR risks overcharging. Always use a lithium-compatible DC-DC battery-to-battery charger.
