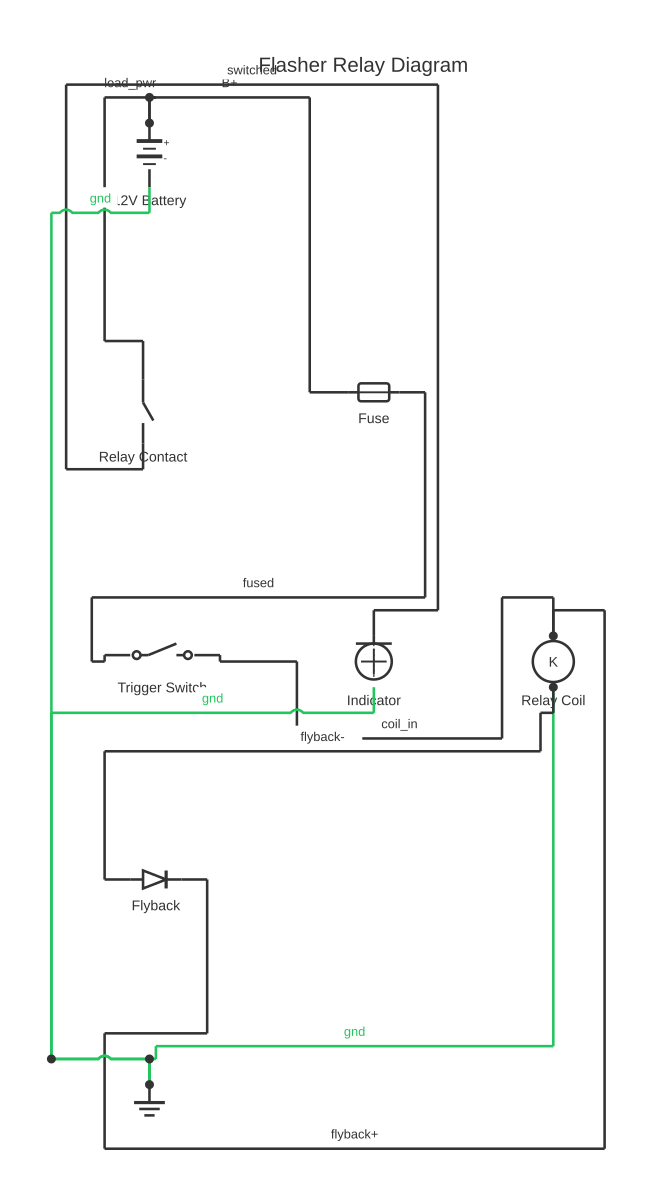

Flasher Relay Wiring Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable flasher relay diagram: download the diagram as SVG or open it and print to paper or PDF.

A technical reference for thermal and electronic flasher relays covering internal operation, wiring, LED hyper-flash causes, and load-resistor fixes for automotive turn-signal circuits.

A flasher relay is the component that produces the rhythmic on/off switching of vehicle turn-signal and hazard-warning lamps at a rate specified by most regulations as 60–120 flashes per minute. Understanding how it works is essential when diagnosing erratic flash rates or retrofitting LED indicators.

The original thermal (bimetal) flasher contains a resistive heating element in series with the lamp load and a bimetal strip contact. When current flows, the element heats the strip until it bends and opens the contact. The circuit breaks, the element cools, the strip snaps back, and the cycle repeats. Flash rate depends directly on current — if current increases (more lamps wired in parallel) the cycle speeds up; if current decreases (a blown bulb or lower-draw LED lamp) the cycle slows dramatically or stops entirely. This is why a failed incandescent bulb causes a rapid flash on traditional vehicles: resistance increases, current drops, and the thermal flasher stalls or races depending on design.

Electronic flashers use a timer IC or microcontroller with a fixed oscillator, so flash rate is independent of load current within a design range. They are far more reliable than thermal types, produce a sharper click (or no click), and are used on most vehicles manufactured after the mid-1990s.

Hyper-flash is the rapid flashing (often 200+ flashes per minute) that occurs when LED indicator bulbs are retrofitted to a vehicle designed for incandescent lamps. Because LEDs draw 80–90% less current than the tungsten bulbs they replace, the electronic flasher detects low current as an open-circuit fault condition and switches to a high-speed fault-flash mode. There are two accepted solutions: replace the flasher with an LED-compatible unit that operates independently of load current, or install load resistors across each LED lamp to bring total circuit current back into the incandescent range. Load resistors generate substantial heat and must be mounted to metal away from plastic and wiring.

A flasher relay (also called a turn signal relay or blinker unit) generates the timed on-off switching that makes indicator lamps flash at the legally required rate—typically 60–120 flashes per minute. The unit may be a simple thermal bi-metallic type, an electronic solid-state unit, or a load-sensitive unit calibrated to a specific lamp wattage. Aftermarket flasher relays such as the Novita EL13 are popular LED-compatible replacements. You can map indicator and flasher circuits free at circuitdiagrammaker.com.

How to wire flasher relay diagram

Identify the flasher relay location and terminal designation Locate the flasher relay in the vehicle's fuse/relay panel or behind the dashboard. Note the number of pins (2, 3, or more) and identify terminal designations from the vehicle wiring diagram. Common designations are B or + (battery input), L or LOAD (switched lamp output), and E or GND (earth/tell-tale output).
Measure supply voltage at the input terminal With the ignition on and the turn signal stalk activated, probe the input terminal with a digital multimeter set to DC volts. You should see battery voltage (nominally 12–14 V). No voltage indicates a fault in the fuse, steering column switch, or wiring before the flasher.
Measure flash output at the lamp terminal Probe the lamp output terminal while the turn signal is active. The voltage should switch between 0 V and battery voltage at 60–120 flashes per minute. A steady 12 V with no switching indicates a failed flasher or a circuit fault that prevents current from flowing.
Check total lamp load Sum the wattage of all lamps in the indicator circuit (front, rear, side repeaters). For a thermal flasher the total load must match the relay's rating, typically 21 W per lamp × number of lamps. LED retrofits will read near 0 A if measured — confirm load resistors or an LED-compatible relay are required.
Install load resistors for LED hyper-flash correction If using load resistors, select resistors that draw approximately the same current as the original incandescent bulb when connected across 12 V. Mount resistors on metal brackets away from plastic and wiring — they reach temperatures above 80 °C under normal operation. Use ring terminals and ensure connections are insulated.
Substitute an LED-compatible flasher relay If load resistors are impractical, source an LED-compatible relay with the same pin count and physical format as the original. Many units are adjustable via a small potentiometer for flash rate. Confirm terminal pin-out matches the vehicle diagram before installation.
Verify operation and regulatory compliance With the system reassembled, check flash rate against the applicable vehicle standard. Most regulations require 60–120 flashes per minute. Verify all indicator lamps on both sides flash correctly, the dashboard tell-tale operates, and hazard flashers work on all four corners simultaneously.

Specifications

Supply voltage	12 V DC nominal (9–16 V operating range)
Flash rate (regulatory requirement, most jurisdictions)	60–120 flashes per minute
Typical incandescent lamp load per circuit	21 W per lamp (front + rear + repeater = 42–63 W per side)
Load resistor value for 21 W incandescent equivalent	6.8 Ω, 50 W minimum power rating
Load resistor operating temperature	Up to 110 °C surface temperature under load
Typical thermal flasher current rating	8–16 A
LED indicator current draw (typical)	0.1–0.4 A per lamp (versus 1.75 A for 21 W incandescent)

Safety warnings

Load resistors for LED hyper-flash correction operate at temperatures above 80 °C. Mount only on metal brackets with adequate clearance from plastic body parts, wiring, and upholstery to prevent fire.
Disconnect the battery negative terminal before accessing the flasher relay or modifying indicator wiring to prevent accidental short circuits.
Indicator and hazard-warning systems are required by road traffic regulations in most jurisdictions. Any modification must maintain operation within legally specified flash rate limits (typically 60–120 flashes per minute).
Do not substitute a flasher relay with a higher current rating than the wiring is sized for — the wiring will become the weakest point and may overheat before the relay reacts.
Verify that any aftermarket LED-compatible relay maintains operation of the hazard warning function on all four indicator circuits simultaneously, as some budget units only address the turn-signal circuit.

Tools needed

Digital multimeter
Automotive wire stripper and crimper
Relay puller or flat-blade screwdriver (relay extraction)
Heat gun (for heat-shrink connectors)
Metal bracket or aluminium angle (load resistor mounting)
Drill and metal bits (for mounting brackets)
Cable ties and mounting clips

Common mistakes

Swapping the input (B/+) and output (L/LOAD) terminals on a 3-pin flasher — produces no flash and may damage the relay.
Installing load resistors without adequate heat dissipation mounting — causes resistor failure and risk of fire.
Fitting an LED-compatible flasher but leaving one incandescent bulb in circuit — the mixed load can cause irregular flash rates.
Connecting the tell-tale terminal (E) to the lamp output (L) — provides no tell-tale indication or results in tell-tale always on.
Using a flasher relay with insufficient current rating for the total lamp load — overheats the relay and causes premature failure.
Not checking side repeater lamps when diagnosing slow flash — the repeater is often forgotten and its failure masks the total lamp-count issue.

Troubleshooting

Both sides flash at double the normal rate: Cause: LED lamps installed without LED-compatible flasher relay (hyper-flash) Fix: Install an LED-compatible flasher relay with a fixed-frequency oscillator, or install load resistors (approximately 6.8 Ω / 50 W) across each LED lamp to restore circuit current to the incandescent range.
One side flashes rapidly, other side normal: Cause: A lamp has failed on the fast-flashing side (thermal flasher), or partial LED retrofit on one side only Fix: Inspect all lamps on the fast-flashing side. Replace the failed lamp or standardise all lamps to the same type across both sides.
No flashing — indicators stay on continuously: Cause: Shorted flasher relay, or input and output terminals swapped Fix: Remove the flasher and check for continuity between input and output with no supply connected. Replace a shorted relay. Verify terminal designations against the vehicle wiring diagram.
Dashboard tell-tale does not illuminate: Cause: Tell-tale lamp failed, or flasher relay tell-tale terminal (E) not connected Fix: Test the tell-tale lamp independently on a 12 V supply. If the lamp is good, verify the tell-tale terminal on the flasher relay is connected to the correct pin in the relay socket.
Hazard flashers work but turn signals do not: Cause: Fault in the turn-signal stalk switch or associated wiring, upstream of the flasher relay Fix: Probe the turn-signal stalk output terminals with a test light while operating the stalk. No output from the stalk indicates a failed switch. Hazard and turn-signal circuits merge at the flasher, so a flasher fault would affect both functions.

Frequently asked questions

What causes hyper-flash after fitting LED indicators?

LED indicators draw far less current than the incandescent bulbs the flasher relay was designed for. The electronic flasher interprets low current as a blown-bulb fault and switches to a fast-flash warning mode. The fix is either an LED-compatible flasher relay that uses a fixed-frequency oscillator regardless of load, or load resistors wired in parallel with each LED to restore circuit current to the expected range.

What is the difference between a 2-pin and 3-pin flasher relay?

A 2-pin thermal flasher has one input and one switched output terminal; the flash rate varies with load. A 3-pin electronic flasher adds a separate switched ground or indicator-lamp terminal that drives the dashboard tell-tale. Always identify pin function with a wiring diagram — swapping the input and output pins on a 3-pin flasher is a common mistake that prevents the circuit from working at all.

How do I test a flasher relay?

Connect the flasher relay to a 12-volt supply and an appropriately rated lamp load matching the vehicle's bulb configuration. A working thermal flasher will flash at 60–120 flashes per minute with correct load. An electronic flasher can also be tested this way but note that some designs require a minimum load to oscillate. A flasher that produces a single click and stays on or stays off is defective.

Can I use a motorcycle flasher relay in a car?

Generally no. Motorcycle flasher relays are rated for a single lamp circuit (typically 10–21 W) and may not handle the higher total load of a four-lamp automotive circuit (up to 84 W on some vehicles). Using an undersized relay causes overheating, premature failure, and potentially abnormal flash rates.

My indicators flash slowly on one side only — what should I check first?

A slow flash on one side with a thermal flasher almost always means one lamp in that circuit has failed, increasing resistance and reducing current through the heater element. Check all lamps on the slow-flashing side, including the front, rear, and any side repeater lamps. With an electronic flasher, slow flash on one side suggests a partial open circuit rather than a lamp failure.

What is the indicator flasher relay wiring diagram?

A 3-terminal flasher relay has a battery input (B or +), a load output (L or S) that feeds the indicator lamps via the turn switch, and a ground terminal (E) to chassis. When the turn switch is engaged, current flows through the flasher unit which interrupts it at the rated frequency, causing the lamps to flash. A two-terminal flasher unit omits the separate ground, relying on the lamp circuit to complete the earth path, which makes flash rate sensitive to lamp load.

What is the Novita flasher relay wiring diagram?

The Novita electronic flasher relay (models EL12, EL13, and similar) is a direct plug-in replacement for OEM thermal flashers in most Japanese and Australian vehicles. It uses the same terminal designations (B = battery, L = load, E = earth/ground) as the original unit. Being load-independent, it maintains a constant flash rate regardless of whether standard incandescent or LED indicator lamps are fitted, eliminating the rapid-flash 'hyperflash' caused by the lower current draw of LEDs.
