Flasher Unit Wiring Diagram

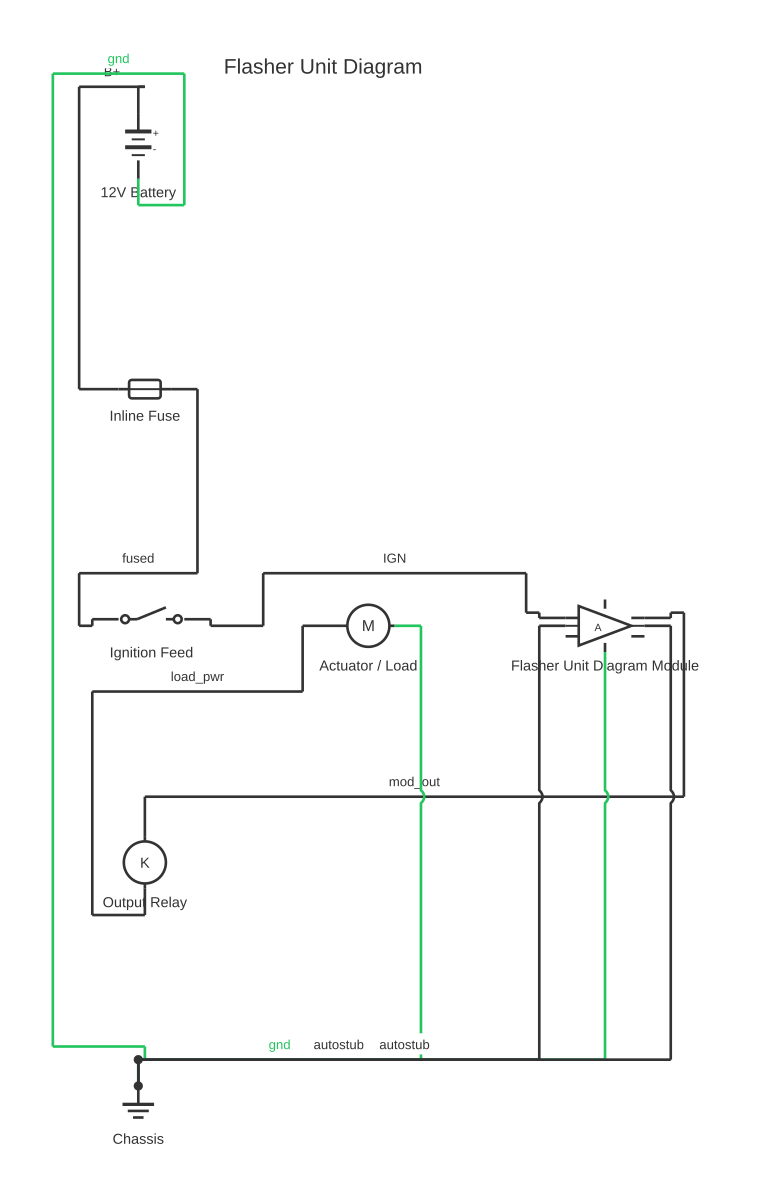

This is a free printable flasher unit diagram: download the diagram as SVG or open it and print to paper or PDF.
A flasher unit is a critical component in your vehicle's electrical system that controls the rhythmic blinking of turn signals and hazard lights. Understanding the flasher unit wiring diagram helps diagnose lighting issues and ensures proper vehicle safety compliance.
A flasher unit operates by using a bimetallic strip that heats and cools at a controlled rate, creating a pulsating electrical circuit. When you activate the turn signal switch, current flows through the flasher unit to the turn signal lights. The bimetallic strip heats up, which bends and breaks the circuit, turning off the lights. As it cools, it straightens and remakes the circuit, turning the lights back on. This cycle repeats approximately 60 to 120 times per minute, creating the visible flashing effect. Modern flashers use electronic components instead of mechanical strips but operate on the same principle. The flasher unit diagram shows how power from the battery flows through the switch, into the flasher unit, and out to the front and rear turn signal lights. When the hazard switch is activated, it bypasses the turn signal switch and powers both flasher circuits simultaneously, making all four turn signals flash together.
How to wire flasher unit diagram
- Locate your vehicle's flasher unit, typically found under the steering column or in the fuse panel area.
- Consult your service manual to identify which socket holds the flasher unit you need to replace.
- Unplug the old flasher unit by gently pulling it straight out of its socket.
- Note the terminal configuration of the old unit to ensure you purchase a compatible replacement.
- Insert the new flasher unit into the socket until it clicks into place, then test your turn signals.
- If the new flasher doesn't work, verify that your turn signal bulbs are functioning properly.
- Test both the turn signal and hazard light functions to ensure complete operation.
Frequently asked questions
How do I know if my flasher unit is bad?
Common signs include turn signals that don't flash, flash too quickly or slowly, or don't turn off after the turn is complete. You may also notice a clicking sound that speeds up or disappears. If multiple lights fail simultaneously, the flasher unit is likely the problem.
Can I replace a flasher unit myself?
Yes, flasher units are typically located under the dashboard or steering column and can be replaced easily. Most units simply plug into a socket. Consult your vehicle's service manual for the exact location and part number.
What's the difference between a 3-pin and 5-pin flasher?
A 3-pin flasher handles single circuits (turn signals OR hazards), while a 5-pin flasher (also called a hazard flasher) manages both turn signals and hazard lights through separate circuits, allowing them to operate independently.
Why do LED turn signals require a different flasher?
LED lights draw less current than incandescent bulbs, which can cause standard flashers to malfunction. LED-compatible flashers are designed to work with the lower current draw of LED lights.
What amperage should my flasher unit be rated for?
Most automotive flasher units are rated between 8 to 15 amps. Check your vehicle's service manual or the flasher unit packaging for the correct rating, as using an incorrectly rated unit can damage your electrical system.
