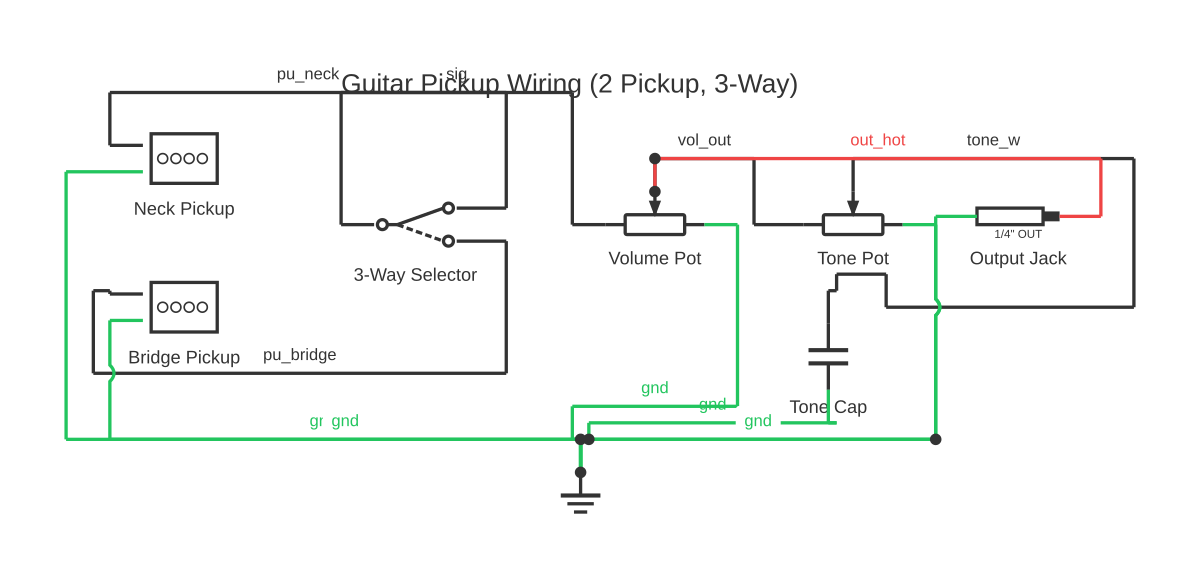

Guitar wiring diagrams show how pickups, volume and tone potentiometers, selector switches, and output jacks connect to shape your instrument's tone, output level, and switching options.

A guitar wiring diagram is a schematic that maps the passive (or occasionally active) electrical network inside a solid-body or semi-hollow electric guitar. Unlike mains wiring, the voltages involved are millivolt-level signals and the currents are microamperes — the safety risks are negligible — but the tonal and signal-quality implications of every connection are significant.

At the heart of any guitar circuit is the pickup. A single-coil pickup is a coil of fine copper wire wound around a set of alnico or ceramic magnets. It generates an AC signal by converting string vibration (which disturbs the magnetic field) into a small voltage. A humbucker is two coils wound in opposite directions and connected in series with opposite magnetic polarity — the arrangement cancels electromagnetic interference (hum) that plagues single-coil pickups near transformers and fluorescent lights. The wiring diagram shows the pickup wires — typically a hot (signal) and a ground (earth/shield) for single-coil pickups, or a four-conductor (north start, north finish, south start, south finish, plus shield) for humbuckers.

The volume potentiometer (pot) is a variable voltage divider. Its full resistance (typically 250 kΩ for single-coil pickups, 500 kΩ for humbuckers) is connected from the pickup hot to ground; the output is taken from the wiper. A higher pot value allows more high-frequency content through (brighter sound), which is why humbuckers use a higher value than single-coils. Turning the volume control down sweeps the wiper, progressively shunting the signal to ground.

The tone potentiometer works with a capacitor to form a low-pass filter. The pot controls how much of the signal is bled to ground through the capacitor. A fully open tone pot removes the filter from the circuit; rolling the tone back increases the high-frequency attenuation, producing a warmer, rounder sound. Typical capacitor values are 22 nF for single-coil and 47 nF for humbucker circuits.

The pickup selector switch — a three-way toggle for two-pickup guitars or a five-way blade switch for three-pickup configurations — routes one or more pickup signals to the volume control. On a three-way switch, positions 1 and 3 select individual pickups; position 2 combines both. On a five-way Stratocaster-style switch, the in-between positions 2 and 4 connect adjacent pickups in parallel, which is what creates the characteristic 'quacky' out-of-phase tones that are actually pickups in phase but in parallel.

How to wire guitar wiring diagrams

Identify your guitar's configuration and obtain the correct diagram Before rewiring, confirm the number of pickups, pickup types (single-coil or humbucker), and the switch type (three-way toggle or five-way blade). A wiring diagram for a two-humbucker guitar with a three-way switch differs significantly from a three-single-coil guitar with a five-way switch. Use a diagram that matches your specific configuration.
Gather components and check pot and capacitor values Confirm pot resistance values (250 kΩ or 500 kΩ as appropriate), pot taper (audio/logarithmic taper for volume and tone controls), and capacitor value (22 nF or 47 nF typical). Inspect the output jack for corrosion. If replacing a pot, measure the original before desoldering — some vintage instruments use non-standard values.
Tin the pot casings and component solder lugs Pre-tin (apply a small amount of solder to) all surfaces before attempting joins. Pot casings require a higher soldering iron temperature than signal lugs — use a well-heated iron (350–400 °C on the casing ground points) and make the join quickly. Cold solder joints are the most common cause of intermittent guitar wiring faults.
Install ground connections to the pot casings The pot casings serve as the ground bus in passive guitar wiring. Solder a ground wire from each pot casing to the next, creating a common ground chain. Connect this chain to the bridge ground (if applicable), the output jack sleeve, and the pickup ground conductors. Every ground must ultimately connect to the output jack's sleeve terminal.
Wire the pickup selector switch Consult the diagram for the specific switch's terminal layout — five-way blade switches and three-way toggles have different terminal arrangements, and these vary between switch manufacturers. Connect each pickup's hot wire to the correct input terminal of the switch. Verify which terminal is the output (to the volume pot) before soldering.
Wire the volume and tone pots The volume pot's input lug connects to the selector switch output. The middle lug (wiper) connects to the output and to the tone pot's input lug. The volume pot's third lug connects to the casing (ground). The tone pot's third lug connects through the tone capacitor back to the casing. The wiper of the tone pot connects to nothing — the pot is used as a rheostat, not a voltage divider.
Wire the output jack, test, and install The output jack's tip terminal (the pointed contact) receives the signal from the volume pot wiper. The sleeve terminal (the long contact that grounds when the jack is inserted) receives the common ground. Test continuity from each pickup hot to the tip terminal and from each ground to the sleeve before closing up. Use a multimeter or guitar input to test the signal path before fitting the scratchplate or control cavity cover.

Specifications

Standard volume pot value (single-coil pickups)	250 kΩ, audio (logarithmic) taper
Standard volume pot value (humbuckers)	500 kΩ, audio (logarithmic) taper
Tone capacitor (single-coil, typical)	22 nF (0.022 µF)
Tone capacitor (humbucker, typical)	47 nF (0.047 µF)
Output jack connector type	6.35 mm (1/4 inch) mono TS jack
Typical pickup output impedance (single-coil)	5,000–10,000 Ω (5–10 kΩ) DC resistance; inductance typically 2–5 H
Treble bleed (typical values)	Capacitor: 1 nF in series with 150 kΩ resistor, wired across volume pot input and wiper lugs

Safety warnings

Guitar wiring operates at millivolt signal levels and poses no electrocution risk from the guitar circuit itself. However, ensure the guitar amplifier is correctly earthed before connecting a guitar — a missing amplifier earth can place mains voltage on the guitar strings through a fault path.
Use a soldering iron with temperature control. Excessive heat damages potentiometer internals and melts the plastic wafers in multi-way switches. Work quickly on each joint.
Solder fumes contain flux residues that are irritating to the respiratory system. Work in a ventilated space or use a fume extractor, particularly during extended wiring sessions.
Verify the wiring before reconnecting active (battery-powered) circuits. Reversed polarity will immediately damage active electronics. Passive circuits are forgiving but should still be tested before reassembly.

Tools needed

Temperature-controlled soldering iron (25–40 W, with fine tip)
Rosin-core solder (60/40 tin-lead or lead-free equivalent, 0.5–0.7 mm diameter)
Flux pen (for stubborn solder joints on pot casings)
Wire strippers and flush-cut side cutters
Digital multimeter (continuity and resistance testing)
Hemostat or 'third hand' clip tool (for holding components during soldering)
Desoldering pump or braid (for correcting mistakes)
Screwdrivers matched to control cavity and scratchplate fasteners

Common mistakes

Reversing the volume pot terminal connections so that the volume knob works backwards (maximum volume at zero, minimum at 10) — a result of connecting the input and wiper to opposite lugs.
Leaving the tone pot wiper unconnected when using it as a rheostat — the wiper must be connected to the lug being used as the output to prevent intermittent signal dropout as the pot shaft rotates.
Using linear-taper pots instead of audio-taper (logarithmic) pots, which makes volume and tone controls feel abrupt and non-linear to play.
Making cold solder joints on pot casings because the iron was not hot enough or not held in contact long enough — a grey, dull, or blob-shaped joint will fail intermittently.
Not connecting a bridge ground wire from the sustain block or bridge posts to the common ground, which causes hum when the player's hands are not touching the strings (the strings complete the ground path through the player's body when touched).

Troubleshooting

Significant hum or buzz that reduces when touching the strings or metal hardware: Cause: Missing or broken bridge ground wire; or insufficient cavity shielding in a single-coil-equipped guitar Fix: Verify the bridge ground wire is present, soldered at both ends, and provides continuity from the bridge/sustain block to the common ground. If the bridge ground is intact, the remaining hum is electromagnetic interference in single-coil pickups — adding conductive shielding paint or copper foil to the cavity and scratchplate cavity significantly reduces this.
Output signal cuts out intermittently when the volume or tone control is moved: Cause: Cold or cracked solder joint at the pot's signal or casing lug; worn or contaminated pot track Fix: Reflow all solder joints on the affected pot. If signal dropout persists, spray the pot shaft with an appropriate contact cleaner and rotate it repeatedly to clean the carbon track. If the pot is scratchy and intermittent at specific positions, replace it.
Only one pickup selector position produces sound: Cause: Open circuit on pickup hot wire to switch input; incorrect switch terminal wiring; or a failed switch contact Fix: With a multimeter set to continuity, verify that each pickup's hot wire has continuity to its corresponding switch input terminal. Then verify that the switch output terminal has continuity to the volume pot input in each switch position. If switch contacts are at fault, clean with contact cleaner or replace the switch.

Frequently asked questions

Why do Stratocaster pickups use 250 kΩ pots while humbuckers use 500 kΩ?

Higher resistance pots pass more high-frequency content to the output. Single-coil pickups are naturally bright, so 250 kΩ pots roll off some of that brightness to a more pleasing level. Humbuckers naturally lack high-frequency detail, so 500 kΩ pots preserve the treble content. Using 250 kΩ pots with a humbucker will make the pickup sound dull and muddy.

What is a four-conductor humbucker and why does it matter for wiring?

A four-conductor humbucker exposes both ends of each coil (north start/finish and south start/finish), plus a bare ground wire, giving five conductors total. This allows coil-splitting (connecting one coil's ends together to short it out, producing a single-coil sound), series/parallel switching, and phase inversion — modifications that require both coil leads to be individually accessible.

What does a treble bleed circuit do?

When you roll the volume pot down, the pickup's inductance interacts with the pot's reduced impedance to filter out high frequencies, making the sound duller at lower volumes. A treble bleed circuit — a small capacitor (sometimes in series with a resistor) wired across the volume pot's input and wiper — compensates for this, maintaining consistent tonal brightness across the volume range.

How do I wire a humbucker for coil-split?

Coil-splitting requires a four-conductor humbucker and a switch (typically a push-pull pot or mini toggle). In standard humbucker operation, the inner coil conductors are soldered together and insulated. For coil-split, you route those inner conductors to a switch that shorts them to ground (bypassing one coil) in the split position and disconnects the short in the humbucker position.

Can I use any capacitor value for the tone circuit?

The capacitor value sets the tonal character of the tone control. Common values: 22 nF (0.022 µF) is the most widely used for single-coil guitars; 47 nF (0.047 µF) gives a darker, more dramatic bass roll-off used with humbuckers; 10 nF (0.010 µF) gives a subtler, more presence-friendly tone cut. The 'best' value is subjective — experiment to find the tone character you prefer.
