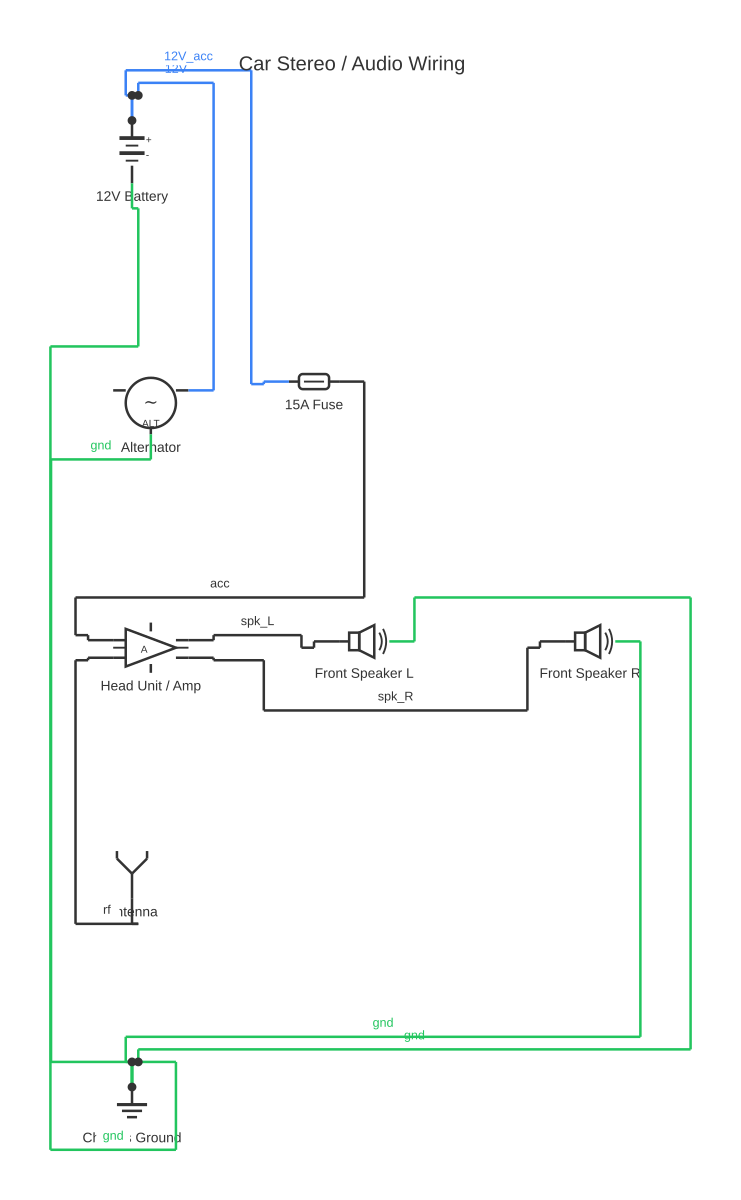

Head Unit Wiring Diagram: ISO Harness Connector, Common Wire Functions, and Installation — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable head unit wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

Learn how to safely install or replace a car head unit using ISO harness connectors, understand common wire colour functions, and avoid the mistakes that damage your vehicle's electronics.

A car head unit — the audio or multimedia unit mounted in the dashboard — connects to the vehicle's electrical system through a standardised wiring harness. The most widely adopted standard in the aftermarket industry is the ISO 10487 connector, which defines two 8-pin connectors (typically labelled ISO A and ISO B) that carry power supply, speaker output, and accessory switching connections.

IMPORTANT: This page provides generic educational guidance only. Head unit wiring varies significantly between vehicle manufacturers, model years, and regions. The ISO standard applies to the aftermarket unit's connector — the vehicle side harness will use a manufacturer-specific connector that requires a vehicle-specific wiring harness adapter. Always obtain and cross-reference the wiring diagram for your specific vehicle and the installation instructions for the specific aftermarket unit you are fitting. Do not assume wire colours on the vehicle harness match the aftermarket unit or ISO colours.

The ISO A connector (also called the power connector) typically carries: battery positive (permanent 12 V), ignition-switched positive (12 V when ignition is on), accessory positive (12 V in ACC key position), illumination positive (triggered by headlight switch), and chassis ground. The ISO B connector (also called the speaker connector) carries the four speaker output pairs: front-left positive and negative, front-right positive and negative, rear-left positive and negative, and rear-right positive and negative.

In OEM systems, the vehicle-side harness will use a proprietary connector. To fit an aftermarket head unit, an ISO harness adapter is required — a plug-in loom that converts the vehicle's OEM connector to the ISO format. These adapters are vehicle-specific and available from automotive accessory suppliers. Using the correct adapter prevents the need to cut the vehicle's original harness, preserving the integrity of the electrical system and allowing the original equipment to be reinstalled.

Some modern vehicles use CAN bus or MOST bus communication for audio and vehicle functions, where a simple harness adapter is insufficient and an interface module is required to decode steering wheel controls, retain the original amplifier, or maintain instrument cluster displays.

How to wire head unit wiring diagram

Disconnect the vehicle battery before starting Remove the negative terminal from the battery before disconnecting or connecting any electrical component in the dashboard. Many modern vehicles have airbag modules, stability control units, and infotainment computers that store capacitive charge. Wait at least 60 seconds after disconnecting the battery before working near airbag wiring.
Obtain the correct vehicle-specific ISO harness adapter Identify your vehicle's make, model, year, and audio system variant. Purchase a harness adapter designed specifically for this combination. Confirm the adapter is compatible with any retained features you require (steering wheel controls, amplifier retention, factory subwoofer). Fit the adapter to the vehicle's OEM connector before removing the head unit from the dash, so you can verify the adapter click-locks correctly.
Remove the original head unit and expose the harness Use the appropriate removal tools for the vehicle's dash design — most factory head units release with DIN removal keys (two pairs of flat metal rods that compress retention clips) or require trim panel removal to access mounting screws. Do not use screwdrivers to pry at the unit. Once the unit is freed, slide it forward enough to access the connectors without strain on the wiring.
Connect and verify the ISO harness adapter Plug the vehicle-side ISO harness adapter into the vehicle's OEM connector. Connect the ISO plug from the aftermarket head unit to the adapter's ISO socket. Do not yet push the unit into the dash. Temporarily reconnect the battery and test all functions: power on, clock display, radio reception, each speaker individually, and any retained controls.
Route the chassis ground wire to a clean body earth The head unit's chassis ground wire (typically black on ISO) must connect to a clean, unpainted metal chassis point. A poor ground causes noise and can damage the unit. Loosen a bolt on the dash steel sub-frame or use the dedicated earth point if one is provided by the harness adapter. Do not rely on the audio ground returning through a remote-mounted amplifier — connect the head unit ground directly.
Connect antenna and optional accessories Fit the antenna adapter if the vehicle uses a different aerial connector type than the aftermarket unit requires (most European vehicles use a ISO 9680 Fakra or DIN aerial plug). Connect the remote antenna amplifier output (a low-current 12 V switched output, often labelled ANT or AMP, on the head unit) to the vehicle's aerial amplifier if fitted — failing to do so results in poor FM reception.
Secure and test before refitting the trim Slide the head unit into the DIN cage. Ensure no wires are pinched between the unit and the dashboard frame. Refit all trim panels. Test all functions again with the trim in place: power, clock, all speakers, antenna, and any connected accessories. Test steering wheel controls if a steering wheel interface was fitted. Only refit trim panels and accessories permanently once all functions are confirmed working.

Specifications

ISO 10487 standard	Defines two 8-pin connector blocks (ISO A: power/accessories; ISO B: speaker outputs) for in-vehicle audio equipment
ISO A connector — Permanent battery supply	ISO colour convention: yellow; 12 V DC continuous from battery via fuse
ISO A connector — Ignition switched supply	ISO colour convention: red; 12 V DC present in ignition ACC and ON positions
ISO A connector — Ground	ISO colour convention: black; chassis ground return
ISO B speaker connector output pairs	Front left (+/-), Front right (+/-), Rear left (+/-), Rear right (+/-) — 4 pairs, 8 terminals
Typical speaker load impedance	4 Ω to 8 Ω; verify head unit minimum impedance rating before connecting aftermarket speakers
Maximum recommended fuse rating for head unit supply	Per head unit manufacturer's specification; typically 10–15 A for an integrated-amplifier unit

Safety warnings

Disconnect the vehicle battery negative terminal before working on any dashboard wiring. Vehicles with supplemental restraint systems (SRS/airbags) may have airbag modules in or near the dashboard — accidental deployment causes serious injury. Consult the vehicle's service manual for airbag disabling procedures before working in areas near airbag components.
Do not cut the vehicle's original OEM wiring harness unless you have no alternative and you fully understand the implications. Cutting the original harness removes the option of returning the vehicle to stock, can cause electrical faults in circuits that share the harness, and may affect warranty or insurance claims.
Never connect the head unit's permanent 12 V (memory) supply directly to a circuit that is not fuse-protected. If no appropriate fused supply is available via the harness adapter, add an inline fuse rated to the head unit's maximum current draw within 300 mm of the power source.
On vehicles with active noise cancellation, lane departure assist audio, or integrated emergency call systems, aftermarket head unit installation can disable or interfere with these safety features. Consult the vehicle manufacturer's guidance before replacing the OEM unit.
Verify that no speaker wires are shorted to chassis ground before powering on the head unit. A speaker output connected to ground will damage the head unit's internal amplifier, which is a non-repairable failure on most integrated-amplifier units.

Tools needed

DIN removal keys (sized for the OEM head unit, where applicable)
Trim removal tools (plastic pry tools for removing dashboard panels without damage)
Ratchet crimping tool matched to the terminal types being used
Digital multimeter (for verifying supply voltages and speaker wiring before connection)
Heat gun for heat-shrink insulation
Screwdrivers (flat and Phillips) for mounting hardware
Cable ties for harness management

Common mistakes

Reversing the permanent 12 V (memory) and switched 12 V (ignition) connections — the most common mistake, resulting in either a unit that loses all settings every time the car is parked, or a unit that drains the battery because it stays on when the ignition is off.
Failing to use the correct vehicle-specific harness adapter and instead cutting and splicing wires by matching colours — vehicle wire colours do not correspond to ISO colours, and mismatched connections can damage the head unit or disable vehicle systems.
Connecting the chassis ground wire to a painted or corroded surface instead of bare metal — ground-related noise and intermittent faults result, and the problem is often blamed on the head unit rather than the installation.
Forgetting to connect the antenna amplifier remote output to the vehicle's aerial amplifier supply, resulting in poor FM reception from a powered aerial or amplified aerial that was never activated.
Installing the head unit without testing all functions before refitting the trim panels, requiring the entire dashboard to be dismantled again to correct a fault that would have been simple to fix with the unit still partially extracted.

Troubleshooting

Head unit loses clock and preset settings every time the battery is disconnected or the vehicle is parked overnight: Cause: Permanent 12 V (memory) supply is not connected, or is connected to a switched supply that turns off with the ignition Fix: Measure the voltage at the head unit's memory wire with the ignition off. If voltage drops to zero with ignition off, the wire is connected to a switched source. Identify the permanent supply on the ISO harness adapter (typically yellow on the ISO standard) and confirm it remains live with the ignition off.
Constant whining or buzzing from speakers that varies with engine speed: Cause: Alternator noise entering the audio circuit through a ground loop, typically caused by a poor chassis ground connection at the head unit or an incorrectly earthed amplifier RCA cable screen Fix: Confirm the head unit's ground wire connects directly to a clean, unpainted chassis point. If the noise persists and an amplifier is fitted, ensure RCA cable screens are grounded at one end only (at the amplifier). As a last resort, an automotive inline noise suppressor (ground loop isolator) can be installed in the RCA cable path.
Steering wheel audio controls do not work after installing the aftermarket head unit: Cause: No steering wheel control interface module fitted, or the interface module is not correctly programmed to the vehicle and head unit combination Fix: Verify that the steering wheel interface module is listed as compatible with both the specific vehicle and the specific head unit. Many interface modules require one-time programming to 'learn' the steering wheel button signals. Follow the module's programming procedure exactly.
No sound from speakers despite audio playing: Cause: Speaker wires not connected, muted output (head unit may require a remote turn-on signal or mute defeat), or internal amplifier protection activated due to a speaker wire short to ground Fix: Disconnect the head unit from the harness and measure resistance from each speaker positive terminal to chassis ground — a reading below approximately 1 kΩ indicates a short. Correct the wiring before reconnecting. If no short is present, verify the head unit is not in a mute state and that the speaker output enable requirements of the specific unit are met.

Frequently asked questions

What is the difference between the permanent 12 V (battery) wire and the switched 12 V (ignition) wire on a head unit?

The permanent 12 V wire (often red on the ISO standard) supplies power continuously, regardless of ignition position, and is used to maintain the unit's memory (clock, presets, settings). The switched 12 V wire (often yellow on ISO) is only live when the ignition is on or in ACC position and is used to wake the unit up. If these are reversed, the unit either loses settings constantly or drains the battery when the vehicle is parked.

Do I need a wiring harness adapter to fit an aftermarket head unit?

In most cases, yes. Cutting the vehicle's original wiring harness is strongly discouraged because it permanently alters the vehicle's electrical system, makes future repairs harder, and can reduce resale value. A vehicle-specific ISO harness adapter plugs directly into the OEM connector and provides the correct ISO format for the aftermarket unit, with no cutting required.

What is a CAN bus interface module and when do I need one?

In modern vehicles that use a CAN (Controller Area Network) bus for audio control, some functions — steering wheel audio controls, vehicle speed signals, reverse camera triggers, or retained amplifier outputs — cannot be replicated with a simple wiring adapter alone. A CAN bus interface module decodes these signals and translates them into outputs the aftermarket head unit can use. The need for one depends on the specific vehicle and the features you want to retain.

Why do my speakers produce a constant whining noise that changes with engine speed after fitting a new head unit?

This is alternator noise (also called alternator whine), caused by a ground loop between the head unit and the vehicle's electrical system. Common causes include a missing or incorrectly connected chassis ground on the head unit, a ground loop through the RCA cables to an amplifier, or a faulty ISO harness adapter. Ensure the head unit's ground wire connects to a clean, unpainted chassis point close to the unit.

Is it safe to splice speaker wires or should I use the ISO connector?

For a temporary or test connection, bridging wires is acceptable. For a permanent installation, use the ISO harness adapter with proper crimp connectors or soldered and heat-shrink insulated connections. Twisted bare wire connections corrode, loosen, and cause intermittent faults. Never use insulation-displacement 'vampire' connectors in automotive installations — they damage the wire's conductors and are unreliable in a vibrating environment.
