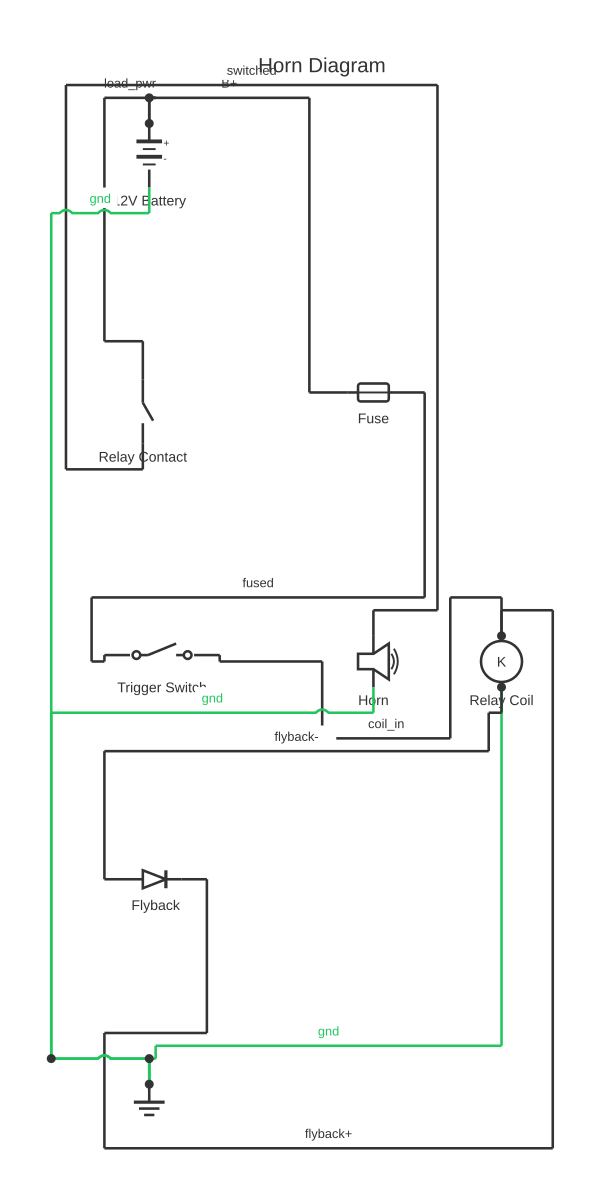

A complete horn circuit diagram showing the horn button, relay, fuse, and battery connections for automotive 12 V installations.

A vehicle horn circuit is one of the most instructive relay applications in automotive wiring. The circuit has four main actors: the battery (power source), the horn itself (load), the horn button (control switch), and the relay (power intermediary).

The relay is the key component that most amateur wiring jobs omit — and its absence is what causes burned steering-column contacts. The horn draws 3–8 A depending on type. Running that current through the steering wheel slip ring and horn button contacts causes arcing and premature failure. The relay solves this by splitting the circuit into two loops: a low-current control loop and a high-current load loop.

**Control loop (low current):** The battery positive feeds the relay coil through a fuse, typically 5 A. The other side of the relay coil connects to the horn button, which grounds the circuit when pressed. The coil draws roughly 150–200 mA — well within the rating of any horn button or slip ring contact.

**Load loop (high current):** Battery positive feeds the relay common (pin 30) through a separate fuse sized to the horn rating, commonly 15–20 A. When the relay energises, pin 87 closes, delivering battery voltage directly to the horn terminal. The horn body grounds to the vehicle chassis, completing the circuit.

**Relay pin assignments (standard ISO mini relay):** Pin 85 and 86 are the coil terminals — polarity matters on diode-suppressed relays. Pin 30 is the common input. Pin 87 is the normally-open output (connects when energised). Pin 87a is the normally-closed output, unused in this application.

A flyback diode (1N4007 or equivalent) across the relay coil terminals suppresses the voltage spike when the coil de-energises, protecting any ECU or body control module sharing the horn button signal wire.

For dual-horn installations, both horns wire in parallel between pin 87 and chassis ground, and the fuse rating should be increased accordingly to cover the combined current draw.

Horn circuits combine audible warning devices with visual strobes in security and emergency applications, making the wiring diagram more involved than a simple horn-and-button layout. A strobe combined with a horn requires separate supply lines for each device, often sharing a common relay trigger, and may include a timer or siren driver IC to control the output pattern. Whether you are wiring a vehicle alarm horn-and-strobe combination or a factory horn circuit, Circuit Diagram Maker lets you draw the complete layout free in your browser.

How to wire horn diagram

Identify mounting locations for the relay and horn Choose a relay mounting point in the engine bay close to the battery, away from heat sources. Select a horn mounting position with clear airflow and no contact with moving parts. Plan your wire routing before cutting any wire.
Disconnect the battery negative terminal Always disconnect the battery negative (ground) terminal before starting any automotive wiring. This prevents accidental short circuits and protects vehicle electronics. Wait 60 seconds after disconnection before working near airbag wiring.
Wire the relay coil circuit (control loop) Run an 18 AWG wire from the fused battery positive terminal to relay pin 86. Run an 18 AWG wire from relay pin 85 to the horn button terminal in the cabin. The horn button grounds this wire when pressed, completing the coil circuit.
Wire the relay load circuit (power loop) Connect a 14 AWG wire from battery positive, through a 15–20 A inline fuse, to relay pin 30. Connect a 14 AWG wire from relay pin 87 to the horn positive terminal. Keep this wire as short as possible to minimise resistance.
Earth the horn body Connect the horn body or dedicated ground terminal to a clean, paint-free chassis earth point using 14 AWG wire and a ring terminal. A poor ground is the most common cause of horn malfunction. Clean the contact surface with a wire brush.
Install flyback diode on relay coil Solder a 1N4007 diode across relay pins 85 and 86 with the cathode (banded end) facing the positive supply pin (86). This suppresses the inductive spike when the coil switches off, protecting downstream electronics.
Reconnect battery and test Reconnect the battery negative terminal. Press the horn button and confirm the horn sounds immediately and stops cleanly on release. Check for any unusual relay clicking or delay, which indicates a wiring fault in the control loop.

Specifications

Supply voltage	12 V DC nominal (10.5–14.5 V operating range)
Typical horn current draw	3–8 A (verify against specific horn specification)
Relay coil current	150–200 mA at 12 V
Load fuse rating	15–20 A blade fuse (size to 150% of horn current)
Control fuse rating	5 A blade fuse
Load wire gauge	14 AWG (2.5 mm²) minimum
Control wire gauge	18 AWG (1.0 mm²) minimum
Flyback diode rating	Minimum 1 A forward current, 50 V reverse voltage

Safety warnings

Disconnect the battery negative terminal before any wiring work. Verify the circuit is de-energised with a multimeter before handling bare conductors.
Always fuse both the control loop and the load loop. An unfused wire from the battery is a fire hazard in the event of a short circuit.
Do not route wiring near exhaust components, moving parts, or sharp metal edges. Use grommets wherever wires pass through body panels.
When working near airbag clock springs or steering column wiring, consult the vehicle service manual. Accidental airbag deployment causes serious injury.
This diagram is provided for reference and educational purposes. Verify all wiring against your vehicle's factory wiring diagram and comply with applicable local regulations.

Tools needed

Multimeter (voltage and continuity)
Wire strippers (suitable for 14–18 AWG)
Crimping tool and assorted terminals
Soldering iron and rosin-core solder (for diode installation)
Electrical tape and/or heat-shrink tubing
Relay socket or DIN rail mount
Test light or probe

Common mistakes

Wiring the horn directly through the horn button without a relay, causing button contacts to burn out under load current.
Connecting relay pin 87a (normally closed) instead of pin 87 (normally open), resulting in the horn sounding continuously when the button is NOT pressed.
Grounding to a painted surface. Paint creates resistance that reduces horn volume and causes intermittent faults. Always grind to bare metal.
Omitting the flyback diode on the relay coil. The inductive spike can damage vehicle BCM or radio modules connected to the same circuit.
Undersizing the load-loop wire. Thin wire creates voltage drop that reduces horn output and may cause the wire to overheat under sustained use.

Troubleshooting

Horn does not sound when button is pressed: Cause: No voltage reaching relay coil, open circuit in control loop, or faulty relay Fix: Probe relay pin 86 with the button pressed — you should read battery voltage. If not, trace back to the fuse. Probe pin 85 — it should read near 0 V (grounded through button). If both voltages are correct and relay does not click, replace relay.
Horn sounds continuously without button pressed: Cause: Relay contacts welded, horn button shorted to ground, or wiring error (using normally-closed pin 87a) Fix: Unplug the relay. If horn stops, the relay contacts are welded — replace relay. If horn continues, the horn feed wire is shorted directly to battery positive — inspect wiring carefully.
Horn sounds weak or at reduced volume: Cause: Excessive voltage drop in load circuit or poor chassis earth Fix: Measure voltage at the horn terminal with horn sounding. Should be within 0.5 V of battery voltage. Also measure ground path — less than 0.1 V from horn body to battery negative. Replace any connection showing higher drop.

Frequently asked questions

Why does my horn stay on after I release the button?

The most common cause is a relay with welded contacts — the high current caused the normally-open contacts to fuse together. Replace the relay. Alternatively, the horn button is shorted to ground internally or the horn mounting is grounding the feed wire directly to chassis.

Can I wire a horn without a relay?

Yes, but only if the horn draws under 2 A and the button contacts are rated for that current. Most aftermarket horns draw 3–8 A. Wiring directly through the button will eventually burn the contacts. A relay is strongly recommended for any horn drawing more than 2 A.

What fuse size should I use for the horn relay circuit?

Size the load-side fuse to 150% of the horn's rated current draw, rounded up to the next standard fuse value. A single horn drawing 5 A needs a 7.5 A or 10 A fuse. The control-side fuse protecting the relay coil circuit can be 5 A.

My horn is weak or sounds distorted. What causes this?

Low supply voltage is the most common cause — check for voltage drop between the relay output (pin 87) and the horn terminal under load. More than 0.5 V drop indicates a poor connection or undersized wire. Also check the chassis ground path; a corroded ground strap produces the same symptom.

Which wire gauge should I use for the horn circuit?

For the load loop (relay to horn), use 14 AWG (2.5 mm²) minimum for horns up to 15 A. For the control loop (battery to relay coil and horn button), 18 AWG (1.0 mm²) is sufficient. Always keep wire runs as short as practical to minimise voltage drop.

How do I wire a horn and strobe together?

Connect both the horn and the strobe to the normally-open contact (pin 87) of a relay, with each device fused separately if their current draws differ significantly. Relay pin 30 connects to a fused battery positive, pin 85 to ground, and pin 86 to the alarm or trigger output. The strobe typically requires a separate power circuit from the horn because it pulses at high peak current; some strobe units include an internal driver and need only a steady supply. Check that the relay contact rating covers the combined inrush current of both devices.
