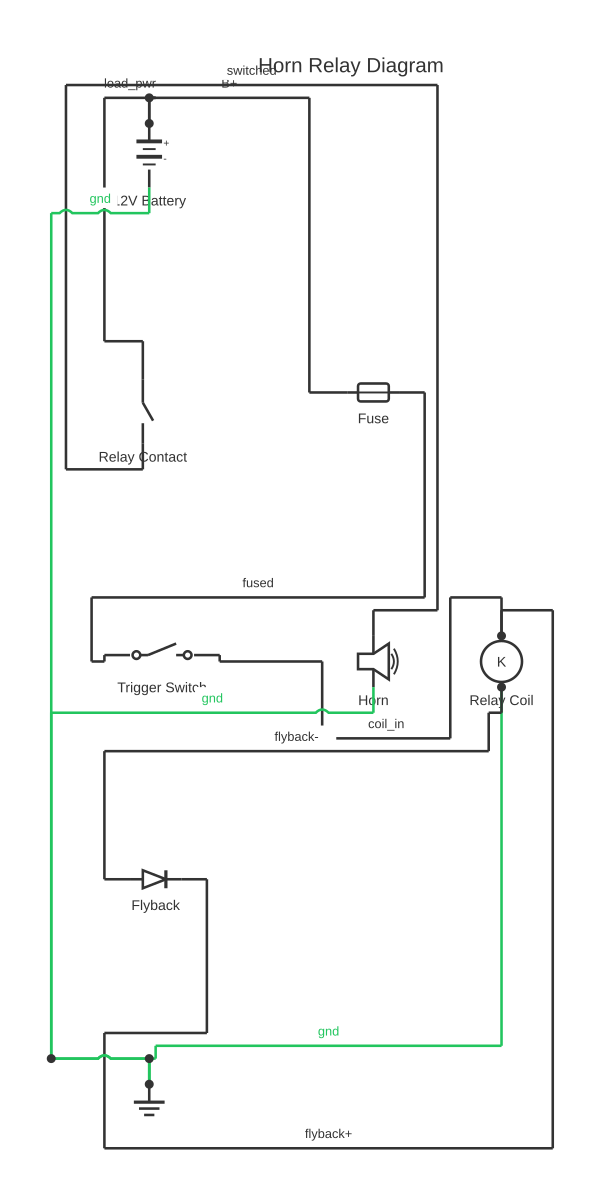

Horn Relay Diagram: Relay, Horn Button and Battery Connections for High-Current Horn Circuits — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable horn relay diagram: download the diagram as SVG or open it and print to paper or PDF.

A horn relay diagram shows how to isolate the steering column horn button from the high-current horn circuit using a relay, protecting thin steering column wiring while ensuring the horn receives full battery voltage for maximum sound output.

Automotive horns draw 3–8 A at 12 V depending on horn type — single-note disc horns at the lower end, dual-tone or air horns at the higher. Without a relay, this full current flows through the horn button contacts in the steering column, through the clock-spring coil, and through the thin gauge wiring of the steering assembly — wiring not designed for sustained current loads. Over time, the resulting resistance heating causes contact pitting, increased contact resistance, and eventually failure of the horn circuit precisely when needed. A relay solves this by using the horn button to carry only the 150 mA relay coil current, while the relay main contacts carry the full horn current from a fused battery source through a short, large-gauge cable run. The wiring is straightforward: relay Pin 86 connects to the horn button input wire (the wire from the steering column that receives battery voltage when the button is pressed). Pin 85 connects to chassis ground. Pin 30 connects to a fused supply from the battery positive terminal — a 10–15 A blade fuse within 300 mm of the battery is appropriate. Pin 87 connects to the horn positive terminal. The horn body bolts to a chassis bracket providing the negative return path through the vehicle body and the chassis ground. In vehicles where the horn button pulls the horn circuit to ground rather than supplying positive voltage, the wiring reversal requires Pin 86 to connect to battery positive and Pin 85 to the horn button output wire. This ground-switching arrangement is common in vehicles with airbag clock-springs where active voltage on the steering column is undesirable. The relay coil polarity is not critical for operation — either coil terminal can connect to positive or negative — but the flyback diode polarity across the coil is critical and must be installed with cathode (banded end) toward the positive coil terminal to correctly suppress the back-EMF spike.

A horn relay diagram uses a standard 4-pin or 5-pin automotive relay to deliver full battery voltage directly to the horn(s) while keeping the steering-column switch carrying only the low-current coil circuit — preventing switch burn-out from inrush. The relay coil (terminals 85 and 86) is controlled by the horn button, and the power contacts (terminal 30 from fused battery positive, terminal 87 to the horn) switch the main current. Adding a relay is especially worthwhile when upgrading to dual-tone air horns or high-current aftermarket units. You can draft and label the complete horn relay circuit in the free browser-based editor at circuitdiagrammaker.com.

How to wire horn relay diagram

Identify the horn button signal wire Using a multimeter, locate the wire from the horn button in the steering column that goes to +12 V when the horn button is pressed. This is the control signal wire that will connect to relay Pin 86. In a ground-switching system, identify which wire goes to ground when pressed.
Install fuse on battery supply Run a 12 AWG wire from the battery positive terminal through a 15 A inline fuse holder within 300 mm of the battery, then to the mounting location of the relay. Leave the fuse out until wiring is complete.
Mount relay near horn Use a relay socket or adhesive relay mount near the horn location. Short wire runs from relay to horn minimise voltage drop. Mount away from heat sources and secure so the relay cannot vibrate loose.
Wire relay Connect: Pin 30 to fused supply wire. Pin 87 to horn positive terminal. Pin 86 to horn button signal wire. Pin 85 to a clean chassis ground point with a short 18 AWG wire. Solder a 1N4007 diode across Pins 85-86 with cathode toward Pin 86.
Test and install fuse Install the fuse. Press the horn button and confirm the relay clicks and the horn sounds. Measure voltage at the horn positive terminal while honking — should be within 0.5 V of battery voltage. If satisfactory, secure all wiring with cable ties.

Specifications

Typical horn current draw	3–8 A (single-note disc to dual-tone)
Relay contact rating	15–20 A minimum (25% margin over horn current)
Supply fuse rating	15 A blade fuse within 300 mm of battery
Flyback diode	1N4007 (cathode to Pin 86, anode to Pin 85)

Safety warnings

Never short the horn button wires together to test the circuit while sitting in the vehicle — if the steering wheel has an airbag, accidental clock-spring current can trigger deployment.
Install the fuse within 300 mm of the battery positive terminal on the relay supply wire — an unfused run from battery to relay risks fire from short circuit anywhere along that cable.
Verify relay coil polarity against the horn button circuit type (positive-switching or negative-switching) before wiring — incorrect wiring results in the relay permanently energised or never energising.

Tools needed

Digital multimeter for measuring horn circuit voltage and relay coil resistance
Test light for tracing horn button signal at the steering column connector
Wire crimper and automotive spade terminals for relay connections
Relay socket with pre-wired harness to avoid cutting original vehicle wiring

Common mistakes

Connecting Pin 30 directly to the battery without a fuse — a wiring short between battery and relay will cause the supply cable to ignite without fuse protection.
Grounding the relay coil Pin 85 to a painted body panel instead of a chassis metal ground point, causing intermittent horn operation due to high-resistance ground.
Using a relay with a contact rating below the horn current, causing contact welding and permanent horn operation.

Troubleshooting

Relay clicks but horn does not sound: Cause: Open circuit between Pin 87 and horn, or open horn ground return Fix: Probe Pin 87 with multimeter while pressing horn button — should show battery voltage. If voltage present, check horn positive terminal and horn ground bond. Measure horn coil resistance (typically 1–5 Ω) — open reading indicates failed horn.
Horn sounds continuously: Cause: Relay contacts welded or Pin 86 permanently at +12 V Fix: Unplug relay — horn stops if contacts welded, continues if wiring shorted to Pin 87. Replace relay if contacts welded. Trace Pin 86 circuit for direct short to battery if relay removal stops the horn.
Horn is intermittent: Cause: Loose relay socket pin or corroded Pin 85 ground connection Fix: Inspect relay socket pins for corrosion. Clean relay socket contacts with electrical contact cleaner. Re-terminate Pin 85 ground with a ring terminal to a clean metal bolt with a star washer.

Frequently asked questions

Why does a horn need a relay?

Horns draw 3–8 A, which is far more than the steering column horn button is designed to handle continuously. The horn button and clock-spring are rated for signalling current — sufficient to energise a relay coil at 150 mA — not for the full horn load current. A relay allows the button to control a separate high-current circuit, protecting delicate steering column components from overheating and contact erosion.

Which relay pin connects to what in a horn circuit?

Standard five-pin ISO micro relay wiring for a positive-switch horn: Pin 30 (common) to fused battery +12V; Pin 87 (normally-open) to horn positive terminal; Pin 86 (coil positive) to horn button output wire from steering column; Pin 85 (coil negative) to chassis ground. When the horn button is pressed, +12V reaches Pin 86, energising the coil, closing Pin 30 to Pin 87, and supplying battery voltage to the horn.

My horn works but sounds weak — what is wrong?

A weak-sounding horn almost always indicates excessive voltage drop in the horn circuit, reducing the voltage at the horn from the ideal 12–13 V to perhaps 9–10 V. Measure voltage at the horn positive terminal while honking. If significantly below battery voltage, inspect the horn relay supply cable, relay contacts, horn ground connection, and the cable from Pin 87 to the horn. Each identified high-resistance connection reduces horn output voltage and sound level.

Can I wire dual horns to one relay?

Yes — connect both horn positive terminals to Pin 87. Ensure the combined current of both horns does not exceed the relay contact rating. Two standard 5 A disc horns draw 10 A total, requiring a relay rated at least 15 A (25% margin). Alternatively, use two relays energised by the same coil circuit, each powering one horn independently. Update the fuse rating to match the combined horn current plus 25% margin.

What causes the horn to sound continuously without pressing the button?

Continuous horn sounding with no button press indicates either: relay contacts welded from overcurrent or incorrect rating; a short circuit in the wiring from Pin 86 to battery positive causing the coil to be permanently energised; or a failed horn button stuck in the closed position. Unplug the relay first — if the horn stops, the coil circuit has a fault. If the horn continues, the relay contacts are welded and the relay must be replaced immediately.

How do you wire a relay for a horn?

Connect terminal 30 of a 4-pin relay to the positive battery terminal via a 20–30 A inline fuse. Connect terminal 87 to the horn(s) positive terminal(s), and connect the horn(s) negative terminal(s) to chassis ground. Connect terminal 85 to the horn button wire from the steering column (the wire that goes to ground when the horn button is pressed), and connect terminal 86 to chassis ground. When the button is pressed, it completes the coil circuit (85 to ground via button, 86 to ground) — but only if the coil is wired from a switched or constant 12 V to terminal 85 with 86 to ground. Confirm your vehicle's horn circuit polarity before wiring.

What is a horn relay wiring diagram in Sinhala / for Sri Lankan vehicles?

Sri Lankan vehicles follow the same 12 V DC automotive wiring conventions as Japanese-market vehicles (most are JDM imports). The horn relay wiring principle is identical: fused battery positive to terminal 30, relay output (terminal 87) to horn positive, horn negative to chassis ground, coil terminal 85 to the steering-wheel horn switch, and coil terminal 86 to chassis ground. Colour codes vary by manufacturer — consult the vehicle's wiring diagram (available in Sinhala-language service guides for popular models such as Toyota, Honda, and Suzuki sold in Sri Lanka). The circuit can be drawn in the free online editor at circuitdiagrammaker.com.
