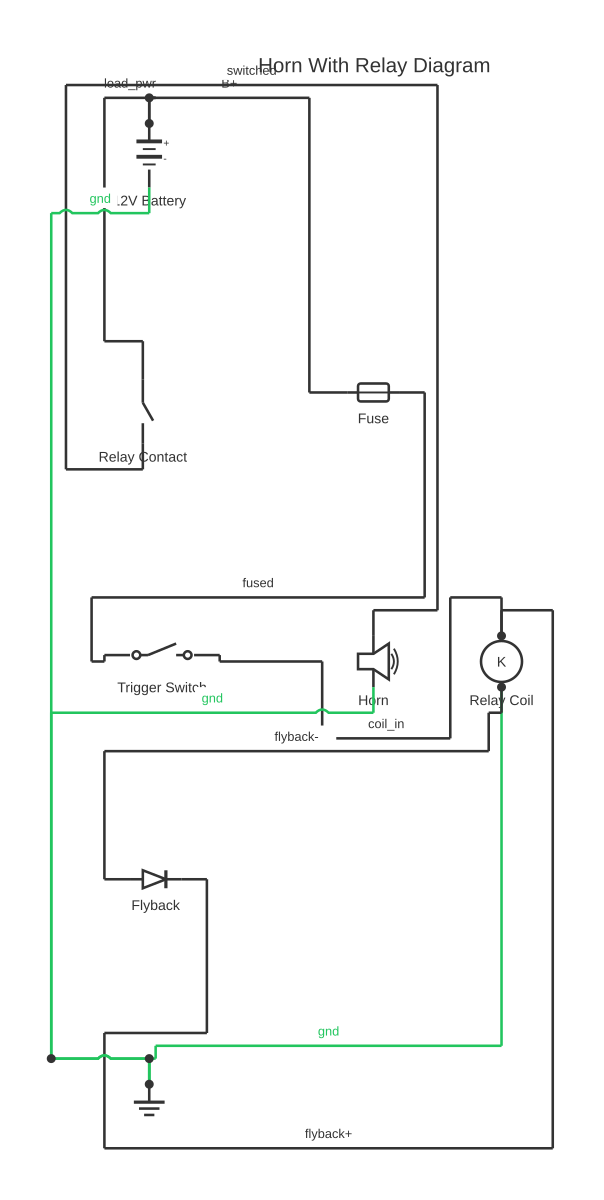

Horn with relay diagram: Complete Wiring Reference — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable horn with relay diagram: download the diagram as SVG or open it and print to paper or PDF.

Understanding horn with relay diagram is essential for proper electrical system installation and operation. This guide provides detailed instructions for safe wiring.

The horn with relay diagram system requires proper component selection, appropriate wire gauging, and correct connection methods. Installation follows standard electrical practices: de-energize before work, use appropriate protection devices, ensure reliable ground connections, and test all circuits before operation. Proper wire gauge selection prevents voltage drop and overheating. Protection devices must match wire ampacity, not load requirements. Grounding provides safe fault current paths. Common failures result from inadequate protection, poor connections, or undersized conductors. Professional installation includes measuring run distances, selecting color-coded wires, and verifying operation under full load. Component quality matters—cheap connectors cause intermittent failures. Regular maintenance and visual inspection confirm continued safe operation. Thermal management through proper ventilation prevents overheating and extends equipment lifespan.

A horn relay circuit can be adapted for dual horns, passing-light (flash-to-pass) integration, electronic interrupters for a pulsed tone, and switched control layouts. Adding a relay protects the horn button from high current and allows auxiliary functions like a passing-light output or an interrupter module to be inserted without overloading the switch. You can draw any of these horn relay variants free in the browser at circuitdiagrammaker.com.

How to wire horn with relay diagram

Review the complete wiring diagram and gather all required components matching your application and local codes.
Prepare wiring: measure lengths, strip insulation carefully, and prepare terminal connections with appropriate crimpers.
Install components securely with proper orientation and adequate ventilation clearance.
Make connections following the diagram exactly, using color-coded wires and rated terminals.
Test and verify: confirm continuity, polarity, and voltage; operate under load and verify all functions work.

Frequently asked questions

What are the key safety rules for electrical installation?

Always de-energize circuits before working. Use lockout/tagout procedures. Wear insulated tools and PPE. Test for voltage presence before touching. Follow manufacturer specs and local codes. Never work alone on high-voltage systems.

How do I determine proper wire gauge?

Wire gauge depends on circuit current and run length. Higher current requires thicker wire. Use ampacity tables from NEC codes. For runs over 100 feet, increase gauge by one or two steps to compensate for voltage drop.

What fuse or breaker rating should I use?

Breaker rating must match the circuit wire gauge, never the load. Undersized breakers cause nuisance trips; oversized creates fire hazards. Always follow application manual specifications exactly.

Why is grounding so critical?

Grounding provides safe return paths for fault currents, allowing protection devices to detect shorts quickly. It prevents dangerous voltages on exposed metal and reduces electrical noise. Never compromise grounding.

What tools do I need?

Wire strippers, crimpers, multimeter, screwdrivers, insulated pliers, and torque wrenches for high-current connections. Always use quality, insulated tools for safety.

How do you wire a dual horn with a relay?

For dual horns, connect both horn outputs in parallel across the relay's switching terminals (pins 30 and 87 on a standard ISO mini relay). The relay coil (pins 85 and 86) is triggered by the horn button. A single 30 A relay can drive most dual-horn pairs; verify the combined current draw of both horns does not exceed the relay rating. Run the main feed from the battery through a fuse (typically 20–30 A) to relay pin 30.

Can I wire a horn relay to also trigger a passing light?

Yes. A common arrangement uses a 5-pin SPDT relay: the horn button activates the relay coil, which simultaneously routes current to the horn (via pin 87) and to the high-beam flash circuit (via pin 87A when using a change-over relay). Alternatively, a separate relay per function is cleaner. Ensure the passing-light circuit is fused independently and that the headlight wiring can handle the additional load.

How do you wire a horn relay with an interrupter?

An interrupter (also called a horn flasher or pulsator) is wired in series between the relay output (pin 87) and the horn(s), causing the horn to pulse on and off rapidly for a distinctive alarm effect. The interrupter module has its own current and voltage ratings — match these to the horn load. The relay coil circuit and horn button wiring remain standard; only the load-side path is modified by inserting the interrupter.

How do you wire a horn relay with a switch?

Connect the relay coil negative (pin 85) to chassis ground and the relay coil positive (pin 86) to the horn switch output. The switch's other side receives ignition-switched 12 V (so the horn only works with the key on) or permanent 12 V depending on preference. Pin 30 of the relay connects to a fused battery feed; pin 87 connects to the horn. This arrangement means the switch only carries low coil current (~0.1–0.2 A) rather than the horn's full 5–15 A draw.
