Intermediate Switch Diagram: Control One Light from Three or More Locations

Intermediate Switch Diagram: Control One Light from Three or More Locations — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable intermediate switch diagram: download the diagram as SVG or open it and print to paper or PDF.

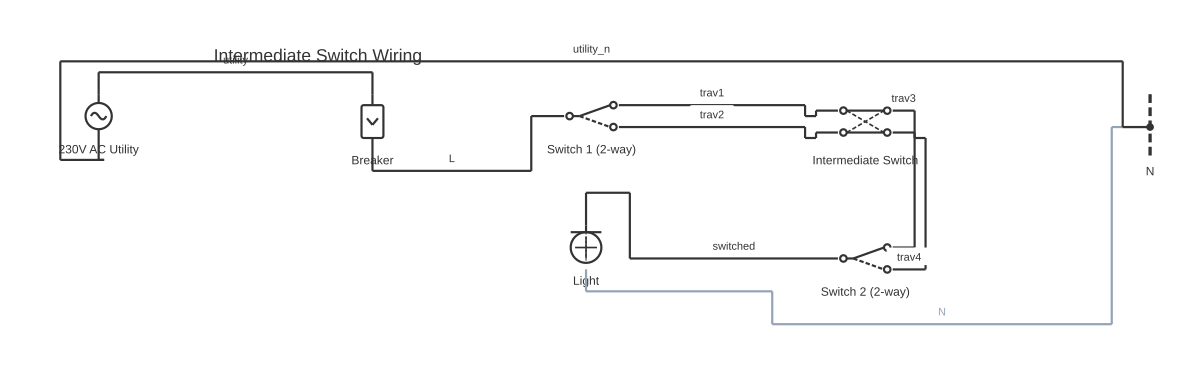

An intermediate switch diagram shows how a 4-way switch is inserted between two 2-way switches to add a third (or further) control point for a single lamp.

When you need to control one lamp from three or more locations — think a long hallway with switches at both ends and one in the middle, or a large open-plan room with three entry points — the standard 2-way (SPDT) circuit is not sufficient. The solution is an intermediate switch circuit.

The arrangement uses: - Two SPDT (2-way) switches, one at each end of the switching chain. - One or more intermediate switches inserted in series with the two traveller conductors between the end switches.

An intermediate switch is a double-pole double-throw (DPDT) device wired in a specific cross-over configuration. When in one position, it connects its two input travellers straight through to its two output travellers (L1-to-L1 and L2-to-L2). When toggled, it crosses them over (L1-to-L2 and L2-to-L1). This reversal either completes or breaks the overall circuit path, changing the lamp state regardless of the positions of the two end switches.

In the UK, this switch type is sold as an 'intermediate switch' and has four terminals, typically labelled L1, L2, L3, L4. In the USA it is called a '4-way switch' (because it has four terminals) and wires between two 3-way switches using two 3-wire cables.

A single intermediate switch provides three control points. Two intermediate switches (wired in series along the traveller pair) provide four control points. Each additional intermediate switch adds one more control point with no change to the two SPDT end switches.

From an installer's perspective: the traveller cable changes from a single 3-core + earth between the two end switches to a 3-core + earth segment between end switch 1 and the first intermediate switch, followed by further 3-core + earth segments between each intermediate switch, and a final 3-core + earth to end switch 2. The total cable quantity increases with each added control point.

All installation work must comply with NEC/NFPA 70 (USA), BS 7671 (UK), AS/NZS 3000, IEC 60364, or local equivalent standards, and must be completed by a licensed electrician.

How to wire intermediate switch diagram

Confirm the number of control points needed Count the total number of switch positions required. Two end positions require two SPDT switches with no intermediate switch. Three positions require two SPDT end switches and one intermediate switch. Four positions require two SPDT end switches and two intermediate switches, and so on.
Plan cable routes between all switch positions Run a 3-core + earth cable segment between every adjacent pair of switch positions: from end switch 1 to the first intermediate switch, between any intermediate switches, and from the last intermediate switch to end switch 2. Also plan the supply run (2-core + earth) from the DB to end switch 1, and the switched-live run (2-core + earth) from end switch 2 to the lamp.
Install all switch boxes and pull cables Fix all switch boxes at the planned positions. Pull all cables through the conduit or containment. Label the cable ends at each switch box before terminating, especially the traveller segments between intermediate switches, which can be difficult to trace once enclosed.
Connect the two SPDT end switches At end switch 1: connect the incoming live to the common (C) terminal. Connect the two traveller cores to L1 and L2. At end switch 2: connect both traveller cores (from the last intermediate switch) to L1 and L2. Connect the common (C) to the switched-live conductor going to the lamp. Connect earth at both boxes.
Connect each intermediate switch At each intermediate switch: connect the two traveller cores arriving from the switch on the left (input side) to the designated input terminals (L1 and L2 or IN1 and IN2 — as per manufacturer diagram). Connect the two traveller cores going to the next switch on the right (output side) to the designated output terminals (L3 and L4 or OUT1 and OUT2). Consult the specific switch manufacturer's wiring diagram — terminal labelling varies. Connect earth.
Connect the lamp and neutral At the lamp fitting, connect the switched live (from end switch 2 common) and the neutral (run directly from the supply without passing through any switch). Connect the protective earth to the fitting earth terminal.
Test the complete circuit Before energising: perform continuity checks on both traveller paths from end switch 1 through all intermediate switches to end switch 2. After energising: toggle each switch in turn. Every individual switch must change the lamp state regardless of the positions of all other switches. A switch that has no effect indicates incorrect intermediate switch wiring at that position.

Specifications

End switch type	SPDT, 3-terminal — '2-way' (UK/IEC) or '3-way' (USA/Canada)
Intermediate switch type	DPDT cross-wired, 4-terminal — 'intermediate switch' (UK/IEC) or '4-way switch' (USA/Canada)
Minimum switch current rating	10 A, 250 V AC
Cable between each adjacent switch	3-core + earth, 1.5 mm² copper (IEC/BS); 3-wire No. 14 AWG (NEC)
Total control points	2 end switches + N intermediate switches = N + 2 control points
Circuit protection	6 A Type B MCB
Supply voltage	230 V AC (120 V AC in USA/Canada)
Applicable standards	NEC/NFPA 70 Article 404 (USA), BS 7671 (UK), AS/NZS 3000, IEC 60364-5-53

Safety warnings

Isolate the circuit at the distribution board and verify all conductors are dead using a calibrated voltage tester (CAT III, 1000 V rated) before any work on switch boxes. Verify dead at every switch position along the chain, not only at the DB.
An intermediate switch has four terminals and must be wired as per the specific manufacturer's terminal diagram. Incorrect wiring will not cause immediate visible damage but will result in a circuit that does not function correctly and may, in some configurations, leave conductors in an unintended live state.
Installation must comply with NEC/NFPA 70 (USA), BS 7671 (UK), AS/NZS 3000 (Australia/NZ), or IEC 60364 (international). A licensed electrician must perform all installation, testing, and certification.
Do not substitute a standard 2-way switch for an intermediate switch position. A 2-way switch has only three terminals and cannot perform the DPDT cross-over function required — it will either permanently complete or permanently break the circuit at that point.
This content is for educational and reference purposes only and does not replace site-specific engineering design or compliance certification.
