Inverter Wiring Diagram

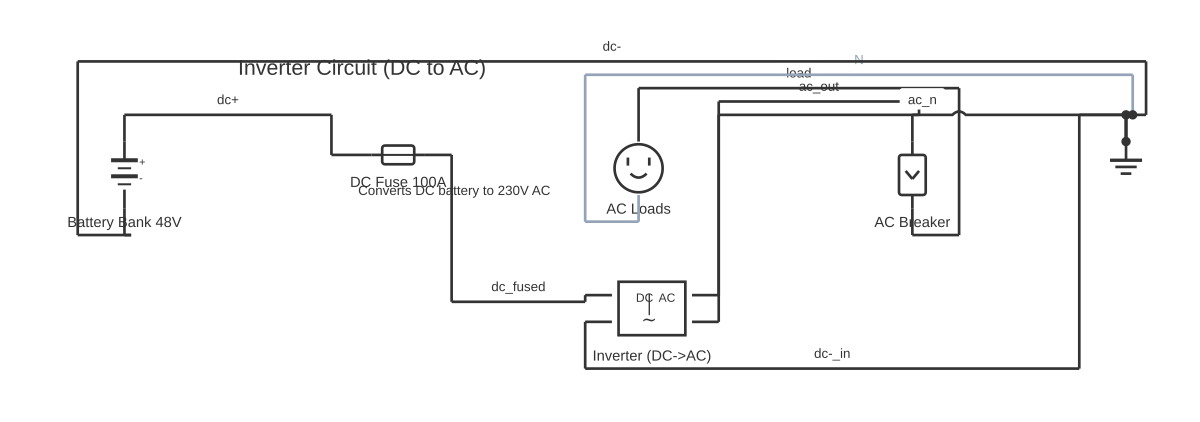

This is a free printable inverter wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
An inverter wiring diagram shows how to connect a DC power source — typically a battery bank — to an inverter and then distribute AC output safely to loads.
A power inverter converts direct current (DC) from a battery or solar array into alternating current (AC) suitable for household appliances and tools. Understanding the wiring diagram is essential before connecting any inverter, because undersized cables, missing fuses, or incorrect earthing can cause fires, equipment damage, or fatal shock.
The basic circuit has four sections. First, the DC input side: heavy-gauge cable runs from the positive battery terminal through a fuse or circuit breaker (mounted as close to the battery as practical, ideally within 300 mm) to the inverter's positive DC terminal. The negative cable returns directly from the inverter's negative terminal to the battery negative. Both cables must be identical in cross-section to balance voltage drop.
Second, the inverter itself steps up voltage through a high-frequency or low-frequency switching stage and produces a modified or pure sine wave AC output — commonly 230 V/50 Hz or 120 V/60 Hz depending on region.
Third, the AC output side: the inverter's AC output terminals connect to a small distribution board fitted with miniature circuit breakers (MCBs) for each load circuit. A residual current device (RCD/GFCI) should be included to protect against earth-fault shock.
Fourth, earthing: the inverter chassis must be bonded to a system earth point. Whether the AC neutral is bonded to earth at the inverter (a floating neutral vs. bonded neutral question) depends on the installation context — consult IEC 60364, NEC Article 250, or BS 7671 for your jurisdiction.
Cable sizing is the most commonly underestimated factor. A 1 000 W inverter drawing from a 12 V battery pulls approximately 83 A at 100% efficiency — in practice closer to 95–100 A accounting for inverter losses. That demands cable rated for sustained current in the specific installation environment, not simply the theoretical minimum. Always size for the inverter's maximum surge rating, not its continuous rating, and keep DC cable runs as short as possible to minimise resistive losses and voltage drop.
How to wire inverter wiring diagram
- Calculate DC cable size and fuse rating Determine the inverter's maximum input current by dividing its surge watt rating by the minimum battery voltage (e.g., 10.5 V for a 12 V system). Select cable with an ampacity rating exceeding this figure, accounting for installation method (open air vs. conduit vs. bundled). Select a fuse rated just above the cable's ampacity or the inverter's maximum input current — whichever is lower.
- Mount the fuse or circuit breaker close to the battery Install the DC fuse holder or ANL fuse block within 300 mm of the battery positive terminal. This section of unfused cable between the battery and fuse is the highest-risk portion of the circuit; keep it as short as physically possible. Use a marine-grade or automotive-rated ANL fuse holder for installations subject to vibration or moisture.
- Run DC cables from battery to inverter Route positive and negative cables together or in close proximity to minimise electromagnetic interference. Secure cables every 300–600 mm with appropriate clamps. Avoid sharp bends, contact with hot surfaces, and routing through areas prone to mechanical damage. Use cable lugs crimped with a ratchet crimping tool — never soldered alone, as solder creeps under the mechanical stress of ring terminals.
- Connect and earth the inverter Connect positive DC cable to the inverter's positive terminal and negative to negative. Do not energise the circuit yet. Connect a protective earth conductor from the inverter's earth terminal to the system earth point. If the installation is in a vehicle or vessel, bond to the chassis or vessel bonding system in accordance with applicable standards.
- Wire the AC output to a distribution board Connect the inverter AC output (line, neutral, earth) to a dedicated consumer unit or distribution board fitted with an RCD and MCBs. Label the board clearly as 'Inverter Supply — Isolate Before Maintenance'. Ensure the AC output is not paralleled with grid supply unless a certified transfer switch or automatic transfer switch (ATS) prevents back-feed.
- Verify connections and test under no load Before connecting any loads, visually inspect all connections, confirm polarities, and check that all covers are in place. Energise the inverter and measure AC output voltage with a multimeter across line and neutral. Confirm voltage is within acceptable tolerance (e.g., 230 V ± 10% for a 50 Hz system). Check that earth continuity exists between the inverter chassis and the system earth.
- Test under load and monitor temperature Connect loads progressively, starting with the smallest, and monitor the inverter's input voltage, output voltage, and temperature. Do not exceed the inverter's continuous watt rating. Allow adequate ventilation clearance as specified by the manufacturer. If the inverter runs hot, add forced ventilation or reduce the load.
Specifications
| Typical DC input voltage | 12 V, 24 V, or 48 V nominal |
|---|---|
| AC output voltage (50 Hz regions) | 230 V ± 10% (IEC standard) |
| AC output voltage (60 Hz regions) | 120 V ± 10% (North America) |
| Typical inverter efficiency | 85–95% depending on load and design |
| DC fuse location | Within 300 mm of battery positive terminal |
| RCD trip current for personal protection | 30 mA (IEC 60364, BS 7671) |
| Minimum cable bend radius | Typically 6× cable outer diameter |
| Hydrogen gas lower explosive limit in air | 4% by volume — keep battery enclosures ventilated |
Safety warnings
- Always isolate and verify dead before working on any part of the circuit. Battery banks can deliver thousands of amps into a short circuit — a dropped spanner across battery terminals can cause arc flash, fire, and severe burns. Remove rings and metal jewellery before working near batteries.
- Comply with IEC 60364, NEC/NFPA 70 (USA), BS 7671 (UK), or AS/NZS 3000 (Australia/New Zealand) as applicable. In many jurisdictions, connection of an inverter to a fixed wiring installation must be performed or certified by a licensed electrician.
- Never connect the inverter AC output in parallel with the grid supply without a certified transfer switch or ATS. Back-feeding grid power through an inverter can electrocute utility workers and damage equipment.
- Batteries produce hydrogen gas during charging. Ensure adequate ventilation in the battery enclosure. Keep ignition sources, including sparks from loose connections, away from the battery area.
- Do not exceed the inverter's rated AC output with connected loads. Overloading can cause overheating, insulation failure, and fire. Include overcurrent protection (MCBs) on every AC load circuit.
Tools needed
- Digital multimeter (DC voltage, AC voltage, continuity)
- Ratchet cable lug crimping tool (for DC cable terminations)
- Cable stripper rated for heavy-gauge cable
- Torque screwdriver or wrench (for terminal connections to manufacturer specification)
- Cable ties and mounting clamps
- Battery terminal cleaner or wire brush
- Insulation tape or heat-shrink tubing
- Personal protective equipment: safety glasses, insulated gloves
Common mistakes
- Undersizing DC cables: using cable rated for the continuous watt rating rather than the surge rating, resulting in overheating and voltage drop.
- Mounting the fuse too far from the battery: leaving a long unfused cable run that can act as a torch if insulation is damaged.
- Omitting the protective earth connection on the inverter chassis, leaving a shock hazard if internal insulation fails.
- Using solder-only terminations on DC cable lugs without mechanical crimping: solder creeps under vibration and thermal cycling, increasing resistance and causing heat.
- Paralleling inverter AC output with grid supply without a proper transfer switch, risking back-feed and electrocution of utility personnel.
- Ignoring battery ventilation requirements and allowing hydrogen gas to accumulate in enclosed spaces.
Troubleshooting
- Inverter shuts down immediately under load
- Cause: Battery voltage sagging below the inverter's low-voltage cutoff due to undersized DC cables or high internal battery resistance Fix: Measure battery voltage at the inverter DC terminals under load with a multimeter. If voltage drops more than 0.5 V below open-circuit voltage, check cable connections, test battery health, and verify cable cross-section is adequate for the load.
- Inverter overheats and triggers thermal shutdown
- Cause: Insufficient ventilation, load exceeding continuous rating, or high ambient temperature Fix: Ensure minimum clearance around the inverter as specified by the manufacturer. Reduce the connected load. If the installation environment is hot, add forced ventilation. Check that ventilation slots are not blocked.
- AC output voltage is significantly out of tolerance
- Cause: Battery voltage too low (under-charged bank) or inverter fault Fix: Measure DC input voltage at the inverter terminals. Charge the battery bank fully and re-test. If DC input is correct but AC output is still wrong, the inverter may be faulty — do not continue using it.
- Fuse blows repeatedly on startup
- Cause: High inrush current from connected loads (motor loads, transformers) exceeding fuse rating, or a fault in the inverter or downstream circuit Fix: Identify which load causes the blowing by disconnecting all loads and reconnecting one at a time. If the fuse blows with no load connected, the inverter has an internal fault. If a specific load causes it, that load may have a start-up current exceeding the fuse rating — use a slow-blow fuse rated for the surge or limit the load.
- RCD trips when loads are connected
- Cause: Earth-leakage current from connected equipment, or incorrect neutral-to-earth bonding at the inverter Fix: Disconnect all loads and reset the RCD. Reconnect loads one by one to identify the leaking appliance. If the RCD trips with no loads, check whether the inverter's neutral-to-earth bonding matches the requirements of the distribution board and applicable wiring standard.
Frequently asked questions
What size fuse should I use on the DC input of my inverter?
The fuse must be rated for the maximum DC input current the inverter can draw, plus a safety margin, but must not exceed the cable's ampacity. As a starting point, divide the inverter's surge watt rating by the nominal battery voltage to get peak amps, then select the next standard fuse size up. Always mount the fuse within 300 mm of the battery positive terminal.
Can I connect multiple batteries in parallel to increase capacity?
Yes, but all batteries must be the same type, age, capacity, and state of charge before paralleling. Use identical cable lengths from each battery to a common bus bar so that current is shared equally. A battery bank management system or balancing fuses are recommended for banks larger than two batteries.
Why does my inverter shut down under load?
The most common cause is excessive voltage drop in undersized DC cables or poor terminal connections, causing the battery voltage to sag below the inverter's low-voltage cutoff point. Check cable gauge, tighten all terminals, and measure battery voltage under load with a multimeter at the inverter's DC input terminals — not at the battery.
Does an inverter need to be earthed?
Yes. The inverter chassis must be connected to a protective earth conductor in accordance with IEC 60364, NEC Article 250, BS 7671, or the applicable local wiring standard. Omitting the earth bond leaves the chassis at a potentially lethal floating potential if an internal insulation fault develops.
What is the difference between modified sine wave and pure sine wave inverters?
A modified sine wave inverter produces a stepped approximation of AC that works for resistive loads like incandescent lights and heating elements, but can cause overheating, noise, or malfunction in motors, variable-speed drives, medical equipment, and sensitive electronics. A pure sine wave inverter produces output equivalent to grid power and is compatible with all AC loads.
