Mass Air Flow Sensor Wiring Diagram

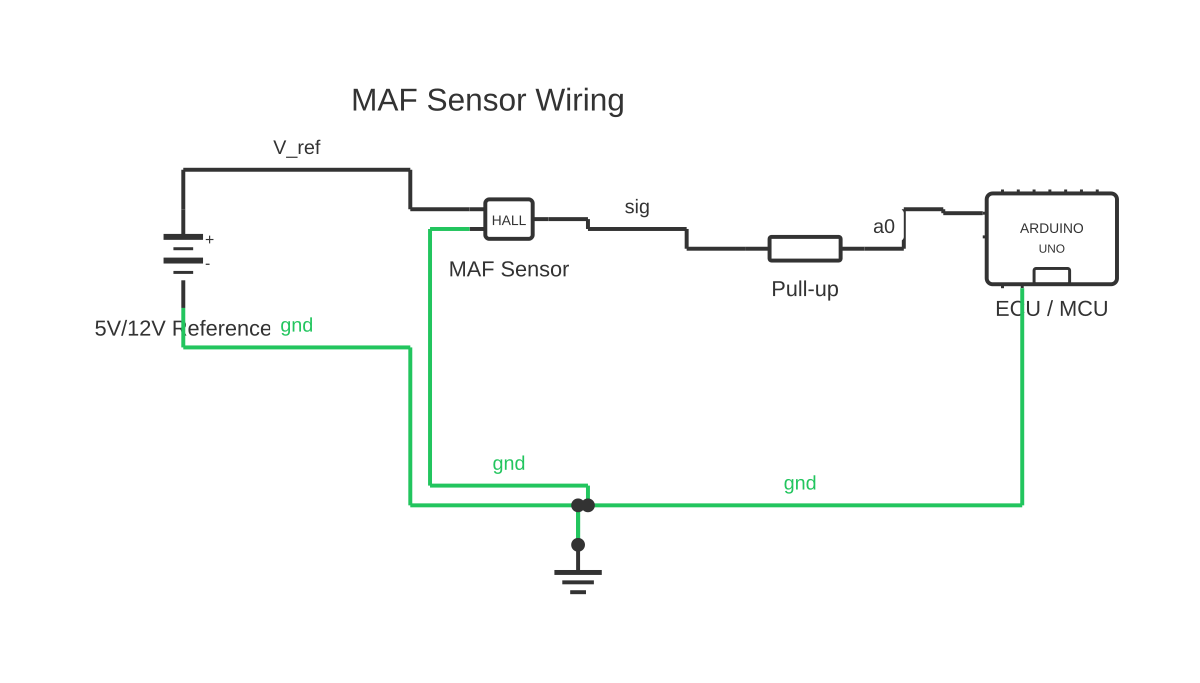

Mass Air Flow Sensor Wiring Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable mass air flow sensor diagram: download the diagram as SVG or open it and print to paper or PDF.

Trace the 5V reference, signal output, ground, and heating element connections of a hot-wire or hot-film MAF sensor before diagnosing a lean-condition fault code or replacing a sensor.

The mass air flow (MAF) sensor measures the mass flow rate of air entering the engine intake. The ECU uses this value as the primary input for fuel injection quantity calculation on speed-density and mass-flow-based engine management systems. Measuring mass (not just volume) accounts for variations in air density due to temperature and altitude, making the MAF sensor essential for maintaining correct air-to-fuel ratios across a wide range of operating conditions.

The dominant MAF technology in automotive applications since the 1980s is the hot-wire or hot-film anemometer principle. In a hot-wire MAF, a fine platinum or tungsten wire element (typically 70–80 µm in diameter) is suspended in the air stream and heated by an electronic control circuit to a fixed temperature above ambient air temperature — typically 100–170°C above the incoming air temperature, as measured by a co-located cold-wire or thermistor compensation element. As air flows past the heated element, it carries heat away. The control circuit continuously increases current through the heating element to maintain the setpoint temperature differential. The current required to maintain this temperature differential is directly proportional to the mass flow rate of air passing the element. This current is converted to a voltage signal (typically 0–5 V or 0–12 V, depending on the sensor design) which the ECU reads as the mass airflow value.

Hot-film MAF sensors use the same fundamental principle but with the heating element and temperature sensors deposited as thin films on a ceramic or silicon substrate rather than as a free-standing wire. Hot-film designs are more robust (no fragile wire element to break) and less susceptible to contamination, but are fundamentally similar from a wiring and diagnostic perspective.

Typical wiring for a modern MAF sensor uses five or fewer conductors: a regulated 5 V reference (from the ECU or a dedicated sensor supply), signal ground (a clean sensor reference ground separate from chassis earth), the signal output wire (0–5 V analogue or frequency-based), a dedicated power supply for the heater element (typically 12 V ignition-switched), and in some designs the heater ground is a separate conductor. Some simpler sensors combine heater power and reference power on the same supply; always verify against the vehicle-specific wiring diagram.

How to wire mass air flow sensor diagram

Identify the MAF sensor and connector location The MAF sensor is mounted in the intake air duct between the air filter and the throttle body. It typically incorporates an integrated intake air temperature (IAT) sensor. The connector is usually a 3-to-6-pin weather-sealed connector. Photograph the connector and routing before unplugging.
Retrieve any diagnostic trouble codes Use an OBD-II scan tool to read any stored DTCs before testing. Common MAF-related codes include P0100–P0104 (MAF circuit range/performance/high/low). Note whether the code is confirmed or pending — a pending code indicates an occasional fault that has not yet triggered the MIL (malfunction indicator lamp).
Verify the heater power supply With the ignition on (engine off), back-probe the heater power wire at the MAF sensor connector. Expect 12 V (ignition-switched battery voltage). No voltage indicates a broken fuse, open supply wire, or relay fault. This is the pin that supplies the element's heating circuit — different from the 5 V sensor supply.
Verify the 5 V reference supply Back-probe the 5 V reference pin at the MAF connector with the ignition on. Expect 4.9–5.1 V. A reading significantly below 5 V (below 4.5 V) with no other sensors also reporting low reference voltage suggests a short to earth on the 5 V reference circuit or a failing ECU reference supply. If multiple sensors on the same 5 V reference are all reading low, the fault is at the ECU or the shared reference circuit.
Verify signal ground continuity Measure resistance from the signal ground pin at the MAF connector to the ECU ground reference (or battery negative) with the connector unplugged. Expect less than 1 Ω. Elevated resistance in the sensor ground circuit causes erratic or offset MAF readings without necessarily setting a fault code.
Monitor signal voltage using a scan tool live data With the engine running, monitor the MAF signal on the scan tool's live data stream. At idle, expect approximately 0.5–1.0 V (analogue sensor) or a specific g/s (grams per second) reading depending on engine displacement. Rev the engine to 2500–3000 RPM and observe the signal — it should rise proportionally. An unresponsive or clipped signal indicates a failing sensor element.
Clean or replace the sensor as indicated by test results If voltage and ground are correct but the MAF signal is incorrect, remove the sensor and inspect the sensing element visually for oil film, dust, or spider web contamination. Clean with MAF-specific cleaner, allow two minutes to dry, reinstall, and retest. If cleaning does not restore correct readings, replace the sensor and clear DTCs.

Specifications

Sensor operating principle	Hot-wire or hot-film anemometer (constant-temperature differential control)
Heater supply voltage	12 V DC, ignition-switched
5 V reference supply (from ECU)	4.9–5.1 V
Signal output type (most common)	Analogue 0–5 V DC; some applications use frequency output
Signal at idle (analogue sensor, typical)	0.5–1.0 V (engine and airflow specific)
Signal at wide-open throttle (analogue sensor, typical)	4.0–4.8 V
Signal ground resistance to ECU ground	Less than 1 Ω
Hot-wire element heating temperature above ambient	Typically 100–170°C above intake air temperature

Safety warnings

Disconnect the vehicle battery negative terminal before disconnecting or reconnecting the MAF sensor connector to avoid ECU damage from voltage spikes during connection under power.
Do not touch the MAF sensing wire or film element directly — finger oils contaminate the element and cause incorrect readings. If the element must be inspected, observe only; do not make contact.
Never use generic aerosol cleaners (brake cleaner, carburetor cleaner, contact cleaner) on the MAF sensing element — these leave chemical residues that cause incorrect readings, can permanently damage the element, or cause fire risk if sprayed near hot components.
This diagram is a general reference. MAF sensor pin assignments vary significantly between manufacturers and vehicle models. Always verify against the vehicle-specific wiring diagram before probing any pin.
When performing back-probe testing on MAF sensor wiring with the engine running, keep test leads and hands clear of the drive belt, cooling fan, and hot engine surfaces.

Tools needed

OBD-II scan tool with live data capability
Digital multimeter
Back-probe pins or piercing probes
Vehicle-specific wiring diagram (MAF sensor circuit)
MAF-specific aerosol cleaner
Screwdrivers and hose clamp pliers (for intake duct removal)
Torque specification for MAF sensor mounting screws

Common mistakes

Probing the wrong pin and assuming the reference voltage is at the correct pin — MAF sensor pinouts are not standardised. A 12 V reading at what is expected to be a 5 V reference pin means the connector diagram is wrong, not that the reference is overvoltage.
Cleaning the MAF sensor with brake cleaner or carburetor cleaner, which leave a residue on the sensing element causing permanently incorrect lean readings after cleaning.
Replacing the MAF sensor without investigating the root cause of contamination — if the air filter is missing, torn, or improperly seated, the new sensor will be contaminated again within a short period.
Assuming a lean fault code is caused by the MAF sensor without first checking for intake air leaks between the MAF and the throttle body. An intake leak adds unmetered air to the engine that the MAF sensor does not account for, causing the ECU to calculate a lean condition.
Failing to clear DTCs and complete a drive cycle after MAF sensor replacement — readiness monitors must complete before emissions testing and the ECU must learn the new sensor's baseline.

Troubleshooting

P0101 MAF circuit range / performance fault: Cause: MAF signal not tracking correctly with engine airflow — dirty sensor element, air leak after MAF, or wiring fault Fix: Check for intake air leaks between the MAF sensor and the throttle body (use propane enrichment or smoke test). Verify MAF signal voltage rises proportionally with RPM using live data. Clean or replace the sensor if signal does not track expected values. Verify all sensor supply and ground wiring is intact.
No MAF signal voltage — signal output reads 0 V with ignition on: Cause: No heater power supply, no 5 V reference, open-circuit signal wire, or failed sensor internal circuit Fix: Verify 12 V at heater supply pin with ignition on. Verify 5 V at reference pin. Verify continuity of signal wire from sensor connector to ECU pin. If supply voltages are correct and wiring is intact but signal is absent, the sensor's internal circuit has failed — replace the sensor.
Erratic MAF signal causing unstable idle and fluctuating fuel trims: Cause: Contaminated sensing element, intermittent wiring connection, or damaged sensing wire due to backfire or oil ingestion Fix: Inspect the MAF element visually for oil film or contamination. Inspect the sensing wire (if hot-wire type) for breaks or distortion — a wire that has been bent or partially melted by a backfire will not recover. A damaged wire requires sensor replacement; contamination may respond to cleaning.

Frequently asked questions

What wires does a typical MAF sensor have?

A typical hot-wire or hot-film MAF sensor has three to five conductors: a 12 V heater power supply (ignition-switched), a heater ground, a 5 V reference supply (from the ECU), a signal ground (sensor reference), and a signal output wire (0–5 V analogue or frequency signal). Some sensors combine the 12 V heater and sensor supply; always verify with the vehicle's wiring diagram rather than assuming.

What voltage should the MAF sensor signal output at idle versus wide-open throttle?

For a typical analogue voltage-output MAF sensor, idle airflow produces a signal of approximately 0.5–1.0 V. At wide-open throttle (WOT), the signal should rise to approximately 4.0–4.8 V on a 0–5 V output sensor. A signal that does not rise above 1.5 V at full throttle indicates either a contaminated sensor, a restriction in the intake ahead of the sensor, or a failing sensor element.

What does the MAF sensor's burn-off cycle do?

Many hot-wire MAF sensors perform a burn-off cycle when the engine is switched off: the ECU energises the heater element at full power for one to two seconds to heat the wire to approximately 1000°C, burning off oil contamination and dust deposits. This self-cleaning function extends sensor life and maintains measurement accuracy. A burn-off cycle should be visible as a brief glow in the sensor element after the engine stops — if you can safely observe this without touching the intake.

Why does a dirty MAF sensor cause a lean fuel condition rather than a rich one?

A contaminated sensing element has reduced thermal transfer to the air stream. The control circuit reduces the heater current (because the element stays hot even with less airflow, due to insulating contamination reducing cooling). The reduced current is interpreted by the ECU as low airflow, so the ECU injects less fuel than the engine actually needs for the true airflow entering the cylinder. The engine runs lean.

Can I clean a MAF sensor to restore correct operation?

Yes, in many cases. Use only MAF-specific aerosol cleaner — do not use brake cleaner, carburetor cleaner, or contact cleaner, which can leave residues that cause incorrect readings or damage the sensing element. Spray lightly and allow to dry completely before reinstalling. Do not touch the sensing element physically. If the fault code returns after cleaning, the sensor requires replacement.
