Outlet Wiring Diagram: Receptacle Connections, Polarity, and Grounding

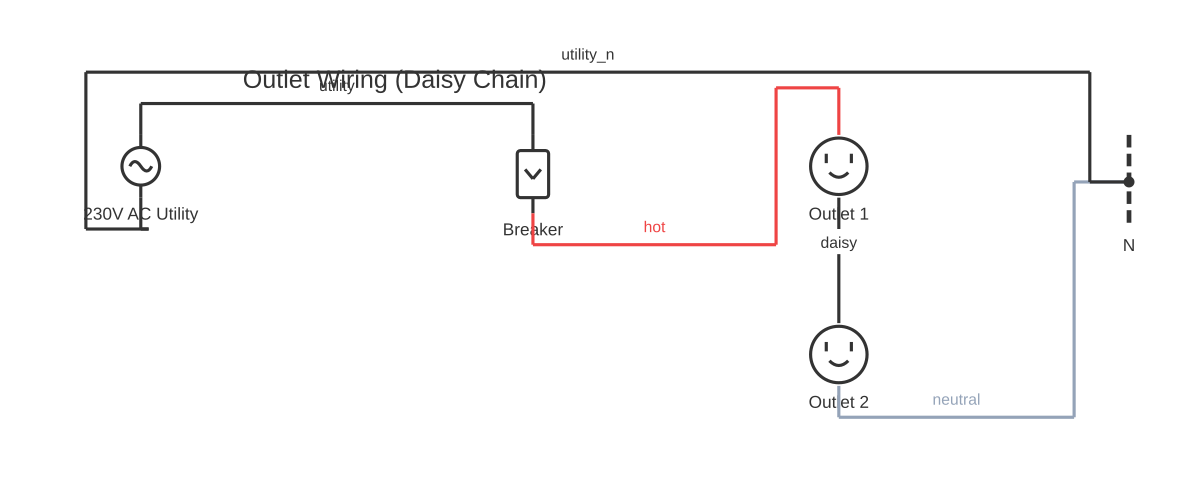

Outlet Wiring Diagram: Receptacle Connections, Polarity, and Grounding — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable outlet diagram: download the diagram as SVG or open it and print to paper or PDF.

An outlet wiring diagram shows how to connect hot, neutral, and ground conductors to a receptacle's terminal screws to ensure correct polarity and a safe grounded circuit.

An electrical outlet (receptacle) provides a safe point for connecting portable appliances to the building's electrical supply. A wiring diagram for an outlet shows the conductor connections at the receptacle's terminal screws, the circuit protective devices upstream, and how multiple outlets on the same circuit are interconnected.

In a North American installation governed by NEC/NFPA 70, the standard duplex receptacle has three sets of terminals. The small (narrower) slot on the receptacle face is the hot side, connected at the terminal with the brass-coloured screw using the black (hot) conductor. The larger slot is the neutral side, connected at the silver-coloured screw using the white (neutral) conductor. The U-shaped slot is the ground, connected at the green-coloured screw using the bare copper or green ground conductor. Correct polarity — hot to small slot, neutral to large slot — is essential: many appliances are designed with polarity-sensitive internal fusing, and incorrect polarity leaves the appliance live when its switch is open.

In UK and IEC-harmonised European wiring, fixed outlets (sockets) are wired with brown (live), blue (neutral), and green/yellow (earth) conductors to the L, N, and E terminals respectively. UK ring circuits supply sockets on a ring main; spur connections and ring integrity must comply with BS 7671.

For daisy-chaining multiple outlets on a single circuit (common in residential wiring), the NEC permits connecting the line side conductors via the two screw terminals on each side of the receptacle, or by using a pigtail method where a short conductor joins a junction to the receptacle terminal and the circuit continues from the junction. The pigtail method is safer because a loose terminal screw does not interrupt the circuit to downstream outlets.

Tamper-resistant receptacles, now required by NEC in most residential locations, contain spring-loaded shutters inside each slot that only open when both slots are simultaneously engaged by a plug's prongs, preventing a child from inserting a single object into one slot.

Outlet wiring diagrams address a wider variety of configurations than a simple receptacle replacement: half-switched (half-hot) outlets, two-gang boxes, 120 V circuits, and regionally-specific aircon outlets like the Omni type all require specific wiring approaches. Wire colour conventions — black for hot, white for neutral, and bare or green for ground in North America — are the starting point, but half-hot and switch-controlled outlet circuits introduce traveller wires and tab-break connections that change the internal wiring of a duplex receptacle. Drawing the circuit diagram before opening the box prevents dangerous mistakes.

How to wire outlet diagram

Isolate the circuit Identify the circuit breaker controlling the outlet circuit and switch it off at the distribution panel. Verify the outlet is de-energised using an approved non-contact voltage tester or a plug-in outlet tester before opening the box.
Open the outlet box and identify conductors Remove the cover plate and unscrew the outlet from the box. Pull the outlet out carefully. Identify the incoming cable conductors: black (hot), white (neutral), and bare copper or green (ground). In older wiring, there may be no ground conductor.
Connect the ground conductor Connect the bare copper or green ground wire to the receptacle's green hex-head terminal screw. If multiple ground wires are present, pigtail them together with a short connector wire and connect the pigtail to the green screw.
Connect the neutral conductor Connect the white (neutral) conductor to the silver-coloured terminal screw on the wider-slot side of the receptacle. Tighten securely. If daisy-chaining, use a pigtail method: connect all neutrals and a short pigtail at the junction, and run the pigtail to the terminal.
Connect the hot conductor Connect the black (hot) conductor to the brass-coloured terminal screw on the narrow-slot side of the receptacle. Verify the connection matches the narrower slot face (live side). Tighten securely.
Fold conductors and remount Fold conductors carefully into the outlet box using Z-fold to avoid pinching. Push the receptacle back into the box and secure with the mounting screws. Refit the cover plate.
Restore power and test Restore power at the circuit breaker. Use a plug-in outlet tester to verify correct wiring: the tester indicates correct polarity and a functioning ground. Verify no tripped breaker or GFCI protection device has indicated a fault.

Specifications

Standard residential outlet rating (USA)	15 A, 125 V (NEMA 5-15R) or 20 A, 125 V (NEMA 5-20R)
Cable size (15 A circuit, USA)	14 AWG copper
Cable size (20 A circuit, USA)	12 AWG copper
Hot terminal colour (USA)	Brass screw; small slot
Neutral terminal colour (USA)	Silver screw; large slot
Ground terminal colour (USA)	Green hex screw; U-slot
Hot conductor colour (USA)	Black
Neutral conductor colour (USA)	White
Tamper-resistant requirement	NEC 406.12 — required in most residential locations (NEC 2008 and later)

Safety warnings

Outlet installation and replacement must comply with applicable wiring regulations — NEC/NFPA 70 in the USA, BS 7671 in the UK, AS/NZS 3000 in Australia/New Zealand, or the applicable local code. Always verify whether a permit or qualified electrician is required in your jurisdiction.
Always de-energise the circuit at the distribution panel and verify it is dead with an approved voltage tester before opening any outlet box or touching any conductors.
Never install a three-prong grounded outlet on an ungrounded circuit unless using a GFCI receptacle labelled 'No Equipment Ground' as permitted by NEC 406.4(D).
Correct polarity is mandatory. Hot to small slot, neutral to large slot. Reversed polarity creates an electrocution hazard with certain appliances and may cause equipment damage.
These diagrams are illustrative reference material only and do not substitute for consultation of applicable wiring regulations or the services of a licensed electrician.

Tools needed

Non-contact voltage tester
Plug-in outlet tester
Flat and cross-head screwdrivers (insulated)
Wire stripper
Needle-nose pliers
Multimeter

Common mistakes

Reversing hot and neutral connections (hot to silver screw, neutral to brass screw), creating reversed polarity that is hazardous and detectable with a simple outlet tester.
Back-stabbing conductors into the push-in terminals on the rear of cheap receptacles instead of using the screw terminals; push-in connections are more prone to loosening and arcing over time.
Daisy-chaining through the outlet terminal screws rather than using pigtails; a loose or broken screw terminal then interrupts all downstream outlets on the circuit.
Omitting the pigtail for the ground conductor and relying on the outlet-to-box mounting screw for equipment grounding continuity through a metallic box — this is unreliable.
Installing a 20 A receptacle on a 15 A circuit wired with 14 AWG cable — the receptacle rating must match both the circuit breaker and the cable gauge.

Troubleshooting

Outlet has no power; circuit breaker has not tripped: Cause: Loose connection at the outlet or upstream junction, or outlet is downstream of a tripped GFCI Fix: Check for tripped GFCI outlets on the same circuit (they may be in a different room). Press the RESET button on any GFCI on the circuit. If still no power, isolate, open the outlet box, and check all terminal connections.
Outlet tester shows reversed polarity: Cause: Hot (black) and neutral (white) conductors have been connected to the wrong terminal screws Fix: Isolate the circuit, open the outlet box, and swap the black and white conductors to the correct terminals (black to brass, white to silver).
Outlet works intermittently; sparking visible at plug insertion: Cause: Loose terminal connection, arcing at a back-stabbed connection, or worn receptacle contact springs Fix: Isolate and replace the receptacle. If back-stab connections were used, rewire using screw terminals or the pigtail method.

Frequently asked questions

What is the difference between the hot and neutral terminals on a receptacle?

The hot terminal (brass-coloured screw, small slot) connects to the black (hot) conductor, which carries the live voltage. The neutral terminal (silver-coloured screw, large slot) connects to the white (neutral) conductor, which is the return path. Reversing these (incorrect polarity) leaves the neutral switched rather than the hot, creating a shock hazard.

Why is a ground wire needed if the circuit already has a neutral?

The neutral carries the normal return current during circuit operation. The ground conductor is an additional safety path connected to the appliance case. If insulation fails and the hot conductor contacts the appliance case, the ground provides a low-impedance path for fault current, causing the circuit breaker to trip and disconnecting the supply before the case reaches a dangerous voltage.

What does the LINE and LOAD terminal mean on some receptacles?

Certain receptacles (particularly GFCI types) have both LINE and LOAD terminal sets. LINE connects to the incoming supply conductors from the panel. LOAD connects to wiring continuing to further downstream outlets. This LOAD connection allows one GFCI device to protect all downstream receptacles on the same circuit — any ground fault downstream causes the GFCI to trip.

Can I replace a two-prong ungrounded outlet with a three-prong outlet?

NEC allows replacement with a GFCI-type receptacle even where no equipment ground is available, provided the replacement is labelled 'No Equipment Ground.' This provides shock protection without requiring a ground conductor. A standard three-prong outlet should not be installed where no ground conductor is present, as the ground connection would be absent.

What is a tamper-resistant receptacle and where is it required?

A tamper-resistant receptacle contains internal spring-loaded shutters that only open when both the hot and neutral slots are simultaneously engaged by a plug's two prongs. This prevents a child inserting a single object into one slot. NEC 2008 and later revisions require tamper-resistant receptacles in most residential locations including bathrooms, bedrooms, and living areas.

How do I wire a half-switched outlet?

A half-switched (half-hot) outlet has the top receptacle always live and the bottom receptacle switched by a wall switch. To achieve this, break the connecting tab between the two hot terminals on the duplex receptacle using needle-nose pliers. Connect the always-hot black wire to one hot terminal and the switched-hot wire (often red, from the switch) to the other hot terminal. Both neutral terminals remain connected via the intact neutral tab, sharing one white neutral wire.

What is the correct wiring for a wall outlet (black, white, green)?

In North American wiring, black is the hot (live) conductor and connects to the brass-coloured screw on the outlet. White is neutral and connects to the silver-coloured screw. The bare copper or green wire is the ground and connects to the green screw. Always confirm polarity with a non-contact voltage tester after energising, and never swap neutral and ground — they serve different safety functions.

What do the outlet wiring colours white and black mean?

Black is the hot (ungrounded) conductor carrying voltage from the panel to the outlet. White is the neutral (grounded) conductor completing the circuit back to the panel neutral bar. In a correctly wired outlet, the black connects to the narrow slot (hot) and white to the wider slot (neutral). If you find a white wire being used as a switch leg or hot conductor, it should be re-identified with black tape or a permanent marker.

What is a half-hot outlet wiring diagram?

A half-hot outlet wiring diagram shows a duplex receptacle with the hot-side tab broken, two separate hot conductors (one always-on, one switched), and a shared neutral. The switched hot wire typically comes from a wall switch that interrupts power to the lower receptacle, which is useful for lamps on a switched circuit. The diagram also shows the ground wire connecting to all devices in the box and the switch's ground terminal.

How is an Omni aircon outlet wired?

Omni aircon outlets (used in the Philippines and some Asian markets) are typically dedicated single-phase outlets rated for 20 A at 220–240 V for window-type air conditioners. They use a round three-pin format where one pin is live (phase), one is neutral, and one is earth. The circuit should be on a dedicated MCB, wired with the correct cable size for the air conditioner's rated current, and must include a proper earth connection for safety. Consult the Omni wiring accessories documentation and local PEC (Philippine Electrical Code) requirements for the correct plug and socket type.

How do I wire a 120-volt outlet?

A standard 120 V duplex outlet in North America uses a 15 A or 20 A circuit with 14 AWG or 12 AWG cable respectively. Connect the black (hot) wire to the brass screw, white (neutral) to the silver screw, and bare copper (ground) to the green screw. For a 20 A circuit, use a 20 A-rated receptacle (with a T-shaped neutral slot). Always turn off the circuit breaker and confirm the circuit is dead with a voltage tester before working.

How do I wire a two-gang outlet box?

In a two-gang outlet box with two separate receptacles, each receptacle is typically wired to the same circuit unless they are on split circuits. Connect black to the brass screws, white to the silver screws, and ground to the green screws. For a daisy-chain configuration, use pigtail splices: join the incoming and outgoing hot wires with a short pigtail to each receptacle's hot terminal, do the same for neutral, and connect all grounds together with a pigtail to each receptacle's ground screw.

What do the outlet wiring colours mean and which goes where?

Standard North American outlet wiring: black (hot) goes to the brass screw on the right side of the outlet, white (neutral) goes to the silver screw on the left side, and green or bare copper (ground) goes to the green screw at the bottom. Some commercial or multi-wire circuits add a red wire as a second hot conductor from a different phase. Always identify every wire before making connections, and verify with a multimeter after restoring power.
