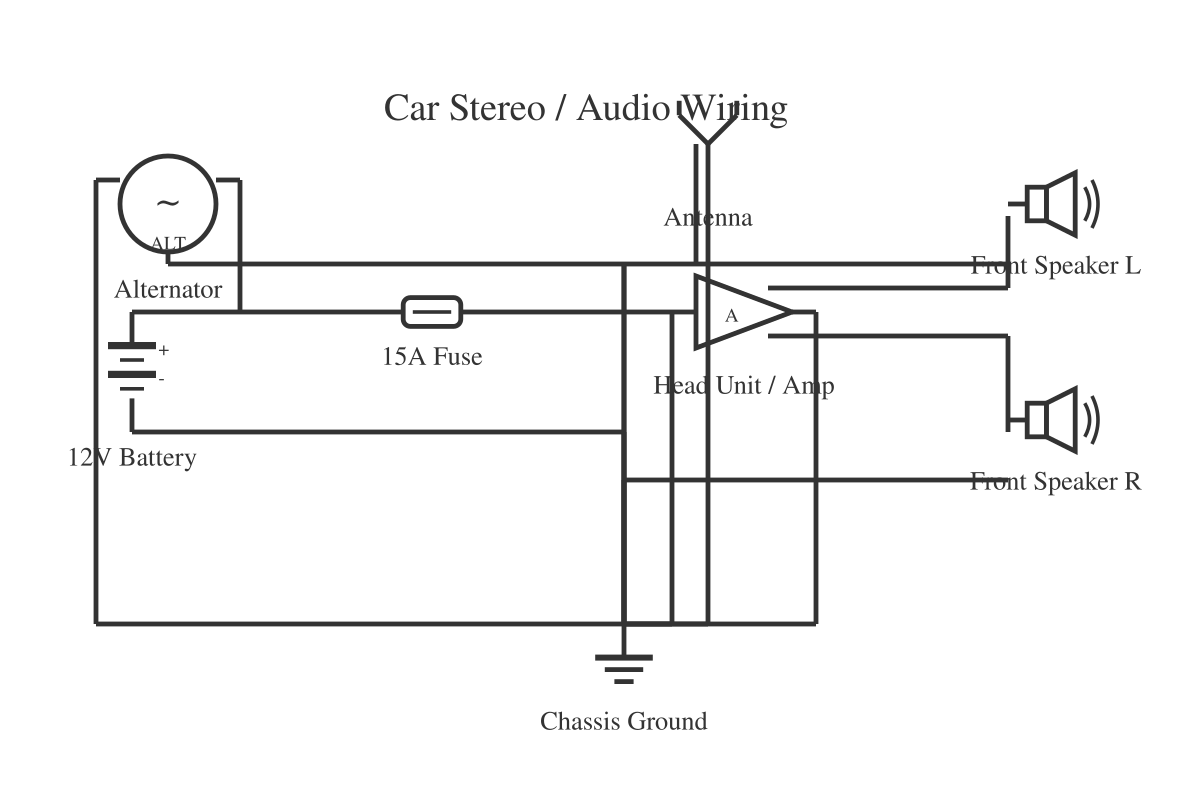

Radio Wiring Diagram
This is a free printable radio diagram: download the diagram as SVG or open it and print to paper or PDF.
A radio wiring diagram maps the ISO 10487 connector pins to vehicle harness wires, ensuring correct power, ground, speaker, and antenna connections for reliable car audio installation.
A car radio wiring diagram is a schematic reference that shows how the head unit connects to the vehicle's electrical system using a standardised connector interface. The dominant standard is ISO 10487, which divides the connector into two blocks: Block A (ISO A, 8-pin) handles power and ground, while Block B (ISO B, 8-pin) handles speaker outputs.
Block A carries the permanent 12 V battery supply (pin A4, typically yellow), the switched ignition feed (pin A7, typically red), the chassis ground (pin A1, typically black), the illumination feed (pin A5, typically orange), and the muting wire (pin A8). Some vehicles add a dedicated amplifier remote turn-on wire, which the head unit switches to 12 V when powered on.
Block B carries four speaker channels: front-left positive (B1) and negative (B2), front-right positive (B3) and negative (B4), rear-left positive (B5) and negative (B6), rear-right positive (B7) and negative (B8). Each speaker pair is a differential low-impedance output, typically 4 ohms nominal. Speaker wires must never be grounded — bridging a negative speaker terminal to chassis ground causes the output stage to short, damaging the amplifier IC.
Most modern vehicles use a proprietary multi-pin connector rather than bare ISO plugs. A vehicle-specific ISO adapter harness preserves the factory connector while providing a standard ISO A+B plug on the other end, eliminating the need to cut factory wiring.
The antenna connection uses a separate DIN (Motorola-style) coaxial plug or a FAKRA connector on European vehicles. A phantom-power adapter may be required if the vehicle uses an active amplified antenna.
Always verify wire colours with a multimeter before connection — wire colour conventions vary by manufacturer and region. This diagram is a generic illustrative reference only; consult the specific vehicle service manual and head unit installation sheet for production use.
How to wire radio diagram
- Disconnect the vehicle battery negative terminal Before touching any vehicle wiring, disconnect the negative battery terminal and wait at least 60 seconds. This prevents accidental short circuits and protects both the vehicle electrical system and the head unit from transient damage during installation.
- Identify the vehicle ISO connector type Locate the existing head unit connector behind the dashboard. Determine whether it is a standard ISO A+B dual block, a proprietary OEM multi-pin connector, or a combination. Source the correct vehicle-specific ISO adapter harness that plugs into the factory connector on one end and provides a standard ISO plug on the other.
- Verify wire functions with a multimeter before connecting Reconnect the battery temporarily. Set the multimeter to DC voltage. Confirm the yellow wire reads 12 V with ignition off, the red wire reads 12 V only with ignition in ACC/ON, and the black wire reads 0 V (ground). Disconnect the battery again before proceeding.
- Connect the ISO adapter harness to the head unit Plug the ISO A block (power and ground) and ISO B block (speakers) into the corresponding connectors on the back of the head unit. If the head unit includes a pre-wired ISO harness tail, match wire colours carefully using the head unit installation manual as the authoritative reference — not assumptions based on colour conventions alone.
- Connect the antenna lead Plug the vehicle antenna coaxial cable into the antenna input on the head unit. If the vehicle uses a powered antenna or active aerial booster, connect the phantom-power adapter between the head unit's antenna socket and the vehicle antenna cable, and connect the adapter's trigger wire to the head unit's blue remote turn-on output.
- Route and secure all wiring Ensure all cables are routed away from moving parts (steering column, pedal linkages) and heat sources (heater ducts, exhaust). Use cable ties or clips to secure wiring. Avoid pinching cables behind the head unit in the dash pocket, as this can cause intermittent faults and noise injection into the audio signal.
- Reconnect the battery and test all functions Reconnect the battery negative terminal. Power on the head unit and verify: audio plays on all four channels, memory retention after ignition cycle, illumination dimming with headlights on, and correct antenna reception. Address any faults before completing the dashboard reassembly.
Specifications
| Connector standard | ISO 10487 (ISO A + ISO B dual block) |
|---|---|
| Permanent supply voltage | 12 V DC nominal (ISO A, pin A4) |
| Switched supply voltage | 12 V DC nominal (ISO A, pin A7) |
| Speaker impedance (nominal) | 4 Ω per channel |
| Speaker channels | 4 (front-left, front-right, rear-left, rear-right) |
| Antenna connector | DIN 75 Ω (Motorola-style) or FAKRA |
| Memory supply fuse | 5–10 A blade (ATO/ATC) type |
| Amplifier remote output voltage | 12 V DC (head unit switched output) |
Safety warnings
- Always disconnect the vehicle battery negative terminal before beginning any wiring work. Even low-voltage 12 V DC systems can deliver dangerous short-circuit currents capable of igniting wire insulation and causing fires.
- Never connect speaker negative terminals to chassis ground. Car radio amplifiers use bridged output stages; grounding a speaker negative terminal will short-circuit the amplifier output and cause immediate component damage.
- Ensure the permanent 12 V memory feed (yellow wire) is fused at the source. An unfused direct battery connection is a fire risk if the wire is damaged or pinched behind the dashboard.
- This diagram is a generic illustrative reference only. Always consult the specific vehicle service manual and the head unit manufacturer's installation instructions before carrying out any wiring. Electrical system configurations vary significantly between manufacturers and model years.
Tools needed
- Digital multimeter
- Trim removal tools (plastic pry tools to avoid damage)
- Wire stripper / crimping tool
- Electrical insulating tape or heat-shrink tubing
- Cable ties and cable tie gun
- Screwdrivers (Phillips and flat blade)
- Torque screwdriver for DIN radio cage screws
Common mistakes
- Connecting both the red (switched) and yellow (permanent) wires to the same ignition-switched source, causing memory loss every ignition cycle.
- Grounding speaker negative wires to the vehicle chassis, which short-circuits the bridged amplifier output and causes head unit damage.
- Omitting a fuse on the permanent 12 V battery feed, creating a potential fire hazard from an unfused direct battery connection.
- Assuming wire colour conventions are universal across all vehicle manufacturers — always verify function with a multimeter before making permanent connections.
- Forgetting to connect the antenna lead, resulting in no AM/FM reception — often assumed to be a head unit fault when the antenna plug simply was not seated.
Troubleshooting
- Head unit loses memory (clock, presets) when ignition is off
- Cause: Yellow permanent 12 V memory wire is not connected or is incorrectly wired to the switched ignition supply Fix: Verify the yellow wire reads 12 V with ignition off using a multimeter. Reconnect it to a fused permanent 12 V source (fuse box battery circuit, not ignition-switched circuit).
- No sound from one or more speakers
- Cause: Broken connection in speaker wiring, mismatched ISO B connector pins, or a blown speaker Fix: Trace each speaker channel from the head unit ISO B connector to the speaker terminals. Verify continuity with a multimeter in resistance mode. Check that positive and negative speaker wires are not reversed, which causes phase cancellation between front and rear channels.
- Poor FM/AM reception or no antenna signal
- Cause: Antenna coaxial plug not fully seated, active antenna booster not powered, or missing phantom-power adapter on vehicles with powered antennas Fix: Re-seat the antenna DIN plug firmly. If the vehicle has an amplified antenna, check that the blue remote turn-on wire is connected and reads 12 V when the head unit is on. Install a phantom-power adapter between the antenna cable and head unit if required.
Frequently asked questions
What is the yellow wire on a radio wiring diagram?
The yellow wire (ISO A, pin A4) is the permanent 12 V battery feed. It supplies constant power to retain memory settings — station presets, clock, and equaliser configurations — even when the ignition is off. It must be fused independently, typically at 5–10 A, and connected directly to a fused battery supply or fuse box.
What is the red wire on a car radio harness?
The red wire (ISO A, pin A7) is the accessory or ignition-switched 12 V feed. It turns the head unit on when the ignition key is in the ACC or ON position. It must not be used as the memory supply — connecting both red and yellow to the same switched source will cause the head unit to lose its memory every time the ignition is switched off.
Why do speaker negative wires float rather than connect to ground?
Car radio output stages are bridged (BTL — bridge-tied load) amplifiers. The negative speaker terminal is an active output, not a ground reference. Connecting it to chassis ground short-circuits half the amplifier bridge, causing immediate overcurrent and damage to the output transistors or IC. Speaker negative wires must connect only to the designated negative speaker terminal on the head unit or adapter harness.
What does the blue or blue/white wire do on a radio harness?
The blue or blue/white wire is the amplifier remote turn-on output. The head unit switches this wire to 12 V when powered on. It is used to trigger an external amplifier's remote input, activating the amplifier only when the head unit is running. On vehicles with a factory amplified antenna, this wire also powers the antenna booster via a phantom-power adapter.
Do I need a vehicle-specific wiring adapter or can I wire directly?
A vehicle-specific ISO adapter harness is strongly recommended. It preserves the factory connector integrity, avoids irreversible cuts to factory wiring, and simplifies future removal or head unit replacement. Direct wiring by cutting factory connectors voids adaptability and can be difficult to reverse without access to replacement connectors or additional factory harness sections.
