Understand the motor, switch, relay, and circuit protection wiring for RV slide-out room systems — covering both hydraulic-pump and electric-motor actuator types.

An RV slide-out system extends and retracts one or more room sections to increase interior living space. Electrically, most systems fall into two categories: dedicated 12 V DC electric motors (rack-and-pinion or worm-drive) controlled by a rocker or momentary switch, and hydraulic systems in which an electric pump motor drives fluid to rams.

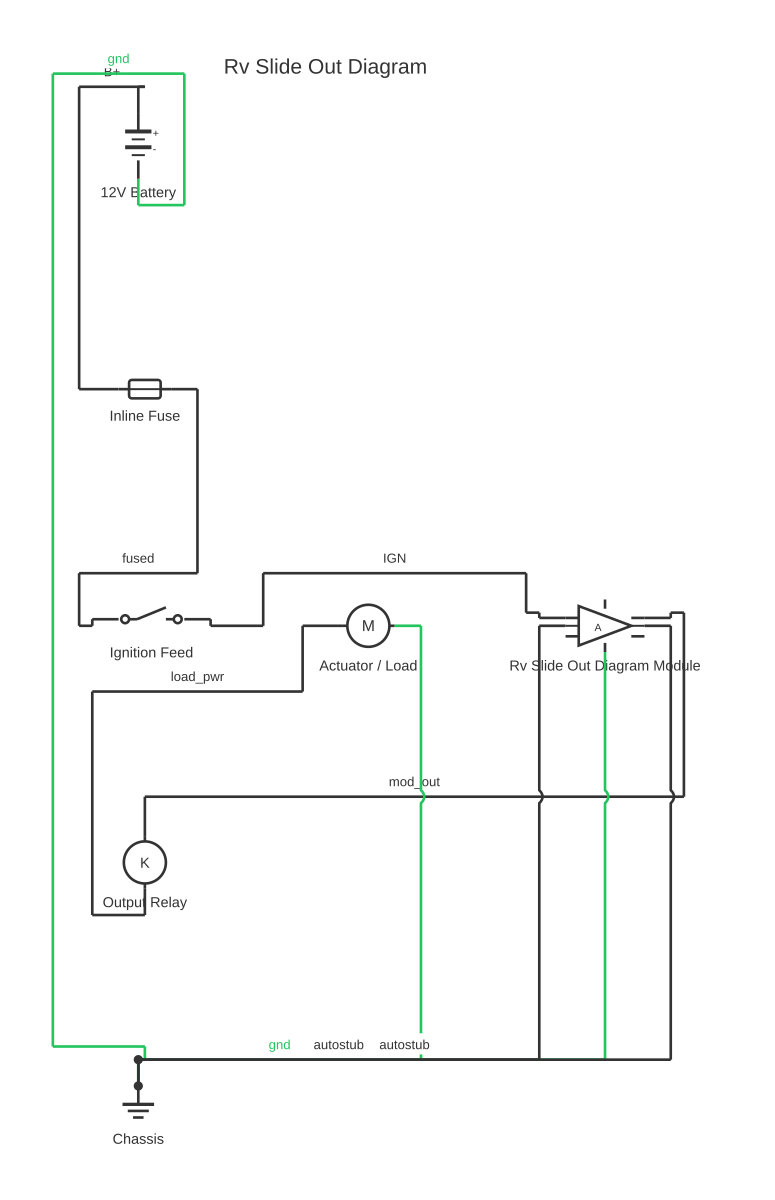

In a typical electric slide-out circuit the house battery bank supplies 12 V DC through a dedicated fuse or circuit breaker — commonly 30 A to 50 A depending on motor current draw — to a relay or H-bridge motor controller. The rocker switch sends a low-current signal to the relay coil, which then routes high-current power to the motor in the correct polarity for extend or retract. Reversing polarity reverses motor direction. Many manufacturers add a limit switch at each end of travel that opens the motor circuit automatically when the slide reaches full extension or full retraction, preventing mechanical overrun.

A control board is often interposed between the switch and the relay. It monitors limit switches, provides soft-start ramp-up to reduce inrush current, and may include a slide-position sensor output for dash displays. Ground return is equally important: the motor chassis ground must bond back to the battery negative through a suitably rated conductor — a poor ground is a leading cause of sluggish or non-functional slides.

For hydraulic systems the wiring is similar but the motor runs only in one direction; solenoid valves controlled by the switch board direct fluid to the extend or retract port of each ram. The pump motor fuse is typically 60 A to 100 A for multi-slide coaches.

Always consult your coach manufacturer's wiring schematic before testing live circuits. Wire gauges must match the continuous current rating with appropriate voltage-drop margins over the run length — a 15-foot run at 40 A typically requires 8 AWG or heavier to keep drop below 3 %.

How to wire rv slide out diagram

Isolate power before any work Disconnect the coach from shore power and disconnect the house battery bank negative terminal. If the slide-out has a dedicated manual override crank, locate it before starting so you have an emergency retract method if power cannot be restored safely.
Locate the wiring diagram for your specific unit Find the OEM wiring schematic in the coach manual or the slide-out motor manufacturer's documentation. Note the wire colours, fuse rating, relay location, and limit switch positions. Generic diagrams are a starting point only — your installation may differ.
Trace the power feed from the battery to the fuse The main positive feed from the battery runs to an inline fuse or circuit breaker mounted close to the battery. Identify its rating (typically 30 A–50 A for electric slides). Check the fuse for continuity with the circuit isolated.
Inspect the relay or motor control board Locate the relay or control board, usually mounted in a compartment near the slide mechanism or in the main electrical bay. Check for corrosion on relay sockets. Test relay coil and contact continuity as described in the troubleshooting section.
Verify limit switch operation With battery reconnected and all connectors secure, manually depress each limit switch plunger by hand and observe whether it breaks continuity with a multimeter in continuity mode. Sticky or corroded limit switches are a common fault. Lubricate with contact cleaner and dielectric grease after testing.
Check motor ground continuity Use a multimeter to measure resistance between the motor chassis and the battery negative post. Resistance should be less than 0.1 Ω. Higher resistance indicates a poor ground strap or corroded ground connection point. Clean all ground contact surfaces to bare metal before re-bolting.
Restore power and perform a functional test Reconnect the battery negative terminal. With a helper monitoring the slide mechanism visually, operate the switch briefly in each direction. Listen for smooth motor operation without grinding. Monitor voltage at the motor terminals during movement — it should not drop below 10.5 V at the motor under load.

Specifications

Nominal supply voltage	12 V DC (house battery system)
Typical motor continuous current draw	20 A–40 A (varies by slide weight and mechanism type)
Recommended fuse rating	30 A–50 A (per motor nameplate; fuse must be located within 18 inches of battery)
Maximum allowable voltage drop at motor terminals	Less than 3 % of nominal supply (i.e., less than 0.36 V on a 12 V system)
Minimum wire gauge for 30 A over 15-foot run	10 AWG; 8 AWG recommended for margin
Ground return resistance (motor chassis to battery negative)	Less than 0.1 Ω

Safety warnings

Always disconnect the house battery negative terminal before working on slide-out wiring. Even with the switch in the off position, wiring between the battery and the relay remains live.
Never operate the slide-out when a person is between the slide and the coach body. Closing force can cause serious injury. Establish a clear communication protocol with any helper before moving the slide.
Fuse and circuit breaker ratings must not be increased beyond the motor manufacturer's specification. Oversizing protection defeats its purpose and risks wiring fire in the event of a motor fault or wiring short.
After any wiring repair, verify all connections are fully seated and insulated with heat-shrink tubing or self-amalgamating tape rated for automotive use. Exposed conductors in damp underbay environments corrode rapidly and can cause intermittent faults or arcing.
Hydraulic slide-out systems use high-pressure fluid — do not open hydraulic fittings without first relieving system pressure per the manufacturer's procedure. Electrical and hydraulic work on the same system should be performed by qualified technicians.

Tools needed

Digital multimeter with continuity and DC voltage functions
Circuit test light (12 V automotive type)
Wire stripper and crimping tool suitable for 4 AWG–14 AWG
Heat-shrink tubing assortment and heat gun
Torque screwdriver or nut driver set
Flashlight or work light for underbay access
Electrical contact cleaner and dielectric grease

Common mistakes

Using undersized wire gauge: selecting wire by physical convenience rather than calculated ampacity and voltage drop causes chronic motor under-voltage and premature motor failure.
Omitting a dedicated fuse close to the battery: a fault anywhere in a long unfused positive run can cause the cable to act as a heating element. The fuse must be within 18 inches of the battery terminal.
Ignoring the ground return path: grounding the motor to the nearest chassis bolt rather than running a dedicated return to the battery negative causes erratic operation, especially with corroded chassis connections.
Bypassing limit switches for testing and forgetting to reconnect them: driving the slide past its mechanical stop under power strips the rack or shears drive pins. Always restore limit switch connections before normal operation.
Assuming all slide-out systems are identical: different manufacturers use different relay configurations, control board logic, and limit switch wiring conventions. Always obtain the OEM diagram for the specific unit before testing.

Troubleshooting

Slide does not move in either direction; motor is silent: Cause: Blown fuse, open circuit breaker, discharged battery, or faulty control switch Fix: Measure battery voltage first — must be above 12.4 V at rest. Check fuse continuity. Use a test light to confirm 12 V is present at the switch input terminals. If voltage reaches the switch but not the relay coil, the switch is faulty. Replace the fuse or switch as indicated.
Slide moves in one direction only: Cause: Faulty relay for the non-working direction, stuck limit switch in the non-working direction, or broken wire on one motor terminal Fix: Swap relay positions if they are identical parts — if the fault moves with the relay, replace it. Manually depress the limit switch for the non-working direction and retry. If the slide now moves, clean or replace the limit switch. Probe motor terminals for polarity reversal when the switch is operated in each direction.
Slide moves slowly and stalls under load: Cause: Excessive voltage drop due to undersized wiring, corroded connections, or low battery state of charge Fix: Measure voltage directly at the motor terminals during operation — below 10.5 V indicates excessive drop. Check and clean all connections. Charge battery fully before retesting. If voltage drop persists with a fully charged battery and clean connections, the feed or return cable may need to be upsized.
Fuse blows immediately when slide switch is operated: Cause: Wiring short to chassis, motor winding short, or seized mechanical mechanism causing motor stall current to exceed fuse rating Fix: Disconnect the motor and replace the fuse. Operate the switch — if the fuse holds, the motor or its wiring is the fault. Inspect motor leads for chafed insulation contacting chassis metal. Attempt to turn the slide mechanism by hand to verify it is not mechanically seized before reconnecting the motor.

Frequently asked questions

What gauge wire is used for an RV slide-out motor?

Wire gauge depends on motor current draw and run length. Most electric slide-out motors draw 20 A to 40 A continuous. At 30 A over a 12-foot run, 10 AWG is a common minimum; 8 AWG provides a safer margin. Always calculate voltage drop: keep it below 3 % of the nominal 12 V supply to avoid motor stress.

Why does my slide-out motor hum but not move?

A humming motor that does not move usually indicates a voltage drop problem — the motor receives enough voltage to energise but not enough to develop torque under load. Check battery state of charge first, then inspect the main fuse, relay contacts, and ground connections. A seized mechanical mechanism or a failed start capacitor (on some AC motors) can also cause this symptom.

What does a limit switch do in a slide-out circuit?

A limit switch automatically opens the motor circuit when the slide reaches the end of its travel in either direction. This prevents the motor from stalling against a mechanical stop under continuous current, which would cause overheating and potentially burn out the motor windings or melt wiring insulation.

Can I operate the slide-out on shore power instead of batteries?

Slide-out motors are typically 12 V DC devices. They cannot run directly from 120 V or 240 V AC shore power. Shore power charges the batteries through the converter/charger, and the batteries supply the DC motor. Operating the slide with a low battery while on shore power is safe provided the converter is functional and sized to supply both charging and motor current simultaneously.

How do I test the slide-out relay?

Disconnect the battery. Remove the relay and check coil resistance with a multimeter — a healthy automotive relay coil is typically 50 Ω to 100 Ω. Reinstall and with a 12 V test light probe the relay output terminals while an assistant operates the switch. No output with correct switch input confirms a faulty relay or missing coil supply. Always verify fuse continuity first.
