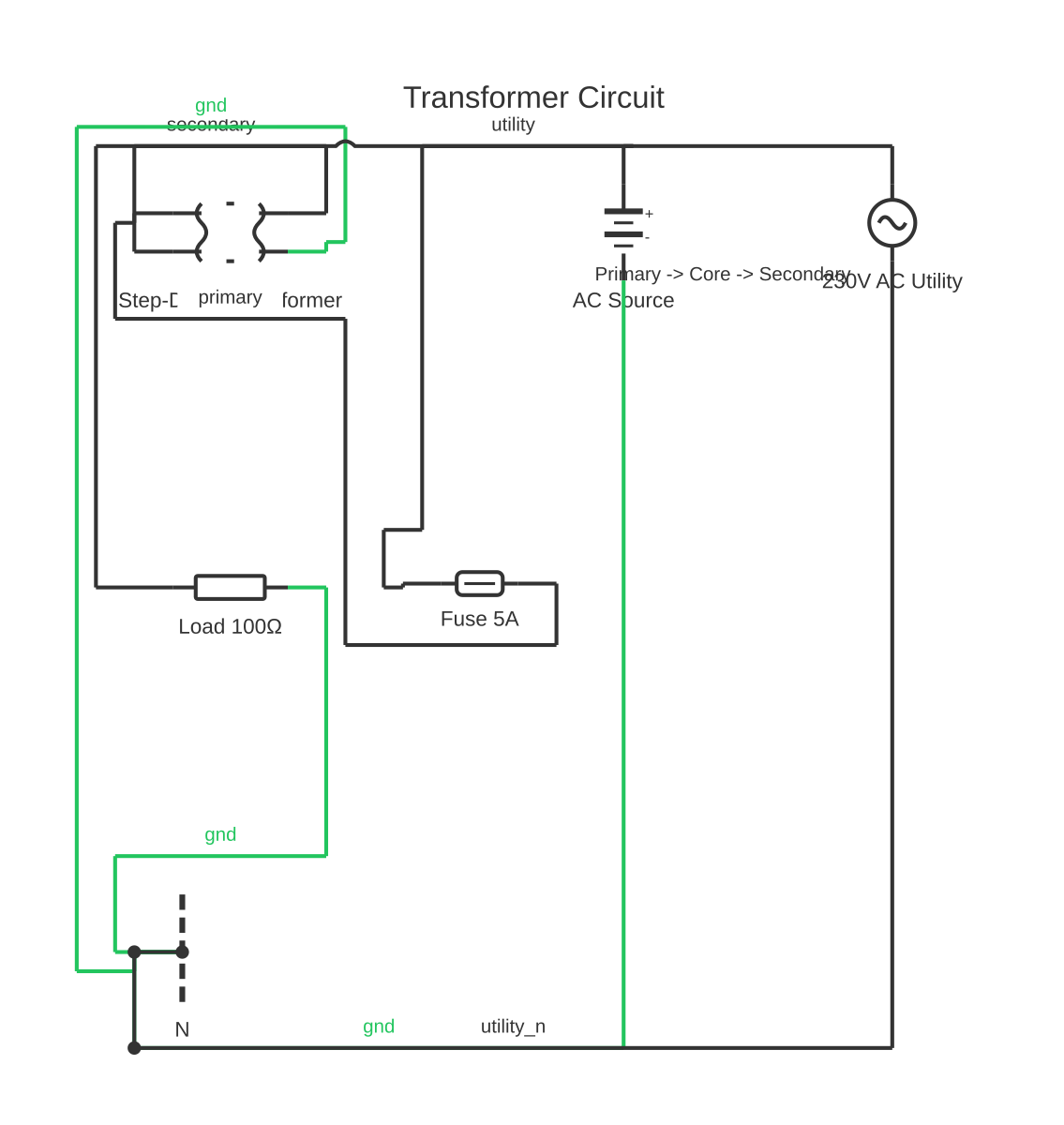

Single-Phase Transformer Diagram

Single-Phase Transformer Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable single phase transformer diagram: download the diagram as SVG or open it and print to paper or PDF.

A single-phase transformer diagram shows the primary and secondary winding connections, core, polarity dots, and the turns ratio relationship that determines step-up or step-down voltage conversion.

A single-phase transformer is a static electromagnetic device that transfers electrical energy between two circuits at the same frequency through mutual induction, while changing the voltage and current levels according to the turns ratio. It contains no moving parts and operates on alternating current only.

The transformer consists of two windings — primary and secondary — wound around a common laminated iron core. The primary winding receives the input voltage; the secondary winding delivers the output voltage to the load. The laminated silicon steel core provides a low-reluctance magnetic path that couples the two windings while minimising eddy current losses.

The fundamental turns ratio equation is: V_secondary / V_primary = N_secondary / N_primary = a, where N is the number of turns on each winding and a is the turns ratio. A step-down transformer has more turns on the primary than the secondary (a < 1); a step-up transformer has more turns on the secondary than the primary (a > 1).

A practical example: a transformer with 2 000 primary turns and 200 secondary turns has a turns ratio of 1:0.1, or equivalently 10:1 (step-down). Connected to a 230 V primary supply, it delivers 23 V on the secondary. Conversely, 200 primary turns and 2 000 secondary turns (1:10 step-up) connected to 23 V delivers 230 V on the secondary.

Current transforms inversely to voltage (assuming ideal transformer, no losses): I_secondary / I_primary = N_primary / N_secondary = 1/a. A step-down transformer steps voltage down and current up proportionally; a step-up transformer steps voltage up and current down. Power is theoretically conserved: V_primary × I_primary = V_secondary × I_secondary.

Polarity dots on the schematic symbol indicate the winding ends that are simultaneously positive during the same half-cycle of AC. This is critical for parallel-connecting transformers and for determining the phase relationship of the output.

All transformer installations must comply with the applicable standard: IEC 60364 series, BS 7671, NEC/NFPA 70, or AS/NZS 3000. Work on mains-connected transformers must be performed by a qualified and licensed electrician.

How to wire single phase transformer diagram

Determine the required turns ratio and VA rating Calculate the required secondary voltage from the application. Estimate the load current from the connected equipment's power rating (I = P / V). Multiply secondary voltage by load current to get the minimum VA rating. Add a 20–25% margin: a 100 VA load requires a transformer rated at minimum 120–125 VA to avoid continuous operation at thermal limit.
Identify the primary and secondary windings The primary winding terminals are marked P1 and P2 (or H1, H2 on North American convention for high-voltage side). Secondary terminals are marked S1 and S2 (or X1, X2 for low-voltage side). On a step-down transformer, H1/H2 are connected to the mains supply. Verify winding identification against the transformer nameplate — never assume based on wire gauge alone.
Connect the primary winding to the supply with overcurrent protection The primary circuit must include a fuse or circuit breaker rated for the full-load primary current. Primary current is calculated as I_primary = VA_rating / V_primary. Connect the primary via a switched isolator so the transformer can be de-energised for maintenance without disconnecting supply wiring. All mains-voltage connections must use appropriate insulated connectors and be made inside an enclosure providing IP protection appropriate to the installation environment.
Connect the secondary winding to the load circuit The secondary circuit should also include fusing or a circuit breaker sized for the secondary current and the connected load. Secondary wiring gauge must be appropriate for the full-load secondary current. On extra-low-voltage (ELV) secondaries, the circuit and load must still be correctly rated and insulated, as current levels can be high even at low voltage.
Verify no-load secondary voltage before connecting the load After all connections are made and the primary circuit is energised, measure the secondary voltage at the output terminals with no load connected. The no-load voltage will typically be 3–8% above the transformer's nameplate secondary voltage due to the inherent regulation characteristic. This is normal. Verify the reading is consistent with the specified turns ratio applied to the measured primary voltage.
Connect the load and verify voltage under load Connect the rated load. Measure secondary voltage under load — it will be lower than no-load due to voltage regulation (winding resistance and leakage inductance). Verify this loaded voltage is within the tolerance required by the connected equipment. Check the transformer for excessive heat after a period of operation at full load — an overloaded transformer will be abnormally hot.

Specifications

Turns ratio equation	a = N_primary / N_secondary = V_primary / V_secondary
Voltage transformation	V_secondary = V_primary × (N_secondary / N_primary)
Current transformation (ideal)	I_secondary = I_primary × (N_primary / N_secondary)
Power conservation (ideal)	V_primary × I_primary = V_secondary × I_secondary
Step-down condition	N_primary > N_secondary (a > 1)
Step-up condition	N_secondary > N_primary (a < 1)
Core material (standard)	Grain-oriented silicon steel laminations (EI or toroidal)
Applicable standards	IEC 60364, BS 7671, NEC/NFPA 70, AS/NZS 3000, IEC 61558

Safety warnings

Mains voltage (230 V AC or 120 V AC) is lethal. All installation, connection, and maintenance work on mains-connected transformers must be carried out by a qualified and licensed electrician, and must comply with the applicable national wiring standard: IEC 60364, BS 7671 (UK/Ireland), NEC/NFPA 70 (North America), or AS/NZS 3000 (Australia/New Zealand).
Before working on any transformer circuit, isolate the supply, lock out the isolator, and verify with a calibrated voltage tester that both primary and secondary circuits are dead. The secondary winding can also be energised from the load side by backfeed if the load is itself connected to another supply.
A transformer must never be operated above its rated VA continuously. Overloading causes excessive winding temperature, insulation degradation, and ultimately winding failure, which can cause a fire.
Install thermal overload protection (thermally protected transformers, or external thermal cutout) for transformers in enclosed or unattended applications to protect against sustained overload and internal fault conditions.
Toroidal transformers have a high inrush current on energisation. Ensure the primary fuse and circuit breaker are sized to tolerate inrush without nuisance tripping, while still providing fault protection.

Tools needed

Digital multimeter (AC voltage, resistance, continuity)
Insulation resistance tester (megohmmeter) for installation testing
Clamp meter (AC current measurement under load)
Screwdrivers (flat blade and Phillips)
Wire stripper and crimper
Cable lacing or tie wraps (wiring management)
Personal protective equipment (insulating gloves for mains work)

Common mistakes

Applying DC to the primary winding — transformers only work on AC; DC will overheat and destroy the primary winding.
Underrating the VA selection — calculating the transformer size based on load wattage without adding a 20–25% margin, resulting in thermal overload during continuous operation.
Omitting secondary-side fusing — assuming the primary fuse protects everything. A fault on the secondary side draws current limited by the transformer's impedance, which may be insufficient to blow the primary fuse before secondary wiring is damaged.
Connecting two transformers in parallel without verifying identical secondary voltages and polarity alignment — a small voltage difference between paralleled transformers drives a large circulating current that overloads both units.
Touching the secondary terminals of a step-up transformer while energised — the secondary is at a hazardous voltage regardless of the low primary voltage.

Troubleshooting

Secondary voltage is significantly lower than nameplate rating under load: Cause: Transformer is overloaded (excessive VA demand from connected load), or primary voltage is lower than rated, or poor winding connections Fix: Measure secondary voltage at no-load first. If no-load voltage is correct but loaded voltage drops excessively, the transformer VA rating is insufficient for the load — replace with a higher-rated unit. If no-load voltage is also low, check primary voltage at the supply. Verify all terminal connections are tight and oxide-free.
Transformer runs excessively hot during operation: Cause: Connected load exceeds transformer's VA rating; poor ventilation around the transformer; supply frequency differs from rated frequency Fix: Calculate actual load VA and compare with transformer rating. Reduce load or replace with a higher-rated transformer. Ensure minimum ventilation clearances are maintained around the transformer enclosure. Verify supply frequency matches the transformer's nameplate rating (50 Hz vs. 60 Hz mismatch causes increased iron core losses and heating).
Transformer hums loudly or makes a buzzing noise: Cause: Core laminations are vibrating due to magnetostriction — normal at a low level, but excessive humming can indicate a loose core, DC offset on the supply, or operation at a voltage above rated Fix: Check primary voltage — operating above rated voltage increases flux density and core vibration. Check for DC offset on the supply (a clamp meter with AC+DC capability will show this). Inspect the core for mechanical tightening. Some hum is normal at 50/60 Hz in larger transformers; abnormal noise that increases suddenly indicates a developing fault.

Frequently asked questions

What is the turns ratio of a transformer and how do I calculate it?

The turns ratio (a) is the ratio of primary turns to secondary turns: a = N_primary / N_secondary. It directly determines the voltage transformation: V_secondary = V_primary × (N_secondary / N_primary). A 230 V to 12 V transformer has a turns ratio of 230/12 ≈ 19.2:1. The same ratio applies inversely to current: a transformer that steps voltage down by 10 steps current up by 10 (minus losses).

What is the difference between a step-up and a step-down transformer?

A step-down transformer has more primary turns than secondary turns — it delivers a lower voltage at a higher current than the supply. A step-up transformer has more secondary turns than primary turns — it delivers a higher voltage at a lower current. Both transformers operate on the same principle; which winding is 'primary' depends on which side is connected to the supply. The physical transformer can sometimes be used in reverse for the opposite function, within its insulation and current ratings.

Does a transformer work on DC power?

No. A transformer relies on a changing magnetic flux to induce voltage in the secondary winding. DC current produces a constant (unchanging) magnetic flux, which induces no secondary voltage. Applying DC to a transformer primary will instead cause the winding to act as a resistor, drawing current limited only by the winding resistance and potentially overheating and burning out the winding.

What do the polarity dots on a transformer symbol mean?

Polarity dots indicate which terminal of each winding is instantaneously positive at the same moment during the AC cycle. When the dotted primary terminal is positive (during the positive half-cycle), the dotted secondary terminal is also positive. This information is essential when connecting transformers in parallel (dots must align) or in series (dots must be correctly phased) to avoid short-circuiting the windings.

How do I select the right transformer for my application?

Specify: (1) primary voltage and frequency (e.g., 230 V, 50 Hz); (2) secondary voltage required; (3) load power in volt-amperes (VA) — calculate as V_secondary × I_load; (4) acceptable regulation (voltage drop from no-load to full-load); (5) enclosure type and mounting (toroidal, EI core, encapsulated, open frame); and (6) compliance standard. Include a safety margin of 20–25% on the VA rating to prevent the transformer from running at its thermal limit continuously.
