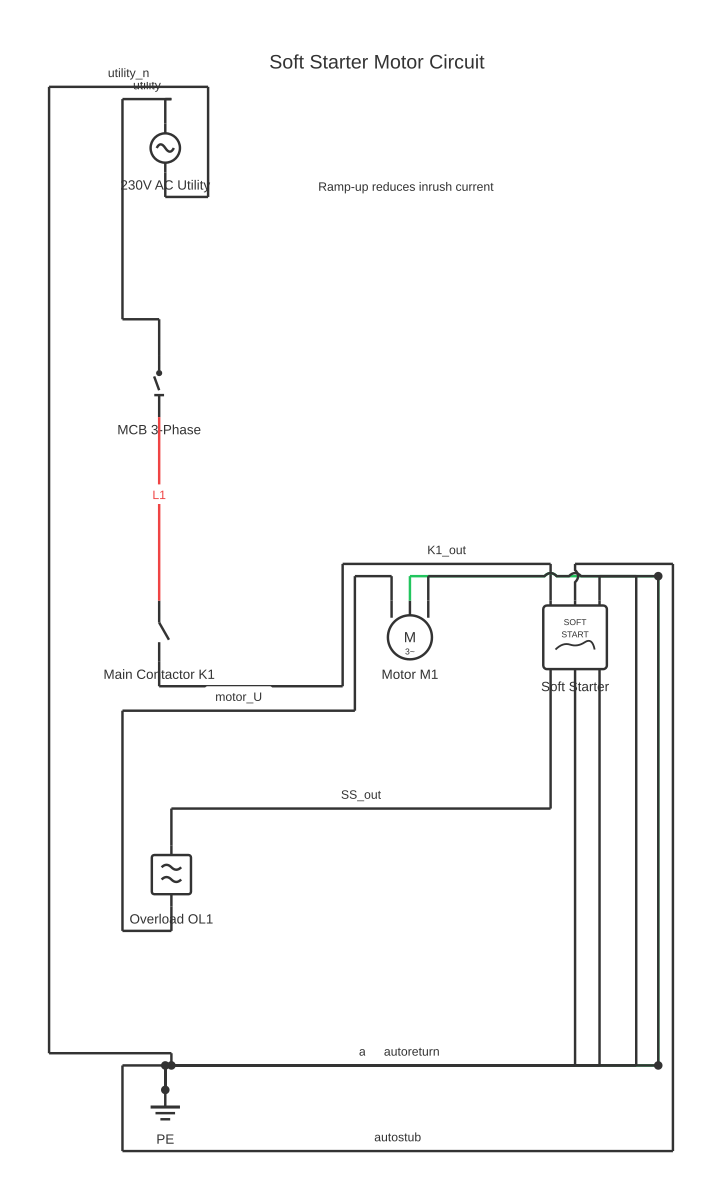

A soft starter diagram shows how back-to-back SCR thyristors ramp up motor voltage progressively to reduce inrush current and mechanical shock, with a bypass contactor to eliminate losses in steady-state running.

A soft starter is a solid-state motor starting device that controls the voltage applied to a three-phase or single-phase AC induction motor during the starting period. Unlike a direct-on-line (DOL) starter, which applies full supply voltage to the motor immediately and causes current surges of 6 to 8 times the full-load current, a soft starter ramps the voltage from a low initial level up to full voltage over a controlled period, typically 2 to 30 seconds. The reduced voltage during starting produces a proportionally reduced starting torque and, more importantly for system design, a greatly reduced inrush current.

The core power switching element in a soft starter is a pair of back-to-back thyristors (SCRs) connected in anti-parallel, one pair per phase. In a three-phase soft starter, three pairs (six thyristors in total) are used, one pair inserted in series with each phase conductor between the supply and the motor. The thyristors are phase-angle controlled: by varying the firing angle of each SCR, the controller adjusts the fraction of each AC half-cycle that is allowed to pass through to the motor. At the start of the ramp, the firing angle is large (close to 180°) and only a small portion of each half-cycle reaches the motor. As the ramp progresses, the firing angle decreases toward zero, progressively increasing the effective RMS voltage applied to the motor.

A bypass contactor is a standard feature in quality soft starters. Once the motor reaches full speed (or at the end of the programmed ramp time), the soft starter's internal logic closes a bypass contactor, which connects the motor directly to the supply, bypassing the SCRs entirely. This eliminates the continuous conduction losses and heat generation of the SCRs during the running period, improving overall system efficiency and extending the life of the SCR modules.

Soft starter circuit diagrams show the incoming supply, the main isolation contactor (or isolator), the soft starter power section, the bypass contactor, the motor terminals, and the control wiring including the start/stop inputs, fault output relay, and run signal. A thermistor or PT100 connection for motor temperature monitoring is shown in installations requiring motor thermal protection integrated with the soft starter. Always include a main fuse or circuit breaker upstream of the soft starter rated per the manufacturer's specification — soft starters are not short-circuit protective devices in their own right.

A soft starter wiring diagram shows how the device is inserted in-line on the motor supply conductors (typically two or three phases) and how the control circuit — start/stop pushbuttons, auxiliary contacts, overload relay, and motor protection — connects to the soft starter's control terminals. Unlike a star-delta starter, the soft starter uses thyristors (SCRs) to gradually ramp up the voltage applied to the motor windings, limiting inrush current and mechanical shock on startup. Understanding both the power and control circuit connections, including bypass contactor arrangements used on some units, is essential for safe commissioning. Build your soft starter schematic free in the browser at Circuit Diagram Maker.

How to wire soft starter diagram

Select the soft starter rated current to match the motor The soft starter's rated current (in amperes) must equal or exceed the motor's full-load current (FLC). Do not select by motor kW rating alone — verify the soft starter's current rating against the nameplate FLC at the installation supply voltage. Allow margin for the duty cycle and ambient temperature.
Install the upstream isolation and short-circuit protection Install an isolation switch and fuses or an MCCB upstream of the soft starter rated per the manufacturer's recommended protection specification. Soft starters contain semiconductor devices that are destroyed by short-circuit currents — the upstream fuses must be semiconductor (aR or gR type) or the manufacturer must specifically approve standard gG fuses for the installation.
Wire the three-phase supply to the soft starter input terminals Connect phases L1, L2, L3 from the upstream isolation to the soft starter's input terminals (typically labelled L1/R, L2/S, L3/T). Verify the phase rotation matches the motor's required rotation direction before commissioning. Add cable termination ferrules to all conductors.
Wire the soft starter output terminals to the motor Connect the soft starter's output terminals (typically labelled T1/U, T2/V, T3/W) to the motor terminal box winding connections. Verify the motor is connected in the correct configuration (star or delta) for the supply voltage as per the motor nameplate.
Wire the control circuit: start, stop, and fault connections Connect the control inputs — typically a normally-open start pushbutton, normally-closed stop pushbutton, and any enable or remote signals — to the soft starter's control terminal block. Connect the fault relay output to the control system or pilot lamp. Set the control voltage selector to match the control circuit voltage (24 V DC or 110/230 V AC depending on the model).
Set the ramp time, initial voltage, and overload parameters Configure the soft starter parameters: set the acceleration ramp time, the initial voltage (pedestal voltage), and the deceleration ramp time if soft-stop is required. Set the overload current threshold to the motor's FLC. Verify the bypass contactor (if external) is wired to the soft starter's bypass relay output.
Commission with a no-load or reduced-load test run Perform the first test run uncoupled from the mechanical load where possible. Observe that the motor accelerates smoothly without hesitation or current spikes visible on the ammeter. Verify that the bypass contactor closes at the end of the ramp. Reconnect the load and verify full-load starting performance.

Specifications

Power switching device	Back-to-back thyristors (SCRs), one anti-parallel pair per phase
Typical starting current reduction	2–5 × FLC (versus 6–8 × FLC for direct-on-line)
Acceleration ramp time range (typical)	2–30 seconds (adjustable)
Supply voltage (typical three-phase)	200–690 V AC, 50/60 Hz
Control voltage (typical)	24 V DC or 110/230 V AC (model dependent)
Bypass contactor closes at	End of ramp time or at near-full-speed detection
Applicable standard	IEC 60947-4-2 (AC semiconductor motor controllers and starters)

Safety warnings

All electrical installation and commissioning of motor starter systems must comply with applicable wiring regulations (IEC 60364, NEC/NFPA 70, BS 7671, AS/NZS 3000) and applicable motor control standards (IEC 60947-4-2 for soft starters). Work must be carried out by a qualified electrician or electrical engineer.
Soft starters contain high-voltage DC bus capacitors that remain charged after mains isolation. Wait for the discharge time specified by the manufacturer (typically 5–10 minutes) before opening the unit or working inside the enclosure after disconnection.
Do not use standard gG fuses to protect soft starters unless the manufacturer's documentation explicitly states this is acceptable for the specific model. Semiconductor devices are destroyed by short-circuit currents that standard gG fuses permit through before operating.
Verify that the motor rotation direction is correct by performing a short no-load jog before coupling the motor to the mechanical load. Incorrect rotation can damage driven equipment, particularly pumps and fans.
The bypass contactor (or output of the soft starter when running) presents full three-phase mains voltage at the motor cable and motor terminal box. Treat the motor cable as live whenever the soft starter is powered, even if the motor is not commanded to run.

Tools needed

Digital multimeter with AC voltage, DC voltage, and resistance functions
Clamp ammeter (true-RMS, AC, up to 10× motor FLC rating)
Insulated screwdrivers and torque screwdriver
Phase rotation meter
Approved voltage indicator
Laptop or HMI for parameter configuration (for digitally parameterised soft starters)
Insulated crimping tool and cable ferrules

Common mistakes

Selecting the soft starter by motor kW rating without verifying that the soft starter's current rating matches the motor's full-load current at the installation supply voltage.
Using standard gG fuses instead of semiconductor aR/gR fuses when the manufacturer specifies semiconductor fuses, resulting in soft starter SCR destruction on the first fault.
Omitting the bypass contactor (or not enabling the internal bypass), causing the SCRs to carry full motor current continuously during running and overheating the unit.
Setting the ramp time too short for the load inertia — the motor may not reach full speed before the ramp ends, causing the bypass contactor to close before the motor is synchronised with the supply, resulting in a current spike.
Wiring the control start input as a maintained contact (instead of momentary) without confirming the soft starter accepts this input type — some soft starters require a maintained run signal, others require a momentary start pulse.

Troubleshooting

Motor does not start — no motor movement and no fault indication: Cause: No supply voltage at soft starter input terminals, blown fuse, or control circuit not providing a valid start signal. Fix: Verify mains voltage at all three input terminals with a multimeter. Check and replace blown fuses. Verify the start input terminal is receiving the correct signal level when the start button is pressed.
Soft starter trips on overcurrent during every start attempt: Cause: Ramp time is too short for the load inertia, initial voltage (pedestal voltage) is set too high, or the motor or driven equipment is mechanically seized. Fix: Increase the ramp time. Reduce the initial voltage setting. Verify the driven equipment rotates freely by hand (motor uncoupled). If the motor or equipment is seized, investigate and correct the mechanical fault before re-attempting.
Motor runs at reduced speed indefinitely without reaching full speed: Cause: Bypass contactor is not closing — bypass relay output wiring fault, or bypass contactor coil is open-circuit. Fix: Monitor the bypass relay output signal from the soft starter during a start sequence. Verify the bypass contactor coil is receiving the correct voltage when the relay closes. Check contactor coil continuity with a multimeter.

Frequently asked questions

What is the difference between a soft starter and a variable frequency drive (VFD)?

A soft starter controls motor voltage only during starting and stopping. Once running, the motor operates at fixed supply frequency and voltage (via the bypass contactor). A VFD controls both voltage and frequency continuously, allowing variable speed operation throughout the entire speed range. A soft starter is less expensive and simpler for fixed-speed applications; a VFD is required for speed control.

What is the function of the bypass contactor in a soft starter?

The bypass contactor connects the motor directly to the full supply voltage after the soft start ramp is complete, bypassing the SCR thyristors. This eliminates the continuous power losses and heat generation within the SCRs during normal running, improving system efficiency and reducing the thermal stress on the SCR modules.

How is the starting ramp time set on a soft starter?

Most soft starters provide a ramp time adjustment via a potentiometer or a parameter menu on the digital control panel. The ramp time (typically 2–30 seconds) defines how long the voltage takes to rise from the initial voltage level to full voltage. The initial voltage level (pedestal voltage) is often separately adjustable and determines the starting torque available at the moment of motor engagement.

Can a soft starter be used with all types of motors?

Soft starters are designed for squirrel-cage AC induction motors. They are not suitable for wound-rotor induction motors (which use external rotor resistance for starting), synchronous motors, or DC motors. They are also not suitable for motors driving loads that require high starting torque proportional to speed, such as positive-displacement compressors, without careful specification.

Where is the overload protection in a soft starter system?

Many modern soft starters include an electronic overload protection function. Where the soft starter does not include it, a separate thermal overload relay must be installed in series with the motor circuit, typically mounted in the motor starter panel between the bypass contactor output and the motor terminals. Always verify the protection coordination with the motor full-load current and service factor.

What does a wiring diagram of a soft starter look like?

A soft starter wiring diagram has two distinct sections: the power circuit and the control circuit. In the power circuit, the three-phase supply enters the main contactor, passes through the soft starter's SCR modules (connected in series with the motor terminals T1/T2/T3), and feeds the motor. In the control circuit, a start pushbutton applies a signal to the soft starter's run input, the soft starter ramps the motor voltage up over a set time, and a run relay output can energise a bypass contactor that short-circuits the SCRs once full speed is reached to reduce heat. A separate thermistor or overload relay input provides motor protection and trips the start contactor if winding temperature rises excessively.
