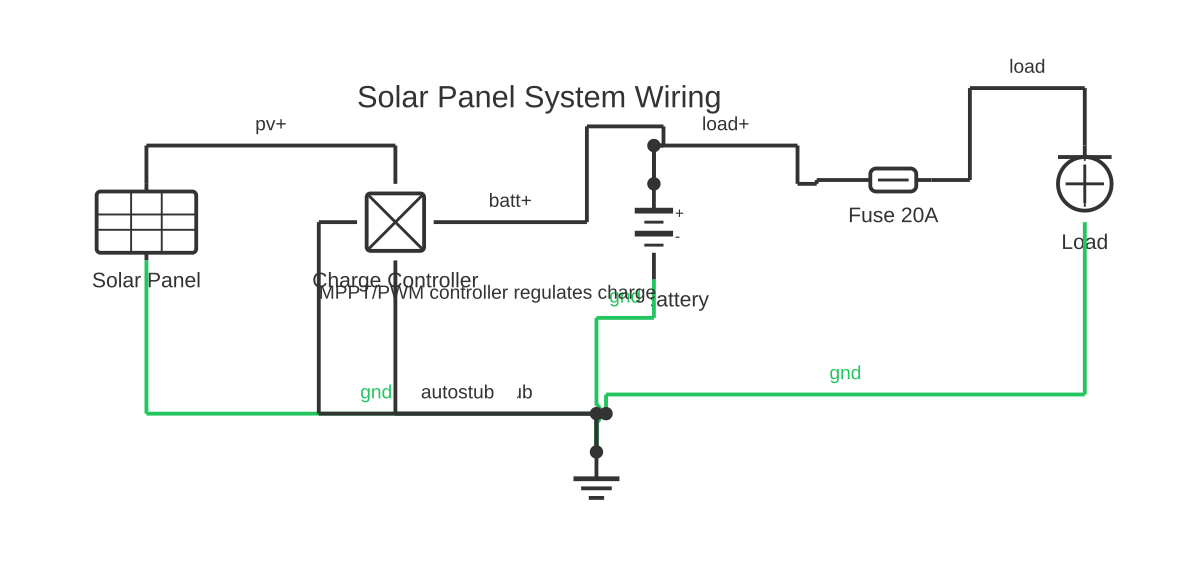

Solar Panel Wiring Diagram: Series vs Parallel, MPPT Controllers, and MC4 Connectors — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable solar panel wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

A solar panel wiring diagram shows how panels connect to each other and to the charge controller, inverter, battery bank, and protection devices. Series wiring adds voltage; parallel wiring adds current — understanding which to use determines how your system performs.

Solar panel wiring diagrams are the foundation of any correctly designed photovoltaic (PV) system. Whether you are wiring a small off-grid cabin, a residential rooftop installation, or a commercial array, the same fundamental rules apply: series connection increases voltage while current remains constant, and parallel connection increases current while voltage remains constant.

In series wiring, the positive terminal of one panel connects to the negative terminal of the next. The string voltage equals the sum of all individual panel open-circuit voltages (Voc). For example, four panels each with a Voc of 40 V connected in series produce a string Voc of 160 V. The string current is the same as a single panel's short-circuit current (Isc). Series strings are used to raise the voltage to the input range of an MPPT (maximum power point tracking) charge controller or inverter.

In parallel wiring, the positive terminals of all panels connect together and the negative terminals connect together. The array voltage equals a single panel's voltage; the array current equals the sum of all individual panel currents. Parallel configuration is used when the target voltage is already met by a single panel or small series string and more current (and therefore more power) is needed.

Series-parallel combinations — strings of series-connected panels wired in parallel with each other — are the standard approach for larger arrays. This allows high-voltage, high-current systems to be built efficiently.

The MPPT (maximum power point tracking) charge controller is the electronic heart of a battery-based PV system. It continuously adjusts the operating point of the solar array to extract maximum available power regardless of irradiance or temperature conditions. MPPT controllers can accept a wide range of input voltages (typically 12–150 V or higher on larger units) and convert that to the correct charging voltage for the battery bank. The MPPT input voltage must always exceed the battery voltage to allow proper operation — typically by at least 5 V margin.

MC4 connectors are the industry-standard connector for PV modules and array wiring. They are designed for outdoor, UV-exposed, weatherproof use. Male and female MC4 connectors must be from the same manufacturer for a correct weatherproof fit — mixing brands can compromise the IP rating and increase contact resistance. MC4 connectors require a specific MC4 crimping tool to produce a mechanically and electrically sound termination.

Fusing or overcurrent protection is mandatory in any system where multiple parallel strings can backfeed one another. Each string requires a string fuse or string overcurrent protection device rated to protect the wiring against reverse current from the parallel strings. The array must also include a DC isolator (switch-disconnector) between the panels and the charge controller or inverter, rated for the maximum open-circuit voltage of the array at the lowest expected temperature (Voc increases as temperature decreases).

A complete solar panel installation wiring diagram goes beyond the panels themselves to show every component in the system: the panels, combiner box, charge controller (MPPT or PWM), battery bank, inverter, fuse/breaker protection, and load connections. Whether you are planning a small off-grid cabin setup or a rooftop grid-tied array, mapping out conductors, polarity, disconnect points, and overcurrent protection before you pick up a cable is essential for safety and code compliance. Use the free online editor at Circuit Diagram Maker to draft and refine your installation layout without any download required.

How to wire solar panel wiring diagram

Determine the system voltage and MPPT controller input range Select the system voltage (12 V, 24 V, or 48 V DC for battery-based systems). Choose an MPPT charge controller with an input voltage range that suits the array voltage at both minimum and maximum expected temperatures. The array Voc at the lowest expected temperature must not exceed the controller's maximum input voltage specification.
Calculate string voltage and string configuration Determine how many panels in series form each string such that the string Vmp (maximum power point voltage) falls within the MPPT controller's optimum input range under expected operating conditions. Calculate the string Voc at the lowest expected temperature and verify it does not exceed the controller maximum. Calculate the string Imp (current at maximum power).
Determine number of parallel strings Calculate the total number of panels required to meet the energy production target. Divide by the number of panels per string to find the number of parallel strings. Verify the total array Isc (all strings combined) does not exceed the controller's maximum input current rating. If it does, a larger controller or separate controllers are required.
Wire panels in series to form strings Connect the positive (MC4 male) terminal of each panel to the negative (MC4 female) terminal of the next panel in the string using the panel's pre-fitted or field-fitted MC4 cables. The first panel's negative terminal and the last panel's positive terminal become the string negative and positive respectively. Use a proper MC4 crimping tool for any field-terminated connections.
Combine strings in parallel at the combiner box Connect the positive terminals of all strings to the positive busbar of a DC combiner box and all negative terminals to the negative busbar. Install a string fuse (appropriately rated per string cable size and maximum reverse current) on the positive conductor of each string before the combiner busbar. The combiner box output is the array positive and negative.
Install the DC isolator and connect to the MPPT controller Wire the array positive and negative from the combiner box to a rated DC isolator (load-break rated for the array DC voltage and current). The isolator's output connects to the MPPT controller's PV input terminals. Observe polarity — reversing polarity may damage the controller unless it has reverse-polarity protection. Label all conductors.
Connect the battery bank and load Connect the MPPT controller's battery terminals to the battery bank, observing polarity. Fuse the battery positive connection within 300 mm of the battery terminal. Connect loads (via a separate load disconnect or through the controller's load output if available). Install a battery main isolator accessible at the battery bank. Label all conductors with polarity and voltage.

Specifications

Series wiring effect	Voltage adds; current remains constant (equal to one panel's Isc)
Parallel wiring effect	Current adds; voltage remains constant (equal to one panel's Voc)
MPPT input voltage minimum margin above battery	Approximately 5 V above battery voltage (controller-specific)
Array Voc temperature coefficient (typical)	Approximately −0.3% per °C (Voc increases as temperature decreases)
MC4 connector IP rating	IP67 (when correctly mated with matched brand)
Battery fuse location	Within 300 mm of battery positive terminal
Applicable PV installation standards	IEC 60364-7-712, NEC Article 690, AS/NZS 5033

Safety warnings

Solar panels generate voltage in any light — there is no safe way to make a PV array completely non-live except by covering it. All work on live PV wiring carries electric shock and arc flash risk. Carry out work on PV circuits only after covering the panels or after isolating at the DC isolator and verifying voltage is acceptable.
DC arcs are more dangerous than AC arcs of equivalent voltage. DC does not have a natural zero-crossing to extinguish an arc — a fault arc in a DC PV circuit will sustain indefinitely and cause a fire. Use DC-rated fuses, circuit breakers, and isolators rated for the system voltage. Never use AC-rated devices in DC circuits.
Calculate and verify the maximum open-circuit voltage (Voc) of the array at the lowest expected temperature before connecting to the charge controller or inverter. Exceeding the controller's maximum input voltage is the single most common cause of immediate controller destruction.
All fixed photovoltaic installations must comply with the applicable electrical installation standard and PV-specific standards (IEC 60364-7-712, AS/NZS 5033, NEC Article 690, or equivalent). In most jurisdictions, grid-connected PV installations require permits, licensed installation, and utility approval.
Lithium battery chemistries require battery management systems (BMS) and charge controllers compatible with the specific battery type. Charging a lithium battery with a controller set for lead-acid profile can cause thermal runaway and fire.

Tools needed

MC4 crimping tool (brand-matched to connectors)
MC4 connector spanner / disconnect tool
Digital multimeter (DC voltage and continuity)
DC clamp meter
Cable stripper and cutter (suitable for DC cable)
Insulated screwdrivers
Torque driver (for terminal connections at rated torque)
Personal protective equipment (insulated gloves for live DC work)

Common mistakes

Exceeding the MPPT controller's maximum input voltage by not calculating the array Voc at the lowest expected temperature — temperature coefficient of Voc means panels produce higher voltage in cold conditions.
Mixing MC4 connector brands — non-matched MC4 connectors may appear to mate but can fail the IP rating, create a high-resistance junction, or arc in service.
Omitting string fuses in a multi-string parallel array — without string fuses, a short circuit in one panel or string cable can be fed with the full current of all other parallel strings, far exceeding the cable's rating and causing a fire.
Using AC-rated fuses or circuit breakers in DC circuits — AC and DC devices of the same voltage and current rating are not interchangeable; DC devices must interrupt DC current without the benefit of an AC zero-crossing.
Not labelling polarity on all DC conductors — in a multi-string array, accidental polarity reversal during connection is common without clear marking, and reverse polarity can destroy the controller and battery charger.

Troubleshooting

MPPT controller shows no or very low input voltage despite panels producing output: Cause: Open circuit in the array positive or negative conductor, a failed or tripped string fuse, loose MC4 connector, or DC isolator not in the closed (on) position Fix: Verify the DC isolator is on. Measure voltage at the isolator input and output. If voltage is present at the input but not the output, the isolator is faulty. If voltage is absent at the isolator input, trace back through the string fuses (measure across each fuse — voltage across a fuse indicates it has blown). Check all MC4 connectors are fully seated.
Array produces significantly less power than calculated: Cause: Partial shading on one or more panels, a degraded panel (check individual panel Voc), high series resistance in MC4 connectors or cable joints, or one or more panels connected with reversed polarity reducing string voltage Fix: Measure Voc of each panel individually and compare to nameplate. Inspect MC4 connections for discolouration or heat marks indicating high resistance. Verify polarity of every panel in the string — a reversed panel reduces string voltage by approximately twice its Vmp.
Battery bank not charging despite controller showing normal operation: Cause: Battery voltage is at or above the controller's absorption set point (already full), battery fuse has blown, or the battery connection has high resistance Fix: Check the controller display for battery state and charging stage — if it shows 'float' or 'full,' the battery is charged and normal. If it shows bulk or absorption but battery voltage is not rising, measure voltage at the battery terminals with the controller output connected — a significant drop indicates resistance in the wiring or a blown battery fuse.

Frequently asked questions

Does series or parallel wiring produce more power from solar panels?

Neither — the total power output is the same regardless of series or parallel connection, assuming identical panels and equivalent losses. Series wiring increases voltage (useful for MPPT controllers and long cable runs at lower current), while parallel wiring increases current. The choice depends on the controller input voltage range and the array layout, not on producing more total power.

What is an MPPT solar charge controller and why does it matter?

An MPPT (maximum power point tracking) charge controller continuously adjusts the operating voltage of the solar array to extract maximum available power. Compared to simpler PWM (pulse-width modulation) controllers, an MPPT controller can deliver 20–30% more energy into the battery bank from the same panels, particularly in partial shading or when the panel voltage significantly exceeds the battery voltage.

What are MC4 connectors and can I mix brands?

MC4 connectors are the standard weatherproof push-lock connectors used on PV module cables and array wiring. They are designed for outdoor UV exposure and provide an IP67-rated connection. Mixing MC4 connectors from different manufacturers is not recommended — even if they physically mate, the contact geometry may not meet the weatherproofing or current rating specifications of either brand.

Do I need fuses in a solar panel array?

Yes, when two or more strings of panels are wired in parallel. Each string needs an overcurrent protection device (fuse or circuit breaker) rated to protect the string cable against the reverse current that can flow from the parallel strings in a fault condition. A single-string system does not require string fusing, but still requires a DC isolator between the array and the controller.

What happens to solar panel voltage in cold weather?

Solar panel voltage increases as temperature decreases. A panel with a Voc of 40 V at 25°C may produce 46 V or more at −10°C. The array's maximum open-circuit voltage must be calculated at the lowest expected ambient temperature and must not exceed the rated input voltage of the charge controller or inverter. Exceeding the controller's maximum input voltage will damage or destroy the controller.

What should a wiring diagram for a solar panel installation include?

A solar panel installation wiring diagram should show the PV panels (series/parallel string configuration), a combiner or junction box, a charge controller or grid-tie inverter, battery bank (for off-grid systems), main DC disconnect, fuses or breakers on both DC and AC sides, and the load panel or grid connection point. Label every conductor with its AWG size and voltage rating. Including conduit runs and grounding conductors makes the diagram suitable for permit submission.
