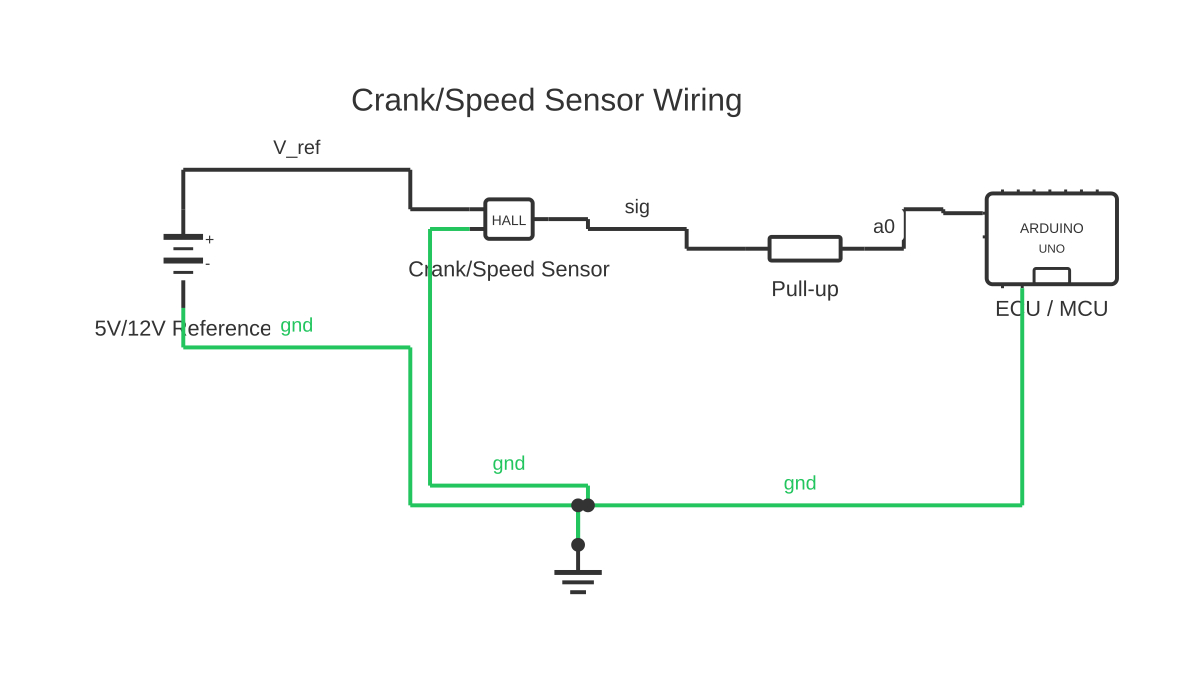

Speed Sensor Wiring Diagram: Hall Effect and Variable Reluctance Sensor Connections

Speed Sensor Wiring Diagram: Hall Effect and Variable Reluctance Sensor Connections — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable speed sensor wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

A speed sensor wiring diagram shows how Hall effect and variable reluctance sensors connect to ABS, transmission, and engine control modules for accurate shaft speed measurement.

Speed sensors measure the rotational speed of wheel hubs, transmission output shafts, camshafts, crankshafts, and other rotating components by detecting the passage of teeth or magnetic trigger points on a rotating tone wheel (also called a reluctor ring or trigger wheel). Two sensor technologies dominate automotive and industrial applications: the variable reluctance sensor (VRS) and the Hall effect sensor.

The variable reluctance sensor (also called a passive sensor or inductive sensor) is a two-wire device. It contains a permanent magnet and a coil of wire. As a ferromagnetic tooth on the tone wheel passes close to the sensor tip, the changing magnetic flux induces an AC voltage in the coil. The frequency of this AC signal is proportional to rotational speed. The amplitude of the signal also varies with speed — at very low speeds (below approximately 0.5–1 mph or 1 km/h in automotive applications), the signal amplitude drops below the module's detection threshold. VRS sensors have no power supply requirement; they generate their own signal. Wiring consists of two conductors: signal and signal return (ground). Polarity matters — reversed wires invert the waveform, which can cause incorrect phase detection in crank/cam position applications, though most wheel speed ABS applications are less sensitive to polarity.

The Hall effect sensor is an active, powered device — it requires a supply voltage (typically 5 V or 12 V from the control module) and outputs a digital square wave: high voltage when a tooth is aligned, low voltage when the gap is aligned (or vice versa, depending on design). Three wires are required: supply voltage, ground, and signal output. The digital output from a Hall sensor is consistent from zero speed upward, making it preferable for ABS systems that must detect near-zero wheel speeds for creep detection and hill-hold functions.

ABS wheel speed sensors are almost universally Hall effect type in modern vehicles. Crankshaft position sensors may be either type depending on the engine design. Transmission output shaft sensors are commonly Hall effect. Industrial encoders and process speed sensors extend these same principles into more complex multi-channel applications.

How to wire speed sensor wiring diagram

Identify the sensor type and wiring configuration Determine whether the sensor is a variable reluctance (2-wire, passive) or Hall effect (3-wire, active) type from the vehicle workshop manual or by counting wires at the connector. Identify which wire is signal, supply, and ground using the wiring diagram — do not guess, as incorrectly connecting supply voltage to the signal pin of a VRS sensor can damage the ABS module.
Disconnect the battery negative terminal Before disconnecting or reconnecting speed sensor connectors, disconnect the vehicle's battery negative terminal. ABS modules and ECMs can be damaged by voltage spikes during connector disconnection with the ignition on, particularly with Hall effect sensors that are actively powered.
Inspect the sensor connector and harness Visually inspect the sensor connector for corrosion, bent pins, cracked connector body, and evidence of moisture ingress. Inspect the harness from the sensor body to the connector for chafing against suspension components, exhaust heat damage, or strain from suspension travel. Speed sensor harnesses are exposed to road grime, water, and mechanical fatigue — connector corrosion and harness chafing are the most common failure modes.
Test the variable reluctance sensor resistance With the sensor connector disconnected, measure resistance between the two signal terminals using a multimeter. Compare the reading to the service data specification (typically 800–2000 Ω for automotive wheel speed sensors). Also verify that neither terminal has continuity to the sensor body/shield (which would indicate insulation breakdown).
Test supply voltage for Hall effect sensors Reconnect the sensor. With the ignition on, back-probe or use a breakout harness to measure the supply pin voltage relative to ground. It should be stable at 5 V or 12 V as specified. If absent, test the supply wire back to the ABS module. A missing supply indicates a module output fault, blown protection fuse, or open-circuit wiring.
Test sensor output signal during rotation For a VRS sensor: use an oscilloscope or AC millivolt range on a multimeter at the signal terminals while slowly rotating the wheel by hand — you should see a sinusoidal AC signal. For a Hall effect sensor: with the ignition on, observe the signal wire voltage while rotating the wheel — it should toggle between low (near 0 V) and high (near supply voltage) as each tooth passes the sensor.
Inspect the tone wheel for damage Visually inspect the tone wheel (reluctor ring) visible through the wheel bearing or behind the brake rotor. Look for missing teeth, cracked sections, rust damage that has deformed the tooth profile, or debris packed between teeth. A damaged tone wheel cannot be repaired by replacing the sensor — the tone wheel itself must be replaced.

Specifications

Variable reluctance sensor coil resistance (typical automotive)	800–2000 Ω (verify service data for specific application)
Hall effect sensor supply voltage (typical)	5 V DC or 12 V DC (module-supplied; verify wiring diagram)
Hall effect sensor output signal	Digital square wave, 0 V (low) to supply voltage (high); tooth frequency proportional to speed
Typical VRS signal amplitude at 60 km/h	1–10 V AC peak (varies by air gap, tone wheel tooth count, and sensor design)
Tone wheel tooth count (typical automotive ABS)	48 or 96 teeth per revolution (varies by vehicle; determines speed resolution)
Maximum sensor-to-tone-wheel air gap (typical)	0.1–1.5 mm (verify OEM specification; excessive gap reduces signal amplitude or causes missed pulses)
ABS wheel speed sensor connector	2-pin (VRS) or 3-pin (Hall effect) weather-sealed connector
Operating temperature range (automotive sensor, typical)	−40 °C to +150 °C

Safety warnings

Disconnect the vehicle battery negative terminal before working on speed sensor wiring or connectors. ABS and ECM modules can be damaged by electrical transients during live connector disconnection or if supply voltage is inadvertently applied to the wrong terminal.
ABS is a safety-critical vehicle system. Any work on wheel speed sensors, tone wheels, or ABS wiring must be followed by a full ABS function test on a safe, low-speed test area before the vehicle is returned to normal road use. Confirm that the ABS warning light extinguishes and no fault codes are stored after repair.
Do not attempt to modify or bypass ABS wiring. An ABS system that is disabled or faulty may increase stopping distances and reduce vehicle control under emergency braking conditions. Ensure all ABS fault codes are properly diagnosed and rectified.
Ensure the vehicle is securely supported on axle stands before removing wheels or working under the vehicle. Never rely on a jack alone as a vehicle support during any work underneath the vehicle.
Speed sensor signals are also used by other systems — stability control (ESC/VSC), traction control, and transmission control modules. An incorrect repair that corrupts the signal can affect multiple safety systems simultaneously, not just ABS.

Tools needed

Digital multimeter (DC voltage, AC voltage for VRS, resistance)
Oscilloscope (preferred for waveform analysis of both sensor types)
Automotive diagnostic scanner (ABS-capable, for fault codes and live data)
Breakout harness or back-probe pins (for live-circuit measurement without damaging connector)
Torque wrench (for sensor mounting bolt)
Wire stripper, crimping tool, and heat-shrink tubing (for harness repair)

Common mistakes

Confusing a Hall effect 3-wire sensor for a 2-wire VRS sensor and omitting the supply wire connection — the sensor cannot function without its power supply, and no signal will be produced.
Measuring resistance on a Hall effect sensor and expecting a specific value — Hall effect sensor resistance testing does not indicate functionality; a good Hall sensor may measure any resistance across its terminals. Power and signal testing are required.
Replacing the sensor without inspecting the tone wheel — a damaged tone wheel causes the same fault codes as a faulty sensor and will immediately produce the same symptoms with a new sensor installed.
Running the repaired sensor harness in direct contact with exhaust components or suspension parts that move — within weeks, the harness abrades through or melts and the sensor fails again.
Clearing fault codes without a post-repair test drive — ABS faults often require a specific drive cycle (above a minimum speed threshold) to confirm the system has cleared and is functioning before the warning light will extinguish permanently.

Troubleshooting

ABS warning light on, single wheel speed sensor fault code: Cause: Sensor failure, harness fault (open circuit or short), tone wheel damage, or excessive air gap between sensor and tone wheel Fix: Inspect the harness and connector for damage first. Measure sensor resistance (VRS) or supply/signal (Hall effect). Visually inspect the tone wheel through the wheel arch. Check the air gap between sensor tip and tone wheel — consult OEM specification (typically 0.1–1.5 mm). Replace only the identified faulty component.
All four wheel speed sensors showing incorrect or erratic readings: Cause: ABS module supply voltage fault, module ground fault, or corrupted module rather than individual sensor failures Fix: Check the ABS module's supply fuse and the module's dedicated ground connection. Measure supply voltage at the module connector. If supply and ground are correct and all sensors are erratic simultaneously, the module itself is suspect. Re-flash or replace per OEM diagnostic procedure.
Crankshaft position sensor intermittent signal causing misfire or no-start: Cause: Broken or intermittent signal wire in the harness near the engine due to vibration-induced fatigue, or air gap has increased due to oil sludge on tone wheel teeth Fix: Clean the tone wheel ring thoroughly with solvent (on a non-running engine). Check harness routing near hot engine components and areas of high vibration. Use an oscilloscope on the crank sensor signal during cranking to identify dropout events. A missing or corrupted signal during cranking prevents injection and ignition triggering.

Frequently asked questions

How can I tell if my speed sensor is a Hall effect or variable reluctance type?

Count the wires: a two-wire sensor with no supply voltage is almost always a variable reluctance (passive) type. A three-wire sensor that requires a supply voltage from the module is almost certainly a Hall effect (active) type. Some Hall effect sensors have two wires but use a current modulation output — check the vehicle's wiring diagram for supply and signal wire identification.

What voltage should I measure on a Hall effect wheel speed sensor supply wire?

Typically 5 V or 12 V DC, supplied by the ABS/ECM module with the ignition on. The exact voltage depends on the vehicle. Measure at the sensor connector with the ignition on and the connector plugged in (using a back-probe or breakout harness). If supply voltage is absent, the fault is in the module output or the supply wiring, not the sensor itself.

Why does my ABS warning light illuminate at low speeds but not at higher speeds?

This symptom often points to a variable reluctance sensor with a weak signal at low speed, or a Hall effect sensor with an intermittent connection. The module can detect the signal at higher speeds (stronger VRS signal or stable Hall output) but loses it at low speed. Also check for tone wheel damage — a missing or damaged tooth produces a momentary fault that the module reads as a speed sensor error.

Can a wheel speed sensor be tested with a multimeter?

For variable reluctance sensors: measure resistance across the two terminals — typical values are 800–2000 Ω depending on design (check the service data for the specific vehicle). An open circuit or very high resistance indicates a faulty coil. For Hall effect sensors: resistance testing does not prove functionality — you need to power the sensor and observe the signal output with a multimeter in DC voltage mode while rotating the wheel slowly, or use an oscilloscope.

What is the effect of a damaged tone wheel on speed sensor readings?

A tone wheel with a missing tooth, cracked ring, or rust-damaged profile will cause the speed sensor to output an incorrect signal at that rotational position — the module sees an apparent speed change that did not actually occur. This manifests as phantom ABS activation at low speeds, incorrect odometer readings, or transmission shift quality issues depending on which sensor is affected.
