A throttle position sensor diagram shows the three-wire connection between the ECU and TPS: 5 V reference, signal output, and ground, forming a potentiometer circuit.

The Throttle Position Sensor (TPS) is a rotary potentiometer mounted on the throttle body of an internal combustion engine. It signals the Engine Control Unit (ECU) of the throttle plate's angular position, from fully closed (idle) to wide open throttle (WOT). The ECU uses this data to adjust fuel injection pulse width, ignition timing, idle speed control, and automatic transmission shift points.

The TPS operates on a three-wire interface:

1. Reference voltage (VREF): The ECU supplies a precision 5 V DC reference to the TPS. This reference is regulated and shared across multiple sensors in the engine management system. The TPS draws negligible current from this rail because it presents a resistive load.

2. Signal output (SIG or VS): The TPS wiper (centre terminal of the potentiometer) outputs a voltage that varies linearly with throttle position. With the throttle fully closed, the signal output is typically 0.4–0.9 V. At wide open throttle, the output is typically 4.0–4.8 V. The exact values vary by application — always consult the manufacturer's specification for the vehicle and sensor.

3. Sensor ground (SGND or SG): A dedicated sensor ground return wire runs from the TPS back to the ECU's sensor ground reference, not to the vehicle chassis earth. This is a critical distinction: the sensor ground is a low-noise, precision reference. Grounding to chassis instead introduces voltage offsets caused by chassis current flow, resulting in incorrect sensor readings and difficult-to-diagnose faults.

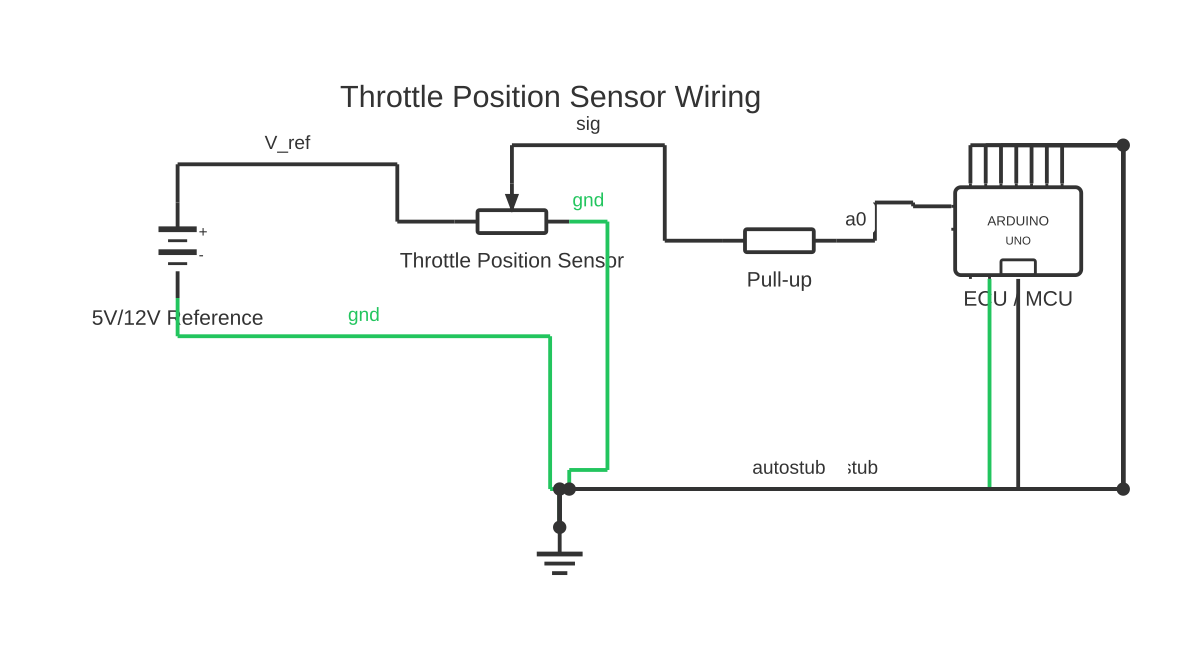

In a circuit diagram, the TPS appears as a variable resistor (potentiometer) with three terminals: one end connected to VREF, the other end to SGND, and the wiper terminal to SIG. Arrows may indicate the direction of resistance change with throttle opening.

Fault detection by the ECU monitors the signal voltage. A voltage below approximately 0.1 V or above approximately 4.9 V (outside the valid operating range) indicates an open circuit or short. An erratic signal that does not match expected throttle movement indicates a worn potentiometer track. Both conditions typically set a diagnostic trouble code (DTC) and may trigger a reduced-power or limp-home mode.

How to wire throttle position sensor diagram

Identify the TPS connector and wires Locate the TPS on the throttle body. Most TPS connectors are three-pin and colour-coded; consult the vehicle wiring diagram for the specific wire colours for VREF, SIG, and SGND on that model. Do not assume colours are universal.
Check reference voltage Turn the ignition on (engine off). Back-probe the VREF wire at the TPS connector with a multimeter set to DC voltage. Measure VREF against sensor ground (SGND pin). Expect approximately 5 V (typically 4.8–5.2 V). No voltage or significantly less indicates a wiring or ECU fault, not necessarily a faulty TPS.
Measure TPS signal at closed throttle Back-probe the SIG wire against SGND. With the throttle fully closed (idle position), read the voltage. Compare against the manufacturer's specification (typically 0.4–0.9 V). A reading outside this range may indicate a sensor needing adjustment (where adjustment is possible) or replacement.
Sweep throttle and observe signal With ignition on, slowly open the throttle from fully closed to fully open by hand. The multimeter reading on the SIG wire should rise smoothly from idle voltage to WOT voltage without any drops, flat spots, or erratic movements. Any interruption in the sweep indicates a worn potentiometer track.
Check sensor ground integrity Measure voltage between the TPS SGND terminal and a known chassis earth point. The reading should be very close to 0 V (ideally less than 0.05 V). A higher reading indicates a resistance in the sensor ground return path — check the wiring and ECU ground connections.
Diagnose using DTCs Connect an OBD-II scan tool and read any stored diagnostic trouble codes. TPS-related codes typically fall in the P0120–P0124 range (TPS circuit malfunction, range/performance, low/high input). Combine DTC information with the measured voltages to confirm diagnosis.

Specifications

VREF supply voltage	5.0 V DC (typically 4.8–5.2 V, ECU-regulated)
Signal output at closed throttle (typical)	0.4–0.9 V (application-specific)
Signal output at wide open throttle (typical)	4.0–4.8 V (application-specific)
Sensor ground to chassis offset (maximum acceptable)	< 0.05 V
TPS resistance (typical, full track)	1–10 kΩ (varies by manufacturer)
Related OBD-II DTCs	P0120 (circuit malfunction), P0121 (range/performance), P0122 (low input), P0123 (high input)
Signal wire type	0–5 V analogue (potentiometer wiper)

Safety warnings

Disconnect the vehicle battery negative terminal before unplugging or handling any ECU or sensor connector to avoid electrostatic discharge damage to the ECU.
Only back-probe sensor connectors with fine back-probe test leads. Forcing multimeter probes into sealed connectors spreads the connector terminals and causes intermittent faults.
Do not confuse sensor ground (SGND) with chassis earth when making repairs or measurements. Connecting sensor ground to chassis introduces voltage offsets that will cause incorrect sensor readings.
These diagrams are illustrative reference material only. Automotive electrical diagnosis and repair should be performed by qualified technicians using the vehicle manufacturer's workshop data.

Tools needed

Digital multimeter with back-probe test leads
OBD-II scan tool (for DTC reading and live data)
Wiring diagram for the specific vehicle (manufacturer workshop manual)
Connector release tools (for sealed connector clips)
Contact cleaner (for cleaning oxidised connector terminals)
Terminal pick tools (for pin removal from connectors)

Common mistakes

Measuring TPS signal with the sensor ground probe on chassis earth rather than the dedicated SGND pin, reading an offset voltage that makes a good sensor appear faulty.
Replacing the TPS without checking the wiring harness and ECU VREF output first — a harness fault will cause the replacement sensor to produce the same fault.
Forcing multimeter probes into sealed weatherproof connectors, deforming the terminals and causing subsequent intermittent connection faults.
Assuming wire colour codes are universal across all vehicles — TPS wiring colours vary by manufacturer and model. Always use the vehicle-specific wiring diagram.

Troubleshooting

TPS signal stuck at 0 V or maximum voltage: Cause: Open circuit in signal wire, wiper lifted off potentiometer track, or short to ground/VREF Fix: Check continuity of signal wire from TPS to ECU pin. Measure resistance across the TPS terminals directly (disconnect the connector): full track resistance should be present. Replace TPS if the track is open.
Check engine light, code P0121 (TPS range/performance): Cause: TPS signal does not match the expected range for the throttle angle measured by another sensor (e.g., MAP sensor cross-check), or worn potentiometer with dead spots Fix: Sweep the throttle slowly while watching live TPS data on a scan tool. Identify any flat spots or erratic readings. Check and clean the connector. Replace TPS if dead spots are confirmed.
Engine hesitates sharply on acceleration: Cause: TPS potentiometer track worn in the mid-range, causing a momentary signal drop that the ECU interprets as throttle closure, cutting acceleration enrichment Fix: Back-probe the signal wire and sweep the throttle slowly through the full range while watching the multimeter. A momentary drop or flat spot in the signal confirms a worn TPS requiring replacement.

Frequently asked questions

What are the three wires on a throttle position sensor?

A standard TPS has three wires: a 5 V reference voltage supplied by the ECU (VREF), a signal output wire carrying the wiper voltage that varies with throttle angle (SIG), and a sensor ground return to the ECU's dedicated ground reference (SGND). These map to the two ends and the wiper of an internal potentiometer.

Why must the TPS ground connect to ECU sensor ground, not to chassis earth?

The ECU sensor ground is a clean, noise-free reference point internal to the ECU. The vehicle chassis carries return currents from many high-current systems (starter motors, alternators, accessories), creating small voltage differences across the chassis. Grounding a TPS to chassis introduces these offsets as errors in the sensor reading, causing fuelling and timing inaccuracies.

What is the normal TPS output voltage at idle?

Typical TPS output voltage at closed throttle (idle) is 0.4–0.9 V, though the exact specification varies by manufacturer and vehicle. At wide open throttle (WOT), the output is typically 4.0–4.8 V. Always verify the specific values against the vehicle manufacturer's workshop data for the engine and ECU being tested.

How do I test a throttle position sensor with a multimeter?

With the ignition on (engine off), back-probe the signal wire at the sensor connector. Slowly open the throttle by hand and observe the voltage on the multimeter. The voltage should rise smoothly and without drops or spikes from the idle value to the WOT value. Any dead spots, sudden drops, or spikes indicate a worn potentiometer track and a sensor requiring replacement.

Can a faulty TPS cause rough idling or poor fuel economy?

Yes. The ECU uses TPS data to determine fuel trim, idle air control, and acceleration enrichment. A worn or miscalibrated TPS may cause the ECU to inject too much or too little fuel, resulting in rough idling, hesitation on acceleration, poor fuel economy, and potentially a check engine light with associated DTCs.
