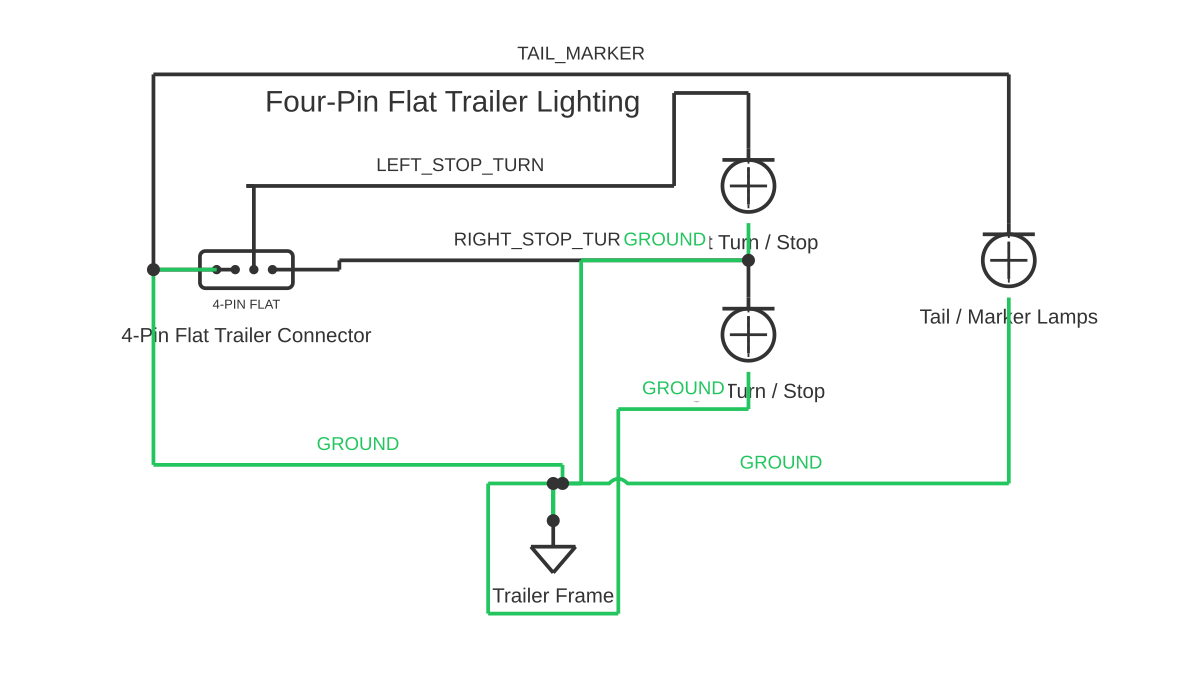

trailer light wiring diagram 4 pin

trailer light wiring diagram 4 pin — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable trailer light wiring diagram 4 pin: download the diagram as SVG or open it and print to paper or PDF.

A 4-pin trailer light wiring diagram illustrates the essential electrical connections for connecting trailer lights to a towing vehicle using a Standard Norm (SAE J560) four-pin connector carrying: 12V power (pin 1), ground/earth (pins 2 and 3), and brake lights (pin 4). The 4-pin connector is the simplest trailer connector type, providing brake light and running light control without auxiliary functions like backup lights or charging. The diagram shows: 12V power from the towing vehicle tail light circuit or dedicated relay, fused at 15A to protect the trailer wiring from overload, left-turn and brake light function on pin 4 (shared signal), and ground return through pins 2 and 3 (redundant grounds ensuring reliability). The connector body is weather-sealed with pins color-coded: white for ground, brown for running lights, yellow for left-turn/brake, green for right-turn/brake. Many 4-pin systems include: brake-load controller preventing brake override when the trailer carries heavy cargo, level-sensing circuits adjusting brake force based on trailer load, and backup power from the trailer battery maintaining brake lights if the vehicle-to-trailer connector partially disconnects. Understanding 4-pin trailer wiring enables proper connector selection for your towing vehicle, correct wire gauge calculation for trailer brake demand, and troubleshooting of intermittent light failures.

How to wire trailer light wiring diagram 4 pin

Test vehicle socket output before wiring trailer With the vehicle running and indicators operating, use a test light to identify which pin carries each function: tail, left indicator, right indicator, and earth. Do not trust colour codes alone — verify live.
Mount trailer connector on vehicle towbar Fix the socket bracket firmly to the towbar receiver. Run the socket wiring back through the bumper cavity to the vehicle tail light cluster, using existing grommets where possible.
Connect vehicle socket to tail light wiring Tap into tail, left, and right indicator feeds using proper T-harness splices or automotive solder-seal connectors. Earth the white wire to a clean chassis bolt, not a tail light mounting screw.
Run 4-core cable along trailer frame Route the cable along the trailer frame chassis, securing with cable clips every 400mm. Protect cable at frame edges with rubber grommets or split conduit to prevent chafe.
Connect lights at each rear corner Split the 4-core cable at the rear of the trailer. Connect brown to tail, yellow to left indicator, green to right indicator, white to earth on each light unit. Match connections to light unit wiring diagram.
Earth each light to the white conductor Earth both light units through the white wire back to the connector — do not earth locally to the trailer frame. This keeps all earth returns on the same conductor and prevents intermittent issues.
Test all functions before towing Plug in and test tails, left indicator, right indicator, and brake lights with a second person watching. Check for hyper-flashing or dim lights that indicate a poor earth or overloaded circuit.

Frequently asked questions

What are the 4 pin colours and their functions?

Standard 4-pin flat: white = earth/ground return, brown = tail lights, yellow = left indicator, green = right indicator. Some setups use yellow for right and green for left — always verify against the vehicle socket with a test light before wiring the trailer.

Why do my trailer indicators flash at double speed?

Hyper-flashing occurs when the vehicle's LED-sensitive flasher relay detects too low a load on the indicator circuit. This means either a trailer indicator globe has blown, the earth connection is poor, or the tow vehicle needs a load-resistor kit to accommodate LED trailer lights.

Can I use the trailer frame as the earth return instead of running a white wire?

You can, but it is poor practice. Trailer hitch coupling connections corrode and create high-resistance earth paths, causing dim lights and strange cross-feeds between circuits. Always run a dedicated earth conductor back to the white pin on the 4-pin connector.

My trailer lights work except the brake lights. What do I check?

On a 4-pin system brake and indicator signals share the same pin. If indicators work but brakes do not, test for 12V on the brown pin (tail) and verify the vehicle brake light circuit reaches the appropriate pin. On older vehicles a separate brake controller module may be needed.

What is the correct cable size for a trailer light circuit?

1mm² is adequate for standard LED light sets drawing under 5A total. If you are running incandescent globes or additional accessories like a number plate light and marker lights, step up to 1.5mm² to keep voltage drop under 0.5V across the full cable run.
