Washing Machine Motor Wiring Diagram

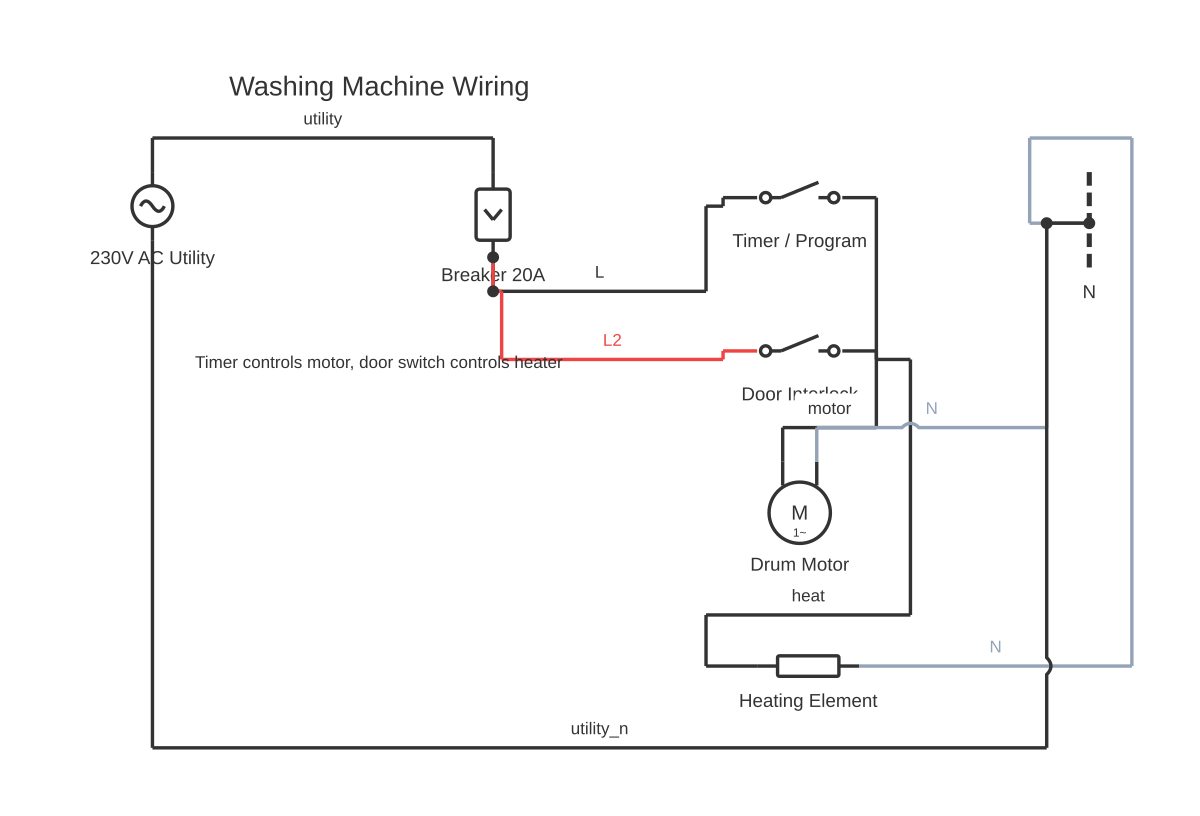

Washing Machine Motor Wiring Diagram — circuit diagram showing component connectionsBreaker 20ATimer / ProgramDoor InterlockM1~Drum MotorHeating Element230V AC UtilityWashing Machine WiringTimer controls motor, door switch controls heater
Washing Machine Motor Wiring Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable washing machine motor wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

Identify and reconnect washing machine motor windings — covering universal brush-type motors, capacitor-run induction motors, and the speed, direction, and thermal protection wiring for each.

Washing machine motors fall into two primary categories: universal (series-wound brush-type) motors common in older top-loaders and some front-loaders, and capacitor-run induction motors (split-phase or permanent-split capacitor) used widely in top-loading agitator machines. Modern front-loaders increasingly use brushless DC (BLDC) or inverter-controlled induction motors, which require manufacturer-specific inverter wiring and are not field-repairable by pin-swapping.

A universal motor has four terminals visible on its connector in the most common arrangement: two stator field winding terminals and two armature (brush) terminals. Direction reversal is achieved by swapping the stator field winding connections relative to the armature — not by reversing the supply polarity. In a washing machine this reversal is performed by a mechanical timer cam that switches the field winding polarity every agitation cycle. The motor also includes a thermal cut-out (TCO) in series with the supply — typically a non-resettable 130 °C or 145 °C klixon or thermal fuse — that opens permanently if the motor overheats.

Capacitor-run induction motors have three or four leads: main winding, start/auxiliary winding, common, and a run capacitor terminal. The capacitor creates the phase shift that produces starting torque and maintains run torque. On a two-speed motor (used for agitate/spin in top-loaders), two sets of main winding taps are brought out, giving a total of five or six terminals. The speed controller or timer connects power to the correct tap for each cycle phase.

Before attempting any motor wiring work, isolate the appliance from mains power by unplugging it and verifying absence of voltage at the motor connector with a multimeter. Washing machine capacitors can retain a charge after disconnection — discharge the run capacitor through a 10 kΩ resistor before handling. Any wiring repairs to the mains supply side of the appliance must comply with the electrical installation standard for your region (NEC/NFPA 70, BS 7671, AS/NZS 3000, or IEC 60364) and in many jurisdictions must be performed by or inspected by a licensed electrician.

How to wire washing machine motor wiring diagram

  1. Isolate mains power completely Unplug the washing machine from the wall socket. Do not rely on the machine's power switch alone — it may not break both active and neutral conductors. For appliances with hard-wired supply, open the dedicated circuit breaker and lock it out. Verify absence of voltage at the motor connector with a multimeter before touching any terminals.
  2. Discharge the run capacitor On capacitor-run induction motor machines, locate the run capacitor (typically a cylindrical or oval capacitor mounted near the motor). Discharge it by connecting a 10 kΩ, 5 W resistor across its terminals for 10 seconds. Measure residual voltage with a multimeter before handling. Never short capacitor terminals directly — the current surge can cause burns and may damage the capacitor or connected wiring.
  3. Photograph and label all existing wiring before disconnection Take multiple clear photographs of the motor connector, harness routing, and any clips or cable ties before removing anything. Label each wire with masking tape and a marker. Washing machine wiring harnesses often reuse similar wire colours — your photographs are the only reliable reference for reassembly.
  4. Map motor terminals with a multimeter With the motor disconnected, measure resistance between all terminal combinations. For a universal motor: identify armature terminals (lower resistance, usually 0.5 Ω–5 Ω) and field terminals (higher resistance, usually 5 Ω–50 Ω). For an induction motor: identify main winding, auxiliary winding, and common. Verify the TCO is closed (continuity).
  5. Inspect brushes and commutator on universal motors Remove the brush holders and measure brush length — brushes worn below the manufacturer's minimum length (typically 5 mm–8 mm; vary by motor) must be replaced. Inspect the commutator surface for burning, grooving, or heavy oxidation. Light oxidation can be cleaned with commutator cleaner and a lint-free cloth; heavy grooving requires professional machining or motor replacement.
  6. Test the run capacitor A capacitance meter or multimeter with capacitance mode will measure the capacitor's actual value — compare to the rated µF value printed on the capacitor body (typically 4 µF–16 µF for washing machine induction motors). A reading more than 10 % below rated value indicates a degraded capacitor that should be replaced. A shorted capacitor reads zero; an open capacitor reads no capacitance.
  7. Reconnect and test under controlled conditions Reconnect the motor using your photographs and terminal map as reference. Before closing the machine cabinet, restore power and run a short manual test cycle to confirm correct rotation direction and smooth speed transitions. If direction is incorrect, identify and swap the relevant field winding leads per the wiring diagram — do not simply reverse the mains supply connections.

Specifications

Typical universal motor power range (washing machine)250 W–500 W
Typical induction motor power range (washing machine)180 W–350 W
Run capacitor value range (induction motor type)4 µF–16 µF, AC-rated (metallised polypropylene)
TCO trip temperature (common values)130 °C or 145 °C (non-resettable; must match original)
Earth continuity requirement (appliance)Less than 0.1 Ω from motor frame to earth pin of supply plug
Appliance supply voltage (typical)120 V AC 60 Hz (North America) or 220–240 V AC 50 Hz (most other regions)

Safety warnings

Tools needed

Common mistakes

Troubleshooting

Motor does not start — hums briefly then trips the overload
Cause: Failed run capacitor (induction motor) or seized bearing causing locked-rotor current to trip the thermal protection Fix: Disconnect power. Manually rotate the motor shaft — it should turn freely. If stiff, inspect bearings. Test the run capacitor with a capacitance meter. If capacitance is more than 10 % below rated value or reads zero, replace the capacitor with an identical-rated part.
Motor runs but does not reverse direction
Cause: Failed timer cam, relay, or triac responsible for switching the field winding or auxiliary winding connections; or a broken wire on one of the directional switch terminals Fix: Operate the machine through a cycle while measuring voltage at the motor directional winding terminals. The voltage should cycle between configurations at the expected agitation interval. If the switch terminal stays permanently in one state, inspect and test the switching component — relay contacts may be welded closed or the timer cam may be stripped.
Motor runs hot and trips the TCO repeatedly
Cause: Blocked drain filter causing the motor to pump against excessive back-pressure, worn bearings increasing friction, or reduced ventilation from a blocked motor cooling fan Fix: Clean the drain pump filter. Inspect and rotate the motor shaft by hand to check bearing smoothness. Clear any lint or debris from the motor cooling vents. If the motor continues to overheat after these steps, measure running current with a clamp meter and compare to the nameplate rating — current significantly above rated value indicates an internal winding or bearing fault.

Frequently asked questions

How do I identify the terminals on a washing machine universal motor?

A washing machine universal motor typically has four or five terminals. Use a multimeter in resistance mode: the armature (rotor) winding has lower resistance than the field (stator) winding. The brush holders are usually accessible visually. The thermal cut-out appears as zero resistance (closed) when the motor is cool — if it reads open circuit, the TCO has blown and must be replaced.

Why does my washing machine motor run in only one direction?

On a universal motor, direction reversal is achieved by swapping the field winding polarity relative to the armature. If the motor runs in one direction only, inspect the timer or relay responsible for switching the field winding connections. On induction motors, direction reversal requires swapping the main and auxiliary (start) winding connections — a fault in the switching relay or timer cam is the usual cause.

What does the run capacitor do in a washing machine induction motor?

The run capacitor creates a phase shift between the main winding current and the auxiliary winding current. This phase difference produces a rotating magnetic field in the stator, which induces torque in the rotor. Without the capacitor the motor may hum and fail to start, or may start but run with reduced torque and higher temperature. A failed capacitor is a common cause of washing machine motor starting problems.

Can I test a washing machine motor outside the machine?

Yes, with appropriate precautions. Disconnect the motor and test winding resistance with a multimeter first. If resistance readings are correct, you can briefly energise the motor on a test bench using a suitable power supply and speed controller (for universal motors) or a correctly rated capacitor (for induction motors). Never run an induction motor for extended periods without its load — it may overspeed without mechanical resistance.

What is a thermal cut-out (TCO) and how do I test it?

A thermal cut-out is a normally-closed safety device wired in series with the motor supply. It opens permanently if the motor temperature exceeds its rated trip temperature (commonly 130 °C to 145 °C). Test it with a multimeter in continuity mode — a healthy TCO shows zero resistance (continuity). Open circuit means it has tripped and the TCO must be replaced with an identical-specification part; do not bypass it.
