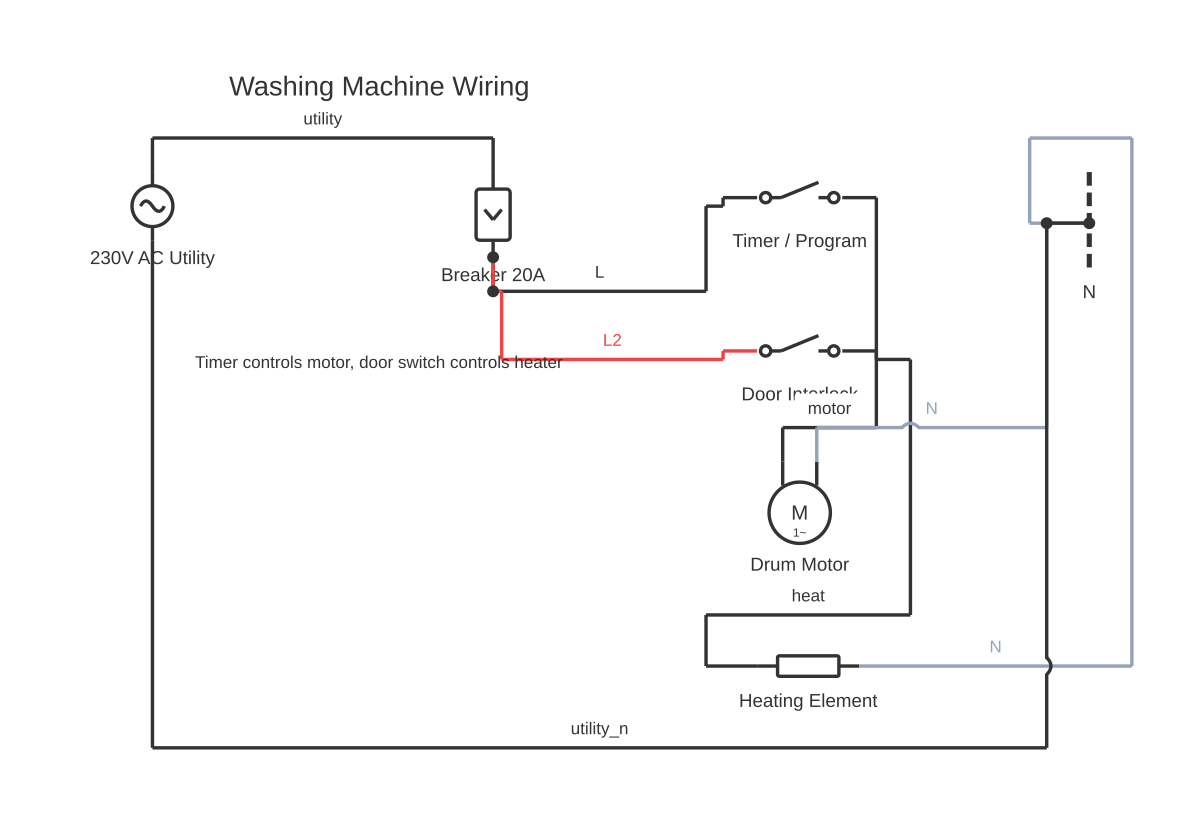

Washing Machine Wiring Diagram

Washing Machine Wiring Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable washing machine wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

A washing machine wiring diagram maps the connections between the mains supply, control timer, drive motor, drain pump, heater element, door interlock, and water inlet valves.

A washing machine is one of the most electrically complex appliances found in a domestic setting. Its wiring diagram must account for multiple independent load circuits — each controlled by a different element of the control system — all sharing a common mains supply.

The control heart of an electromechanical washing machine is the programme timer — a motor-driven cam assembly that opens and closes contact sets in a defined sequence, energising the wash motor, heater, pump, and valves at the correct points in the programme cycle. Modern machines replace the electromechanical timer with an electronic control module (PCB), but the underlying circuit functions are identical.

The door interlock (lid switch or door lock assembly) is a critical safety component wired in series with the main supply to most load circuits. It physically prevents the machine from operating when the door is open and must open immediately if the door is unlatched during operation. The heater and motor circuits typically cannot be energised if the door interlock contact is open.

The drive motor is typically a single-phase induction motor or, on older machines, a universal (series-wound) motor capable of running on AC or DC. The motor receives directional switching through the timer or PCB, allowing forward (wash agitate) and reverse (spin drain) operation. Modern inverter-driven machines use a three-phase brushless motor controlled by a variable-frequency drive on the PCB, which allows variable-speed drum rotation.

The heating element — a calrod or open-coil element immersed in the drum water — is one of the highest-power loads in the appliance, typically 1 800–2 500 W. A thermostat and thermal cutout in series with the element prevent overheating if the element runs dry or if the thermostat fails.

The drain pump motor and water inlet solenoid valves are controlled directly by the timer or PCB at appropriate points in the programme cycle.

All appliance servicing involving internal wiring must be performed with the appliance fully disconnected from the mains. Work on mains-connected appliances must comply with applicable safety standards and, in many jurisdictions, be performed by a qualified technician.

A washing machine's internal circuit includes the main motor (often a universal or brushless inverter motor), the heating element, the door interlock switch, the water inlet valve solenoids, the drain pump motor, and the main control board. The door interlock is a safety-critical component wired in series with the live supply; it prevents the drum from spinning unless the door is properly latched. In the Philippines and other regions using 220 V single-phase supply, the colour conventions and plug type differ from North American standards, so understanding the local supply arrangement is important before tracing wiring. Draw your washing machine wiring diagram free in the online editor to map out these subsystems.

How to wire washing machine wiring diagram

Unplug the appliance completely from the mains supply There is no safe way to work inside a washing machine with it connected to mains power. Unplug the supply cord from the socket before removing any panels. If the machine is hard-wired, isolate it at the dedicated circuit breaker and verify dead with a voltage tester before proceeding.
Discharge the motor run capacitor before touching any internal wiring The motor run capacitor can retain a charge even after the appliance is unplugged. Discharge it by placing a 10 kΩ resistor (or an incandescent lamp in series with test leads) across the capacitor terminals for 30 seconds. Do not short-circuit the capacitor terminals directly — the discharge current can damage the capacitor and cause a burn or arc injury.
Access the control module and wiring harness Remove the machine top or control panel according to the service manual for the specific model. Photograph the wiring harness connections before disconnecting anything — connector colour and position are model-specific and errors in reconnection cause faults that are difficult to trace. Label any connectors that may be confused.
Identify the fault area using the wiring diagram and a multimeter Obtain the wiring diagram for the specific appliance model from the manufacturer's service documentation. Use a multimeter to test continuity of the door interlock, thermal cutout, element continuity, motor winding resistance, and pump motor. Test the capacitor with a capacitance meter. Compare measured values against the specification in the service documentation.
Replace the faulty component with a correct specification part Replace only with components specified for the appliance model. The heating element, motor capacitor, door interlock, and thermal cutout must match the appliance specification exactly — voltage rating, capacitance, current rating, and thermistor temperature characteristic. Using an unrated or incorrect specification part creates a safety risk.
Inspect the wiring harness before reassembly Before reassembling the machine, inspect the entire visible wiring harness for damaged insulation, burnt connectors, or terminals that have overheated (discolouration, melted plastic). Replace any damaged wiring sections. Ensure no wiring is routed near hot components (element area), pinched under panels, or in contact with moving parts.
Test before returning to service Plug in and run a short wash cycle, observing the machine through each stage: fill, heat, agitate, drain, and spin. Verify no unusual noise, burning smell, or RCD trip. Check for water leaks around the door seal. If the machine tripped an RCD, the fault must be confirmed as resolved before returning it to domestic service.

Specifications

Mains supply voltage (typical)	230 V AC, 50 Hz (Europe/international); 120 V AC, 60 Hz (North America)
Heating element power (typical range)	1 800–2 500 W
Motor run capacitor typical value	4–12 μF, 450 V AC rated
Drive motor typical power (wash/spin)	300–600 W
Drain pump motor typical power	25–60 W
Door interlock function	Safety switch: open = all load circuits de-energised
Required circuit protection	RCD / RCCB (≤ 30 mA trip current) per IEC 60364, BS 7671, AS/NZS 3000
Applicable appliance safety standard	IEC 60335-1 (general), IEC 60335-2-7 (washing machines)

Safety warnings

A washing machine must be completely unplugged from the mains before any internal access or wiring work. If hard-wired, isolate at the dedicated circuit breaker and verify dead with a voltage tester. The mains supply cable and internal wiring operate at lethal voltage.
Discharge the motor run capacitor before touching any internal components — capacitors retain charge after power is removed. Use a discharge resistor (10 kΩ); never short-circuit the terminals directly.
If the machine has tripped an RCD (residual current device), do not simply reset the RCD and continue using the appliance. An RCD trip indicates earth leakage — potentially a damaged element, insulation breakdown, or water ingress. The fault must be diagnosed and resolved before the appliance is returned to service.
Washing machines must be connected to an RCD-protected circuit. In countries where this is mandatory (BS 7671, AS/NZS 3000, IEC 60364), verify that the socket outlet or final sub-circuit is RCD-protected.
All replacement parts must match the appliance's specification. Using components outside the rated voltage, current, or temperature specifications creates fire and electric shock hazards.

Tools needed

Digital multimeter (AC voltage, resistance, continuity)
Capacitance meter (for motor capacitor testing)
Insulated screwdrivers (Phillips and Torx)
Discharge resistor (10 kΩ, ≥ 2 W) for capacitor discharge
Voltage tester (non-contact type for mains verification)
Plastic pry tools (for panel removal without damage)
Camera or phone (to photograph wiring before disconnection)

Common mistakes

Working inside the machine without unplugging it, assuming the control panel is isolated — the main supply cable and motor terminals are live regardless of the programme setting.
Forgetting to discharge the motor capacitor before touching internal wiring, risking a painful or dangerous capacitor discharge shock.
Resetting the RCD after a trip and reusing the machine without diagnosing the earth leakage fault.
Replacing the heating element without checking the thermal cutout continuity — a failed TCO means the element was previously overheated and the TCO must also be replaced.
Reconnecting wiring harness connectors incorrectly after repair — photographing the harness before disconnection prevents this error.

Troubleshooting

Machine powers on but does not start a wash cycle; drum does not move: Cause: Failed door interlock preventing load circuits from energising; failed programme timer or control PCB; broken motor capacitor Fix: Test door interlock continuity with a multimeter (contacts should be closed with door shut). If the door lock has failed open, the machine will power on but no programme function will operate. If the door lock is healthy, test the capacitor with a capacitance meter — a value significantly below specification means the motor cannot develop starting torque. If both are healthy, the fault is likely in the control PCB or timer.
Machine heats water but does not reach programme temperature: Cause: Thermostat set point too low, partial element failure (reduced resistance, reduced power output), or scale build-up on element reducing heat transfer to water Fix: Measure element resistance with a multimeter and compare with the rated value (R = V² / P; for a 2 000 W, 230 V element, R = 230² / 2 000 = 26.45 Ω). A reading significantly higher than rated indicates partial element failure. Inspect for limescale build-up. Test the thermostat across its contact points — it should be closed (conducting) at room temperature and open at its trip temperature.
Machine trips the household RCD during heating phase: Cause: Heating element has developed an insulation breakdown to earth — most commonly caused by limescale cracking and exposing the element sheath, or corrosion of the element connection terminals Fix: With the machine unplugged, test insulation resistance between the element terminals and the appliance earth connection using a multimeter on highest resistance range — or better, an insulation resistance tester at 500 V DC. A reading below 1 MΩ (ideally infinite) confirms element insulation failure. Replace the element. Inspect and clean the element terminal area for water or corrosion.

Frequently asked questions

What does the door interlock do in a washing machine circuit?

The door interlock (door latch or lid switch) is a safety device wired in series with the main load circuits. It prevents the machine from operating — motor, heater, and pump — when the door is open. On most machines, an electronic door lock also physically restrains the door from opening while the drum is rotating or while hot water is present. An open or failed door interlock is a common cause of a machine that powers on but refuses to start a wash cycle.

Why does a washing machine have a motor capacitor?

Single-phase induction motors cannot self-start — they require a phase-shifted auxiliary winding to create a rotating magnetic field for starting. The run capacitor (typically 4–12 μF, 450 V AC rated) creates the necessary phase shift in the auxiliary (start) winding. If the capacitor fails, the motor hums loudly but will not spin, or starts unreliably. The capacitor is a common wear component and a frequent diagnosis point for a motor that hums but does not rotate.

What is the purpose of the thermal cutout on the heating element?

The thermal cutout (often called a TCO — Thermal Cutout) is a single-use or resettable safety device wired in series with the heater element. If the element temperature exceeds a safe threshold — due to running dry, a blocked thermistor fault, or thermostat failure — the TCO opens the circuit and prevents the element from burning out or causing a fire. A tripped non-resettable TCO must be replaced; it does not reset by cooling alone.

What causes a washing machine to trip the household circuit breaker?

The most common causes are: a failed heating element with partial short to earth (leakage current trips the RCD/RCCB); a failed motor winding with insulation breakdown; water ingress into the control module or terminal block causing tracking; or a seized motor that draws locked-rotor current until the overcurrent protection trips. An RCD trip (rather than a thermal MCB trip) typically indicates an earth leakage fault — the appliance requires inspection before being returned to service.

Can I repair washing machine wiring myself?

In many jurisdictions, domestic appliance wiring repair is not legally restricted to licensed electricians in the same way mains installation is, but mains-voltage appliance internal wiring carries the same lethal voltage. Any repair must be carried out with the appliance fully unplugged and with the capacitor discharged before touching internal components. If you are not confident in your ability to safely identify and replace a faulty component, use a qualified appliance repair technician.

What does the wiring diagram of a washing machine (wiring diagram ng washing machine) show?

A washing machine wiring diagram shows how the control board connects to every electrical component: the motor, heating element, door interlock, water inlet valves, drain pump, temperature sensor (NTC), and pressure switch. The door interlock switch is wired in series with the main live supply so the machine cannot operate with the door open. Tracing this diagram is essential when fault-finding; for example, a failed door interlock appears as a dead machine even though power reaches the board, and a faulty NTC sensor can cause incorrect water temperature or error codes.
