4-Wire O2 Sensor Wiring Diagram: How the Heater and Signal Circuits Work

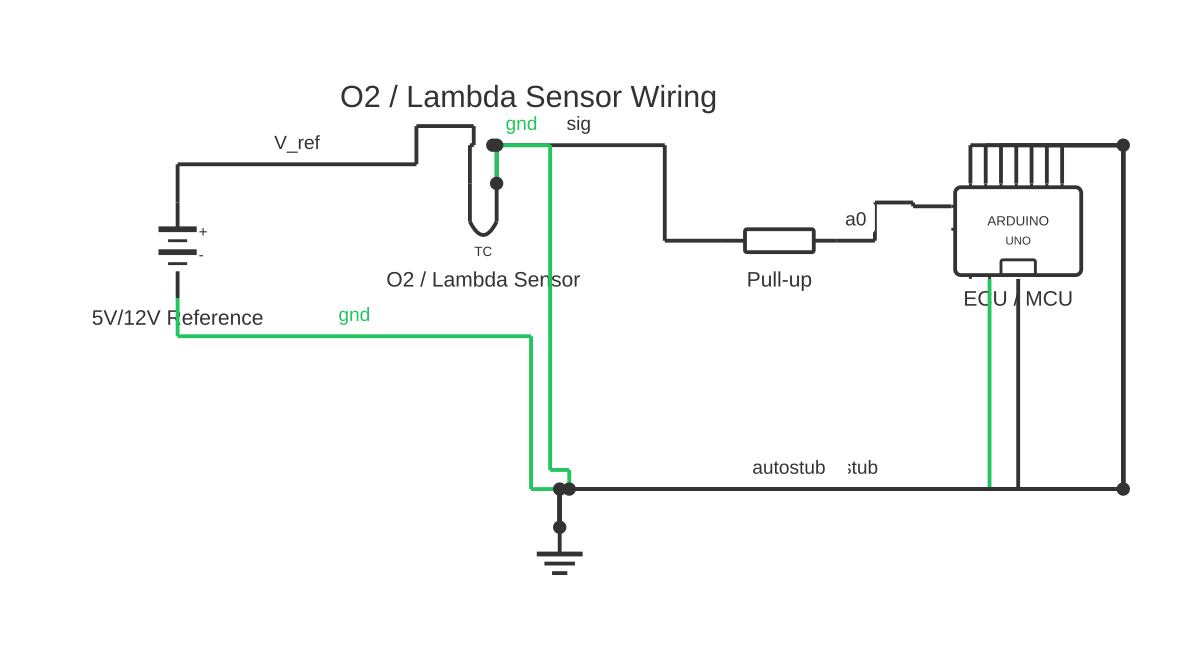

This is a free printable 4 wire o2 sensor wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
A technical reference for wiring a 4-wire oxygen sensor, explaining the heater-positive, heater-negative, signal, and signal-ground functions — and why the heater circuit is critical to correct closed-loop fuel control.
A 4-wire oxygen sensor contains two separate circuits housed in a single body: the electrochemical sensing cell and an electrically heated ceramic element. The heated design addresses a fundamental limitation of unheated sensors — they only produce a reliable signal once the zirconia sensing element reaches approximately 300 °C. On a cold engine, an unheated sensor can take several minutes to reach operating temperature, during which the ECU operates in open-loop fuelling. The internal heater accelerates warm-up to under 30 seconds from a cold start, allowing the ECU to enter closed-loop operation sooner, which reduces cold-start emissions and improves fuel economy.
The four wires serve distinct purposes. The heater positive wire connects to a switched 12V supply — typically a relay-controlled feed that is active when the ignition is on. The heater negative wire connects to ground (earth), completing the heater element circuit. The heater element is resistive with approximately 3–16 ohms of resistance depending on the sensor design; the ECU or a dedicated relay controls heater power on many modern systems via pulse-width modulation to regulate element temperature precisely.
The signal wire carries the zirconia cell's electrochemical output voltage — a signal that swings between approximately 0.1V (lean exhaust, high oxygen) and 0.9V (rich exhaust, low oxygen) on a narrowband sensor. This is not a powered output; it is a generated EMF from the electrochemical reaction across the zirconia element. The signal ground wire provides the reference return for this millivolt-level signal and is kept isolated from power grounds to prevent noise contamination of the signal. Never connect the signal ground to a chassis point shared with the heater return or any high-current circuit.
How to wire 4 wire o2 sensor wiring diagram
- Disconnect the battery negative terminal and allow the exhaust system to cool Oxygen sensors are located in the hot exhaust stream. Allow at least 30 minutes of cool-down after engine operation before attempting removal. Disconnect the battery to prevent ECU faults during sensor disconnection.
- Locate and disconnect the sensor connector Follow the sensor pigtail cable from the bung in the exhaust pipe to the connector, which is usually clipped to a bracket away from the exhaust heat. Press the connector release tab and separate the two halves.
- Identify the four wire functions using a wiring diagram Use the vehicle-specific wiring diagram or the sensor manufacturer's documentation to identify: heater positive (switched 12V from relay or ECU), heater negative (ground return), signal output, and signal ground. Document each colour before proceeding.
- Measure heater circuit integrity With the sensor disconnected, measure resistance across the two heater wires directly at the sensor pigtail. Expect 3–16 ohms. Then confirm 12V is available on the heater positive wire in the harness with ignition on (using a multimeter). Confirm the heater negative wire is at ground potential.
- Measure signal circuit integrity With the sensor connector disconnected, probe the signal ground wire in the harness — it should show less than 0.1V relative to battery negative. Do not inject voltage into the signal wire; the ECU applies its own 0.45V bias voltage to this input.
- Install or reconnect the sensor and verify operation If replacing the sensor, apply anti-seize compound to the sensor threads (keeping it off the sensor tip). Torque to the manufacturer's specification (typically 35–55 Nm). Reconnect the harness connector and battery. Start the engine and allow warm-up; observe the signal voltage with a scan tool to confirm the signal switches correctly once the sensor reaches operating temperature.
Specifications
| Signal voltage range (narrowband) | 0.1V (lean) to 0.9V (rich) |
|---|---|
| Switching midpoint | Approximately 0.45V |
| Heater element resistance at ambient | 3–16 Ω (sensor-specific) |
| Heater current draw at 12V | 0.75A–4A (sensor-specific) |
| Minimum element operating temperature | Approximately 300 °C |
| Heater warm-up time from cold | Under 30 seconds (heated sensor) |
| Sensor installation torque (typical) | 35–55 Nm |
| Sensor thread size (common) | M18 x 1.5 |
Safety warnings
- Allow the exhaust system to cool completely before handling the oxygen sensor — exhaust components reach temperatures well in excess of 400 °C and retain heat long after engine shutdown.
- Disconnect the battery negative terminal before unplugging the sensor harness connector to prevent ECU diagnostic faults being logged and to protect the ECU signal input from transients.
- Never apply voltage to the signal wire or signal ground wire. The sensing element is a fragile electrochemical cell; any externally applied voltage can permanently contaminate or destroy the sensing element.
- Do not get anti-seize compound on the sensor's tip or sensing element — contamination causes an incorrect reading and requires sensor replacement.
- Dispose of used oxygen sensors according to local environmental regulations; the zirconia element and precious metal catalyst coating are classified as hazardous waste in many jurisdictions.
Tools needed
- Oxygen sensor socket (22 mm with longitudinal wire slot)
- Torque wrench (35–55 Nm range)
- Digital multimeter with DC millivolt resolution
- OBD-II scan tool with live sensor data display
- Battery disconnect wrench
- Anti-seize compound applicator
Common mistakes
- Swapping the signal ground wire with the heater negative wire — these share a connector and similar wire gauges but must not be interchanged. Signal ground is an isolated low-noise return; heater ground carries 1–2A of heater current that will corrupt the millivolt-level signal.
- Testing the signal wire with a multimeter in resistance or diode mode while the ECU is connected — the ECU's 0.45V bias voltage will give a false reading and some multimeter models can damage the ECU input with their test current.
- Installing a universal sensor without matching the signal ground isolation — using the chassis ground for signal ground introduces ground offset voltages that shift the signal by tens of millivolts, causing the ECU to run slightly lean or rich permanently.
- Over-torquing the sensor into the exhaust bung, distorting the bung and making future removal extremely difficult — always torque to specification and use anti-seize.
- Assuming wire colour conventions from one vehicle apply to another — always verify with the specific vehicle wiring diagram before connecting.
Troubleshooting
- Signal stays fixed around 0.45V and does not switch
- Cause: Sensor not at operating temperature (heater fault) or contaminated/failed sensing element Fix: Confirm heater circuit operation by measuring heater element resistance (should be 3–16 Ω) and supply voltage (12V with ignition on). If heater is confirmed working and signal still does not switch after warm-up, the sensing element is likely contaminated by silicone or coolant — replace the sensor.
- ECU fault code P0030 or P0031 (heater circuit fault) with otherwise correct sensor
- Cause: Open or short circuit in heater wiring, blown fuse supplying heater positive, or failed heater element Fix: Measure heater element resistance directly at the sensor pigtail (3–16 Ω expected). Check the fuse in the heater supply circuit. Verify 12V reaches the heater positive terminal with ignition on and that the heater negative terminal is at ground potential.
- Signal oscillates erratically with noise spikes rather than smooth rich/lean switching
- Cause: Signal ground contaminated by proximity to heater or power ground; wiring damage Fix: Inspect signal ground wire routing — ensure it does not share a ground point with the heater negative or any power circuit. If an aftermarket universal sensor was fitted, verify signal ground is connected to the ECU's dedicated sensor ground pin, not the chassis.
Frequently asked questions
Which wire is which on a 4-wire O2 sensor?
Conventions vary by manufacturer, but the most common arrangement is: two identical-coloured wires for the heater circuit (positive and negative), one wire for the signal output, and one wire for the signal ground. Always verify against the specific vehicle wiring diagram — do not assume wire colour conventions carry across manufacturers.
What resistance should the heater element measure?
A healthy heater element typically measures 3–16 ohms at ambient temperature, with many common sensors measuring around 4–8 ohms. An open-circuit reading (infinite resistance) confirms a failed heater element. An unusually low reading below 2 ohms may indicate a partial short in the element.
What voltage should the O2 signal produce?
A narrowband zirconia sensor produces a switching voltage between approximately 0.1V (lean) and 0.9V (rich). In a normally functioning closed-loop system, the signal should switch back and forth across the 0.45V midpoint several times per second at normal operating temperature. A signal that stays high (rich) or low (lean) without switching indicates a fault.
Can I use a universal 4-wire O2 sensor?
Universal sensors can work, but the signal calibration and connector type must be compatible with the vehicle's ECU. Universal sensors require the installer to splice and reconnect using the vehicle's original harness connector pins, preserving the original connector at the ECU end. Incorrect wire matching — particularly swapping signal ground with heater ground — will give a false signal or damage the ECU input.
Why does my ECU show a heater circuit fault code even though the sensor signals correctly?
The ECU monitors heater circuit current draw as a separate diagnostic. A fault code for the heater (typically P0030, P0031, or P0032 series) indicates a problem in the heater circuit — open, shorted, or out-of-range resistance — independent of the signal circuit. Check heater resistance, the supply voltage to the heater positive wire, and ground continuity.
