4-Wire Oxygen Sensor Wiring: Reading and Diagnosing the Signal Circuit

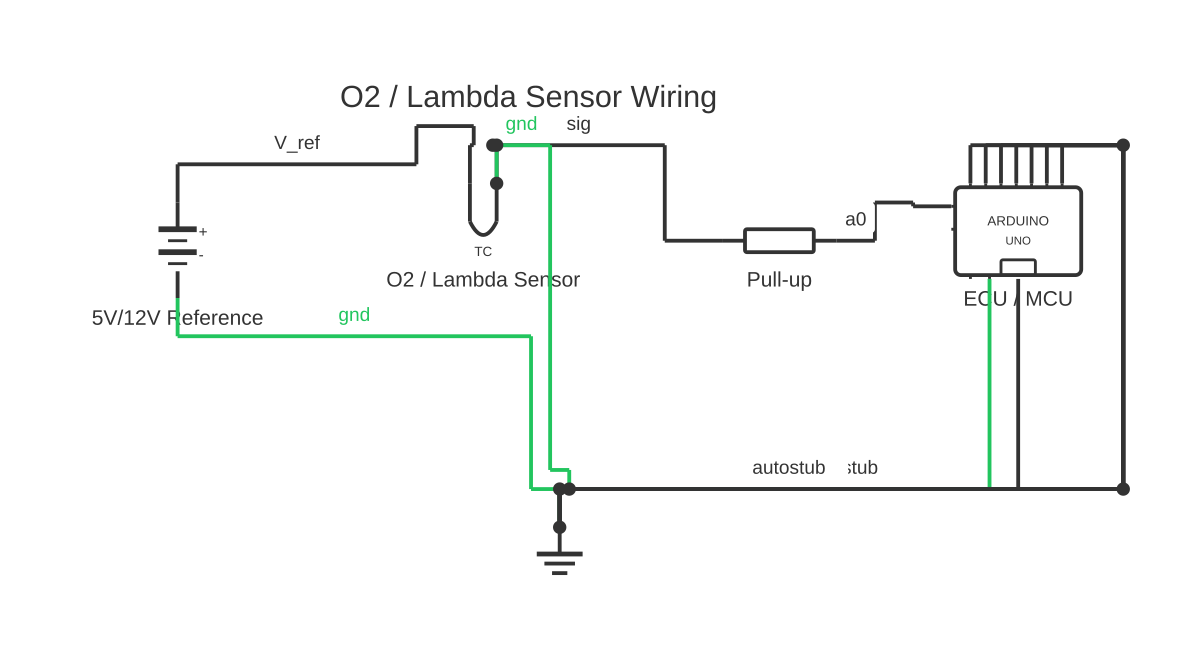

This is a free printable 4 wire oxygen sensor wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
A diagnosis-focused reference for the 4-wire oxygen sensor's signal and ground circuit — covering how to read the switching waveform, interpret scan tool data, and identify wiring faults without replacing a working sensor.
The 4-wire oxygen sensor is a combined device: two wires power an internal ceramic heater, and two wires carry the electrochemical signal from the zirconia sensing element to the engine control unit. Understanding the signal circuit separately from the heater circuit is critical for accurate diagnosis — many technicians replace a working sensor because they misinterpret a wiring fault in the signal path as a failed sensor.
The zirconia sensing element generates a voltage by comparing the oxygen content of the exhaust gas against a reference pocket of atmospheric oxygen inside the sensor body. When the exhaust is rich (low oxygen), the electrochemical potential difference across the zirconia crystal is high — producing approximately 0.7–0.9V. When the exhaust is lean (high oxygen), the potential collapses to approximately 0.1–0.2V. The ECU targets switching back and forth across the stoichiometric crossover point (approximately 0.45V) at a rate of roughly one to four times per second at normal idle.
The signal wire is the output of this electrochemical cell. The signal ground wire is a dedicated return that must be isolated from all other ground paths. Even a small voltage offset on the signal ground — caused by current flowing through a shared ground conductor — shifts the apparent signal level, misleading the ECU's fuel trim calculation. A 50 mV offset on the signal ground looks like a permanently lean condition to the ECU, causing rich fuel trim compensation and degraded economy.
A digital storage oscilloscope is the ideal tool to read the oxygen sensor signal; it reveals the shape of the waveform, switching speed, and voltage extremes simultaneously. A scan tool showing live PID data is the practical field alternative — look for the signal to cross through 0.45V repeatedly. A signal that flatlines at 0.45V after warm-up is characteristic of a contaminated sensing element, not a wiring fault. A signal that flatlines at 0.0V or shows noise suggests a wiring problem.
How to wire 4 wire oxygen sensor wiring diagram
- Confirm engine is at full operating temperature The zirconia sensing element requires approximately 300 °C to produce a reliable electrochemical signal. Even with a working heater, allow the engine to reach full operating temperature (coolant temperature gauge at normal position) before evaluating the signal. At operating temperature, the ECU will have switched from open-loop to closed-loop fuelling.
- Connect scan tool and observe live O2 signal PID Connect an OBD-II compatible scan tool and navigate to live engine data. Select the upstream (pre-catalyst) O2 sensor PID. Observe the reading for at least 30 seconds. Count the number of times the signal crosses the 0.45V midpoint — a healthy sensor crosses at least once per second at idle.
- Check for signal ground offset with a multimeter Set the multimeter to DC millivolts. Connect the negative probe to the battery negative terminal. Back-probe the signal ground wire at the ECU connector (use a back-probe adaptor — do not force a sharp probe). A healthy signal ground should read below 50 mV relative to battery negative. Higher readings indicate a contaminated or shared ground path.
- Verify signal wire continuity with circuit isolated Disconnect the sensor connector and the ECU connector (or use the ECU breakout tool). Measure resistance end-to-end between the sensor signal pin and the ECU signal input pin. Should be under 2 ohms for a healthy wire run. High resistance indicates a partially broken wire, typically at a flex point in the harness.
- Check for short circuits on the signal wire With both connectors still disconnected, measure from the signal wire to chassis ground and from the signal wire to the heater positive wire. Both should read open circuit (infinite resistance). Any measurable resistance confirms a chafe or insulation fault.
- Interpret findings and determine cause If wiring is confirmed intact (continuity good, no shorts, signal ground offset under 50 mV) but the signal is still static at 0.45V when warm, the sensor cell is contaminated and the sensor requires replacement. If wiring faults are found, repair the harness and retest before condemning the sensor.
Specifications
| Signal voltage range (narrowband, lean) | 0.1–0.2V DC |
|---|---|
| Signal voltage range (narrowband, rich) | 0.7–0.9V DC |
| Stoichiometric crossover voltage | Approximately 0.45V DC |
| Normal switching rate at idle | 1–4 crossings per second |
| Signal ground offset (healthy) | Under 50 mV relative to battery negative |
| Signal wire resistance end-to-end (healthy) | Under 2 Ω |
| Heater element resistance (ambient) | 3–16 Ω (sensor-specific) |
| Element operating temperature | Minimum ~300 °C for active signal |
Safety warnings
- Never probe ECU connector terminals with a sharp object such as a pin or sewing needle — spreading a terminal causes an intermittent fault that is difficult to trace and may require expensive connector replacement.
- Do not disconnect an oxygen sensor connector with the engine running unless using an isolated test harness. Hot-plugging the sensor connection can generate voltage transients that damage the ECU analogue input circuit.
- Allow the exhaust to cool fully before handling sensor wiring near the exhaust pipe — harness insulation melts rapidly if contact is made with hot exhaust components.
- Disconnect the battery negative terminal before repairing or splicing any wiring in the sensor harness to prevent accidental ECU damage from short circuits during repair.
Tools needed
- OBD-II scan tool with live data streaming
- Digital multimeter (DC mV resolution, minimum 1 mV sensitivity)
- Digital storage oscilloscope (minimum 10 MHz, preferred for waveform work)
- ECU back-probe adaptor set
- Oxygen sensor removal socket (22 mm)
- Torque wrench (35–55 Nm range)
- Wire strippers and heat-shrink solder splice connectors
Common mistakes
- Replacing the sensor based on a static signal reading before the engine has fully warmed up — a cold sensor naturally flatlines around 0.45V; this is normal behaviour, not a defect.
- Using an unshielded wire to repair the signal conductor when rerouting it alongside ignition or injector wiring, introducing interference that makes the signal appear erratic even with a good sensor.
- Measuring O2 sensor signal voltage with the multimeter test leads in the resistance or continuity position — the test current injected by the meter in resistance mode can temporarily contaminate the sensing element.
- Interpreting long-term fuel trim values without correlating with the O2 signal switching pattern — a rich long-term trim with a correctly switching O2 sensor usually points to a fuel delivery fault, not an O2 sensor fault.
- Failing to clear fault codes and run a drive cycle after wiring repairs to confirm the repair resolved the fault — some fault conditions require multiple drive cycles to confirm readiness.
Troubleshooting
- Signal flatlines at 0.0V after full warm-up
- Cause: Signal wire shorted to ground, or signal ground wire has continuity fault causing the signal to be pulled low Fix: Disconnect sensor connector. Measure signal wire to chassis ground — should be open circuit. If shorted, trace the harness for chafe damage. Inspect signal ground wire for continuity to chassis; if it has continuity to a power ground point, reroute or repair the isolation fault.
- Signal is correct at idle but drops to lean (0.1–0.2V) under load and stays there
- Cause: Engine running lean under load (fuel delivery fault, vacuum leak, MAF error) rather than O2 sensor fault — the sensor is reading correctly Fix: Check long-term and short-term fuel trim PIDs. A positive (add-fuel) correction during the lean condition confirms a lean fuelling fault rather than O2 wiring. Investigate fuel pressure, injector pulse width, and intake air leaks before condemning the sensor.
- Signal oscillates in noise spikes rather than smooth rich/lean transitions
- Cause: Signal ground voltage offset (shared with power circuit) or signal wire routed alongside high-current switching conductors Fix: Measure signal ground offset relative to battery negative. Reroute signal wire away from fuel injector and ignition circuits. Confirm signal ground connects to the ECU's dedicated sensor ground pin rather than chassis.
Frequently asked questions
How do I confirm the signal wire is intact without a wiring diagram?
With the engine fully warm and running, use a multimeter set to DC millivolts (or a scan tool live PID) to probe the signal wire at the ECU end. You should see voltage switching between roughly 100 mV and 900 mV. A static reading of 0 mV suggests a broken signal wire or shorted signal ground. A static reading near the midpoint (450 mV) after warm-up suggests a failed sensor cell or contamination.
Can a faulty signal ground cause a rich or lean fault code?
Yes. If the signal ground wire has a high-resistance fault or is connected to a ground point with voltage offset, the ECU receives an artificially high or low reference, interpreting the signal incorrectly. This causes long-term fuel trim corrections in the wrong direction and can set lean or rich fault codes without the sensor itself being faulty.
What does a waveform look like on a healthy O2 sensor?
On a digital storage oscilloscope, a healthy narrowband sensor shows an irregular switching waveform moving between roughly 0.1V and 0.9V, crossing 0.45V approximately one to four times per second at idle. The transitions should not be perfectly smooth or sinusoidal — the irregular timing is a sign of active fuel trim correction rather than a problem.
Is the signal ground the same as the heater negative?
No. They share the same connector body but must not be interchanged. The heater negative is a power ground carrying 0.75–4A of heater current. The signal ground carries only microamp-level electrochemical current. Connecting them together introduces noise on the signal ground and corrupts the signal reading.
Why does my scan tool show 0.45V constantly even though the heater tests good?
A signal that is permanently at the midpoint (0.45V) after full warm-up is the classic signature of a contaminated or poisoned sensing element. Silicone-containing gasket sealants, coolant intrusion into the combustion chamber, or excessive fuel additives can coat the zirconia surface. The sensor is no longer responding to oxygen differential — it must be replaced.
