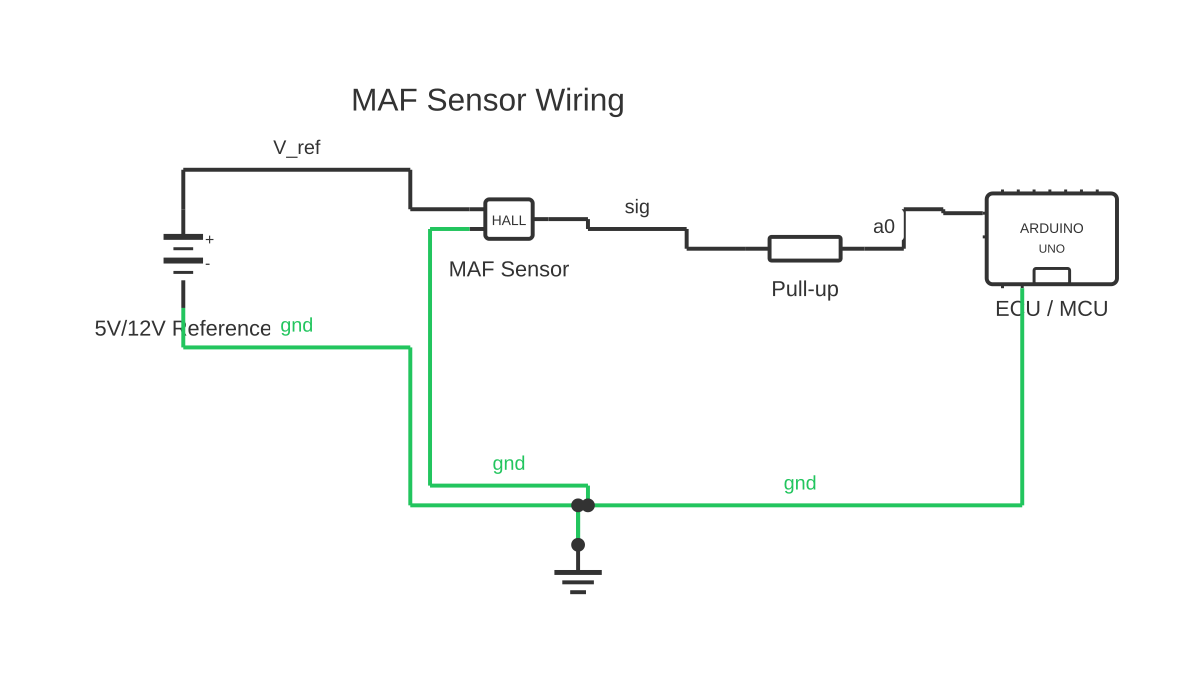

5-Wire MAF Sensor Wiring Diagram
This is a free printable 5 wire maf sensor wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
A 5-wire MAF sensor combines a hot-wire mass airflow measurement element with an integrated intake air temperature sensor, giving the ECU two critical signals through a single connector.
The mass airflow (MAF) sensor is one of the most important inputs to the engine control unit. It measures the actual mass of air entering the intake tract so the ECU can calculate an accurate fuel injection quantity and ignition timing. A 5-wire MAF sensor bundles two sensor functions into one housing: the MAF element itself, and an integral intake air temperature (IAT) sensor.
The five wires serve the following functions. Wire 1 is the 12 V reference supply — a regulated, fused feed from the ECU power relay or the vehicle's switched power distribution. Wire 2 is the sensor ground (signal ground), which is a dedicated low-noise reference return that runs back to the ECU ground rather than chassis earth, keeping voltage offsets out of the signal circuit. Wire 3 is the MAF signal output — a 0–5 V analogue voltage (on older designs) or a frequency/duty-cycle signal (on later designs) proportional to air mass flow rate. Wire 4 is the IAT signal — a variable voltage determined by the thermistor resistance changing with inlet air temperature; as temperature rises, resistance falls and the signal voltage drops (negative temperature coefficient thermistor referenced against a pull-up resistor inside the ECU). Wire 5 is the IAT ground return, which may be a shared sensor ground or a separate reference return depending on the ECU design.
On some platforms, wires 2 and 5 are merged into a single ground return within the sensor housing; this produces what is physically a 4-pin connector but is still described as a 5-function sensor circuit.
The hot-wire MAF element works by heating a fine platinum or nickel alloy wire to a constant temperature above ambient. Higher airflow cools the wire, requiring more current to maintain the set temperature. This current demand (or a derived voltage) is the airflow signal. The element is extremely fragile and fails when contaminated with oil, water, or particulates — one reason why a failed air filter accelerates MAF sensor deterioration.
Wire routing and connector integrity are critical: MAF sensors sit in the intake tract between the air filter housing and the throttle body, exposed to vibration and temperature cycling.
How to wire 5 wire maf sensor wiring diagram
- Locate the MAF sensor and connector The MAF sensor is mounted in the intake ducting between the air filter housing and the throttle body. The connector is usually a 5-pin (or 4-pin with shared grounds) rectangular automotive connector with a locking tab. Refer to the vehicle service manual to confirm the pin count and assignment before testing.
- Disconnect the battery negative terminal Remove the negative battery cable before unplugging or repinning the MAF connector. The MAF sensor is powered from the ECU power relay, so switching off the ignition is not always sufficient — the power relay may remain energised for several seconds after key-off on some vehicles.
- Backprobe the 12 V supply pin Using a piercing probe or a T-tap probe on the sealed connector, measure the supply pin against chassis ground with the ignition on. You should read battery system voltage (12.5–14.4 V). If absent, trace back to the fuse and ECU power relay. Do not measure from this pin to sensor ground pin — a voltage drop between them indicates a wiring fault.
- Check signal ground integrity Measure resistance between the signal ground pin and a known good chassis ground point with the ignition off and battery disconnected. You should read less than 0.5 Ω. Higher resistance indicates a corroded ground path or a broken shield return that will inject noise into both the MAF signal and IAT signal.
- Monitor the MAF output signal with the engine running With the engine running, backprobe the MAF signal pin and observe voltage at idle, then blip the throttle. The voltage (or frequency) should rise sharply with increased airflow and return to idle value within one second. A sluggish or non-responsive signal indicates a contaminated element, failing circuit, or vacuum leak upstream of the sensor.
- Verify the IAT signal Backprobe the IAT signal pin with the engine cold. Compare the voltage reading against the vehicle service manual's temperature-to-voltage chart for the specific sensor. A typical NTC thermistor reads approximately 3.3–4.0 V at 20 °C and drops toward 0.5 V at 80 °C. A stuck high or stuck low voltage indicates a failed thermistor or open/shorted IAT circuit.
Specifications
| MAF sensor supply voltage | 12 V DC nominal (typically regulated or protected by ECU power relay) |
|---|---|
| MAF signal output type | 0–5 V analogue (older designs) or frequency/duty-cycle signal (newer designs); specific type varies by platform |
| Typical MAF voltage at idle (small engine) | 0.8 V–1.2 V (analogue type); confirm against OEM specification |
| IAT thermistor type | NTC (negative temperature coefficient) — resistance decreases as temperature increases |
| Typical IAT signal voltage at 20 °C ambient | Approximately 3.3 V–4.0 V (varies by ECU pull-up resistor value; confirm per service manual) |
| Signal ground resistance to chassis ground | Less than 0.5 Ω (higher values indicate a wiring fault) |
Safety warnings
- This diagram is a general reference only. Actual pin assignments, wire colours, and voltage specifications vary by vehicle make, model, and year. Always verify against the vehicle OEM service manual before testing or replacing any component.
- Disconnect the battery negative terminal before unplugging or repinning the MAF connector. Even with the ignition off, the ECU power relay may hold the supply pin live, creating a risk of short circuit.
- Never touch the hot-wire sensing element inside the MAF sensor. The platinum or nickel alloy wire is extremely fragile — a fingerprint leaves oils that burn onto the element at operating temperature, causing calibration drift or element failure.
- Do not use generic contact cleaner, carburettor cleaner, brake cleaner, or compressed air on the MAF element. Use only a product specifically formulated as MAF sensor cleaner. Other solvents leave residues or cause element damage.
Tools needed
- Digital multimeter with DC voltage and resistance measurement
- Piercing probe or backprobe test leads (to test without unplugging connector)
- Vehicle service manual or OEM wiring diagram (for pin identification)
- Fuse puller
- MAF sensor cleaner spray (if cleaning rather than replacing)
- Terminal release picks (for repinning connectors)
- Oscilloscope or graphing scan tool (for frequency-output MAF signal analysis)
Common mistakes
- Assuming pin 1 is always the power supply — MAF sensor pin numbering and wire colour conventions differ significantly between manufacturers. Always confirm with the vehicle-specific wiring diagram.
- Measuring MAF signal voltage with the engine off — the MAF element requires airflow to produce a meaningful reading. Always test with the engine running and observe the signal response to throttle changes.
- Using brake cleaner or carburettor cleaner to clean the MAF element — these solvents leave residues on the delicate hot-wire that alter its thermal properties and degrade signal accuracy.
- Overlooking the IAT signal when diagnosing a rich-running condition — a shorted or open IAT circuit causes the ECU to substitute a fixed temperature value, resulting in incorrect fuel trims.
- Re-using a damaged or oil-contaminated air filter after cleaning the MAF sensor — the filter is the primary defence against particulate contamination of the MAF element. Always fit a clean filter when servicing the MAF.
Troubleshooting
- Engine runs rich and sets P0101 or P0102 (MAF low circuit or performance)
- Cause: MAF element contaminated with oil (from air filter or crankcase ventilation), broken sensing wire, or corroded connector causing a low or absent output signal Fix: Inspect and clean the MAF element with dedicated MAF sensor cleaner. Check the connector for corrosion and reseat firmly. Verify supply voltage and signal ground integrity. If the signal remains low after cleaning, replace the MAF sensor assembly.
- Rough idle and hesitation with code P0113 (IAT high circuit)
- Cause: Open circuit in the IAT thermistor, broken IAT signal wire, or disconnected IAT ground return; the ECU reads the open-circuit voltage of its internal pull-up resistor as an extremely cold temperature Fix: Backprobe the IAT signal pin and compare against the temperature-voltage table in the service manual. Check IAT ground wire continuity. If the thermistor itself has failed (measure its resistance directly with the sensor unplugged), replace the MAF/IAT assembly.
- Intermittent loss of power with no stored fault codes
- Cause: Intermittent contact on the MAF connector — often the supply or signal ground pins — causes momentary signal dropout that the ECU does not log as a persistent code because the fault clears before the rationality monitor times out Fix: Clean and reseat the MAF connector. Inspect the wiring harness for chafing near the airbox or throttle body. Monitor MAF signal in live data on a scan tool during a road test to catch momentary signal drops.
Frequently asked questions
What are the five wires on a 5-wire MAF sensor?
The five wires are: (1) 12 V power supply, (2) sensor signal ground, (3) MAF analogue or frequency output signal, (4) IAT (intake air temperature) signal, and (5) IAT ground return. On some designs wires 2 and 5 share a common ground within the connector, effectively merging the returns.
Can I clean a MAF sensor, and will it restore the signal?
Yes, provided the hot-wire element is not broken. Use only dedicated MAF sensor cleaner spray — not brake cleaner, carburettor cleaner, or compressed air. Allow it to dry fully before reinstalling. Do not touch the wire element. Cleaning can restore a contaminated sensor but will not repair a broken filament or failed circuit board.
What voltage should I read on the MAF signal wire at idle?
On an analogue voltage-output MAF sensor at idle (small displacement engine at operating temperature), expect approximately 0.8 V to 1.2 V with the engine idling in park. At wide-open throttle the signal approaches 4.5 V to 5.0 V. Frequency-output designs vary by vehicle — always cross-reference against the service manual specification.
What fault codes does a failed or disconnected 5-wire MAF sensor set?
Common codes include P0100 (MAF circuit malfunction), P0101 (MAF performance), P0102 (low circuit), P0103 (high circuit), P0110–P0114 (IAT circuit variants). A disconnected sensor on most modern ECUs causes the engine to run in a default air-mass substitution table, often resulting in rich running, poor fuel economy, and reduced power.
Why does the IAT sensor in the MAF housing read higher than ambient temperature?
Heat soak — after engine shutdown, residual heat from the engine bay raises under-bonnet temperatures well above ambient. The IAT thermistor in the MAF housing absorbs this heat. At a cold start after a hot-soak period, the IAT may read 40–60 °C even though ambient air is cooler. This will temporarily skew fuel trim until the engine settles and air flows through the intake again.
