Changeover Switch Wiring Diagram: Manual Transfer Between Mains and Generator

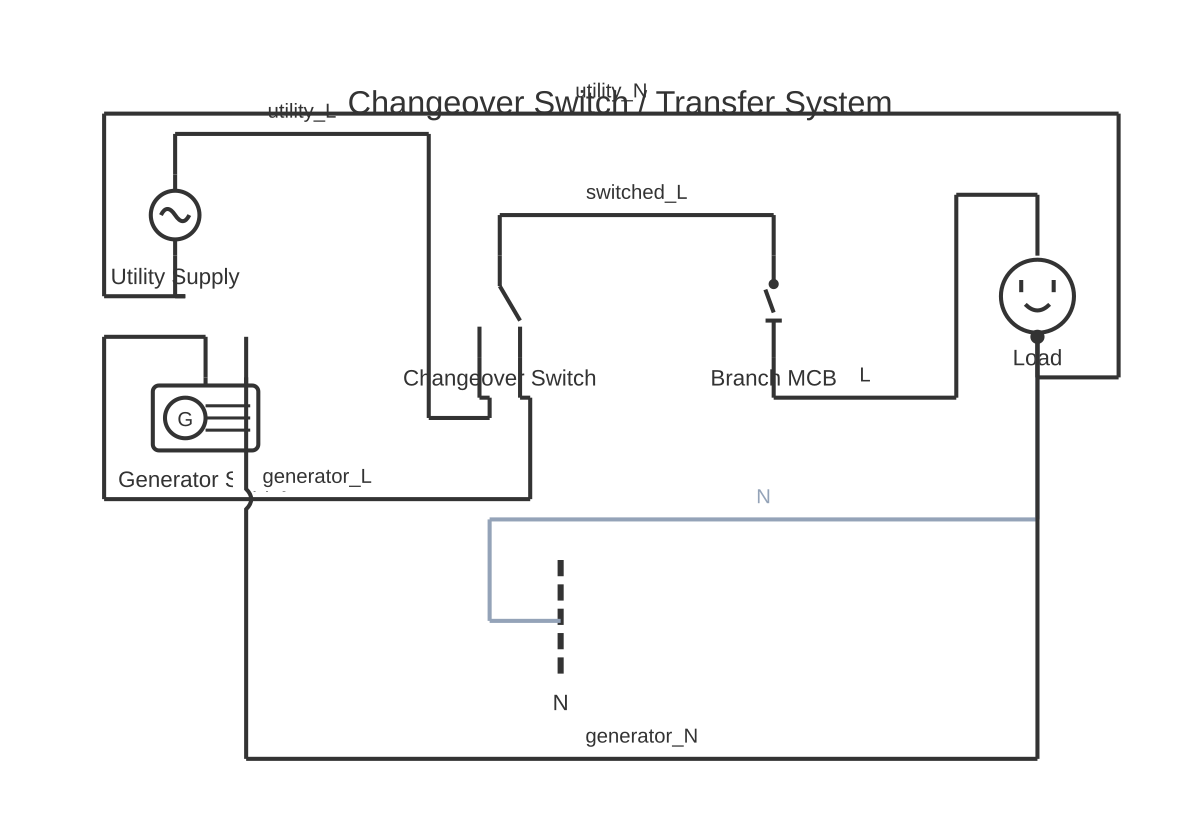

Changeover Switch Wiring Diagram: Manual Transfer Between Mains and Generator — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable changeover switch diagram: download the diagram as SVG or open it and print to paper or PDF.

A changeover switch diagram shows how a manual break-before-make switch safely transfers loads between a mains supply and a generator, preventing simultaneous connection.

A changeover switch (also called a transfer switch or main-generator switch) is a switching device that transfers an electrical load circuit between two supply sources — typically the utility mains supply and a standby generator. The fundamental requirement is that the switch must be break-before-make: it must disconnect from one source completely before connecting to the other, ensuring that the mains supply and generator outputs are never simultaneously connected.

Simultaneous connection of mains and generator would cause the generator to be electrically coupled to the grid. This creates the hazard of islanding — the generator could back-feed the mains network, energising conductors that utility workers consider de-energised. It could also cause phase synchronisation problems that destroy the generator's alternator. For this reason, changeover switches are mechanically designed to have a dead position between the two throw positions, and cannot bridge both sources simultaneously.

A manual changeover switch is typically a robust rotary or double-pole double-throw (DPDT) switch rated for the full load current, presented in a dedicated enclosure between the utility meter/main fuse and the consumer unit or distribution board. The switch has three positions: MAINS (connects utility to load), OFF (isolates both), and GENERATOR (connects generator to load).

In domestic and small commercial applications, the changeover switch is often installed ahead of the main consumer unit and the generator socket (CEE or commando-type weatherproof outlet for portable generators) is wired to the GENERATOR input of the switch. The MAINS input connects from the utility meter tail, and the OUTPUT feeds the consumer unit.

For larger facilities, an automatic transfer switch (ATS) performs the same function automatically: it detects mains failure, starts the generator, waits for stable generator output, and transfers the load. After mains restoration, it retransfers after a confirmation delay. ATSs typically incorporate a time delay before retransfer to allow the generator to run up to stable voltage and frequency.

All changeover switch installations must comply with the applicable wiring regulations and utility requirements. In many jurisdictions, the local distribution network operator must be notified of generator installations that can export to the network. Only a qualified electrician should install a changeover switch.

How to wire changeover switch diagram

Consult the local distribution network operator In many jurisdictions, installing a generator with changeover capability requires notifying or obtaining approval from the local utility (distribution network operator). Verify requirements before planning the installation.
Select a suitable changeover switch Choose a manual transfer switch rated for the installation's full load current, supply voltage, and prospective short-circuit current. The switch must be break-before-make by mechanical design. Select single-phase or three-phase to match the installation.
Plan the installation point The changeover switch must be installed between the utility supply intake (after the meter and main fuse) and the consumer unit or distribution board. It replaces any direct connection from the intake to the consumer unit.
Isolate the supply Contact the utility to disconnect the supply (in many jurisdictions only the utility can isolate at the service fuse). Confirm dead on all conductors with a calibrated voltage tester before any work begins.
Wire the mains input to the switch Connect the utility supply conductors (from the meter tails) to the MAINS input terminals of the changeover switch. Ensure correct phase/line and neutral connections and correct earth bonding.
Wire the generator input to the switch Connect the generator supply cable (from the generator socket or inlet) to the GENERATOR input terminals. The generator cable must be rated for the maximum generator output and appropriately protected.
Wire the output to the consumer unit and test Connect the OUTPUT terminals of the changeover switch to the consumer unit's main switch input. Restore mains supply, test operation in MAINS position, then test with generator running in GENERATOR position. Verify load feeds correctly in each position and that the switch cannot bridge both.

Specifications

Switch operation type	Break-before-make (mandatory — no make-before-break)
Typical current ratings (single-phase)	32 A, 63 A, 100 A
Operating voltage (typical)	230 V single-phase or 400/415 V three-phase
Generator socket type (portable generator)	CEE 17 / IEC 60309 industrial connector, IP44 minimum
Relevant standards	NEC Articles 702 and 445, BS 7671, AS/NZS 3000, IEC 60947
ATS mains restoration confirmation delay (typical)	5–30 seconds (to confirm stable mains return before retransfer)

Safety warnings

A changeover switch that does not enforce break-before-make is a potentially fatal back-feed hazard to utility workers. Only purpose-built, mechanically interlocked manual transfer switches or ATSs must be used. DIY changeover arrangements using individual switches are extremely dangerous.
All changeover switch installations must be carried out by a qualified electrician and must comply with applicable regulations: NEC Articles 702 and 445, BS 7671, AS/NZS 3000, or applicable national standards.
Notify the local distribution network operator before installing a generator connection. Requirements vary by jurisdiction — many require notification, approval, or specific protective devices to prevent back-feed to the network.
Never connect a portable generator by plugging it directly into a socket outlet (back-feeding through the installation). This bypasses all safety devices and creates a back-feed hazard to the network.
Generator exhaust contains carbon monoxide. Generators must be operated outdoors, well away from doors, windows, and ventilation intakes. Never operate a generator in an enclosed space.

Tools needed

Calibrated voltage tester (suitable for installation voltage)
Insulated screwdrivers and torque driver
Wire strippers and crimping tool
Multimeter
Cable management materials
Engraving tool or label printer for switch labelling
Personal protective equipment (insulated gloves)

Common mistakes

Using two separate switches instead of an interlocked changeover switch, allowing both switches to be closed simultaneously and back-feeding the grid.
Not switching the neutral conductor — leaving the neutral connected to mains while the line is switched to generator causes a neutral reference fault.
Installing the changeover switch after the consumer unit main switch rather than at the intake — this leaves the meter tails energised from the generator when the utility supply fails.
Connecting the generator without a transfer switch by plugging into a socket outlet ('backfeeding') — an extremely dangerous and illegal practice in most jurisdictions.
Omitting permanent warning labels on the generator socket and changeover switch, which are required for future safety reference.

Troubleshooting

Loads do not transfer when switch moved to GENERATOR position: Cause: Generator not running, generator output not connected to switch, or generator output voltage/frequency outside load equipment tolerance Fix: Verify generator is running and producing output voltage. Measure generator output voltage at the changeover switch GENERATOR input terminals. Check generator output frequency with a multimeter frequency function.
Mains RCD trips when generator is connected in GENERATOR position: Cause: Generator neutral not bonded or floating, creating a reference shift that causes earth leakage detection Fix: Verify the generator's neutral bonding arrangement. Many portable generators have a floating neutral that requires bonding to earth at the point of use. Consult the generator manual and applicable wiring regulations for the correct arrangement.
Changeover switch position indicator shows MAINS but no supply at consumer unit: Cause: Utility supply failure (unrelated to changeover switch), or supply conductors not correctly connected to switch MAINS input Fix: Verify utility supply is present at the switch's MAINS input terminals. If supply is absent, the fault is upstream in the utility network. If supply is present but not at output, check switch terminal connections and contact integrity.

Frequently asked questions

Why must a changeover switch be break-before-make?

If mains and generator are simultaneously connected, the generator is coupled to the grid. This can back-feed conductors that utility workers consider de-energised, presenting a fatal electrocution hazard. It can also cause severe mechanical and electrical damage to the generator if the voltages are out of phase. Break-before-make construction is a mandatory safety requirement.

Can I use a standard double-pole switch as a changeover switch?

No. A standard switch is not rated for the continuous full load current of the installation, does not have a mechanically enforced break-before-make operation, and typically cannot provide the required isolation between the two supply sources. A properly rated, purpose-built manual transfer switch must be used.

Does the changeover switch need to switch the neutral conductor?

In most installations, both the line and neutral conductors from each source must be switched by the changeover switch. This ensures complete isolation from each source and prevents neutral differences between the two supplies from causing voltage offsets on the load. Some supply authorities may have specific requirements — consult applicable regulations and the network operator.

What rating should a changeover switch be for a domestic installation?

The switch must be rated for the maximum continuous current of the connected loads and the maximum voltage of the supply. For a typical domestic installation, this may be 63 A or 100 A at 230 V (single-phase) or 415 V (three-phase). The switch must also be rated for the prospective short-circuit current at the installation point.

What is an automatic transfer switch (ATS)?

An ATS monitors the mains supply voltage and frequency continuously. On mains failure, it signals the generator to start, waits for stable generator output (voltage and frequency within limits), then automatically transfers the load from mains to generator. On mains restoration after a confirmation delay, it retransfers to mains and signals the generator to stop.
