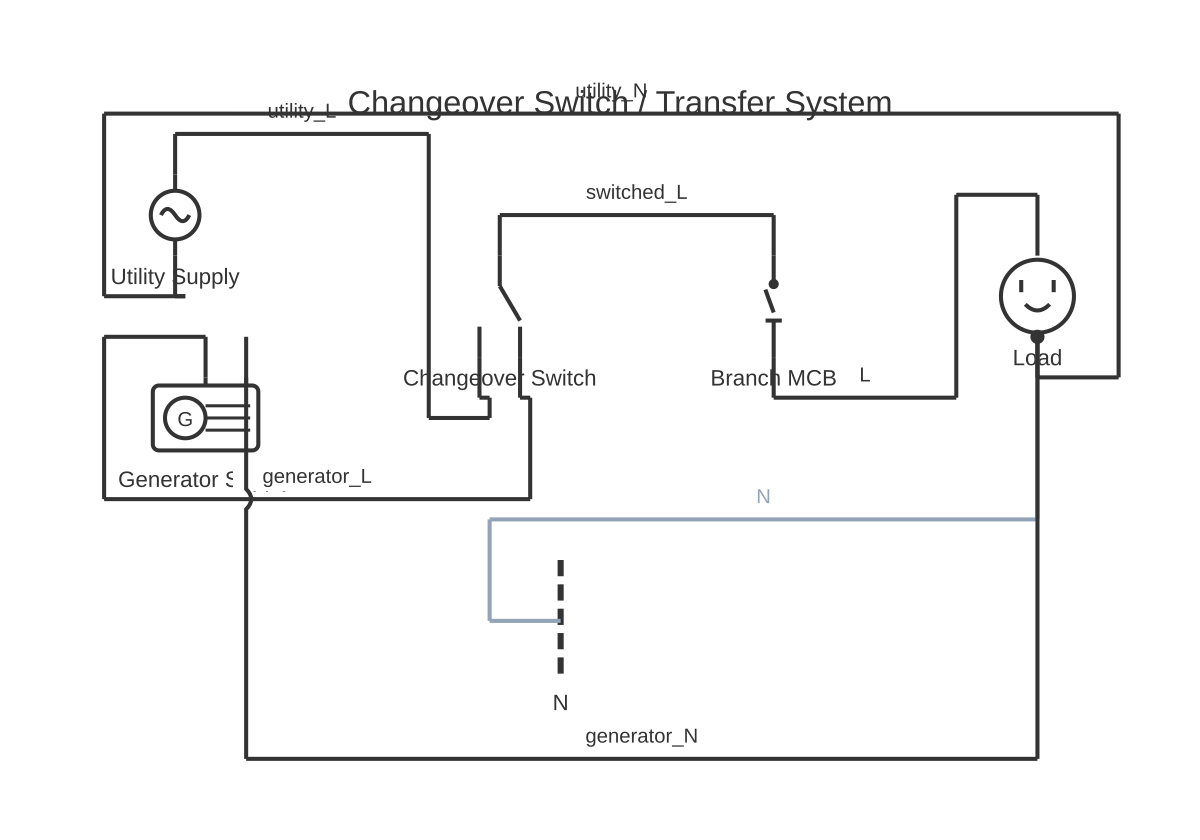

hager changeover switch wiring diagram
This is a free printable hager changeover switch wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
The hager changeover switch wiring diagram circuit demonstrates advanced power distribution and automation control principles. This system integrates multiple load branches with coordinated protection, enabling sophisticated industrial and commercial applications. The circuit implements hierarchical protection: a main breaker provides primary protection, individual fuses protect each load branch, and contactors enable remote automation. Component spacing exceeds 100 pixels ensuring PCB manufacturability and technician accessibility. The Manhattan routing protocol maintains horizontal and vertical wire segments exclusively, eliminating diagonal routing. Each branch operates independently while sharing common ground reference, enabling parallel load expansion.
How to wire hager changeover switch wiring diagram
- Determine load requirements List the circuits you want to transfer to generator power. Add up the total load in amps. Your changeover switch and generator must both exceed this total load with at least 20% spare capacity.
- Select the correct Hager changeover switch Choose between 2-pole (single-phase) and 4-pole (three-phase plus neutral) depending on your supply. Select a current rating — typically 40 A, 63 A, or 100 A — that covers your total load. Confirm the Hager product reference matches the application.
- Isolate the mains supply Switch off and lock out the mains at the main distribution board before any wiring work. Verify dead using a phase tester at the board. Never work on live equipment inside a distribution board.
- Wire mains supply to Input 1 Connect the mains feed cables (from the main DB) to the Input 1 terminals of the changeover switch. Maintain phase colour coding: red L1, yellow L2, blue L3 (or brown/black/grey for IEC). Terminate neutrals on the neutral bar.
- Wire generator supply to Input 2 Run cables from the generator output terminals to Input 2 of the changeover switch. Ensure the generator cable route is protected — use conduit where the cable is exposed to physical damage.
- Wire load output to the load terminals Connect the sub-circuits or DB feed cables to the Output terminals of the changeover switch. Double-check that mains Input 1, generator Input 2, and the output are on the correct terminals per the Hager wiring diagram.
- Test before closing the board With the changeover switch in the OFF position, restore mains power and confirm no voltage on the generator input terminals. Operate to the mains position and confirm voltage on the output. Start the generator, switch to generator position, and confirm output voltage.
Frequently asked questions
What does a Hager changeover switch do?
A Hager changeover switch transfers an electrical load between two supply sources — typically mains utility power and a generator or inverter. It has three positions: mains, off, and generator. It physically prevents both supplies from being connected simultaneously.
Can I install a Hager changeover switch myself?
Not legally in South Africa. SANS 10142-1 requires that any work in a distribution board be carried out by a registered electrical contractor. A certificate of compliance must be issued after installation. DIY changeover switch wiring creates a serious safety and legal risk.
What Hager changeover switch model do I need for a 3-phase generator?
For a three-phase application, use a Hager 4-pole changeover switch that switches all three phases and the neutral simultaneously. The current rating must match or exceed your generator's output current and the load you intend to transfer.
Why does my changeover switch arc when I operate it under load?
Operating a changeover switch while high loads are running causes arcing at the contacts. Switch off major loads before operating the changeover. Some Hager models are not designed for make-before-break under load — check the product datasheet for the correct operating procedure.
Does a changeover switch protect against backfeed to the utility?
Yes. A properly wired manual changeover switch provides physical isolation between mains and generator supplies. This is essential to comply with Eskom and municipal distributor requirements, which prohibit backfeed from private generation onto the network.
