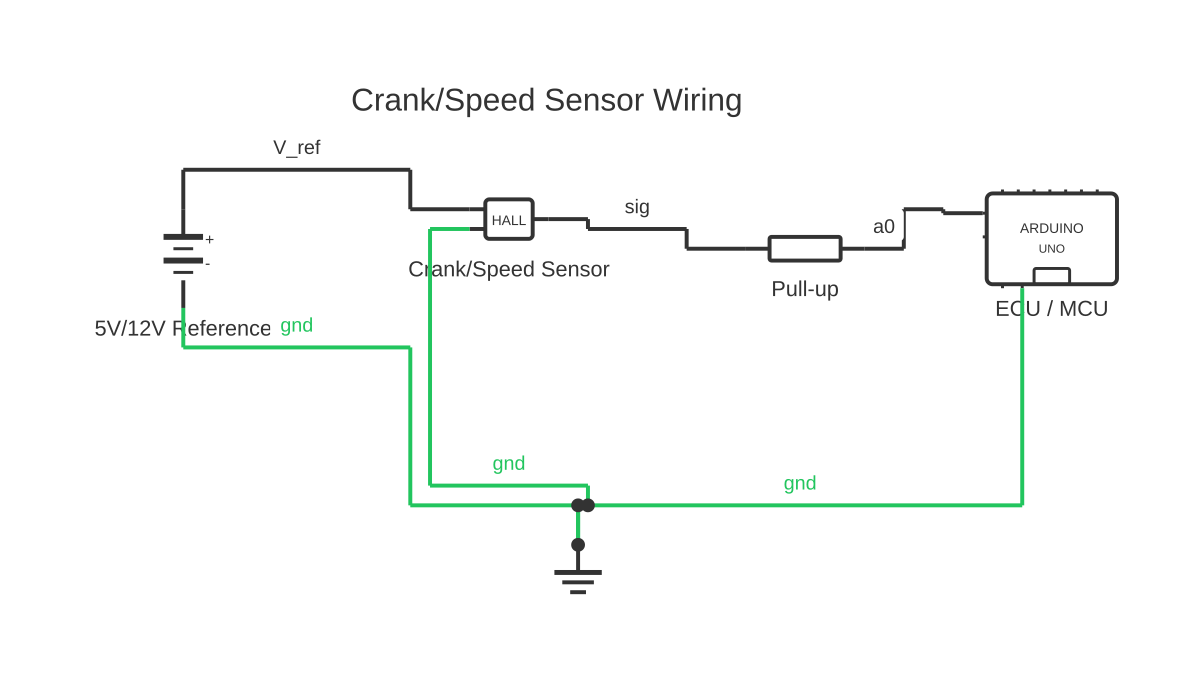

A crankshaft position (CKP) sensor wiring diagram shows how the sensor's signal, power, and ground pins connect to the engine control module — differing fundamentally between the 2-wire variable reluctance (VRS) type and the 3-wire Hall effect type.

The crankshaft position sensor (CKP, also known as the crank angle sensor or crank sensor) is one of the most critical inputs to the engine control module (ECM). It provides the signal from which the ECM calculates engine speed (RPM) and crankshaft angular position — information required for ignition timing, fuel injection timing and duration, and misfire detection. A fault in the CKP sensor or its wiring is one of the most common causes of a no-start or intermittent stall condition.

Two fundamentally different sensor technologies are in common use, and their wiring diagrams are different:

A variable reluctance sensor (VRS, also called a magnetic inductive sensor, passive sensor, or reluctance sensor) generates its own AC voltage signal as the teeth of a reluctor wheel (toothed ring on the crankshaft) pass the sensor tip. The changing magnetic flux induces a voltage in the sensor coil. A VRS sensor has only TWO wires — a signal wire and a signal return (ground reference). It requires no external power supply. The output is a sinusoidal AC voltage whose amplitude increases with engine speed (typically millivolts at cranking, several volts at operating speed) and whose frequency is proportional to RPM. The ECM detects the zero-crossing points of this waveform to determine position. Because the signal amplitude is low at cranking speeds, VRS sensors can sometimes fail to produce a signal strong enough for the ECM to detect when cold or when the reluctor ring gap is not within specification. Polarity matters — reversing the two wires on a VRS sensor inverts the signal, shifting the apparent position reference by half a tooth pitch and causing ignition/injection timing errors.

A Hall effect sensor (also called an active sensor) uses a semiconductor Hall element, typically with onboard signal conditioning electronics, to output a switched DC voltage signal — usually a square wave alternating between approximately 0.5 V (low) and the supply voltage minus a small drop (typically 4.5–5 V high). A Hall effect CKP sensor has THREE wires: a power supply (5 V or 12 V, supplied by the ECM or a reference voltage circuit), a ground, and a signal output. The signal is clean, digital, and consistent at all engine speeds — including very low cranking speeds where a VRS sensor struggles. Many modern engines use Hall effect CKP sensors for these reasons.

A third type — the magnetoresistive (GMR) sensor — is increasingly used in modern engines. Like the Hall effect sensor, it is a 3-wire active type but uses a different internal sensing element. Its wiring is similar to the Hall type.

Identifying which type is installed is critical before attempting diagnosis or replacement. The number of wires in the connector and the sensor's physical characteristics (usually labelled or identifiable by the manufacturer's service information) determine which type it is. Substituting a VRS-type replacement for a Hall effect sensor (or vice versa) will cause a no-start condition even if the physical connector matches.

How to wire crank sensor wiring diagram

Identify the sensor type and connector pin assignment from service documentation Obtain the vehicle-specific wiring diagram from the manufacturer's service information, a reputable aftermarket source, or a professional scan tool with wiring diagram data. Identify the sensor type (VRS or Hall effect), the connector pin numbers, and the function of each wire (signal, ground, supply). Do not rely on generic 'crank sensor diagrams' from unknown sources — pin assignments vary between manufacturers, models, and engine generations.
Disconnect the vehicle battery negative terminal Disconnect the battery negative terminal before disconnecting or reconnecting the sensor connector or performing any wiring work on the circuit. This prevents accidental short circuits in the 5 V reference circuit (which can damage the ECM reference voltage regulator) and prevents ECM fault codes from being set due to open-circuit detection during work. Wait at least 60 seconds after disconnection before working if the vehicle has airbag systems, to allow SRS capacitors to discharge.
Locate the sensor and inspect the connector Locate the crankshaft position sensor — typically mounted on the engine block facing the crankshaft reluctor ring (timing wheel) near the bottom of the engine, or on the transmission bellhousing on some designs. Inspect the connector for corrosion (green or white deposits on the terminals), bent or pushed-back terminals, and damaged wiring insulation from heat exposure near the exhaust. Corrosion and heat-damaged connectors are a very common cause of intermittent CKP faults.
Test supply voltage and ground (Hall effect sensor only) Reconnect the battery. With the ignition on (engine not running), back-probe the sensor connector at the supply pin and measure voltage to chassis ground — should be 5 V (ECM reference supply) or 12 V (battery supply), as specified for the sensor type. Back-probe the ground pin and measure to chassis ground — should be less than 0.1 V. An absent or low supply voltage indicates a fault in the ECM reference voltage circuit, a broken supply wire, or a damaged ECM output.
Test the sensor signal output during cranking With an oscilloscope or a multimeter set to AC volts (for VRS) or DC volts with min/max function (for Hall effect), back-probe the signal wire. Crank the engine while observing the signal. A VRS sensor should produce a sinusoidal AC waveform at cranking speed. A Hall effect sensor should produce a square wave alternating between approximately 0.5 V and the supply voltage. No signal, or a signal that disappears intermittently, indicates a sensor fault, a broken wire, or a damaged reluctor ring.
Replace sensor and verify air gap if applicable When replacing the sensor, check if the specification requires setting an air gap between the sensor tip and the reluctor wheel teeth. Some VRS sensors require a specified gap (typically 0.5–1.5 mm) set with feeler gauges. Many modern sensors have a fixed mounting position and self-set the gap when the mounting bolt is tightened — but verify against the service manual. An incorrect air gap on a VRS sensor reduces signal amplitude and causes weak or absent signals at low cranking speeds.

Specifications

VRS sensor coil resistance (typical range)	200–2 000 Ω (application specific — verify from service manual)
Hall effect sensor supply voltage	5 V (ECM reference) or 12 V (battery reference), application specific
Hall effect sensor output voltage — HIGH	Approximately 4.5–5 V (active high) or supply minus small drop
Hall effect sensor output voltage — LOW	Approximately 0.1–0.5 V
VRS sensor air gap (typical)	0.5–1.5 mm (application specific — many modern sensors are self-locating)
Common fault codes	P0335 (CKP sensor A circuit malfunction), P0336 (CKP sensor A range/performance), P0337, P0338
Reluctor wheel tooth count (typical)	36-1, 60-2, or application-specific (defines RPM calculation resolution)

Safety warnings

Always disconnect the vehicle battery negative terminal before disconnecting sensor connectors or performing wiring repairs on the vehicle electrical system. Failure to do so risks short circuits that can damage the ECM (engine control module) — an expensive component — and risks personal injury from sparks in the engine bay near fuel vapour.
When working near a hot engine, allow the engine to cool to a safe temperature before reaching into the engine bay near exhaust manifolds, coolant hoses, or the crankshaft area. Exhaust components can remain dangerously hot for 30–60 minutes after engine shutdown.
Do not use a test lamp (incandescent type) to probe Hall effect sensor wiring or ECM sensor reference circuits. The current drawn by a test lamp can damage the ECM's 5 V reference regulator. Use a high-impedance digital multimeter (10 MΩ input impedance or greater) or an oscilloscope for all sensor circuit testing.
When performing electrical fault diagnosis near the battery, be aware that automotive batteries produce hydrogen gas during charging and can cause explosion if ignited by a spark. Do not smoke, use open flames, or create sparks near the battery.
If the vehicle has been in a collision, inspect the crankshaft reluctor ring and the CKP sensor mounting area for physical damage before attributing a no-start condition to a sensor fault. Reluctor ring damage (bent or missing teeth) produces plausible CKP fault codes but is a mechanical fault requiring engine or crankshaft repair.

Tools needed

Digital multimeter (high-impedance, 10 MΩ input impedance minimum)
Oscilloscope or graphing multimeter (for waveform capture of CKP signal during cranking)
OBD-II scan tool (for reading fault codes P0335, P0336, etc.)
Back-probe leads or piercing probes (for non-destructive connector pin testing)
Feeler gauges (for air gap measurement where applicable)
Torque wrench (for sensor bolt tightening to specification)
Contact cleaner aerosol
Vehicle-specific wiring diagram and service manual

Common mistakes

Replacing the CKP sensor without inspecting the reluctor wheel for missing or damaged teeth — a damaged reluctor wheel produces the identical fault code and symptoms as a failed sensor, and sensor replacement does not resolve the fault.
Installing a new sensor without cleaning or repairing a corroded connector — the new sensor fails within weeks because the corrosion in the connector continues to degrade the connection, and the fault returns.
Reversing the two wires on a VRS sensor, inverting the signal polarity and causing timing reference offset — an error that produces poor running rather than a clean no-start, making diagnosis difficult.
Testing the Hall effect sensor supply pin with an incandescent test lamp instead of a digital multimeter — the lamp loads the 5 V reference voltage circuit sufficiently to damage the ECM reference regulator.
Assuming a CKP code means the sensor has failed — the fault code P0335/P0336 indicates a circuit malfunction, which can be caused by a faulty sensor, a wiring fault (open circuit, short to ground, short to voltage), a damaged reluctor wheel, or a faulty ECM. Test the circuit systematically rather than replacing the sensor as a first response.
Using non-heat-resistant insulation tape or standard silicone RTV to repair wiring in the CKP sensor pigtail near the exhaust — standard PVC tape melts and fails within hours in high-heat locations, re-exposing the repair.

Troubleshooting

No-start with fault code P0335 (CKP sensor circuit malfunction): Cause: Open circuit in sensor wiring, failed sensor, no supply voltage at Hall sensor (blown ECM fuse or damaged reference circuit), or severely damaged reluctor wheel with no usable signal Fix: Step 1: Check for ECM fuse damage (fuse supplying CKP sensor reference if applicable). Step 2: Verify supply voltage (Hall type) and ground at the connector. Step 3: Measure sensor coil resistance (VRS type) — open circuit confirms failed sensor. Step 4: Inspect reluctor wheel for mechanical damage. Step 5: Replace sensor only after confirming supply, ground, and wheel are sound.
Intermittent stalling when engine reaches operating temperature: Cause: Thermal intermittent failure in the sensor — internal coil wire fractures at elevated temperature causing an open circuit; or heat-damaged connector insulation creating an intermittent open under heat expansion Fix: Reproduce the fault by warming the engine to operating temperature and operating the vehicle. If the stall or fault code correlates with engine temperature, inspect and replace heat-damaged wiring in the sensor pigtail. If the wiring is sound, replace the sensor — thermal intermittent failure of the internal coil is confirmed by the temperature correlation.
Misfires at a specific RPM range, no fault code stored initially: Cause: Damaged reluctor wheel with a missing or bent tooth producing a spurious signal at the RPM where the damaged tooth completes one revolution per ignition or injection event; or a weak VRS sensor with incorrect air gap producing a marginal signal at mid-range RPM Fix: Inspect the reluctor wheel with the engine stationary — turn the crankshaft by hand (using a breaker bar on the crank bolt) and visually inspect all teeth through the sensor mounting aperture. Measure the sensor air gap with feeler gauges if accessible and adjustable. An oscilloscope of the CKP signal at the misfire RPM will show a missing or distorted pulse corresponding to the damaged tooth.

Frequently asked questions

How do I tell if my crankshaft position sensor is Hall effect or variable reluctance?

Count the wires in the sensor connector: a 2-wire connector with no power supply wire indicates a variable reluctance (VRS/passive) sensor. A 3-wire connector — power supply, ground, and signal — indicates a Hall effect (active) sensor. Confirm against the vehicle-specific service manual, as some 3-wire sensors have a shield or reference ground rather than a supply, making visual inspection alone unreliable. Test with a multimeter: a Hall sensor should show approximately 5 V (or 12 V) on the supply pin with the ignition on.

Does polarity matter when wiring a variable reluctance crank sensor?

Yes — polarity is critical on a VRS sensor. The two wires define which direction the generated AC waveform appears. Reversing the signal and signal-return wires inverts the waveform, shifting the zero-crossing reference by half a tooth pitch. On a crank sensor, this can cause ignition and injection timing to be offset, resulting in poor running, misfires, or a no-start condition. Always verify correct polarity from the vehicle wiring diagram before completing installation.

What voltage should I measure on the signal wire of a Hall effect crank sensor?

With the ignition on and the engine stationary, the Hall sensor signal output should be at a stable logic high or logic low state (approximately 5 V or 0.5 V, depending on the position of the reluctor wheel tooth or gap in front of the sensor at rest). As the engine cranks, the signal wire should switch between approximately 0.5 V and 4.5–5 V at a frequency proportional to cranking speed. A steady voltage that does not switch during cranking indicates a sensor or reluctor wheel fault.

Can I test a crank sensor with a standard multimeter?

A VRS sensor can be tested for coil resistance (typically 200–2 000 Ω, depending on design) and for insulation between the coil and the sensor body. A Hall effect sensor can be tested for supply voltage (5 V or 12 V at the supply pin with ignition on) and ground (0 V at the ground pin). However, confirming correct sensor output requires cranking the engine while measuring the signal pin with a DC voltmeter or an oscilloscope — a multimeter may not respond fast enough to capture individual switching events during cranking.

What are the symptoms of a faulty crankshaft position sensor?

Common symptoms include: no-start (the ECM cannot calculate injection or ignition timing without a CKP signal); intermittent stalling or stalling when the engine reaches operating temperature (thermal expansion causing an intermittent open circuit in the sensor or connector); misfires at specific RPM (sensor damage or reluctor ring damage causing missed or erratic pulses); and illuminated check engine light with fault codes such as P0335 (CKP circuit malfunction) or P0336 (CKP range/performance) stored in the ECM.
