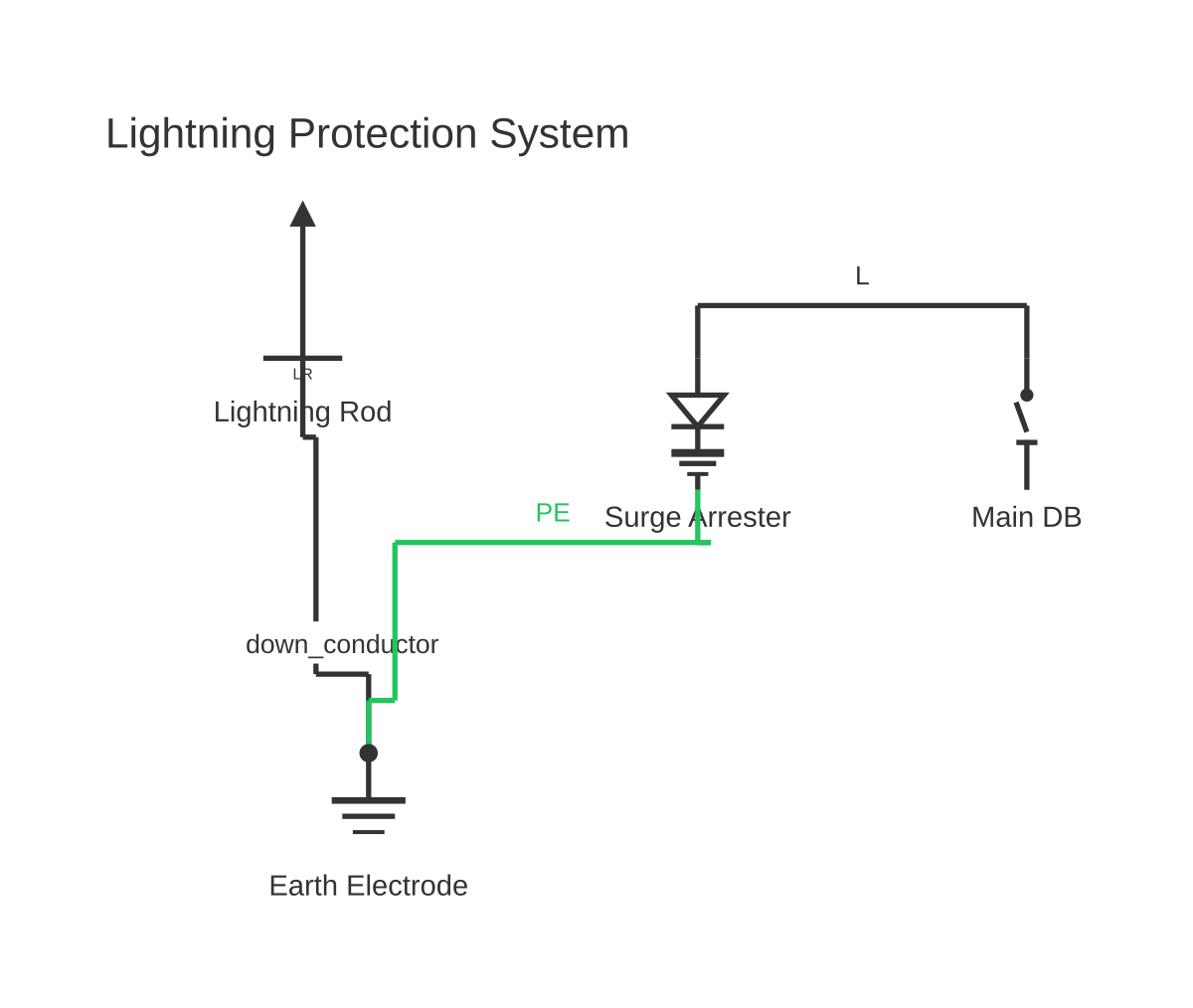

Diagram of a Lightning Conductor System
This is a free printable diagram of lightning conductor: download the diagram as SVG or open it and print to paper or PDF.
A lightning conductor system diagram illustrates how an air terminal (rod), down conductor, and earth electrode work together to intercept a lightning strike and safely dissipate its energy into the ground, protecting a structure and its occupants.
A lightning protection system (LPS) provides a low-resistance, preferred path for lightning current to flow from the point of strike to earth, bypassing the structure and its occupants. The system is divided into three interconnected subsystems.
The air-termination network (air terminals) sits at the highest points of the structure — ridges, corners, parapets, and any elevated metallic objects. Traditional Franklin rods (pointed copper or aluminium spikes, typically 250–500 mm tall) are the most common type. The protection zone each rod covers is defined by the rolling-sphere method, the protective angle method, or the mesh method, depending on which standard applies (IEC 62305, BS EN 62305, NFPA 780, or AS/NZS 1768).
Down conductors connect the air-termination network to the earth-termination network. They must follow the most direct practicable vertical path, with minimum bending radius maintained to reduce inductance. A minimum of two down conductors is required on most structures to split the current and reduce the risk of side-flash. Current test clamps (disconnection links) are installed at each down conductor base, just above ground level, to allow earth electrode resistance measurement without disconnecting the system.
The earth-termination network dissipates the lightning charge into the soil. Common electrode types include vertical driven rods (typically 16 mm diameter copper-bonded steel, 2–3 m long), horizontal ring electrodes buried at ≥0.5 m depth around the structure perimeter, and foundation (Ufer) electrodes embedded in reinforced concrete. Earth electrode resistance targets vary by standard — IEC 62305 recommends ≤10 Ω measured at each down conductor.
Bonding of all internal metalwork, pipework, and electrical earth is mandatory to prevent dangerous potential differences (touch voltages) inside the building during a strike. Surge protection devices (SPDs) protect electrical and electronic equipment from conducted and induced transient overvoltages associated with a lightning event.
How to wire diagram of lightning conductor
- Conduct a risk assessment Determine the Lightning Protection Level (LPL I–IV under IEC 62305-2 or equivalent) based on structure type, annual ground flash density, and consequence of failure. This sets the design parameters for all components.
- Design the air-termination network Using the rolling-sphere, protective-angle, or mesh method, identify all exposed points on the roof and position air terminals (rods, conductors, or mesh) to ensure full coverage. Existing elevated metalwork (HVAC units, antennae masts) may serve as natural components if suitably bonded.
- Plan and install down conductors Route a minimum of two down conductors symmetrically around the structure exterior, following the most direct vertical path. Avoid sharp bends less than the minimum bend radius specified in the standard. Fix conductors to the structure at intervals ≤1 m (vertical) and ≤0.5 m (horizontal).
- Install earth electrodes and measure resistance Drive or bury electrodes at each down conductor base. Use the current-test clamp (disconnection link) and a calibrated earth-resistance tester (fall-of-potential or clamp method) to verify resistance. Add parallel rods or a ring electrode if results exceed the target.
- Bond all metallic services and structural metalwork Connect all metal pipes, cable trays, structural steelwork, and the main electrical earthing terminal to the LPS equipotential bonding bar. Bond at the point of entry to the building and at the base of the structure.
- Install surge protective devices on incoming services Fit Type 1 SPDs at the main distribution board on each incoming service (power, telecommunications, data). Type 2 and Type 3 SPDs provide additional protection closer to sensitive equipment.
- Inspect, test, and document the installation Carry out a full visual inspection and electrical test of all connections, continuity of conductors, and earth resistance. Issue a certificate of compliance per the applicable standard and schedule periodic re-inspections (typically every 1–4 years depending on LPL).
Specifications
| Minimum down conductor cross-section (copper) | 50 mm² (IEC 62305-3) |
|---|---|
| Minimum earth electrode depth (top of electrode) | ≥0.5 m below finished ground level |
| Target earth electrode resistance | ≤10 Ω (IEC 62305-3 recommendation) |
| Minimum number of down conductors (most structures) | 2 |
| Down conductor fixing interval (vertical) | ≤1 m |
| Air terminal rod diameter (minimum) | 8 mm (copper or aluminium alloy) |
| Rolling-sphere radius — LPL II | 30 m (IEC 62305-3) |
| Inspection interval (typical residential, LPL III–IV) | Every 4 years visual; every 4 years full test (IEC 62305-3) |
Safety warnings
- Lightning protection system design and installation must be carried out by a qualified lightning protection engineer or contractor in accordance with the applicable national standard (IEC 62305, BS EN 62305, NFPA 780, or AS/NZS 1768). Incorrectly designed or installed systems can increase risk by creating preferred strike points without providing a safe discharge path.
- Never use copper conductors and aluminium conductors in direct metallic contact without an appropriate bimetal connector; galvanic corrosion will destroy the joint and break the protective path.
- Earth electrode resistance must be measured and documented. A high-resistance earth (>10 Ω) results in dangerous potential rise across the building during a strike, increasing risk of side-flash and step-voltage injuries.
- Equipotential bonding is not optional. Failure to bond all metallic services (gas pipes, water pipes, structural steel) to the LPS creates lethal potential differences during a strike — even in an adjacent building served by the same utility.
- Never shelter under or near a lightning conductor down conductor, air terminal, or isolated tree during a thunderstorm. The LPS reduces structural risk but does not eliminate danger in the immediate vicinity of a conductor carrying lightning current.
Tools needed
- Earth resistance tester (fall-of-potential method or clamp-on type)
- Continuity tester / low-resistance ohmmeter
- Copper conductor crimping tool and hydraulic compression tool (for larger conductors)
- Ratchet cable cutter rated for the conductor cross-section
- Hammer drill and masonry bits for wall fixings
- Torque wrench for terminal and clamp tightening
- Safety harness and fall-arrest equipment for roof work
- Calibrated tape measure
Common mistakes
- Installing only one down conductor on a large structure, forcing all lightning current through a single path and increasing side-flash risk.
- Making sharp 90° bends in down conductors; high-frequency lightning current tends to arc across sharp bends, potentially damaging the structure.
- Omitting equipotential bonding to gas or water pipework entering the building, leaving live potential gradients that are dangerous to occupants during a strike.
- Using un-rated or corroded clamps and connectors that appear intact visually but have high resistance at impulse frequencies, degrading the system's protective performance.
- Failing to re-test earth electrode resistance after construction work, landscaping, or drought conditions change soil resistivity around the electrodes.
Troubleshooting
- Earth electrode resistance exceeds target (>10 Ω)
- Cause: Dry or high-resistivity soil, insufficient electrode depth or length, corroded electrode Fix: Drive additional parallel electrodes spaced at least twice their length apart. Consider a ring electrode or chemical earth enhancement compound. Measure again after rainfall to distinguish soil-dryness from a genuine electrode fault.
- Discontinuity found in down conductor continuity test
- Cause: Corroded clamp joint, mechanical damage to conductor, or missing section Fix: Identify the open section by progressive resistance measurement. Replace corroded clamps with new tinned-copper or bimetal clamps. Ensure all mechanical joints are torqued to the manufacturer's specification.
- Evidence of side-flash arcing on structure after a strike
- Cause: Inadequate bonding of internal metalwork, or separation distance between down conductor and metal elements was insufficient Fix: Review and complete equipotential bonding of all metallic elements. Calculate required separation distances per IEC 62305-3 and either increase physical separation or install bonding conductors to eliminate the gap.
- Air terminal physically damaged or displaced
- Cause: Mechanical impact, corrosion at base, or inadequate fixing Fix: Replace the terminal immediately — a damaged or missing air terminal creates an unprotected zone. Use a stainless steel or copper terminal with a correctly rated base clamp fixed into structural masonry or steel, not just cladding.
Frequently asked questions
What does a lightning conductor actually do?
It provides a low-resistance conductive path from the point where lightning attaches to the structure (or a preferred interception point above it) down to the earth electrode. This allows the large transient current (typically 20–200 kA peak) to flow harmlessly into the ground rather than through the structure.
How deep must the earth electrode be buried?
IEC 62305 and most national standards require the top of the earth electrode to be at least 0.5 m below ground level to ensure contact with moist soil and reduce touch-voltage risk. Driven vertical rods are typically 2–3 m long. Greater depth or multiple rods in parallel reduce resistance in high-resistivity soils.
Why are at least two down conductors required?
Two or more down conductors share the lightning current, reducing the peak current and magnetic field in each conductor. Multiple paths also reduce the risk of arcing (side-flash) to internal metalwork and lower the potential rise on any single down conductor, improving personnel safety.
What is the rolling-sphere method used to determine?
The rolling-sphere method is a geometric technique for establishing the protection zone of an air-termination network. An imaginary sphere of defined radius (20–60 m depending on protection level) is rolled over and around the structure; any point the sphere touches is potentially exposed and requires an air terminal above it.
Are surge protectors part of a lightning protection system?
Surge protective devices (SPDs) are a separate but complementary measure, forming the internal LPS. They protect electrical and electronic equipment from transient overvoltages conducted via power, data, or signal cables during a nearby or direct strike. SPDs alone do not provide structural lightning protection.
