Dual Battery Setup Diagram

Dual Battery Setup Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable dual battery setup diagram: download the diagram as SVG or open it and print to paper or PDF.

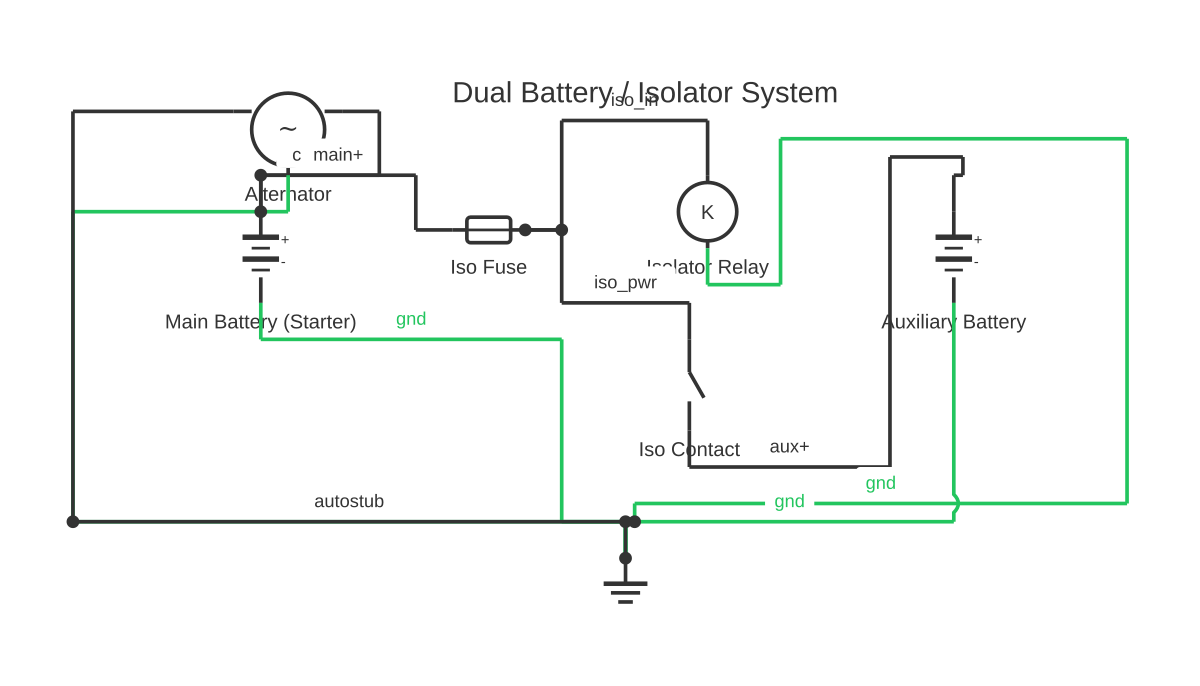

Reference diagram for a dual battery setup using a voltage-sensitive relay (VSR) or DC-DC battery-to-battery charger to isolate and charge an auxiliary battery from a vehicle alternator.

A dual battery setup allows a vehicle to carry a second (auxiliary) battery that charges from the alternator while the engine runs, but remains electrically isolated from the starter battery when the engine is off. This prevents the auxiliary loads — fridges, lighting, camp power, marine electronics — from discharging the starter battery and leaving the vehicle unable to start.

Two primary isolation methods are used in practice:

1. Voltage-Sensitive Relay (VSR): also called a battery isolator relay or smart solenoid. The VSR monitors the starter battery voltage. When voltage rises above the connect threshold (typically approximately 13.3 V DC, indicating the alternator is charging), the relay closes and connects the auxiliary battery in parallel with the starter battery, allowing both to charge from the alternator. When voltage drops below the disconnect threshold (typically approximately 12.8 V DC, indicating the engine has stopped or the alternator is no longer charging), the relay opens and isolates the two batteries. VSRs are simple, low-cost, and effective with conventional lead-acid and AGM batteries. Their limitation is that they cannot intelligently manage charging profiles, and connecting dissimilar battery chemistries (e.g. lithium auxiliary to AGM starter) via a VSR can cause issues.

2. DC-DC Battery-to-Battery Charger: a switched-mode DC-DC converter that takes input from the starter battery/alternator output and delivers a controlled, multi-stage charging profile to the auxiliary battery. This is the correct approach when: the auxiliary battery is a lithium (LiFePO4) type requiring a specific charge profile; modern vehicles have variable-voltage alternator management (Euro 6/BS6 engines with ECU-controlled alternators that output variable voltage rather than a steady 14.4 V); or when long cable runs require voltage compensation. DC-DC chargers are more expensive than VSRs but are increasingly necessary in modern vehicles.

Core wiring: Both methods require correctly fused, adequately sized cables. The positive cable from the starter battery to the isolator/charger carries the full charging current and must be fused at the source (at the starter battery positive terminal). The auxiliary battery positive to the isolator must also be fused. Negative conductors are typically shared via the vehicle chassis for VSR setups, or run as a dedicated cable in DC-DC charger installations.

All wiring must comply with applicable vehicle electrical standards and national codes. Disconnect the vehicle battery before commencing installation.

How to wire dual battery setup diagram

Disconnect the vehicle's starter battery before starting Disconnect the negative terminal of the starter battery first. This de-energises the vehicle's electrical system and prevents short circuits during installation. Never work on vehicle wiring with the battery connected.
Plan cable routing and mounting location Determine where the VSR or DC-DC charger will be mounted — ideally close to the starter battery to minimise cable length on the high-current input side. Plan cable routes avoiding hot engine components, sharp edges, and moving parts. Allow for firewall penetrations to be grommeted.
Install the auxiliary battery in its mounting location Secure the auxiliary battery in a dedicated battery box or tray with a retaining strap or bracket. Batteries in vehicles must be restrained against movement in all directions. In enclosed spaces, ensure adequate ventilation for lead-acid or AGM batteries that can vent hydrogen during charging.
Connect the positive cable from the starter battery to the isolator Run the positive cable from the starter battery positive terminal to the input terminal of the VSR or DC-DC charger. Fit an appropriately rated fuse holder and fuse within 300 mm of the starter battery positive terminal. Use cable with a current rating exceeding the maximum isolator input current.
Connect the positive cable from the isolator to the auxiliary battery Run the positive cable from the output terminal of the VSR or DC-DC charger to the auxiliary battery positive terminal. Fit a fuse within 300 mm of the auxiliary battery positive terminal. Both positive cables must be individually fused.
Connect the ground conductors For a VSR installation: connect the VSR ground to the chassis at a clean bare-metal point. The auxiliary battery negative can earth to the vehicle chassis or run a dedicated negative cable back to the starter battery negative terminal (preferred for reliability). For a DC-DC charger: run dedicated negative cables as specified by the charger manufacturer.
Connect any auxiliary load distribution and verify operation Connect auxiliary loads (fridge, lighting, inverter) to the auxiliary battery, not the starter battery. Reconnect the vehicle battery. Start the engine and measure auxiliary battery voltage with a multimeter — it should rise above 13 V within a few minutes if the isolator or charger is operating correctly. Verify the VSR connects (LED indicator or audible click) or the DC-DC charger's charge indicator activates.

Specifications

VSR connect threshold (typical)	Approximately 13.3 V DC (alternator charging detected)
VSR disconnect threshold (typical)	Approximately 12.8 V DC (engine off / alternator not charging)
Fuse placement requirement	Within 300 mm of each battery positive terminal on all positive cables
Recommended cable type	Multi-strand tinned copper DC cable (marine grade or automotive grade)
Maximum acceptable voltage drop (cable)	0.5 V or less at maximum current (both ways on the circuit)
Auxiliary battery chemistry options	Flooded lead-acid, AGM, gel, LiFePO4 (lithium iron phosphate)

Safety warnings

Always disconnect the vehicle's starter battery negative terminal before commencing any dual battery wiring work. Working on vehicle wiring with the battery connected risks short circuits, sparks, and fire.
Fuse both positive cables (input and output) within 300 mm of the respective battery terminals. An unfused or remotely fused cable is a fire hazard if it shorts anywhere between the battery and the fuse.
Never mount batteries in enclosed spaces without adequate ventilation. Lead-acid and AGM batteries emit hydrogen gas during charging — hydrogen is explosive at low concentrations.
Vehicle batteries contain sulphuric acid (lead-acid/AGM) or lithium chemistry (LiFePO4). Handle with appropriate PPE — safety glasses and chemical-resistant gloves. Never short battery terminals.
All vehicle electrical modifications should comply with applicable vehicle electrical standards and national codes. In some jurisdictions, significant vehicle electrical modifications may affect roadworthiness certification.

Tools needed

Digital multimeter (DC voltage and current measurement)
Wire strippers and cable lug crimping tool
Insulated ring terminals and cable lugs (correctly sized for cable and terminal post)
Inline fuse holders and appropriate fuses
Cable ties and split loom conduit for cable protection
Drill and cable grommet set (for firewall penetrations)
Safety glasses and chemical-resistant gloves

Common mistakes

Using a VSR with a lithium (LiFePO4) auxiliary battery — lithium batteries require a specific charge profile that a VSR cannot provide.
Omitting one or both inline fuses on the positive cables — if the cable shorts, the only protection is the fuse. Unfused cables connecting to batteries are a fire risk.
Using undersized cable that causes excessive voltage drop under load, reducing charging current delivered to the auxiliary battery.
Earthing the auxiliary battery only to the vehicle chassis at a corroded or paint-covered point, causing high resistance in the negative return path.
Running positive and negative cables in the same conduit without ensuring adequate insulation, creating risk of abrasion-induced short circuits.

Troubleshooting

Auxiliary battery not charging (VSR installation): Cause: VSR not connecting; starter battery voltage not reaching the VSR connect threshold; blown fuse on input cable Fix: Measure voltage at VSR input terminal with engine running. Should be above 13.3 V. If not, check fuse and cable continuity. If voltage is present but VSR does not connect, test VSR operation per its datasheet.
Starter battery discharging overnight with engine off: Cause: VSR not opening at disconnect threshold; parasitic drain from auxiliary loads connected to wrong battery; VSR failed in closed state Fix: Test VSR disconnect behaviour: with engine off, verify VSR opens when starter battery drops below disconnect threshold (typically ~12.8 V). Verify all auxiliary loads draw only from the auxiliary battery, not the starter battery.
DC-DC charger not outputting full charge current: Cause: Input voltage from starter battery below charger minimum input threshold; input fuse undersized; poor connection or high resistance in input cable Fix: Measure DC voltage at the charger input terminals with engine running. Compare to charger's minimum input voltage specification. Measure voltage drop across the input cable under load — excessive drop indicates undersized or poorly terminated cable.

Frequently asked questions

What is the difference between a VSR and a DC-DC battery-to-battery charger?

A VSR is a voltage-controlled relay that simply connects and disconnects two batteries based on voltage thresholds. A DC-DC charger is an active converter that regulates the charge current and voltage profile delivered to the auxiliary battery. DC-DC chargers are required for lithium auxiliary batteries and for modern vehicles with variable-voltage alternator management.

Why does the positive cable need to be fused at the battery terminal?

The fuse protects the cable, not the device. If the cable shorts anywhere along its length, the fuse at the source interrupts the fault current before the cable overheats and catches fire. A fuse positioned downstream of a long cable run provides no protection for the cable between the battery and the fuse.

Can I connect a lithium (LiFePO4) auxiliary battery using a VSR?

Generally not recommended. LiFePO4 batteries require a specific charge profile (typically constant current / constant voltage with a lower absorption voltage than AGM). A VSR simply parallels the batteries — the alternator and starter battery determine the charge voltage, which may not match the lithium battery's requirements. A DC-DC charger with a lithium charge profile is the correct solution.

What cable size should I use for a dual battery installation?

Cable sizing depends on the maximum current the isolator or charger draws and the cable run length. Voltage drop must be kept within acceptable limits. As a general guide, a 20 A DC-DC charger on a 5-metre run typically requires at minimum 6 mm² cable, but this varies — always calculate per the actual current, run length, and acceptable voltage drop for your installation.

Can the two batteries in a dual battery system be different types or capacities?

With a VSR, batteries should ideally be the same chemistry and similar capacity — mixing AGM and flooded lead-acid, or either with lithium, via a VSR is problematic. With a DC-DC charger, the input (starter battery) and output (auxiliary battery) can be different chemistries because the charger isolates and regulates the charging process independently.
