A ground fault circuit interrupter (GFCI)—known outside North America as a residual current device (RCD) or earth leakage circuit breaker (ELCB)—is a protective device that disconnects a circuit within milliseconds when it detects a current imbalance between the line (hot) and neutral conductors. This imbalance indicates that current is taking an unintended path to earth, which may be through a person's body.
The fundamental operating principle relies on a differential current transformer (toroid). Both the line and neutral conductors pass through the toroid core. Under normal conditions, the current flowing out on the line conductor is exactly equal to the current returning on the neutral conductor, producing equal and opposite magnetic fields that cancel. The net magnetic flux through the toroid is zero and no output signal is generated.
When a ground fault exists—such as current leaking to earth through a faulty appliance casing or through a person touching a live conductor—the line current exceeds the neutral return current by the fault current amount. The two magnetic fields no longer cancel, and a net alternating flux is induced in the toroid. This flux induces a voltage in the secondary winding of the differential transformer, which is processed by detection circuitry. When the imbalance (residual current) exceeds the device's trip threshold, the detection circuit triggers a tripping solenoid or electronic switch, opening the contacts within approximately 10–40 ms.
The standard trip threshold for personal shock protection in most jurisdictions is 30 mA (0.030 A). At this current level, a person may experience a strong shock sensation and muscle contractions but ventricular fibrillation is unlikely if disconnection is rapid. Trip thresholds of 100 mA and 300 mA are used for fire protection and equipment protection respectively, where the trip time is longer. A 10 mA threshold provides enhanced personal protection in especially sensitive locations.

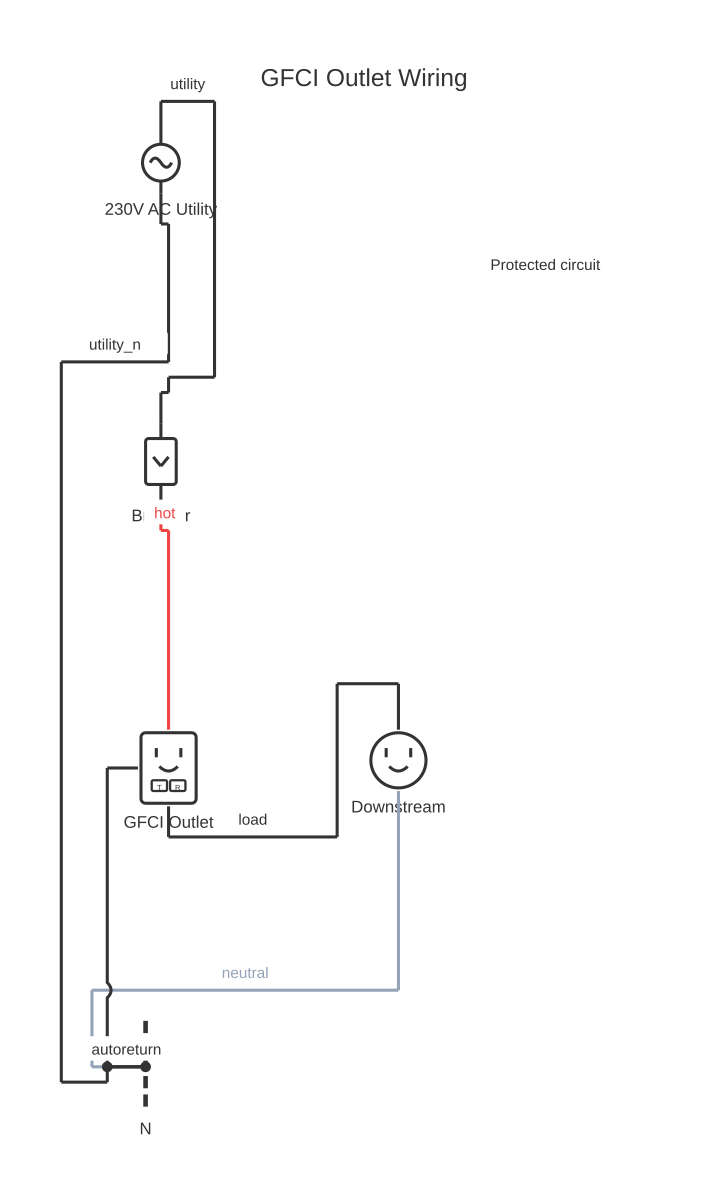

GFCI devices may be wired as circuit breaker types (replacing the circuit breaker in the panel), outlet/socket types (protecting downstream outlets), or portable types. The wiring diagram for all types shows a test circuit in parallel with the load—a resistor connecting line to earth through the GFCI measuring point, simulating a fault current when the test button is pressed. Testing monthly using the built-in test button is essential to verify correct operation.
How to wire gfci diagram
- Identify where GFCI protection is required Per NEC/NFPA 70 (USA), GFCI protection is mandatory in bathrooms, kitchens (within 1.8 m of the sink), garages, outdoor areas, unfinished basements, crawl spaces, boathouses, and near swimming pools. BS 7671 (UK) and IEC 60364 require RCD protection on socket circuits, outdoor circuits, and circuits in zones of increased shock risk. Check local code requirements.
- Select the GFCI type For protection of a single outlet: use a GFCI outlet (receptacle) type. For protection of a circuit and all downstream outlets: use a GFCI circuit breaker (fits in the distribution panel). For portable or temporary protection: use a portable GFCI adapter. For combined GFCI and overcurrent protection: use an RCBO.
- Isolate the circuit Turn off the circuit breaker in the distribution panel. For GFCI outlet installation, turn off the circuit serving that outlet. Verify dead at the outlet box or panel terminals using an approved voltage indicator. Apply lockout if required.
- For GFCI outlet installation: connect line and load wiring A GFCI outlet has two pairs of terminals: Line (supply side) and Load (downstream protected outlets). Connect the incoming supply conductors (line and neutral) to the terminals marked Line. Connect downstream outlets to the Load terminals if downstream GFCI protection is required. If protecting only the single outlet, cap the Load terminals. Earth connects to the green earth screw.
- For GFCI circuit breaker installation: connect at the panel GFCI breakers typically include a pigtail neutral wire that connects to the neutral bar. The circuit neutral also connects to the GFCI breaker's neutral terminal (not directly to the neutral bar). This is essential—the breaker must measure both line and neutral currents through its internal toroid. The circuit earth connects separately to the earth bar.
- Test the installation Restore the circuit. Press the TEST button on the GFCI—the device should trip immediately, removing power from protected outlets. Press RESET to restore power. Optionally, use a GFCI tester (plug-in outlet tester with GFCI test function) to verify correct tripping. A GFCI tester that reports GFCI not working on a device that trips normally may indicate reversed line and neutral at the outlet.
Specifications
| Standard trip current (personal protection) | 30 mA (IΔn = 30 mA) |
|---|---|
| Maximum disconnection time at IΔn (30 mA) | ≤ 300 ms (general type) |
| Maximum disconnection time at 5 × IΔn (150 mA) | ≤ 40 ms |
| Trip threshold for fire protection (typical) | 100 mA or 300 mA |
| Trip threshold for enhanced personal protection | 10 mA |
| Applicable standards | NEC/NFPA 70 (USA), IEC 61008 (RCCBs), IEC 61009 (RCBOs), BS 7671 (UK), AS/NZS 3000 |
| Operating principle | Differential current transformer detecting imbalance between line and neutral current |
| Self-test frequency (recommended) | Monthly using built-in test button |
Safety warnings
- GFCI installation on fixed mains wiring must be performed by a licensed electrician in compliance with applicable wiring codes (NEC/NFPA 70, BS 7671, AS/NZS 3000, IEC 60364). Incorrect wiring of a GFCI can render it non-functional without any visible indication, eliminating the intended shock protection.
- A GFCI does not protect against line-to-neutral shock. If a person simultaneously contacts the line and neutral conductors without any path to earth, no current imbalance exists in the toroid and the GFCI does not trip. GFCI protection applies only to faults where current flows to earth.
- Never connect the neutral conductor from a GFCI-protected circuit directly to the neutral bar in the panel (for circuit breaker type GFCIs). The neutral must pass through the GFCI breaker's neutral terminal to allow differential measurement. Connecting neutral directly to the bar defeats the GFCI function.
- Test GFCI devices monthly using the built-in test button. A device that fails to trip on test must be replaced immediately—it is no longer providing protection. Do not rely solely on the appearance of the device to confirm functionality.
- GFCI devices in outdoor, bathroom, or damp locations should be rated for wet locations where specified. Moisture ingress into an indoor-rated GFCI may cause nuisance tripping or device failure without providing protection.
Tools needed
- Approved voltage indicator (two-pole tester)
- Digital multimeter
- GFCI outlet tester (plug-in type with test function)
- Insulated screwdrivers
- Wire strippers and cutters
- Residual current tester (for precise trip threshold and time verification)
Common mistakes
- Connecting the circuit neutral directly to the neutral bar instead of through the GFCI breaker's neutral terminal when installing a panel-type GFCI breaker, completely defeating the ground fault detection function.
- Wiring both the line-side and load-side terminals of a GFCI outlet to supply conductors, so the device protects no downstream outlets and may not trip correctly on a fault downstream.
- Installing a GFCI on a circuit where a separately grounded equipment (such as a medical device or laboratory instrument) requires a dedicated ground path—GFCI protection may be incompatible with some earth fault monitoring systems in those applications.
- Ignoring nuisance tripping by simply resetting the GFCI repeatedly without investigating the cause. Nuisance tripping indicates real leakage current in the circuit that may worsen and cause equipment damage or eventual shock risk.
- Assuming a GFCI outlet provides protection for all outlets on the circuit without verifying the downstream Load terminals are correctly wired—if nothing is connected to the Load terminals, only the GFCI outlet itself is protected.
Troubleshooting
- GFCI trips when power is applied but resets successfully with nothing connected
- Cause: One or more connected appliances or downstream wiring has an earth leakage condition that, combined with background leakage from the installation, exceeds the 30 mA trip threshold. Fix: Disconnect all downstream loads. Reset the GFCI. Reconnect loads one at a time. The trip will recur when the offending appliance or circuit section is connected. Inspect that item for insulation degradation, moisture ingress, or damaged wiring.
- GFCI test button does not trip the device
- Cause: The GFCI mechanism has failed—the test circuit connects a resistor to simulate fault current, and if this does not trip the device, the detection or tripping mechanism is non-functional. The device is no longer providing ground fault protection. Fix: Replace the GFCI device immediately. A GFCI that fails the test button test offers no protection and must not be left in service. Do not attempt to repair the internal mechanism.
- GFCI outlet tester shows incorrect wiring but circuit appears functional
- Cause: A plug-in outlet tester indicating hot/neutral reversal means the line and neutral conductors are swapped at the outlet. The GFCI may still trip on fault, but the neutral-side interruption is incorrect and leaves downstream equipment at mains voltage even when the GFCI trips. Fix: Isolate and verify dead. Swap the line (black/brown) and neutral (white/blue) conductors at the GFCI line terminals, ensuring correct polarity. Re-test with the outlet tester to confirm correct wiring.
Frequently asked questions
How does a GFCI detect a ground fault?
A GFCI monitors the current in the line and neutral conductors using a differential current transformer (toroid). Both conductors pass through the toroid. Under normal conditions their currents are equal and their magnetic fields cancel. A ground fault causes a difference between line and neutral currents—the residual current—which induces a signal in the toroid's secondary winding. When this exceeds approximately 30 mA, the device trips and opens the circuit.
What is the standard GFCI trip current threshold?
The standard trip threshold for personal shock protection is 30 mA (IΔn = 30 mA). This is specified in NEC/NFPA 70, IEC 61008, IEC 61009, BS 7671, and AS/NZS 3000. The device must disconnect within 300 ms at the rated trip current, and within 40 ms at five times the rated trip current (150 mA). Some jurisdictions specify 5 mA for special installations.
What is the difference between a GFCI and a circuit breaker?
A standard circuit breaker protects against overcurrent—overload and short circuit—but will not trip on a small earth leakage current (e.g. 30 mA) that can cause fatal electrocution. A GFCI detects earth leakage as small as 30 mA and trips within milliseconds. An RCBO combines both GFCI (residual current) protection and overcurrent (circuit breaker) protection in one device.
Why does a GFCI trip without an apparent fault?
Nuisance tripping occurs when accumulated leakage currents from multiple appliances on the GFCI circuit collectively exceed 30 mA, even though no single fault exists. Long cable runs, moisture in outdoor circuits, old appliance insulation, and certain types of equipment (variable speed drives, some computers) generate small leakage currents. The solution is to reduce the number of circuits protected by a single GFCI or investigate high-leakage equipment.
How often should GFCI devices be tested?
Most standards and manufacturers recommend testing GFCI outlets and breakers monthly using the built-in test button. The test button connects a resistor across the toroid to simulate a fault current, and the device should trip immediately. If the test button does not cause the device to trip, the GFCI is faulty and must be replaced—it no longer provides shock protection.
