GFCI Outlet Wiring Diagram: LINE vs LOAD Terminals and Downstream Protection
This is a free printable gfci outlet wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

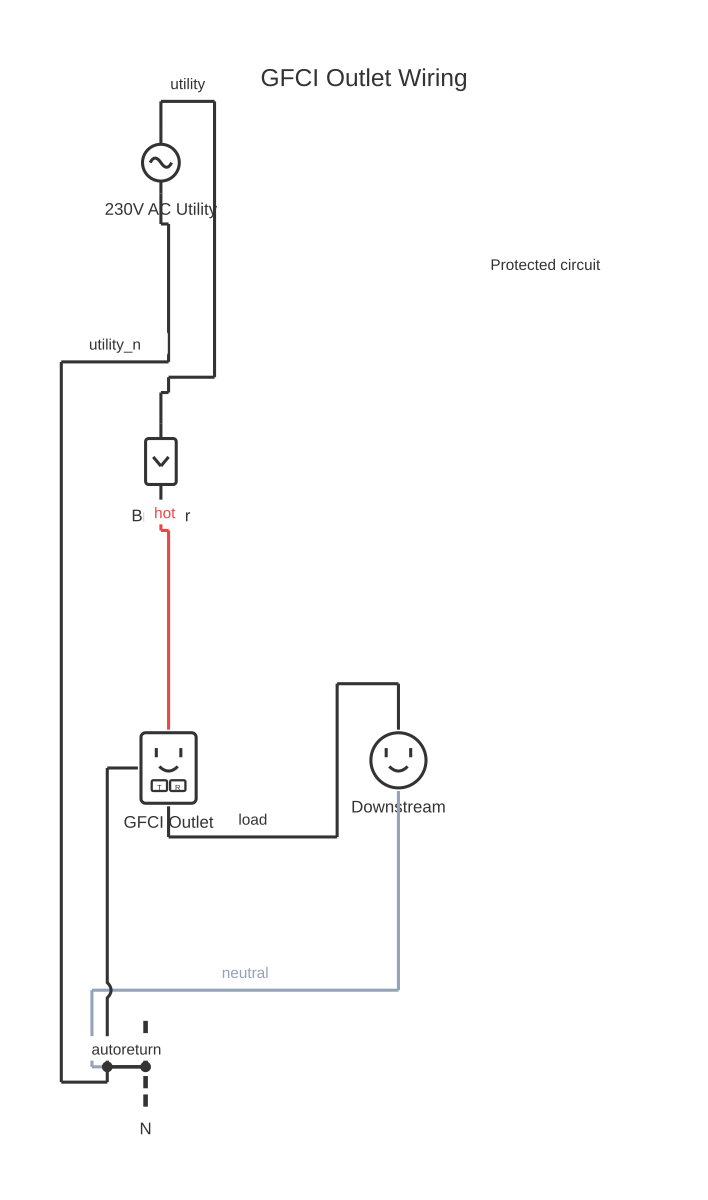

A GFCI outlet wiring diagram shows how to connect LINE and LOAD terminals so the device protects itself and, optionally, all downstream outlets on the same circuit.
A Ground Fault Circuit Interrupter (GFCI) outlet is a receptacle that continuously monitors the current flowing in both the hot and neutral conductors. Under normal conditions, these currents are equal. If current begins to leak from the hot conductor to ground — even as little as 4–6 milliamperes, which is sufficient to cause ventricular fibrillation — the GFCI detects the imbalance and trips its internal relay within approximately 25 milliseconds, interrupting the supply before a lethal shock can occur.
The key element in a GFCI wiring diagram is understanding the LINE and LOAD terminal pairs. Every GFCI outlet has two sets of screw terminals:
LINE terminals (sometimes labelled LINE or marked with a yellow sticker in the USA): connect to the incoming supply conductors from the distribution panel — black (hot) to LINE hot, white (neutral) to LINE neutral. These are the conductors feeding the GFCI device itself and provide it with the ability to trip.
LOAD terminals: connect to the wiring continuing from the GFCI to any downstream outlets, switches, or fixtures on the same circuit. Any fault occurring anywhere on the LOAD side — in the downstream wiring, a connected downstream outlet, or an appliance plugged into a downstream outlet — will cause the GFCI to trip and remove power from the entire LOAD side. This is the power of the LOAD terminal: one GFCI device can protect multiple downstream outlets, which is why kitchens and bathrooms are often wired with a single GFCI protecting several ordinary receptacles downstream.
If the LOAD terminals are not used and are left uncapped, the GFCI only protects its own face receptacle. When used, the GFCI-protected downstream outlets must be labelled 'GFCI Protected' as required by NEC 406.4(D) to inform users that the protection exists even though those outlets themselves are standard (non-GFCI) receptacles.
The TEST button verifies the GFCI's tripping mechanism by internally creating an artificial ground fault condition. The RESET button restores power after a trip. A GFCI that does not trip when the TEST button is pressed has failed and must be replaced immediately.
GFCI (Ground Fault Circuit Interrupter) outlet wiring diagrams cover both single-location protection and the daisy-chain method that protects multiple downstream outlets. The GFCI device has LINE terminals (where supply power enters) and LOAD terminals (which feed protected downstream outlets); the distinction is critical — reversing the two will prevent the GFCI from functioning correctly. Leviton and other brands mark these terminals clearly, but the internal wiring principles are consistent across manufacturers. For outdoor and bathroom installations, additional weatherproofing covers and in-use covers are required by NEC 210.8. Lay out your circuit in the free browser-based editor to plan which outlets need GFCI protection before purchasing hardware.
How to wire gfci outlet wiring diagram
- Identify LINE and LOAD terminals On the GFCI outlet body, locate the LINE and LOAD terminal sets. LINE terminals are typically labelled and may be covered with a yellow protective tape in the USA. LINE terminals receive supply from the panel; LOAD terminals feed downstream outlets.
- Isolate the circuit Switch off the circuit breaker at the distribution panel. Verify with a non-contact voltage tester that the outlet box wiring is de-energised before opening the box.
- Connect incoming supply to LINE terminals Connect the black (hot) conductor from the panel to the LINE HOT screw (brass-coloured). Connect the white (neutral) conductor from the panel to the LINE NEUTRAL screw (silver-coloured). Connect the bare or green ground conductor to the green ground screw.
- Connect downstream wiring to LOAD terminals (if required) If additional outlets downstream require GFCI protection from this device, connect the hot conductor continuing to those outlets to the LOAD HOT screw, and the neutral continuing to the LOAD NEUTRAL screw. Do not connect the downstream ground through the GFCI — run ground conductors directly to a common ground connection.
- Label downstream outlets Any outlet fed from the GFCI's LOAD terminals does not have its own GFCI mechanism. Attach 'GFCI Protected' labels (supplied with the GFCI) to each downstream outlet face plate so future users and electricians can identify the protected locations.
- Reassemble and restore power Fold wiring neatly into the box. Secure the GFCI outlet with mounting screws and refit the cover plate. Restore power at the circuit breaker.
- Test the GFCI Press the TEST button. Verify the RESET button pops and power is removed from the outlet face (use a voltage tester). Press RESET to restore power. Test with a plug-in outlet tester if available to verify correct polarity on both LINE and LOAD faces.
Specifications
| GFCI trip threshold (NEC/UL 943) | 4–6 mA ground fault current |
|---|---|
| GFCI trip time | ≤ 25 milliseconds at 6 mA |
| Standard outlet rating | 15 A, 125 V (NEMA 5-15) or 20 A, 125 V (NEMA 5-20) |
| NEC GFCI required locations | NEC 210.8 — bathrooms, kitchens, garages, outdoors, unfinished basements, crawl spaces, and others |
| LINE terminal identification | Labelled LINE; may have yellow protective tape in USA |
| LOAD terminal use | Optional; extends GFCI protection to downstream outlets on same circuit |
| Outlet box depth required | Deeper than standard — verify GFCI fits before installation |
| Applicable standard | UL 943 (USA); NEC 210.8 for required locations |
Safety warnings
- GFCI outlet installation must comply with NEC/NFPA 70 in the USA (Chapter 4, Article 406), BS 7671 in the UK, or the applicable local wiring regulations. Permitted work and certification requirements vary by jurisdiction. These diagrams are illustrative reference material only.
- Always de-energise the circuit at the panel breaker and verify it is dead with an approved voltage tester before opening any outlet box or handling conductors.
- Never connect the incoming supply to the LOAD terminals — this bypasses the GFCI protection entirely. Always identify LINE terminals carefully before making connections.
- A GFCI that does not trip when the TEST button is pressed must be replaced immediately. A non-functional GFCI provides no ground fault protection.
- NEC requires GFCI protection in specific locations including bathrooms, kitchens within 1.8 m (6 feet) of a sink, garages, outdoor outlets, unfinished basements, crawl spaces, boathouses, and other specified areas. Consult the current edition of NEC 210.8 for the full requirements.
Tools needed
- Non-contact voltage tester
- Plug-in outlet tester
- Flat and cross-head screwdrivers (insulated)
- Wire stripper
- Needle-nose pliers
- Multimeter
Common mistakes
- Connecting the incoming supply to the LOAD terminals instead of the LINE terminals — the GFCI will appear to work but provides no ground fault protection, as the monitoring circuitry is not in the circuit path.
- Not labelling downstream GFCI-protected outlets, leaving users and future electricians unaware that tripping the GFCI at a different location removes power from the unlabelled outlet.
- Installing a GFCI in a deep outlet box without verifying the box is deep enough to accommodate the GFCI's greater depth compared to a standard receptacle.
- Connecting the downstream ground conductors through the GFCI LOAD screw rather than directly to the ground network — ground conductors should be direct and continuous, not routed through the GFCI terminals.
- Assuming a GFCI outlet also provides arc-fault protection — it does not. Arc-Fault Circuit Interrupters (AFCIs) are separate devices with different protection functions.
Troubleshooting
- GFCI trips immediately when power is restored
- Cause: Ground fault in the LINE-side wiring or within the GFCI itself (damaged unit), or wiring connected to LOAD terminals has a fault Fix: Disconnect the LOAD side wiring completely from the GFCI LOAD terminals. If the GFCI holds after RESET, the fault is in the downstream wiring. If it still trips with LOAD disconnected and a known-good appliance on the face, the GFCI unit is faulty — replace it.
- GFCI does not trip when TEST button is pressed
- Cause: GFCI device internal failure Fix: Replace the GFCI immediately. A GFCI that does not respond to its own TEST button has lost its protective function and must not remain in service.
- Downstream outlets have no power even though GFCI is not tripped
- Cause: Downstream cables connected to LINE terminals rather than LOAD terminals, or loose connection at LOAD terminals Fix: Isolate, open the GFCI box, and verify the downstream supply cables are connected to the LOAD terminal pair (not LINE). Check that LOAD terminal screws are tightened securely.
Frequently asked questions
What is the difference between the LINE and LOAD terminals on a GFCI outlet?
LINE terminals receive the incoming supply from the distribution panel and power the GFCI device itself. LOAD terminals supply power to any additional outlets, switches, or fixtures wired downstream on the same circuit. Any ground fault detected anywhere on the LOAD side causes the GFCI to trip, protecting all downstream connections, not just the GFCI's own face receptacle.
Do I have to use the LOAD terminals on a GFCI outlet?
No. If you only need to protect the single outlet location, connect only the LINE terminals and leave the LOAD terminals unused (covered with their protective tape). Using the LOAD terminals extends ground fault protection to downstream outlets, which can satisfy NEC requirements for GFCI protection at multiple locations using only one GFCI device.
How do I test a GFCI outlet?
Press the TEST button on the GFCI face. The RESET button should pop out and the outlet should lose power (verify with a voltage tester or lamp). If the GFCI does not trip when TEST is pressed, the device has failed and must be replaced. Press RESET to restore power after a successful test.
Can a GFCI outlet work without a ground wire?
Yes. A GFCI detects current imbalance between hot and neutral — it does not require a ground wire to function. NEC 406.4(D) allows a GFCI receptacle to replace a two-wire ungrounded outlet, provided the replacement is labelled 'No Equipment Ground.' This provides shock protection without requiring a ground conductor in the wiring.
Why does my GFCI outlet keep tripping without anything plugged in?
A GFCI tripping with no appliance connected suggests a ground fault in the fixed wiring connected to the LOAD terminals — possibly moisture in an outlet box, damaged cable insulation, or a wiring fault downstream. A GFCI can also trip due to excessive natural leakage current from many downstream appliances summing above the trip threshold. Isolate the LOAD circuit to identify the source.
How do you wire a Leviton GFCI outlet?
A Leviton GFCI outlet is wired the same way as any GFCI: connect the supply hot (black) and neutral (white) to the LINE terminals marked on the back of the device — these are usually covered by a warning tape on new units. If you want to protect additional downstream outlets, remove the LINE tape and connect the next outlet's cables to the LOAD terminals. Attach the bare or green ground wire to the ground screw. Leviton GFCI outlets include a self-test feature that trips automatically if the device fails.
How do you wire multiple GFCI outlets on the same circuit?
To protect multiple outlets with one GFCI device, wire the supply to the first GFCI's LINE terminals, then run a cable from its LOAD terminals to the next outlet in the chain. Any standard (non-GFCI) outlet connected to the LOAD side is protected automatically. Alternatively, install a GFCI circuit breaker at the panel — this protects all outlets on that branch without requiring a GFCI device at each location. Do not connect two GFCI devices in series on the LOAD/LINE path, as this causes nuisance tripping.
How do you wire an outdoor GFCI outlet?
An outdoor GFCI outlet installation requires a weatherproof in-use cover (bubble cover) rated for wet locations per NEC 406.9. Wire the LINE terminals to the supply branch circuit; if indoor outlets are fed from this same circuit, connect them to the LOAD terminals for protection. Mount the device in a weatherproof electrical box, ensure all conduit entries are sealed against moisture, and test the GFCI trip function with the TEST and RESET buttons after installation. Check local codes — some jurisdictions require 20-amp GFCI outlets on outdoor circuits.
