How to Wire 3 wire gfci wiring diagram

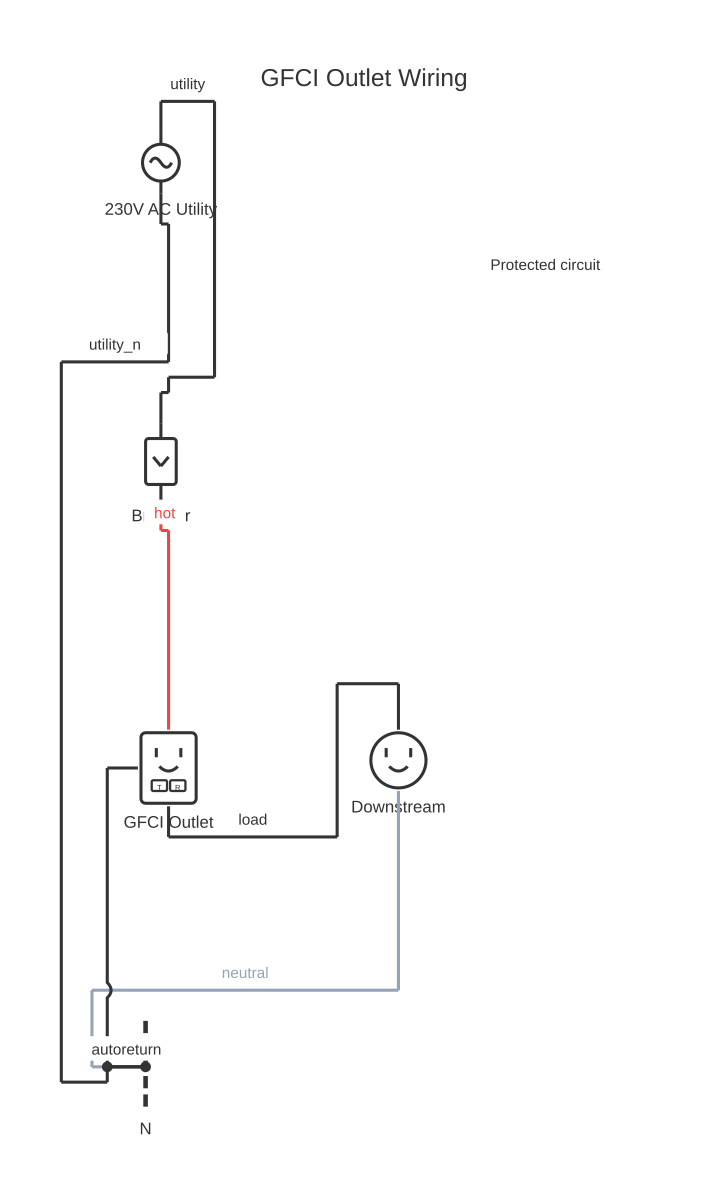

This is a free printable 3 wire gfci wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
This comprehensive guide provides detailed instructions for proper 3 wire gfci wiring diagram installation, including wiring procedures, component selection, and safety considerations.
Ground-fault circuit interrupter (GFCI) protection three-wire installations detect ground faults and interrupt power to prevent electrocution. The wiring diagram shows how GFCI outlets or breakers connect in load circuits. Understanding these diagrams is essential for bathroom, kitchen, and outdoor electrical installations. GFCI devices detect imbalance between hot and neutral conductors as small as 5 milliamps, indicating leakage current through unintended paths. The wiring diagram shows the protected load output from a GFCI outlet or breaker detecting faults at that outlet or downstream. Three-wire GFCI installations protect both the local outlet and all downstream outlets on the same circuit. The diagram shows proper connection of hot, neutral, and ground conductors to GFCI devices. TEST and RESET buttons allow functional verification and power restoration after trips. Chaining GFCI protection through load terminals extends protection to multiple outlets from a single GFCI device. Proper grounding is essential for GFCI operation and safety. LED indicators show protected and faulted status. The diagram specifies compatible breaker and outlet types for different applications.
Kitchen GFCI outlet circuits are among the most common applications for ground-fault protection, since NEC code has required GFCI protection on all kitchen countertop receptacles within 6 feet of a sink since the 1970s — a requirement that has been progressively tightened over successive code cycles. A 3-wire GFCI in a kitchen uses the standard black/white/bare cable and offers the added option of protecting downstream outlets wired from its LOAD terminals. Diagram your kitchen outlet circuit free at circuitdiagrammaker.com.
How to wire 3 wire gfci wiring diagram
- Review the complete wiring diagram and understand all connections before beginning installation
- Gather all required materials, tools, and safety equipment according to the diagram specifications
- Turn off and lock out all power sources to ensure safe working conditions
- Follow the diagram sequence connecting components using proper wire gauge and terminal types
- Verify all connections match the diagram before applying power to the system
Frequently asked questions
What is the proper wire gauge for this circuit?
Wire gauge depends on current requirements and wire run distance. Consult the wiring diagram and electrical code for specific requirements.
How important is proper grounding?
Proper grounding is critical for safety and electrical performance. It provides fault current paths and prevents shock hazards.
What protection devices are required?
Circuit breakers and fuses protect circuits from overload and short circuits. Specifications depend on system voltage and current.
Can I modify the wiring diagram?
Modifications should follow the original design principles and electrical code requirements. Consult qualified professionals for complex changes.
What maintenance does this system require?
Regular inspection, connection cleaning, and testing verify safe operation. Follow manufacturer recommendations for specific procedures.
How do you wire a 3-wire GFCI outlet in a kitchen circuit?
Connect the incoming black (hot) wire to the LINE hot terminal on the GFCI (usually marked LINE and covered with tape from the factory), the incoming white (neutral) to the LINE neutral terminal, and the bare copper ground to the green ground screw. If you want to protect additional downstream outlets, connect their black and white wires to the corresponding LOAD terminals on the GFCI. Any outlet wired to the LOAD side is protected even without its own GFCI device. In kitchens, all countertop receptacles within the required distance of a sink must be GFCI-protected, so confirm whether a downstream regular outlet falls within that zone.
