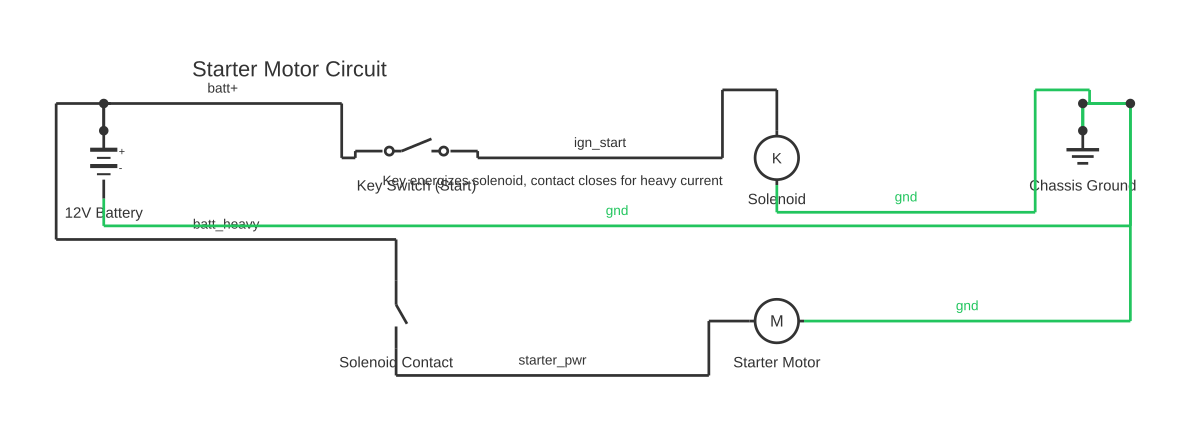

A starter solenoid is an electromagnetic switch that connects the battery to the starter motor and simultaneously engages the pinion gear with the ring gear — understanding its four terminals is essential for diagnosing no-crank faults.

The starter solenoid performs two jobs at once: it is both a high-current relay and a mechanical actuator. When energised, its plunger moves in two stages — first engaging the Bendix drive (pinion gear) with the flywheel ring gear, then closing the main contacts to supply full battery current to the starter motor armature.

Terminal identification: - Battery terminal (B or BAT): the large stud connected directly to the battery positive terminal via a heavy cable. This is always live. - Motor terminal (M or START): the large stud that feeds the starter motor. Connected to B only when the solenoid contacts close. - Ignition/switch terminal (S or IGN or 50): the small terminal that receives the start signal from the ignition switch or start relay. Energising this terminal activates the solenoid pull-in winding. - Ground (case or dedicated terminal): most solenoids ground through the starter body to the engine block, which in turn connects to the battery negative.

Some solenoids have an additional small terminal marked R or I (inhibit), which connects to the ignition coil ballast resistor circuit on older vehicles to bypass the resistor during cranking and provide full coil voltage for starting.

Pull-in and hold-in windings: Inside the solenoid, two coil windings operate in sequence. The pull-in winding has lower resistance and draws high current to pull the plunger in quickly. Once the main contacts close, the hold-in winding (which has higher resistance and lower current draw) takes over and keeps the plunger seated.

Ford-type solenoids: Mounted on the inner wing (fender) rather than on the starter, these have an additional terminal (S for start signal) and require an extra relay in some applications. Most modern vehicles mount the solenoid directly on the starter motor.

How to wire starter solenoid diagram

Disconnect the battery negative terminal Always disconnect the negative (ground) cable first before working near the starter solenoid, which is directly connected to battery positive and remains live at all times.
Locate and identify all solenoid terminals Find the two large studs (BAT and M) and the small terminal(s) (S, and possibly R/I). Photograph the existing connections before removing anything.
Connect the battery positive cable to the BAT stud The heavy cable from the battery positive terminal attaches to the large stud marked B, BAT, or +. Torque the nut firmly — a loose connection here causes high resistance and voltage drop under load.
Connect the starter motor cable to the M stud The large cable running to the starter motor input terminal attaches to the stud marked M or MOTOR. This cable only becomes live when the solenoid closes.
Connect the ignition start signal to the S terminal The thin wire from the ignition switch, start relay output, or engine control module attaches to the small S (or 50) terminal. This wire carries only the solenoid coil current, not starter current.
Verify the solenoid grounds through the starter body Confirm the starter motor is bolted securely to the engine block and that the engine block is connected to battery negative via the main ground strap. A poor engine-to-chassis ground is a common no-start cause.
Reconnect the battery and test operation Reconnect battery negative, then attempt to start. The solenoid should engage firmly and the engine should crank. If you hear only a click or rapid chattering, return to diagnostic testing of battery and connections.

Specifications

Coil voltage	12 V DC (standard automotive); 24 V (heavy duty)
S terminal current draw (coil)	Typically 20–40 A (pull-in); 8–15 A (hold-in)
Main contact current capacity	150–400 A (varies by starter size)
BAT stud	Direct battery positive connection — always live
M stud	Starter motor feed — live only when contacts closed
S terminal	Ignition start signal input (thin wire, low current)
R/I terminal (if present)	Ignition coil ballast bypass — older petrol vehicles
Ground path	Starter body to engine block to battery negative

Safety warnings

The BAT stud on the solenoid is live at all times — always disconnect the battery negative terminal before working near the solenoid to prevent arc burns and accidental starter engagement.
Never crank the engine with anyone near the flywheel or accessory drive belts. Accidental solenoid engagement while under the vehicle is a serious injury risk.
Do not bypass the solenoid permanently to run the vehicle — this defeats the engagement mechanism, causes uncontrolled starter operation, and is a fire risk.
Inspect all heavy cables for cracked insulation, corroded terminals, and loose connections before testing; a high-resistance connection in the starter circuit generates significant heat.
This diagram is illustrative and reference-only. Refer to the vehicle's workshop manual and applicable electrical standards for your region before carrying out any repairs.

Tools needed

Digital multimeter
Battery load tester
Wrench set (for terminal nuts)
Wire brush or terminal cleaning tool
Insulated jumper wire (for diagnostic bypass test only)
Torque wrench (for terminal studs)

Common mistakes

Reversing the BAT and M cables — the motor terminal becomes live continuously, causing the starter to engage without a start signal.
Using undersized or corroded battery cables, which causes sufficient voltage drop to prevent the solenoid contacts from fully closing.
Overlooking the engine block ground strap when diagnosing no-crank faults — a broken or corroded strap creates a poor return path for the full starter current.
Assuming the solenoid is faulty based on a click without first load-testing the battery — a weak battery is the more common cause of click-but-no-crank.
Leaving the S terminal wire disconnected and wondering why the starter does not respond to the ignition key.

Troubleshooting

No click, no crank when key is turned to start: Cause: No signal reaching the S terminal, blown fuse in the start circuit, or dead battery. Fix: Check battery voltage (should be above 12.4 V resting). Test for voltage at the S terminal with key in start position. Trace the start circuit through the ignition switch, neutral safety switch or clutch switch, and any start relay.
Single loud click, starter does not spin: Cause: Solenoid plunger moves but main contacts are worn or corroded, or battery cannot deliver sufficient current. Fix: Load-test the battery. Inspect and clean the BAT and M stud connections. If the battery and connections are good, the solenoid contacts are likely worn and the unit needs replacement.
Starter engages without key in start position: Cause: Solenoid S terminal shorted to battery positive, or remote Ford-type solenoid wired incorrectly. Fix: Immediately disconnect the battery. Inspect the S terminal wire for contact with battery-positive wiring. Check for a stuck or shorted ignition switch or bypass relay.
Starter spins (motor turns) but engine does not crank: Cause: Bendix drive (pinion) not engaging ring gear — worn pinion, weak solenoid pull force, or incorrect solenoid for application. Fix: Remove the starter and inspect the pinion gear for wear. Verify the solenoid is the correct type for the starter. Bench-test the solenoid's mechanical throw distance.

Frequently asked questions

What are the typical terminals on a starter solenoid?

Most starter solenoids have two large studs — BAT (battery positive input) and M (motor output) — and one or two small terminals. The small S or 50 terminal receives the ignition start signal. Some older vehicles also have an R terminal for bypassing the ignition coil ballast resistor during cranking.

Why does the solenoid click but the starter does not turn?

A single click usually means the solenoid is energising (plunger moving) but the main contacts are not closing reliably, or the battery voltage collapses under load. Check battery state of charge and cold cranking amps, then inspect the solenoid's main contacts for wear or corrosion. High resistance at the battery cable connections produces the same symptom.

Can I bypass the solenoid to test the starter motor?

Yes, for diagnostic purposes only: with the ignition off and transmission in neutral (or park), briefly bridge the BAT and M terminals with a thick insulated jumper or screwdriver. If the starter spins, the motor is good and the fault lies in the solenoid or control circuit. This is a test procedure — do not operate the vehicle this way.

What causes a starter solenoid to chatter or rapid-click?

Rapid clicking usually indicates insufficient voltage at the S terminal or a weak battery that cannot maintain voltage under starter load. The pull-in winding briefly closes the contacts, the voltage drop releases the plunger, and the cycle repeats. Test battery voltage under load and check all large cable connections.

Is a starter relay the same as a starter solenoid?

No. A starter relay is a standard electromagnetic relay (similar to a 4-pin relay) used to switch the solenoid control current from a thin ignition wire. The solenoid is the high-current device mounted on the starter that closes the battery-to-motor circuit and engages the pinion gear. Many circuits use both in series.
