5-Wire Trailer Plug Wiring Diagram

5-Wire Trailer Plug Wiring Diagram — interactive diagram. Open it in the editor to customise components and wiring.

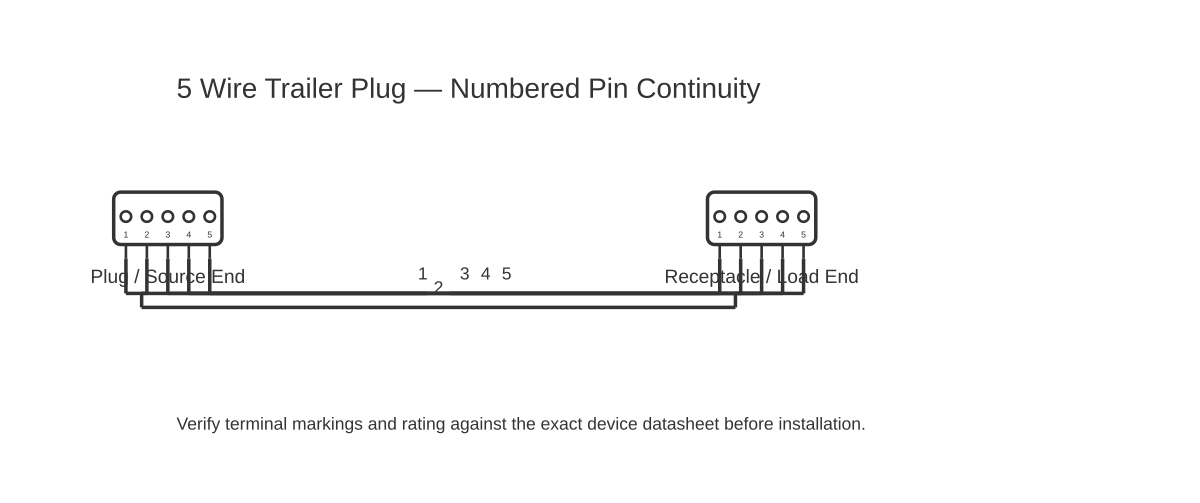

This is a free printable 5 wire trailer plug: download the diagram as SVG or open it and print to paper or PDF.

A 5-wire trailer plug adds a reverse/backup light or electric brake circuit to the standard 4-wire lighting harness, using a flat 5-way or round 5-pin connector between the tow vehicle and trailer.

The 5-wire trailer connector builds on the standard 4-wire flat connector by adding a fifth circuit. Depending on the trailer type and market, this fifth wire carries either the electric brake signal, the reverse/backup light feed, or a battery charge line.

STANDARD 5-WIRE FLAT CONNECTOR (North American convention): - White: Chassis ground / earth return (shared by all circuits) - Brown: Tail lights, clearance lights, and side marker lights - Yellow: Left turn signal and left brake light - Green: Right turn signal and right brake light - Blue: Electric brake output — carries the proportional or time-delayed brake controller signal to trailer electric brake magnets

Some configurations substitute a 12 V reverse/backup light on blue, particularly for trailers that do not have electric brakes but have a rear-mounted camera or reverse lamp.

ROUND 5-PIN CONNECTOR: Found on some European, Australian, and older North American trailers, the round 5-pin uses the same five functions but in a circular pin arrangement. The DIN ISO 11446 5-pin round connector is common in Europe for smaller trailers and caravans not equipped with additional 12 V power.

FLAT VS ROUND: Flat 5-way connectors are dominant on North American boat trailers, utility trailers, and horse floats. Round connectors are more common in European and Australian markets. Both types use the same five functional circuits but are physically incompatible without an adapter.

ELECTRIC BRAKE CIRCUIT: The blue wire in the North American 5-wire connector carries output from the tow vehicle's electric brake controller. The brake controller senses deceleration (via accelerometer or pendulum sensor) and applies proportional or time-based 12 V DC to the trailer brake magnets. The brake output wire must be capable of carrying the full current of all trailer brake magnets — typically 2–3 A per magnet, so 4–8 A for a two-axle trailer.

All connections at the trailer plug should be weatherproofed. Moisture ingress into the plug is the most common cause of erratic turn signals, non-functioning brakes, and corrosion-related failures.

How to wire 5 wire trailer plug

Identify the trailer plug standard for your market Confirm whether your vehicle and trailer use a North American flat 5-way, a round 5-pin (DIN), or another standard. Attempting to connect incompatible plug types will not work and can physically damage the connector pins.
Locate the tow vehicle harness output or fit a trailer wiring harness Many modern vehicles have a factory trailer wiring connector near the hitch receiver. If not, fit a T-connector harness that taps into the tail light circuit, or wire directly from the fuse box using a purpose-designed trailer wiring kit.
Run the wiring loom along the trailer frame to the lights and brakes Route the wiring along the trailer frame using cable clips or conduit. Keep wiring away from moving parts (suspension components, wheel hubs) and secure it so it cannot snag or abrade. Allow a service loop at the plug end to prevent strain.
Connect tail, left, and right circuits at each lamp At each tail light, connect the brown wire to the running light, yellow to the left brake/turn, and green to the right brake/turn. Each lamp also needs a ground connection to the trailer frame — use a self-tapping screw to a clean, corrosion-free point on the trailer chassis.
Connect the ground wire to the trailer frame Run the white ground wire from the plug connector to a dedicated earth point on the trailer frame — a clean bolted connection is preferred over a self-tapper. All individual lamp grounds can connect to the trailer frame locally, but the plug's white ground must provide the return path to the tow vehicle.
Connect the blue wire to the brake magnets or reverse lights Run the blue wire to the trailer brake junction or to the brake magnet wires. For a two-axle trailer with four magnets, use at least 14 AWG for this run and ensure all magnet wires are properly spliced. If using blue for reverse lights, connect to a reverse lamp rated for 12 V DC.
Test all circuits before towing With a helper or using a trailer light tester, confirm: parking/tail lights (brown), left turn and stop (yellow), right turn and stop (green), and if fitted, brakes (blue — check with brake controller display). Tug each connection gently to confirm there are no loose joins.

Specifications

Connector type	5-way flat (North America) or 5-pin round DIN (Europe/Australia)
Circuit voltage	12 V DC nominal
Ground wire (white) — recommended minimum	14 AWG (2.0 mm²)
Brake circuit wire (blue) — recommended minimum	14 AWG (2.0 mm²)
Lighting circuit wires — recommended minimum	16 AWG (1.5 mm²)
Electric brake magnet current (each, typical)	2–3 A at 12 V DC
Total brake current (2-axle, 4-magnet trailer)	8–12 A
Pin assignments (5-way flat, North American convention)	White: ground; Brown: tail/running; Yellow: left stop/turn; Green: right stop/turn; Blue: electric brakes or reverse

Safety warnings

Electric trailer brakes are a primary safety system. Never tow a trailer equipped with electric brakes without a correctly installed and calibrated brake controller in the tow vehicle. Failure of trailer brakes during an emergency stop is a risk of trailer jack-knife and collision.
Verify the white ground wire has a low-resistance connection to the trailer frame and to the tow vehicle chassis. A high-resistance ground causes erratic brake operation — the brake controller may apply partial or no braking force.
Inspect the trailer plug and socket before every tow for corrosion, damaged pins, and cracked housings. A poor electrical connection to the brake circuit may not be apparent until emergency braking is needed.
Do not attempt to repair trailer wiring with exposed splices, twist-and-tape connections, or unrated wire — road vibration, water, and mud will destroy these connections within weeks. Use sealed weatherproof connectors or proper heat-shrink solder sleeves.
In jurisdictions where electric trailer brakes are legally required above a certain trailer weight, operating without a functioning brake system is a traffic offence and will affect insurance liability in the event of an accident.

Tools needed

Digital multimeter (DC voltage and continuity)
Trailer light tester (plug-in type for quick checks)
Wire strippers (14–16 AWG)
Crimping tool and weatherproof connectors
Heat-shrink solder sleeves or heat-shrink and solder separately
Heat gun
Drill and self-tapping screws (for cable clip mounting)
Dielectric grease

Common mistakes

Connecting the ground return (white) only at the plug and relying on the trailer frame as the return path without a dedicated wire — corroded trailer frame joints create high resistance that causes brake and light malfunctions.
Using 16 AWG wire for the electric brake circuit — under braking, four brake magnets can draw 8–12 A, causing undersized wire to heat and potentially fail at a critical moment.
Not testing brake function before the first tow — brake controller configuration (sensitivity and output level) must be checked with the specific loaded trailer before driving in traffic.
Installing the plug connector backward at the trailer end so yellow and green (left/right turn) are swapped — trailer turns in the opposite direction to the tow vehicle's signals, which is a traffic hazard.
Leaving the plug hanging on the tow hitch without a storage cap — moisture fills the connector socket, accelerating corrosion of all five circuits.

Troubleshooting

All trailer lights dim or flicker: Cause: High resistance in the ground return circuit — corroded white wire connection, corroded trailer frame joint, or undersized ground wire. Fix: Measure resistance from trailer frame to tow vehicle chassis with a multimeter (should be under 0.5 ohm). Inspect and clean all ground connections. Run a dedicated ground wire if the trailer frame has corroded joints.
Electric brakes do not activate: Cause: Blue wire not connected, brake controller not powered, brake controller not detecting deceleration, or brake magnets seized. Fix: With ignition on, confirm 12 V at blue pin of the vehicle plug. During a slow brake application, measure voltage at the trailer plug blue pin — controller should output proportional voltage. If controller output is present but brakes do not apply, the trailer brake magnet wiring or magnets are at fault.
Left and right turn signals are swapped on the trailer: Cause: Yellow and green wires are transposed at either the vehicle plug or the trailer socket connection. Fix: Confirm colour convention: yellow = left turn/brake, green = right turn/brake. Swap the connections at the trailer socket. Retest with hazard lights to confirm both sides flash simultaneously.

Frequently asked questions

What is the fifth wire on a 5-pin trailer connector used for?

In North American applications, the fifth wire (blue) most commonly carries the electric brake controller output to trailer brake magnets. In some configurations it carries a 12 V reverse/backup light feed. In European 7-pin or 13-pin systems, additional wires carry 12 V battery charging and reverse lights separately.

Can I use a 5-wire trailer harness without an electric brake controller?

Yes. If the trailer has no electric brakes, the blue wire simply has no load connected at the trailer end. The tow vehicle brake controller output can remain connected — it will produce output that flows nowhere. However, most brake controllers will display a fault if no brake magnets are detected. Disconnect the blue wire at the plug or use a 4-wire connector instead.

Why do my trailer lights work but the electric brakes do not?

The lighting circuits (brown, yellow, green) and the brake circuit (blue) are independent. Brakes not working typically indicates: the brake controller is not installed, not powered, or not configured; the blue wire has a break or poor connection; or the brake magnets on the trailer are worn or seized. Test voltage at the blue pin during braking with a multimeter.

What wire size should I use for the trailer wiring harness?

For lighting circuits carrying 5–10 A, 16 AWG is adequate. For the electric brake circuit carrying up to 8–12 A for multiple axles, use 14 AWG. The ground wire must handle the combined return current of all circuits and should be 14 AWG or heavier. Undersized ground wire is a frequent cause of dim or flickering trailer lights.

How do I weatherproof the trailer plug connection?

Use dielectric grease on all pin contacts to displace moisture and prevent oxidation. Store the plug in a protective cap when disconnected. Periodically disconnect and inspect for corrosion — a light coating of white corrosion on pins can cause a 0.5–1 V drop that makes LED lights flicker or dims incandescent bulbs noticeably.
