5-Wire Trailer Wiring Diagram

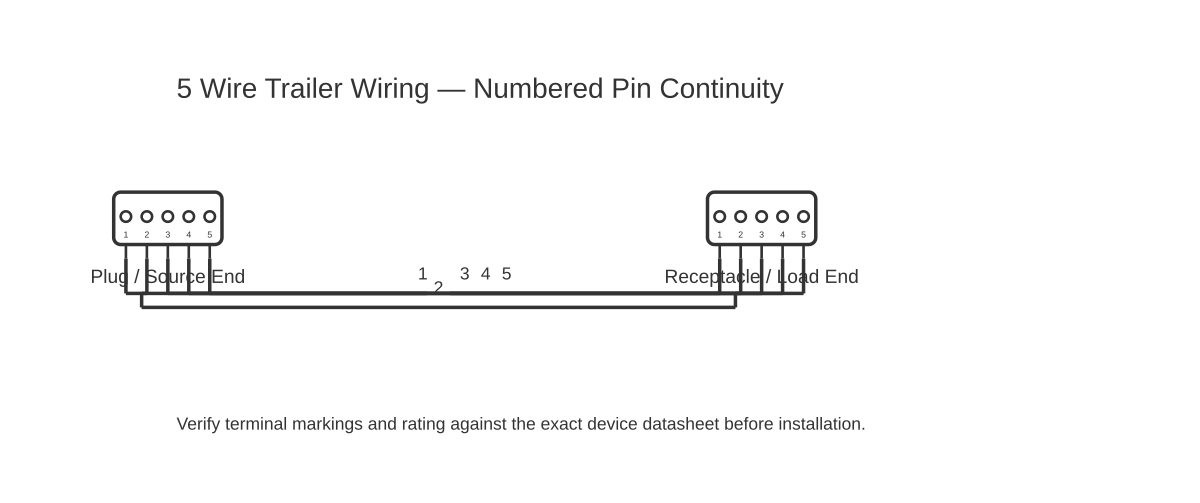

5-Wire Trailer Wiring Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable 5 wire trailer wiring: download the diagram as SVG or open it and print to paper or PDF.

Five-wire trailer wiring adds an electric brake or reverse light circuit to the standard four light wires, using a colour-coded harness connecting the tow vehicle's lights, stop signals, and brake controller to the trailer.

Five-wire trailer wiring is the most common configuration for trailers that require electric brakes or a reverse light in addition to the standard lighting package. It is a step up from the 4-wire flat system (tail, left, right, and ground) and is standard on boat trailers, horse floats, enclosed cargo trailers, and any trailer where electric brakes are required by regulation or trailer weight.

STANDARD WIRE FUNCTIONS (North American convention): - White: Ground — the return path for all circuits. Must be connected to a clean, low-resistance point on both the trailer frame and the tow vehicle chassis. - Brown: Tail lights, running lights, and side marker/clearance lights. Energised whenever the tow vehicle's running lights are on. - Yellow: Left brake and left turn signal. Shares the stop and turn circuits on the left side (combined stop/turn system used in North America). - Green: Right brake and right turn signal. Shares the stop and turn circuits on the right side. - Blue: Electric trailer brake output from the brake controller, or reverse/backup light feed depending on the application.

COMBINED STOP/TURN SYSTEM: In the North American wiring convention, the brake and turn signals share the same wire and lamp. This differs from the European system where stop and turn signals are on separate wires and separate lamp elements. This is important to understand when importing trailers or tow vehicles between markets.

ELECTRIC BRAKE CONTROLLER INTEGRATION: The blue wire in a 5-wire harness connects to the output of the tow vehicle's electric brake controller. The controller monitors vehicle deceleration and applies proportional (or time-delayed) 12 V DC to the trailer's electric brake magnets. The brake magnets press friction pads against rotating drums — the harder the brake application, the higher the voltage applied.

WIRING PROTECTION: All wiring should be routed through split-loom conduit or sealed conduit along the trailer frame. Exposed wiring will be destroyed by road debris, UV, and moisture within one to two seasons. All splices must be made with weatherproof connections — solder and heat-shrink, or sealed push-in connectors rated for outdoor use.

While a 5-wire trailer harness covers the essentials for most light trailers, many tow vehicles and trailers require a 7-wire connector to support electric brakes, a 12V auxiliary power feed, and a reverse light circuit alongside the standard running, turn, and brake lights. Understanding the difference helps you choose the right connector and avoid wiring faults. You can map out any trailer wiring configuration free in the browser-based circuit diagram editor at CircuitDiagramMaker.com.

How to wire 5 wire trailer wiring

Check local regulations for trailer braking requirements Most jurisdictions require electric or surge brakes on trailers above a specified Gross Vehicle Mass (GVM) — typically 750 kg to 2,000 kg depending on the country or state. Verify the legal requirement before deciding on a 5-wire with brake capability or a 5-wire with reverse light only.
Obtain or confirm the tow vehicle's plug type and wiring Confirm whether the tow vehicle has a 4-pin or 5-pin (or 7-pin) socket already installed, and whether the brake controller output wire is present at the hitch socket. Many vehicles with factory tow packages include a brake controller output pin even if a brake controller is not factory-fitted.
Install the 5-wire harness at the front of the trailer Secure the 5-pin plug connector at the trailer's front (coupler end) with a loop of slack cable to allow for turns without straining the connector. Route the harness along the trailer's frame rail.
Connect the brown (tail) wire to all running lamps Run the brown wire from the front plug connector along the frame to each running light, clearance lamp, and side marker. All running lamps connect in parallel to the brown wire. Each lamp also connects to a local chassis ground point.
Connect yellow and green to the stop/turn lamps Yellow connects to the left rear stop/turn lamp and any left side marker that also flashes. Green connects to the right rear stop/turn lamp. In North America, the combined stop/turn lamp receives both the running signal (via brown if a tri-colour lamp) and the stop/turn signal via yellow or green.
Route and connect the blue wire to brake magnets or reverse lamp For electric brakes: run blue from the front plug to a junction at the axle(s). From the junction, run wires to each brake magnet. For a 2-axle trailer, connect all four magnets in parallel from this junction. Use 14 AWG minimum for the magnet wiring.
Conduct a full function test at the plug and at each lamp Plug into a tow vehicle or use a 5-wire trailer tester. Verify running lights (brown), left stop/turn (yellow), right stop/turn (green), and brake activation (blue) with a multimeter measuring voltage at each lamp terminal. Confirm ground continuity with a resistance test.

Specifications

Wire colour convention (North American)	White: ground; Brown: tail/running; Yellow: left stop/turn; Green: right stop/turn; Blue: electric brakes or reverse
Ground wire minimum size	14 AWG (2.0 mm²)
Brake circuit wire minimum size	14 AWG (2.0 mm²)
Lighting circuit wire minimum size	16 AWG (1.5 mm²)
Brake magnet resistance (per magnet, typical)	3–4 ohms at 20 °C
Brake magnet current (per magnet at 12 V)	2.5–3 A
Total brake current (4-magnet, 2-axle trailer)	10–12 A
Connector standard	SAE J2863 (5-way flat, North America)

Safety warnings

If the trailer is above the weight threshold requiring brakes in your jurisdiction, operating without a functioning electric brake system is illegal and constitutes a serious safety hazard. Verify the weight limit and trailer GVM before each tow.
Inspect the trailer harness, plug, and socket before every tow. A corroded or intermittent brake circuit connection means the tow vehicle's brake controller will apply no retardation to the trailer during an emergency stop.
The brake controller must be calibrated for each trailer. Gain setting too low will result in insufficient braking; gain too high will cause trailer wheel lock-up and trailer swing. Calibrate on a straight road at low speed after every brake system change.
All wiring splices must be weatherproof. An open splice that allows water ingress causes progressive corrosion — the circuit may pass a pre-trip check but fail during a wet journey.
Ground connections are safety-critical. A poor ground does not just cause light malfunctions — it can cause the brake circuit to read false currents, causing the brake controller to misapply brakes or fail to apply them at all.

Tools needed

Digital multimeter (DC voltage and resistance/continuity)
5-pin trailer connector tester
Clamp-type ammeter (to measure brake magnet current)
Wire strippers (14–16 AWG)
Weatherproof crimping tool and connectors
Heat-shrink solder sleeves
Heat gun
Split-loom conduit and cable ties

Common mistakes

Using the trailer frame as the only ground return without a dedicated ground wire — corroded frame joints create enough resistance to cause multiple unexplained lighting and brake faults.
Connecting brake magnets in series rather than in parallel — series wiring divides the voltage across all magnets, providing insufficient force at each magnet. Brake magnets must be wired in parallel.
Sizing the white ground wire smaller than the brake circuit — the ground wire must carry the combined return current of all circuits including all brake magnets simultaneously.
Not applying dielectric grease to the plug contacts — a corroded blue pin causes brake faults that can be misdiagnosed as a faulty brake controller or magnets.
Running the 5-wire harness along the inside edge of the trailer frame where it will contact the tyre or be crushed by the tyre at full suspension travel — always confirm clearance at full compression.

Troubleshooting

Brake controller shows error or no brake detected: Cause: Open circuit in the blue wire, faulty connection at the plug, or open-circuited brake magnets. Fix: Measure continuity from the vehicle socket blue pin to each brake magnet. Each magnet should measure 3–4 ohms. Multiple magnets in parallel should measure proportionally lower. An open reading indicates a break in wiring or a failed magnet.
Trailer pulls to one side under braking: Cause: Brake magnets on one side are not receiving current — broken wire, open magnet, or corroded connector pin. Fix: Clamp-test current on the left and right brake circuits separately during a brake application. Each side should draw equal current. The low-current side has a wiring or magnet fault — trace from the junction box to each magnet.
Running lights on trailer are dim: Cause: High resistance in the ground or brown wire — undersized wire, corroded connections, or corroded trailer frame earth points. Fix: Measure voltage at the trailer lamp terminal relative to local chassis (not to tow vehicle ground). If full voltage is present locally but lamps are still dim, the lamp or its socket is the issue. If voltage is low, measure ground resistance from trailer to vehicle.

Frequently asked questions

Which wire is which in 5-wire trailer wiring?

Using the North American colour convention: white is ground, brown is tail/running lights, yellow is left stop and turn, green is right stop and turn, and blue is electric brakes or reverse. These colours are a convention, not a universal standard — always verify with a test light before assuming.

Do I need a brake controller for a 5-wire trailer?

Only if the trailer has electric brakes connected to the blue wire. Many trailers use the fifth wire for a reverse light or auxiliary feed, not brakes. Check whether the trailer's blue wire connects to brake magnets or a lamp. If brake magnets are present and the trailer exceeds the weight threshold in your jurisdiction, a brake controller is legally required.

Why do trailer lights work but brakes do not respond?

Lighting and brake circuits are independent. If lights work (brown, yellow, green functioning) but brakes do not, investigate: brake controller installation and configuration, voltage at the blue pin during braking, continuity of the blue wire through the harness, and condition of brake magnets at the trailer axles.

Can I convert a 4-wire trailer to 5-wire?

Yes. You need to add one additional wire from the plug to the trailer — run it from the new 5-pin plug along the trailer frame to the brake magnets or reverse lamp as required. Replace the 4-pin plug with a 5-pin plug and add the new function. All four original wires remain in service.

What causes trailer lights to work intermittently while driving?

Intermittent trailer lights are almost always a ground issue. Road vibration causes a poorly fastened ground connection to break contact. Check the white wire connection at the trailer frame and at the tow vehicle hitch plug. A corroded or loose ground also causes the trailer lamps to act as a partial ground return through the other lamp circuits, resulting in crossed signals (braking causes both tail lamps to flash, or left turn causes right tail to light).

What does a 7 wire trailer wiring diagram include?

A standard 7-pin trailer wiring diagram includes seven circuits: left turn/brake (yellow), right turn/brake (green), tail/running lights (brown), ground (white), electric brake output (blue), 12V auxiliary power (black), and reverse/backup lights (purple). The 7-pin flat or round connector is required whenever the trailer has electric brakes or needs a constant 12V supply for a breakaway battery. Always confirm your tow vehicle's factory colour coding against its specific wiring diagram, as some manufacturers vary the colour assignments slightly.
