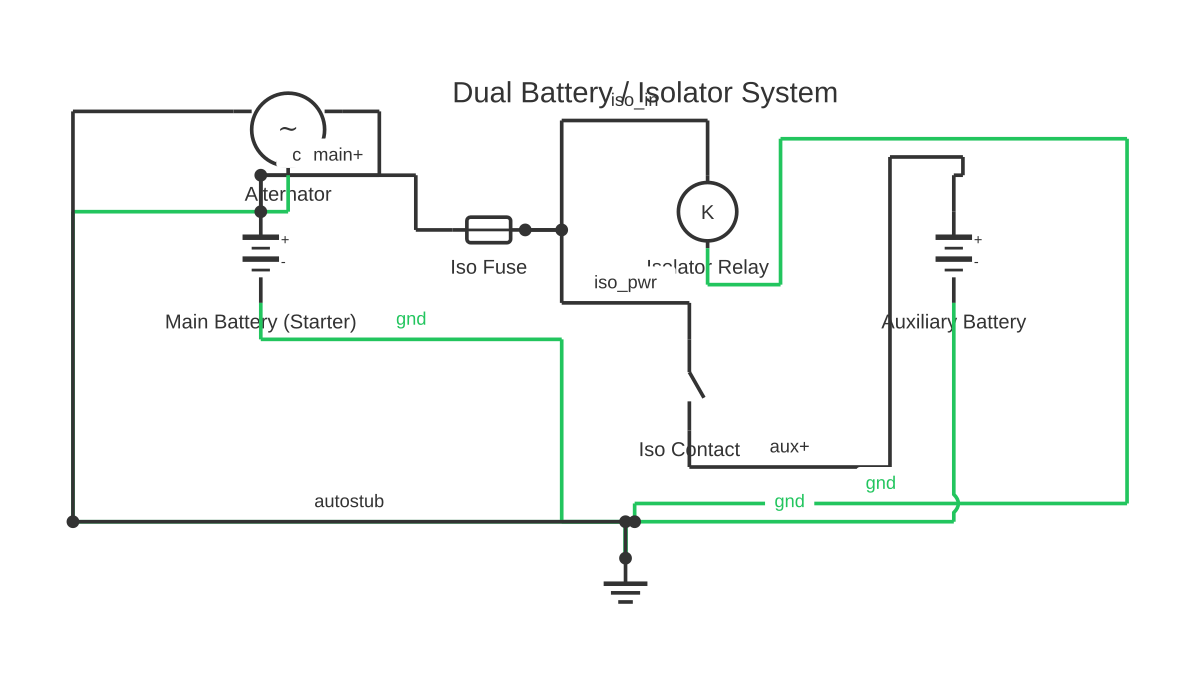

Dual Battery Wiring Diagram

Dual Battery Wiring Diagram — interactive diagram. Open it in the editor to customise components and wiring.

This is a free printable dual battery wiring diagram: download the diagram as SVG or open it and print to paper or PDF.

Practical wiring reference for dual battery systems focusing on cable sizing calculations, fuse ratings, earthing strategy, and load distribution for 4WD and marine applications.

A dual battery wiring diagram details the physical conductor routing, cable sizing, fuse placement, and earthing arrangement that determines whether a dual battery installation performs reliably and safely. Getting the topology right on paper is only part of the task — the quality of the physical wiring execution defines long-term reliability.

The fundamental wiring topology has two sections separated by the isolation device (VSR or DC-DC charger):

Input side (starter battery to isolator): This cable carries the full charging current from the alternator to the isolator. The alternator's maximum output current determines the maximum current in this cable. However, the isolator or charger's rated input current may be lower than the alternator's full output — the fuse must be sized to the cable rating, not simply the charger's rated current. A common installation error is to use an undersized fuse and cause nuisance trips, or to use an oversized fuse and fail to protect the cable.

Output side (isolator to auxiliary battery): Carries the charging current and, in the return direction during discharge, the total current drawn by all auxiliary loads. The auxiliary load total (sum of all connected loads in amperes) determines the minimum conductor cross-section on this side. Add a margin — always size for the maximum foreseeable load, not the current load.

Cable sizing principle: In DC circuits, both the positive and negative conductors carry current and both contribute to resistance and voltage drop. Total cable resistance = positive cable resistance + negative cable resistance. Voltage drop = current × total resistance. For a 12 V system, a voltage drop of more than 0.5 V in the charging circuit represents a 3.5% loss in charging efficiency. Undersized cables cause heat generation and accelerate terminal corrosion.

Earthing strategy: The negative return path is often the most neglected aspect of vehicle electrical installations. For a dual battery system, the recommended approach is a dedicated negative cable from the auxiliary battery to the vehicle chassis at the same point where the starter battery earths, or a direct negative cable run back to the starter battery negative post. Relying on an unreliable chassis earth (corroded metalwork, painted body panels) introduces resistance that causes charging inefficiency, load voltage drop, and erratic VSR operation.

Termination quality is critical: all cable lugs must be correctly crimped (not just twisted and taped), connections must be free of corrosion and torqued to terminal specifications, and cables must be protected from abrasion by conduit or split loom where they pass through metal panels.

All work must comply with applicable vehicle electrical standards. Disconnect the vehicle battery before commencing work.

How to wire dual battery wiring diagram

Calculate total auxiliary load current List all devices to be powered from the auxiliary battery. Sum their current draws in amperes. Add a 25–30% margin for future loads and for motor startup currents (compressors, inverters). This total defines the minimum current rating of the output-side cable.
Calculate required cable cross-section for each run Measure the actual cable run length (positive + negative). Use a DC voltage drop table or formula (Vdrop = I × R, where R = (ρ × L) / A for copper at operating temperature). Target less than 0.5 V total drop on the charging input run and less than 0.5 V on the auxiliary output run. Select the next larger standard cable size (6 mm², 10 mm², 16 mm², 25 mm²) if the calculated size falls between standard sizes.
Select fuse ratings for each cable Size each fuse to the cable's current capacity — not the device at the other end. For example, a 10 mm² cable rated at 70 A continuous (typical) should be fused at 70 A or less on that cable run. The device at the far end provides its own protection. Do not oversize fuses — an oversized fuse cannot protect the cable.
Route cables away from heat and abrasion Route positive and negative cables together (to minimise inductive loop area), protected by split loom or PVC conduit. Avoid routing near exhaust systems, engine manifolds, and sharp metal edges. Secure cables at least every 300–500 mm with cable ties or p-clips to prevent chafing.
Install firewall penetrations with grommets Where cables pass through the firewall or any metal panel, install rubber grommets to protect cable insulation from abrasion against the sharp panel edge. Without grommets, cable insulation wears through over time from vibration, causing shorts.
Crimp all lugs correctly and torque all terminals Use a ratchet crimp tool (not pliers) to properly crimp all cable lugs. Ensure the lug size matches the cable cross-section. After crimping, tug-test each lug. Torque all terminal bolts to specification. Apply a dielectric or anti-corrosion compound to exposed terminal connections in marine or high-humidity environments.
Verify system operation after full installation Reconnect the vehicle battery. With engine running, measure voltage at the auxiliary battery — should be above 13 V and rising. Measure voltage drop across the full positive cable run at maximum charging current. Verify all auxiliary loads operate at full voltage. Check all fuses for warmth (warm = undersized; hot = fault).

Specifications

Recommended maximum voltage drop (charging circuit)	0.5 V or less at maximum charging current (positive + negative combined)
Fuse placement rule	Within 300 mm of each battery positive terminal
Cable securing interval	Every 300–500 mm with P-clips or cable ties
Minimum recommended cable type	Multi-strand, tinned copper, PVC-insulated DC cable (marine grade for exposed or humid environments)
Battery terminal torque (typical)	8–12 Nm (verify battery manufacturer specification)
Firewall penetration protection	Rubber grommet required at each panel penetration

Safety warnings

Disconnect the vehicle starter battery negative terminal before commencing any wiring work. This prevents accidental short circuits, sparks, and fire during installation.
Fuse every positive cable within 300 mm of the source battery terminal. An unfused cable between a battery and the fuse is an unprotected fire hazard — if the cable shorts in that section, no protection exists.
Do not use wire connectors, push-in connectors, or poorly crimped lugs on high-current connections. Poor-quality terminations are a leading cause of electrical fires in vehicle dual battery installations.
Lead-acid and AGM batteries emit explosive hydrogen gas during charging. Ensure the battery compartment is ventilated and avoid sparks near the battery.
Lithium (LiFePO4) batteries require a battery management system (BMS). Never use a lithium battery without an integrated or external BMS. A LiFePO4 battery with no BMS is a fire and explosion risk.

Tools needed

Ratchet cable lug crimping tool (correctly sized for cable cross-section)
Digital multimeter (DC voltage and continuity)
Clamp meter (for measuring actual current in cables during testing)
Torque wrench (for terminal bolt torque)
Wire strippers rated for cable cross-section
Drill and step drill bit (for cable entry holes and grommet installation)
Cable tie gun and cable ties
Tape measure and permanent marker (for cable length calculation and labelling)

Common mistakes

Using the same cable size for the positive and negative runs but sizing only to the charger's rated current — ignoring the full auxiliary load current that the negative cable must also carry.
Using a chassis earth instead of a dedicated negative cable, and then troubleshooting intermittent voltage drops and VSR misbehaviour that are caused by high-resistance chassis earth points.
Crimping lugs with pliers rather than a ratchet crimp tool — pliers crimps are mechanically weak and have higher resistance, and they fail over time from vibration.
Not using grommets through metal panels, allowing the cable insulation to abrade through over months of vibration — causing an intermittent short to chassis.
Sizing fuses to the device load rather than the cable rating, leaving a significant length of cable unprotected against short circuits.

Troubleshooting

Excessive voltage drop between starter battery and auxiliary battery during charging: Cause: Cable too small for current; poor termination (high resistance lug or corroded connection); chassis earth resistance Fix: Measure voltage at the starter battery positive terminal and at the auxiliary battery positive terminal simultaneously while the alternator is charging. The difference is the total voltage drop. Identify the highest resistance section by measuring across each cable segment. Reterminate or replace undersized sections.
Fuse blowing on auxiliary positive cable: Cause: Fuse undersized for actual load current; short circuit in auxiliary wiring; auxiliary load drawing excessive current Fix: Verify total auxiliary load current with a clamp meter. If it exceeds the fuse rating, the fuse is correctly rated but the load is too high for the cable — upgrade both cable and fuse. If load current is within rating, inspect the cable for a physical short circuit.
Terminal connections corroding rapidly in marine or humid environment: Cause: Dissimilar metals in contact, moisture ingress, no protective compound applied Fix: Use tinned copper cable and stainless steel terminal hardware. Apply dielectric grease or anti-corrosion spray to all exposed terminal connections. Cover terminals with protective boots or self-amalgamating tape where exposed to spray.

Frequently asked questions

How do I calculate the correct cable size for a dual battery installation?

Determine the maximum current the cable must carry. Calculate the total cable length (positive run + negative return). Use a voltage drop calculator or table: for a 12 V system, target less than 0.5 V drop at full current. Higher current or longer runs require a larger cross-section cable (e.g. 6 mm², 10 mm², 16 mm²).

Where exactly should I place the fuse on a dual battery positive cable?

Within 300 mm of the positive terminal of the battery the cable originates from. The fuse protects the cable — not the device at the far end. If the cable shorts anywhere along its length, the fuse must be close enough to the source to interrupt the fault before the cable overheats and ignites.

Should I use a chassis earth for the auxiliary battery negative or run a dedicated cable?

A dedicated negative cable run back to the starter battery negative terminal is the more reliable approach. Chassis earth points are subject to corrosion, paint contamination, and increased resistance over time. A dedicated cable ensures a known, low-resistance return path regardless of vehicle chassis condition.

Can I run the auxiliary positive and negative cables through the same conduit?

Yes, provided the insulation on both conductors is in good condition and adequately rated for the current. Ensure cables are not kinked or abraded inside the conduit. Where cables pass through metal panels or firewalls, use grommets to prevent insulation damage. Do not run DC power cables alongside vehicle CAN bus or sensitive signal wiring.

What is the correct terminal torque for battery lug connections?

Battery terminal post bolts typically specify 8–12 Nm torque (check the battery manufacturer's specification). Undertorqued connections have increased resistance, generate heat, and corrode rapidly. Overtorqued connections can crack battery terminal posts. Always use a torque wrench on battery terminals.
