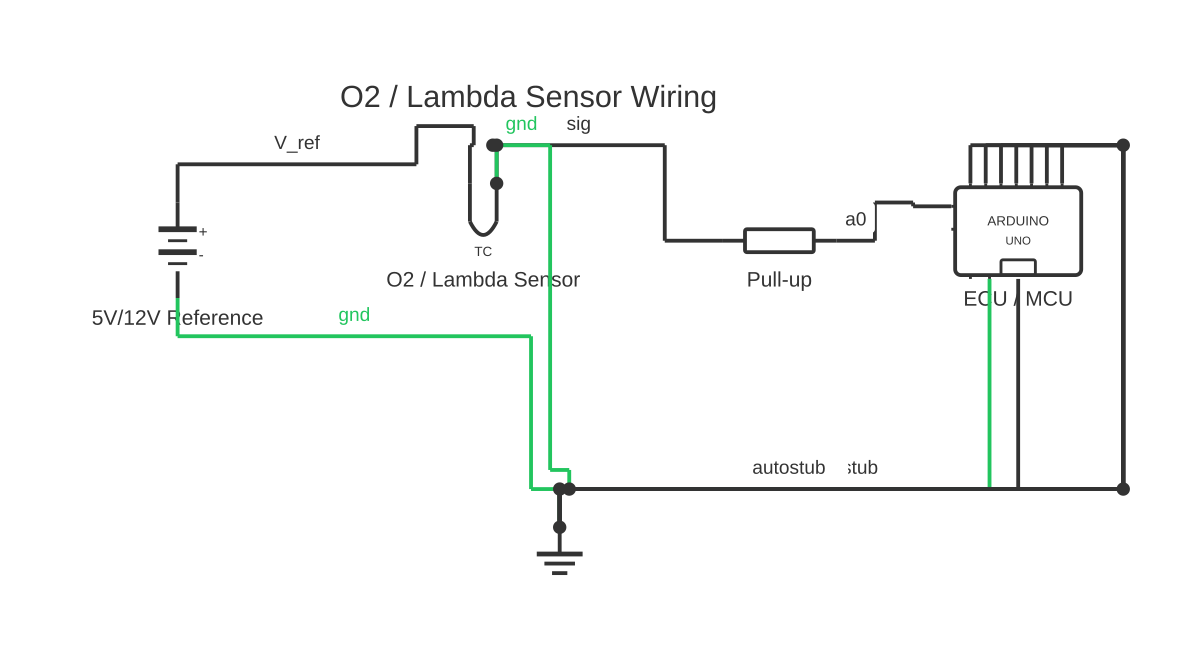

O2 Sensor Diagram: Narrowband Oxygen Sensor Signals and Circuit Wiring
This is a free printable o2 sensor diagram: download the diagram as SVG or open it and print to paper or PDF.
An O2 sensor diagram shows how a narrowband oxygen sensor's zirconia cell generates a 0.1–0.9 V switching signal and how the internal heater element is powered and grounded in 1, 2, 3, and 4-wire configurations.
The oxygen (O2) sensor in an automotive exhaust system is a galvanic cell. In its simplest form it uses a zirconia (zirconium dioxide) ceramic element that conducts oxygen ions when heated above approximately 300 °C. The inner surface of the element is exposed to atmospheric oxygen (reference), and the outer surface is exposed to the exhaust gas. The difference in oxygen partial pressure between the two sides generates a voltage following the Nernst equation.
In a rich exhaust mixture (excess fuel, very little oxygen), the output voltage is high — typically 0.7–0.9 V. In a lean exhaust mixture (excess oxygen), the output voltage is low — typically 0.1–0.2 V. The voltage does not change gradually across the stoichiometric point; rather, it switches rapidly between high and low as the engine management system oscillates the fuel delivery in a closed-loop feedback cycle around the stoichiometric air/fuel ratio (lambda = 1, approximately 14.7:1 by mass for petrol). This switching behaviour gives the narrowband O2 sensor its characteristic square-wave output observed on an oscilloscope.
Physical sensor configurations vary by the number of wires.
A 1-wire sensor has only the signal wire; it relies on the metal exhaust pipe or bung for ground return, and the ceramic element must be heated to operating temperature solely by the exhaust gas temperature, meaning it operates open-loop (no feedback) during cold start.
A 2-wire sensor adds a dedicated signal ground wire, improving ground quality but retaining exhaust-heated operation.
A 3-wire sensor adds an electric heater element (powered from a fused ignition-switched 12 V supply) to bring the ceramic to operating temperature within 20–30 seconds of cold start, enabling closed-loop feedback much earlier and reducing cold-start emissions.
A 4-wire sensor (the most common modern type) has both the heater supply and heater ground as separate wires, along with the signal and signal ground — four wires total.
How to wire o2 sensor diagram
- Identify the sensor wire count and connector pinout Consult the vehicle service manual or a vehicle-specific wiring diagram to identify whether the sensor is 1-, 2-, 3-, or 4-wire and to map each wire colour to its function (signal, signal ground, heater supply, heater ground). Wire colours are not standardised across manufacturers.
- Verify heater circuit supply and ground With a multimeter set to DC volts, backprobe the heater supply pin at the sensor connector with ignition on. Confirm battery voltage is present (approximately 12–14 V). Check continuity from the heater ground pin to chassis ground — it should be below 0.5 Ω.
- Measure heater element resistance Disconnect the sensor connector. Measure resistance between the two heater pins using a multimeter set to resistance. Compare to the specification in the service manual — typically 5–20 Ω at room temperature. An open circuit indicates heater failure.
- Observe the signal output with a multimeter or oscilloscope Reconnect the sensor. With the engine at operating temperature (closed-loop enabled), backprobe the signal wire with a multimeter on DC millivolt range. The voltage should switch between below 200 mV and above 700 mV repeatedly. Use an oscilloscope to observe the switching rate — typically 0.5–2 Hz. A flat or slowly moving signal indicates a lazy or failed sensor.
- Check for exhaust leaks near the sensor An exhaust leak upstream of the O2 sensor allows additional atmospheric oxygen to enter the exhaust stream, biasing the sensor toward lean. This can cause false lean codes and erroneous fuel trim corrections. Inspect the exhaust manifold, header gaskets, and sensor bung for leaks before condemning the sensor.
Specifications
| Sensor output voltage — rich (lambda < 1) | 0.7–0.9 V |
|---|---|
| Sensor output voltage — lean (lambda > 1) | 0.1–0.2 V |
| Stoichiometric air/fuel ratio (petrol) | 14.7:1 by mass |
| Minimum operating temperature of zirconia element | Approximately 300 °C |
| Heater resistance (typical, room temperature) | 5–20 Ω |
| Heater supply voltage | 12 V DC (ignition switched) |
| Sensor thread (common standard) | 18 mm × 1.5 mm pitch |
| Typical switching frequency (closed-loop, warm engine) | 0.5–2 Hz |
Safety warnings
- The exhaust system reaches extreme temperatures during operation. Allow the engine to cool completely before handling O2 sensors or working near exhaust components. Never touch exhaust manifolds, downpipes, or catalytic converters on a recently operated engine.
- Working with vehicle electrical systems: always disconnect the negative battery terminal before making or breaking electrical connections in the engine bay unless specifically instructed to take live readings for diagnostic purposes.
- Exhaust gases including carbon monoxide are toxic and odourless. Perform engine-running diagnostics only in a well-ventilated area or outdoors. Never run an engine in an enclosed garage without ventilation.
- Anti-seize compound must not contact the sensing tip or ceramic element of the O2 sensor. Contamination of the sensing tip will destroy sensor function and can cause erratic signal output.
Tools needed
- Digital multimeter (AC/DC volts, resistance, continuity)
- Oscilloscope or automotive scan tool with live data graphing
- 22 mm O2 sensor socket (slotted for pigtail clearance)
- Breaker bar and torque wrench
- Anti-seize compound (oxygen-sensor safe)
- Vehicle service manual with wiring diagram and sensor pinout
Common mistakes
- Applying anti-seize compound to the sensing tip of the sensor, contaminating the ceramic element and causing a false lean signal.
- Connecting the signal wire to a chassis ground point rather than the sensor's dedicated signal ground, introducing noise and offset into the ECU signal input.
- Testing sensor output with a high-impedance multimeter but not verifying actual switching — a 'good' reading at one moment does not confirm the sensor is switching correctly at operating temperature.
- Over-torquing the sensor into the bung, distorting the sensor body and potentially cracking the ceramic element.
- Replacing the sensor without investigating why it failed — a rich misfire, coolant entering the exhaust, or silicone-contaminated fuel can destroy a new sensor within a short time.
Troubleshooting
- O2 sensor signal is stuck at approximately 0.45 V and does not switch
- Cause: The sensor ceramic is contaminated (by silicone, coolant, or fuel additives), the sensor is not at operating temperature (heater failed), or the ECU is in open-loop mode. Fix: Confirm the sensor is at operating temperature by verifying heater circuit function. Check for heater continuity and supply voltage. If the heater is functional and the engine is at operating temperature, check for contamination sources (coolant leak into exhaust, silicone RTV use in intake system) before replacing the sensor.
- Sensor output is always below 0.2 V (lean indication)
- Cause: An exhaust leak upstream of the sensor is introducing ambient oxygen into the exhaust stream, or the engine has a genuine lean condition, or the sensor ground reference is floating. Fix: Inspect the exhaust system for leaks at manifold gaskets and sensor bungs. Verify signal ground continuity. Run fuel trim data on a scan tool — if short-term fuel trim is positive and high, the lean indication is real and not a sensor fault.
- Heater circuit draws no current and sensor is slow to reach operating temperature
- Cause: Open-circuit heater element, blown heater supply fuse, or open in the heater ground circuit. Fix: Measure heater element resistance (should be 5–20 Ω). Locate and check the heater fuse in the fuse box. Verify continuity of the heater ground wire to chassis. Replace the sensor if the element is open; repair the supply circuit if the fuse or wiring is at fault.
Frequently asked questions
What voltage does a narrowband O2 sensor produce?
A narrowband zirconia O2 sensor produces a voltage that swings between approximately 0.1 V (lean exhaust, excess oxygen) and approximately 0.8–0.9 V (rich exhaust, oxygen depleted). It does not produce a stable intermediate voltage across a range of mixtures — it switches rapidly between the two extremes as the engine control unit oscillates fuel delivery around stoichiometry.
What does a 4-wire O2 sensor wiring configuration include?
A 4-wire O2 sensor has four conductors: the signal output wire (voltage representing exhaust oxygen content), the signal ground wire (low-level reference ground for the ECU circuit), the heater supply wire (typically 12 V from a fused ignition-switched source), and the heater ground wire (returned to chassis ground or ECU heater ground). The heater and signal circuits are electrically isolated within the sensor.
Why does an O2 sensor need a heater element?
The zirconia ceramic element only conducts oxygen ions and generates a useful output signal above approximately 300 °C. In a vehicle at cold start, exhaust gas temperature is insufficient to heat the sensor quickly, and the engine operates open-loop (no lambda feedback) until sensor temperature is reached. A heater element brings the sensor to operating temperature in 20–30 seconds, enabling closed-loop operation and reducing cold-start emissions significantly.
How do I test an O2 sensor heater circuit?
Measure resistance across the heater terminals (pins) with the sensor disconnected from the vehicle harness. A good heater element typically reads between 5 Ω and 20 Ω at room temperature. An open circuit (infinite resistance) indicates a failed heater element. Also verify that the heater supply circuit provides battery voltage with ignition on and that the heater ground is continuous to chassis.
What is the difference between an upstream and downstream O2 sensor?
The upstream (pre-catalyst) O2 sensor is in the closed-loop feedback path — its signal directly controls fuel trim. The downstream (post-catalyst) sensor monitors catalyst efficiency by comparing its output signal activity to the upstream sensor's switching frequency. A healthy catalyst stores and releases oxygen, causing the downstream sensor to switch more slowly than the upstream sensor.
