Oxygen Sensor Wiring Diagram: Connector Pinouts, Heater Circuits, and Replacement Wiring

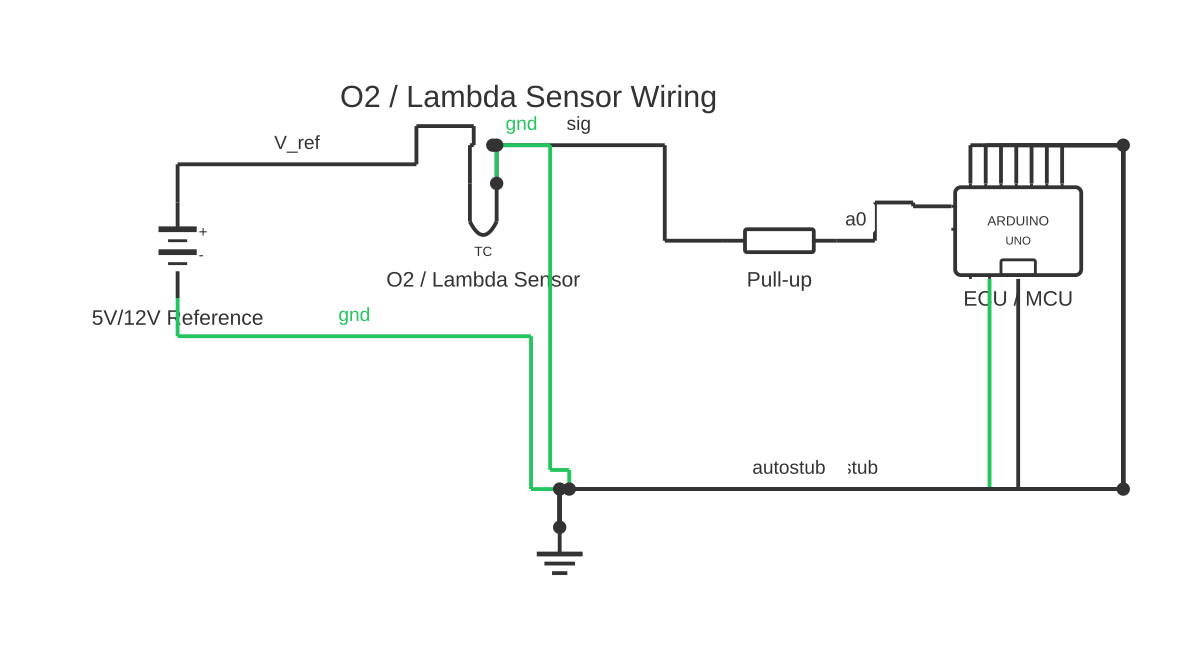

This is a free printable oxygen sensor wiring diagram: download the diagram as SVG or open it and print to paper or PDF.
An oxygen sensor wiring diagram maps the four conductors of a modern O2 sensor — signal output, signal ground, heater supply, and heater ground — to the vehicle harness connector for correct installation and diagnosis.
While the O2 sensor page covers the operating principle, this page focuses on the physical wiring harness — the practical task of identifying, connecting, and splicing sensor wires correctly during replacement or harness repair.
Modern 4-wire oxygen sensors have a standardised electrical function split across four conductors, but the colour coding of those conductors varies significantly between vehicle manufacturers and between OEM and aftermarket sensors. Consulting the vehicle-specific wiring diagram is therefore essential before making any connections.
The four wires serve two electrically isolated circuits within the sensor body. The signal circuit consists of the signal output wire and the signal ground wire. These carry very low voltages (0.1–0.9 V for narrowband sensors) and are connected to the ECU with high-impedance inputs. The signal ground must return to the ECU's dedicated sensor ground, not to the chassis or engine block, to avoid ground offset errors that shift sensor readings and cause incorrect fuel trims.
The heater circuit consists of the heater supply wire and the heater ground wire. These carry substantially higher current — the heater element typically draws 5–10 A during initial warm-up, dropping as the ceramic element heats and the heater's resistance rises. The heater supply is taken from a fused, ignition-switched 12 V source. On many modern vehicles the ECU controls the heater ground via a pulse-width-modulated (PWM) low-side driver, allowing the ECU to regulate heater temperature precisely by monitoring sensor output impedance.
When fitting an aftermarket sensor with a universal pigtail, the splice connection between the new sensor's pigtail and the vehicle harness must use waterproof butt connectors with heat-shrink adhesive lining, positioned away from the exhaust heat. Twisted-pair splice or open barrel crimp connections will fail from vibration and thermal cycling within weeks.
Even experienced technicians sometimes confuse the upstream (Bank 1, Sensor 1) and downstream (Bank 1, Sensor 2) sensors during replacement on V-configuration engines. On a V6 or V8 the bank numbering follows the cylinder with number 1, and each bank has its own upstream sensor. The vehicle-specific wiring diagram must be used to confirm which connector serves which sensor location.
How to wire oxygen sensor wiring diagram
- Obtain the vehicle-specific wiring diagram Locate the wiring diagram for the oxygen sensor circuit from the vehicle service manual or a reputable vehicle-specific source. Identify the connector view (looking into the sensor-side connector) and the wire colour and pin number for each function: signal output, signal ground, heater supply, and heater ground.
- Disconnect the old sensor and inspect the harness Disconnect the sensor harness connector. Inspect the wires at the connector for chafing, melted insulation from exhaust heat, corrosion in the connector terminals, or broken conductors. Repair any harness damage before fitting the new sensor.
- Remove the old sensor Use an 22 mm oxygen sensor socket (slotted type) and breaker bar. If the sensor is seized, apply penetrating fluid and allow it to soak before applying force. Heat from a propane torch applied carefully to the bung area (not the sensor body) can help release seized sensors. Do not use a standard socket or pliers, which will crush the wire pigtail.
- Prepare and install the new sensor Apply copper-based, high-temperature anti-seize compound to the sensor threads only — not to the tip or ceramic. Thread the sensor in by hand first to avoid cross-threading. Torque to specification (typically 40–55 N·m). Do not over-torque.
- Make the wiring connections If the replacement sensor has the correct OEM connector, simply plug it in. If using a universal sensor with a plain pigtail, match each wire by function to the vehicle harness using the wiring diagram and splice with waterproof butt connectors. Route the wire pigtail away from exhaust components and secure with existing harness clips.
- Verify connections before starting the engine Confirm the connector is fully seated and the locking tab engaged. Route the pigtail with at least 25 mm clearance from exhaust pipes. Reconnect the battery if it was disconnected. Clear any stored DTCs with a scan tool before testing.
- Test sensor operation after warm-up Allow the engine to reach full operating temperature. Use a scan tool or multimeter to observe the sensor signal switching between rich and lean (0.1–0.9 V for narrowband). Confirm heater monitor readiness status on the scan tool. Verify no O2 sensor DTCs are stored after a complete drive cycle.
Specifications
| Sensor output signal range (narrowband) | 0.1 V (lean) to 0.9 V (rich) |
|---|---|
| Heater element resistance (typical, cold) | 5–20 Ω |
| Heater supply voltage | 12 V DC (ignition switched or ECU controlled) |
| Heater current draw (initial warm-up) | 5–10 A (reduces as element heats) |
| Sensor thread size (common) | 18 mm × 1.5 mm pitch |
| Sensor installation torque (typical) | 40–55 N·m |
| Signal circuit impedance (ECU input) | High impedance (>1 MΩ) |
| Minimum ceramic operating temperature | Approximately 300 °C |
Safety warnings
- Allow the exhaust system to cool completely before removing or handling oxygen sensors. Exhaust manifolds and downpipes retain heat for a significant time after engine shutdown and can cause serious burns.
- Exhaust gases including carbon monoxide are toxic. If running the engine to verify sensor operation, do so only in a well-ventilated area or outdoors with the vehicle exhaust directed away from occupied spaces.
- The ECU's signal input circuit is sensitive to electrostatic discharge. Avoid touching the signal pins of the sensor connector. In cold or dry conditions, briefly touch a metal part of the vehicle to discharge static before handling the sensor connector.
- Anti-seize compound applied to the sensing tip or ceramic element of the sensor will contaminate it and cause an incorrect signal, potentially causing the ECU to run incorrect fuelling and damage the catalytic converter.
Tools needed
- 22 mm oxygen sensor socket (slotted type, for pigtail clearance)
- Breaker bar and torque wrench
- Digital multimeter
- OBD-II scan tool
- Crimping tool for heat-shrink butt connectors
- Heat gun
- Wire strippers (22–18 AWG range)
- Vehicle service manual or wiring diagram source
Common mistakes
- Using the wrong anti-seize compound (e.g., graphite-based or nickel-based compounds not suitable for the bung metallurgy), or applying it to the sensing tip rather than the threads only.
- Splicing the signal ground wire to chassis ground rather than returning it to the ECU sensor ground pin, causing offset errors in fuel trim.
- Routing the new pigtail too close to the exhaust pipe, resulting in melted insulation and an intermittent open circuit within a few thousand kilometres.
- Connecting sensor wires based on colour alone without verifying the function against a wiring diagram, resulting in swapped circuits.
- Failing to torque the sensor to specification — under-torqued sensors can vibrate loose, and over-torqued sensors can seize or crack the ceramic element.
Troubleshooting
- DTC P0135 or equivalent: O2 sensor heater circuit malfunction (Bank 1, Sensor 1)
- Cause: Open or high-resistance heater element, blown heater fuse, open heater ground, or ECU PWM driver fault. Fix: Measure heater element resistance (disconnect sensor, measure across heater pins — expect 5–20 Ω). Check the heater fuse. Verify 12 V supply at the heater supply pin with ignition on. Verify continuity of heater ground to ECU or chassis ground. If wiring is intact and fuse is good, the sensor heater element has failed — replace the sensor.
- DTC P0131 or equivalent: O2 sensor circuit low voltage (lean signal stuck)
- Cause: Signal wire shorted to ground or chassis, sensor contaminated, exhaust leak upstream of sensor, or genuine lean running condition. Fix: Inspect the signal wire for chafing to chassis. Check exhaust for leaks. Observe short-term fuel trim on scan tool — large positive values confirm lean condition. Inspect for vacuum leaks and MAF issues before replacing sensor.
- Sensor pigtail insulation melted after replacement
- Cause: Pigtail routed too close to exhaust components, or insufficient slack in the pigtail causing it to contact the exhaust pipe under engine movement. Fix: Re-route the pigtail with a minimum of 25 mm clearance from all exhaust components. Use high-temperature-rated cable protection sleeve over the pigtail in areas where clearance is limited. Secure with cable ties to the original harness routing clips.
Frequently asked questions
What colour wires does a typical 4-wire O2 sensor have?
Colour coding is not universal. A common convention used by several manufacturers uses white or grey for the heater supply, black for the heater ground, and the remaining two wires (often black/white or grey) for signal and signal ground. However, always verify against the vehicle-specific wiring diagram or the sensor manufacturer's pinout sheet, as conventions differ.
Can I connect the signal ground of an O2 sensor to chassis ground?
This is not recommended. The signal ground should return to the ECU's dedicated sensor ground circuit. Connecting it to the chassis or engine block introduces ground offset voltage from high-current return paths (starter motor, alternator) into the sensor signal circuit, causing measurement errors and erroneous fuel trim corrections.
What happens if I swap the heater supply and heater ground wires?
If both heater wires are swapped, the heater will still function because the element is a resistor with no polarity. However, if the vehicle uses PWM on the heater ground side, connecting the supply wire to the PWM output and the ground wire to the constant 12 V supply will invert the duty cycle control, causing incorrect heater regulation and possible heater overtemperature.
How do I splice a universal O2 sensor pigtail to the vehicle harness?
Use waterproof, heat-shrink adhesive-lined butt connectors for each wire pair. Strip 10 mm of insulation from both the harness wire and the new sensor pigtail wire. Insert both ends into the butt connector from opposite ends and crimp firmly. Apply heat to shrink the outer sleeve, which also activates the adhesive to seal against moisture. Never use open-barrel connectors or electrical tape alone in an underbonnet exhaust environment.
My replacement O2 sensor connector does not match the vehicle harness. What should I do?
Use a universal O2 sensor with a plain pigtail (no connector) and splice to the original harness wires using the vehicle wiring diagram to match each function. Alternatively, source an OEM-style sensor with the correct connector for the vehicle. Do not force incompatible connectors together or use adapters not rated for the current and environment.
